ZEON 10 Winch
ZEON 10 Winch
ZEON 10 Winch

ZEON 10 Winch

Regular price$ 1,397.99

Choose your way to conquer the terrain.

The ZEON 10 is a 12-volt electric winch, with a 10,000 pounds pull capacity.

Don't let the good looks fool you. The ZEON 10 winch is tough enough to tackle anything you will, with a look that is advanced, capable and strong.

We've packed the ZEON 10 winch with all the performance features off-roaders said they needed most. From a heat-dissipating brake down to an incredibly smooth planetary gear train, this winch is ready to hit the trail.

The 10,000 Pound pulling capacity, combined with a fast line speed make this winch the perfect choice for Jeep and SUV trail rigs.

Muck-busting sealing keeps out everything but the good times.

Add a hyper-durable cast-aluminum housing, satin-black finish, and 10,000 Pound single-line pulling capacity and, well, you've got a workhorse unit you can trust for years to come.

It comes in two winch cable material options:

  • Steel, with 80 feet of steel rope and a roller fairlead.
  • Synthetic, with 100 feet of synthetic rope.


*This Winch will require winch mount for proper installation.
* This product requires a compatible bumper or mounting plate to be properly mounted to your vehicle.

  • 10,000 Pound (4536 Kilogram) Single-Line Pulling Capacity.
  • Convertible Control Pack Can Be Attached To The Winch Or Remotely Mounted, Allowing For Various Winch Mounting Options And Looks.
  • New-Design Planetary Gear Train And Series-Wound Motor Deliver Fast, Quiet, And Reliable Pulling Power.
  • Satin-Black Powder-Coated Finish With Stainless Steel Fasteners And Clutch Lever Looks Great And Inhibits Corrosion.
  • Improved Winch Sealing To Keep The Elements Out.
  • Large Diameter Winch Drum Reduces Rope Wear, Is Light Weight, And Has An Integrated Rope Anchor For Easy Rope Installation.
  • The Steel rope option includes 80 Foot Of 3/8 Inch Galvanized Steel Wire Rope.
  • The Synthetic rope option includes 100 Foot Of 3/8 Inch Warn Spydura Synthetic Rope. Includes A Temperature-Resistant Sleeve On The First Layer, A Ballistic Nylon Sliding Sleeve And A Polished Aluminum Hawse Fairlead.

  • Type: Electric
  • Mount Type: Vehicle Mounted
  • Recommended Use: Vehicle Recovery
  • Voltage: 12 Volt
  • Electrical Control Type: Contactors
  • Motor Type: Series Wound
  • Thermal Shutoff: No
  • Drive Gear Type: Planetary
  • Gear Reduction Ratio: 216:1
  • Free Spooling: Yes
  • Brake Type: Mechanical Cone
  • Line Diameter (IN): 3/8 Inch
  • Line Length (FT): 80 Feet for the Steel rope option  / 100 Feet for the Synthetic rope option
  • Line Material: Steel for the Steel rope option / Synthetic for the Synthetic rope option
  • Fairlead Type: Roller for the Steel rope option / Hawse for the Synthetic rope option
  • Conforms To J706 Standards: No
  • Remote Type: Handheld Remote Switch
  • Mounting Hole Quantity: 4
  • Operation Type: Automatic
  • Mounting Pattern Length (IN): 10 Inch
  • Mounting Pattern Width (IN): 4-1/2 Inch
  • Includes Mounting Hardware: No
  • Color: Black

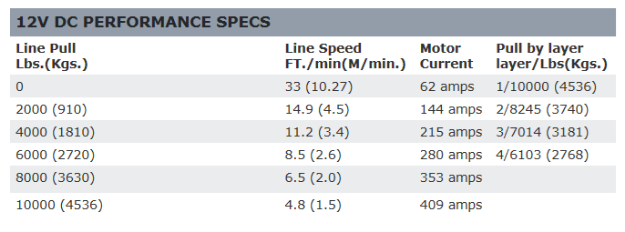

  • Max Amp Draw/ Line Pull: 409 Amp Draw/ 10000 Pound
  • Max Line Pull/ Line Speed: 10000 Pound/ 4.8 Feet Per Minute

Limited Lifetime Warranty for Mechanical Components. Limited Seven (7) year warranty for Electrical Components.
