Introducing the SS5 CrossLink Lightbar! Using our patent-pending CrossLink technology, this kit links seven SS5 LED pods together into a single lightbar. Featuring the highest output intensity of any 5-inch LED pod on the market, the LED pods included in this kit have been designed for maximum functionality, with patented technology and custom-engineered TIR optics, all in a durable package.
Focused. Selectable Backlight. CrossLink. Functional Patterns : Driving-Combo. White or Yellow. Interchangeable Lens. Sport or Pro. Simple connections. Snap-on covers. Proven Reliability. Experience.

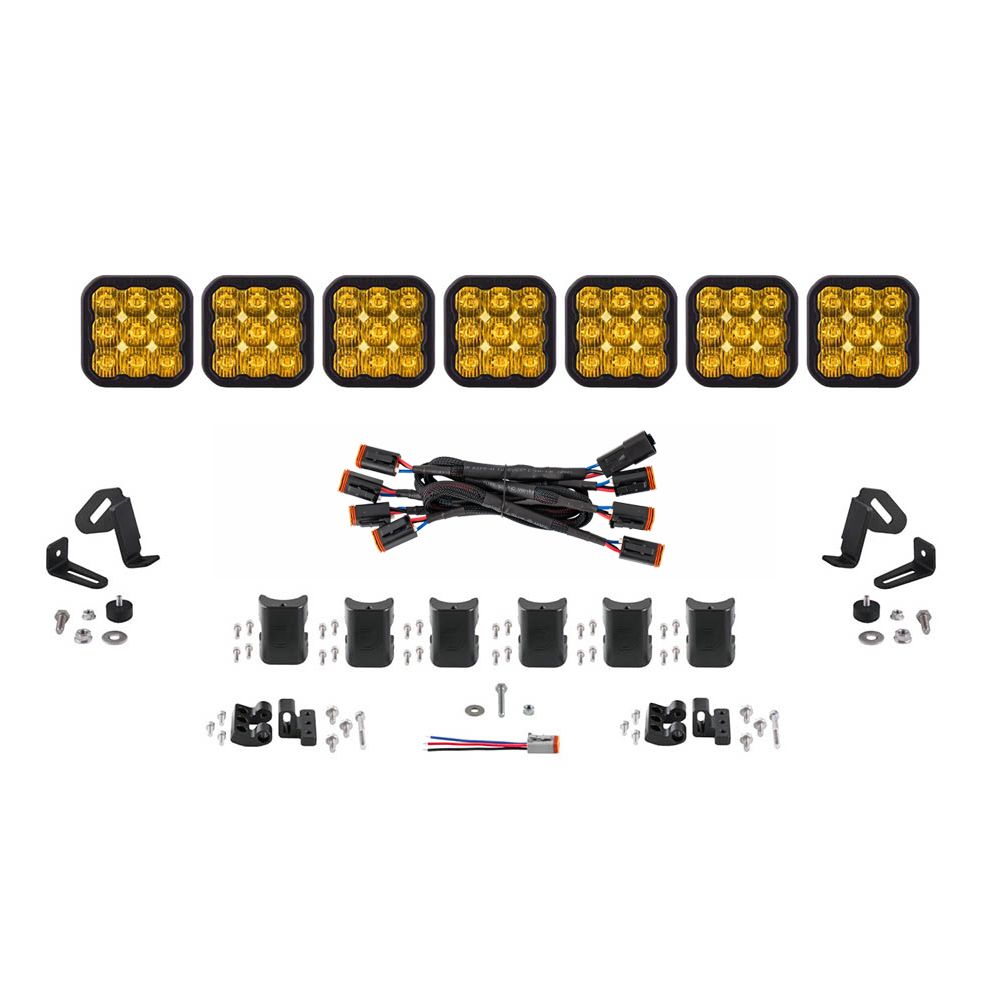

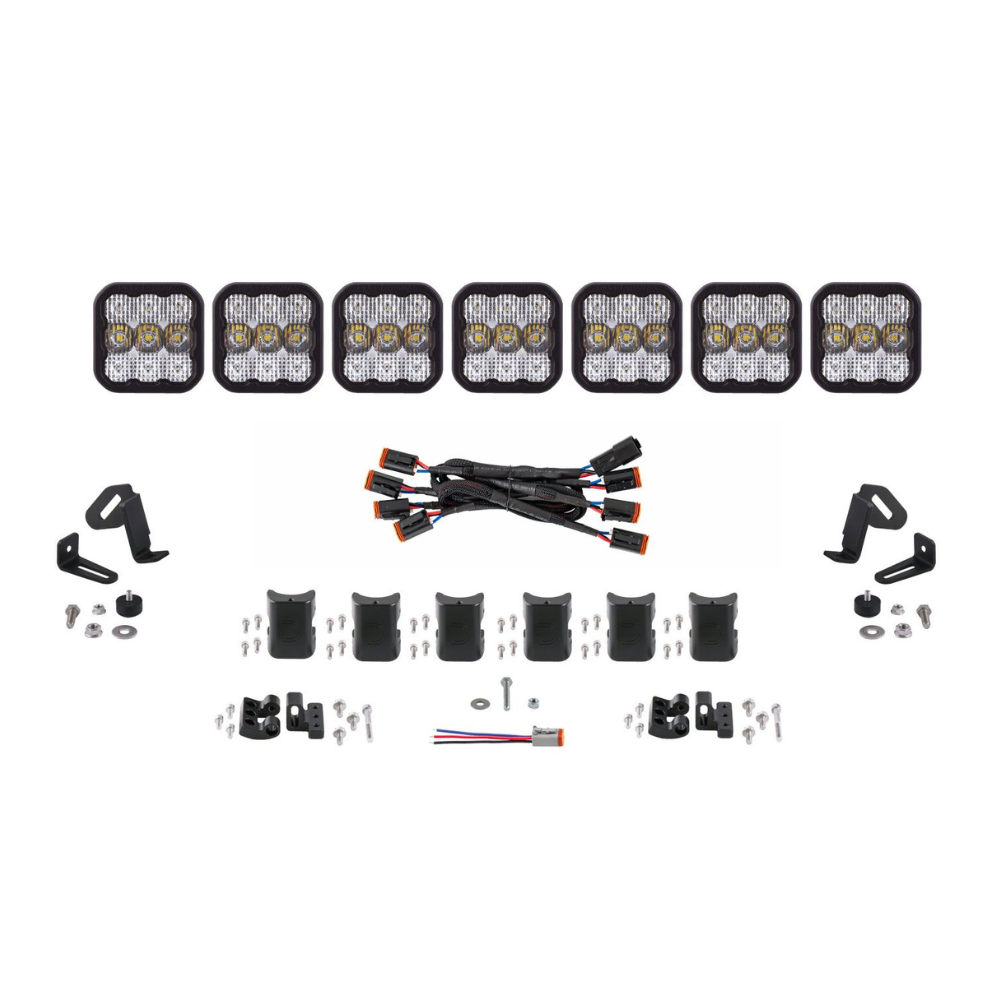

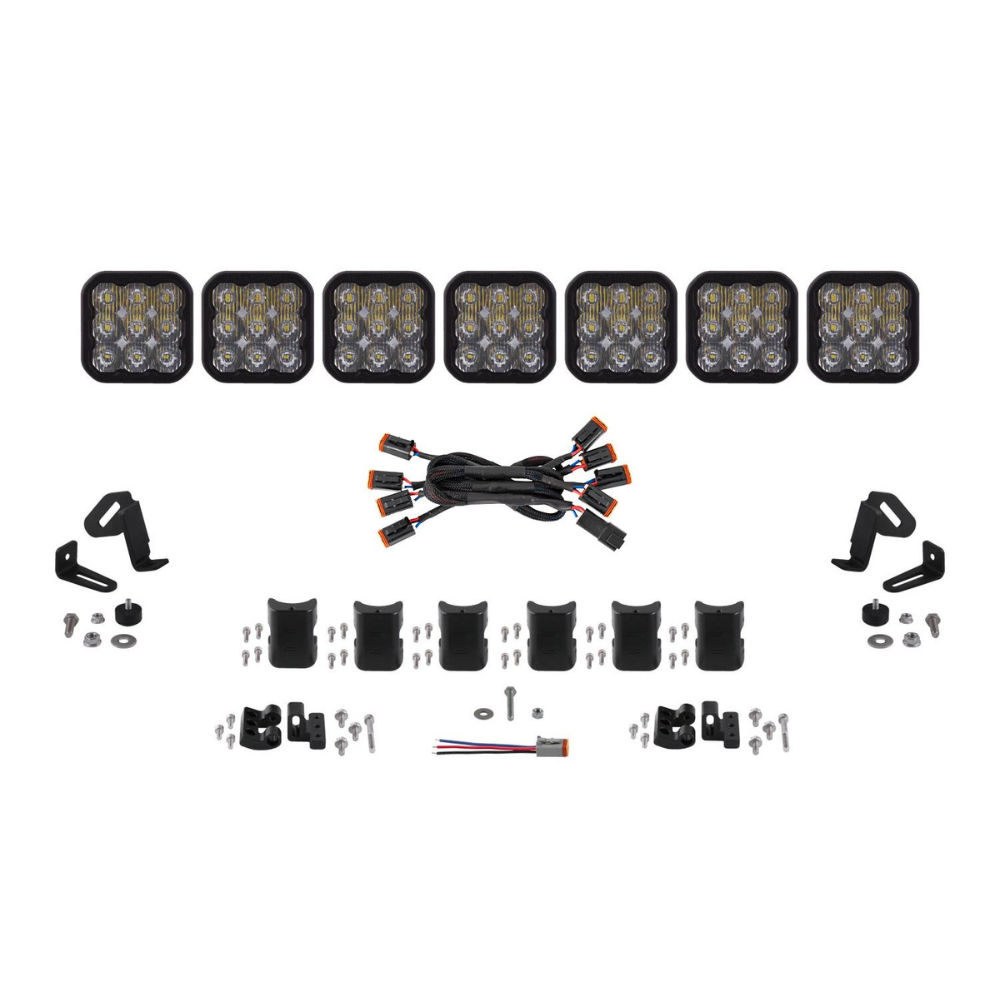

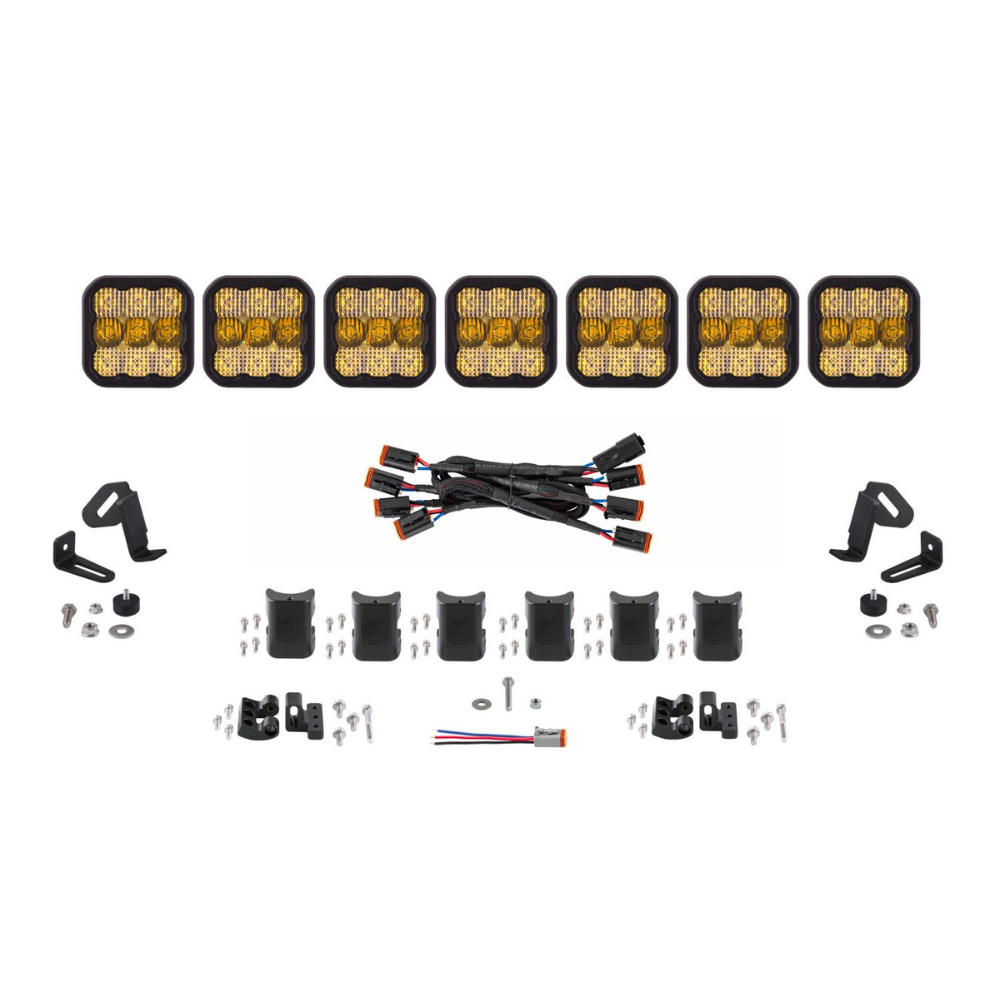

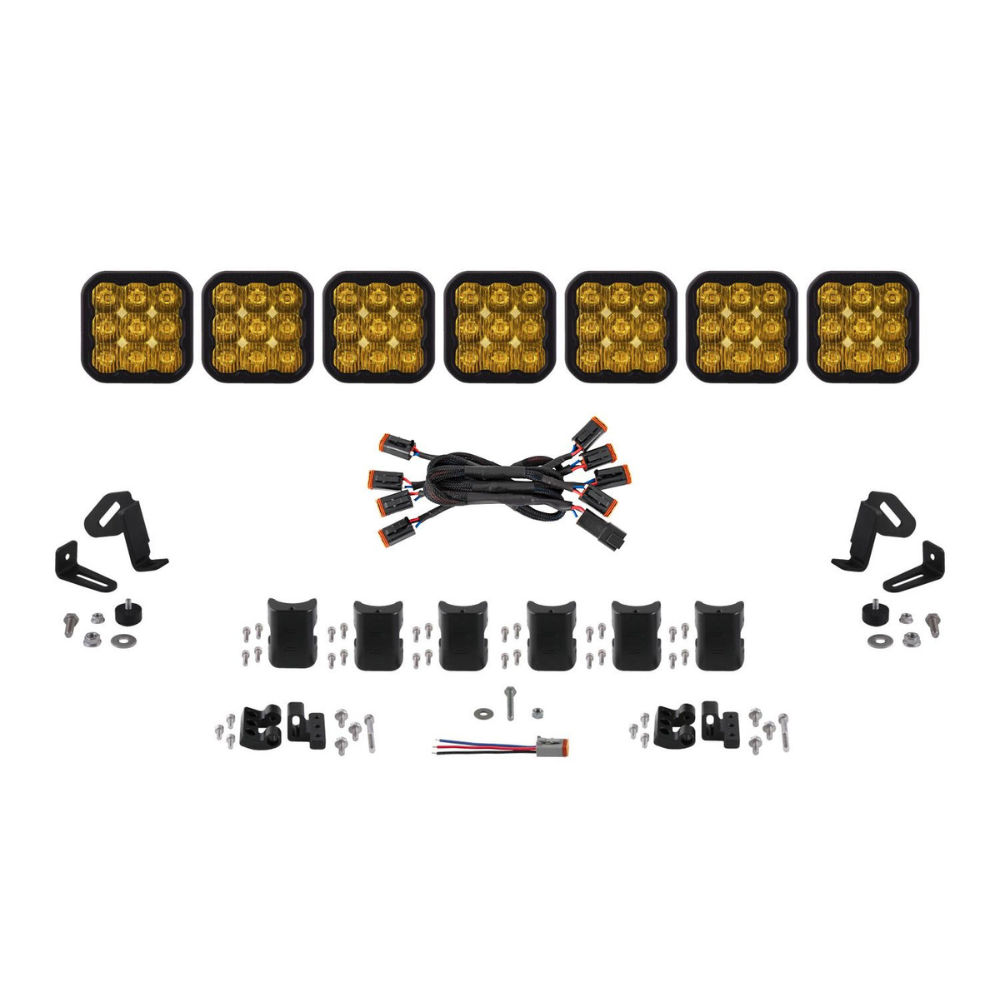

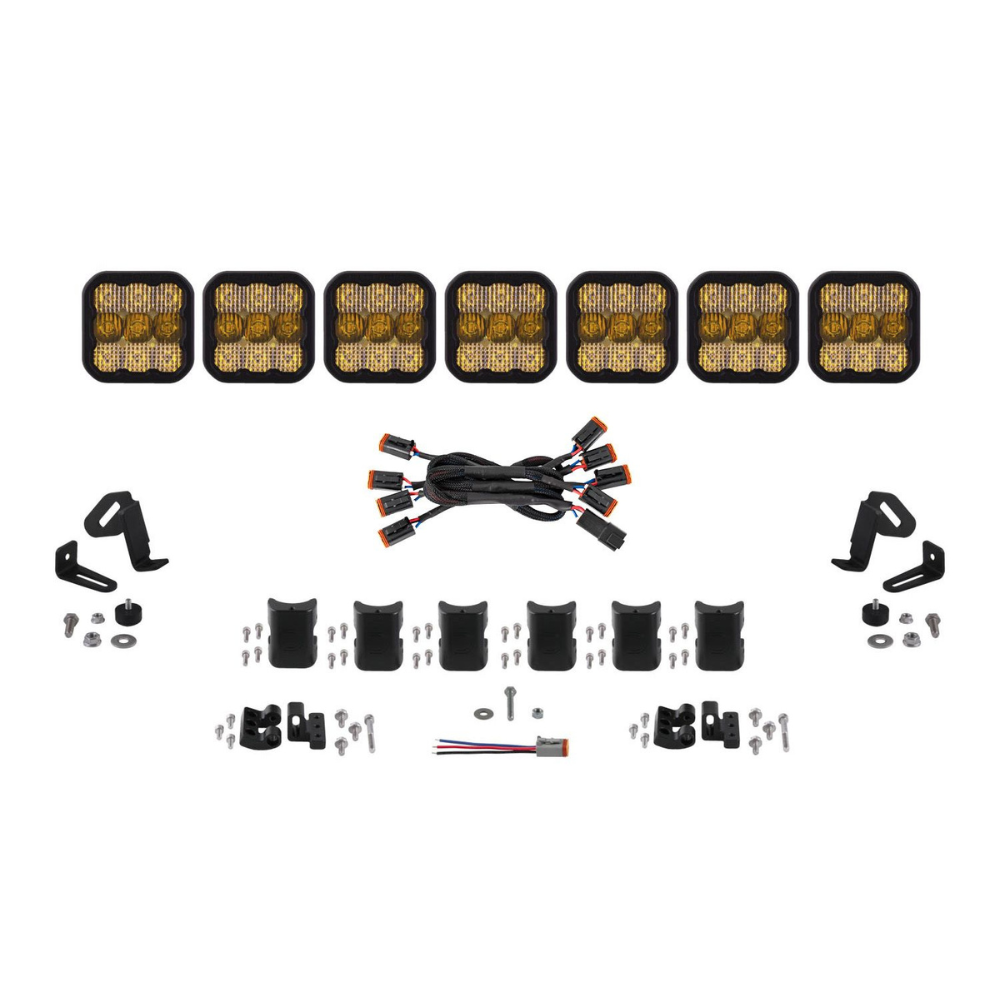

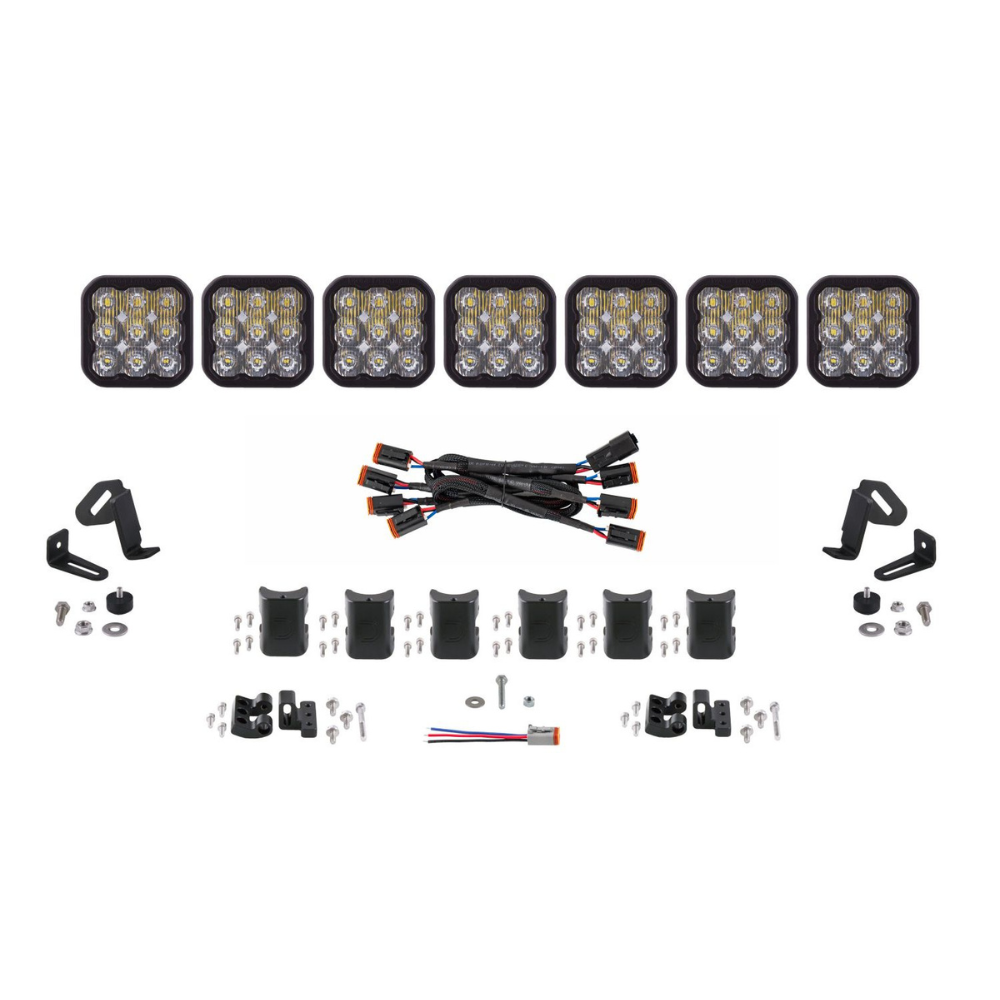

Included:
✔ Seven (7) Stage Series 5” LED Pods
✔ Six (6) CrossLinks with hardware
✔Two (2) CrossLink supports with hardware
✔ One (1) CrossLink endmount kit
✔ One (1) DT 7-Pod connecting harness
✔ One (1) Deutsch-style wire pigtail
Seven-pod 44-inch linked lightbar.
Engineered TIR (total internal reflection) optics.
Selectable backlight color, with eight color options.
Torture-tested, heavy-duty construction.
Ultra-high intensity: shines almost mile away.
Assembled in USA.
Main Beam Power (watts): Sport: 40, Pro: 90
Backlight Power (watts): White: 3.17, Yellow: 3.07
Main Beam Current (amps @ 12.8V): Sport White: 2.75, Sport Yellow: 2.8, Pro: 6
Backlight Current (amps @ 12.8V): White: 0.25, Yellow: 0.24
Color Temp (CCT): 3000K, 6000K
Operating Voltage: 9-16V
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Luxeon Z ES, Cree XP-L HI
Connector(s): Deutsch DT Input
Driver Features: Constant Current
Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
Cooling: Passive, Pin-Fin heatsink
Intrusion Ratings: IP69K Waterproof, High Pressure
➜ Lifetime-Limited Warranty
➜ 30-day Return with no restocking fee
➜ 100% Satisfaction Guarantee
