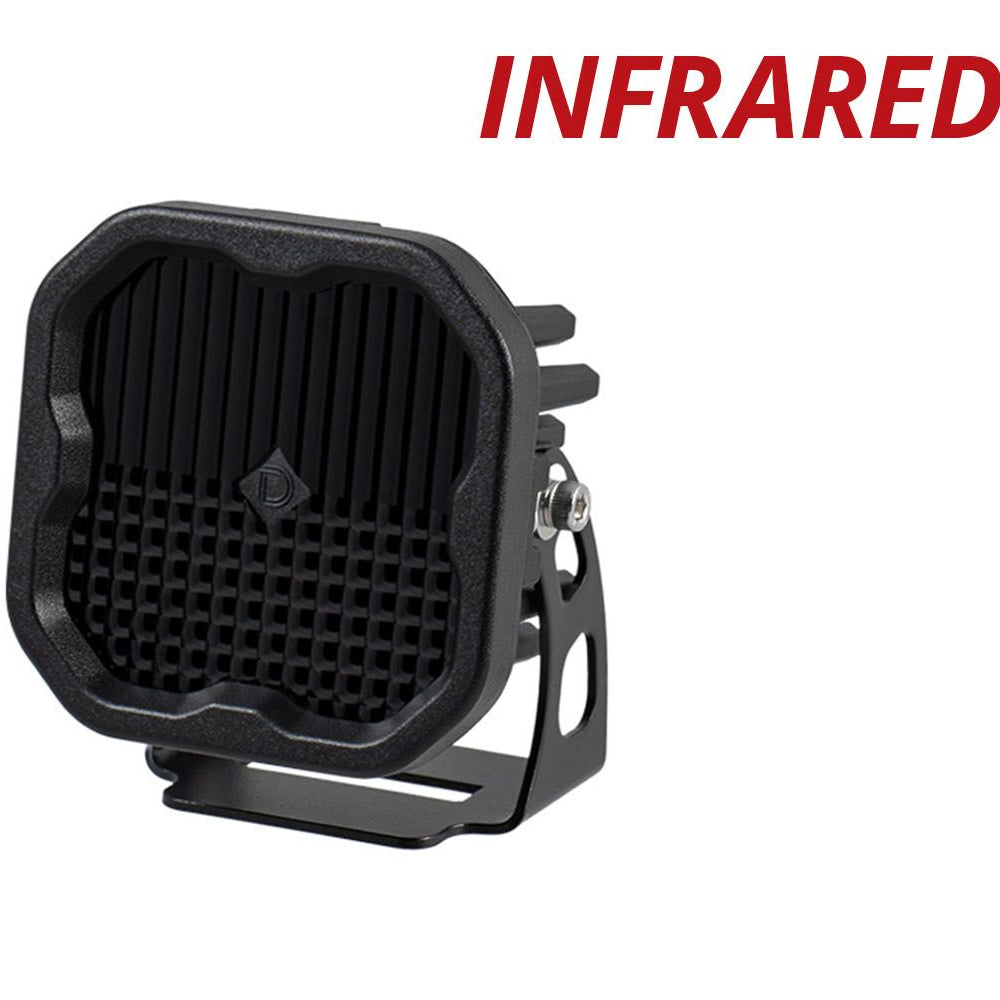

SS3 Infrared LED Pod (one)
Menu
-
Exterior
-
Interior
-
Lighting
-
Performance
-
Merch
Description
Add purpose-built infrared illumination to your night vision setup with the Diode Dynamics SS3 IR LED Pod. Its Combo beam balances width and distance for forward illumination, with selectable high and low output to suit the scene ahead.
850nm or 940nm infrared illumination for compatible night vision equipment.
Sport or Pro power level with a Combo beam for width and distance.
High and low IR modes with PWM and variable-voltage dimming.

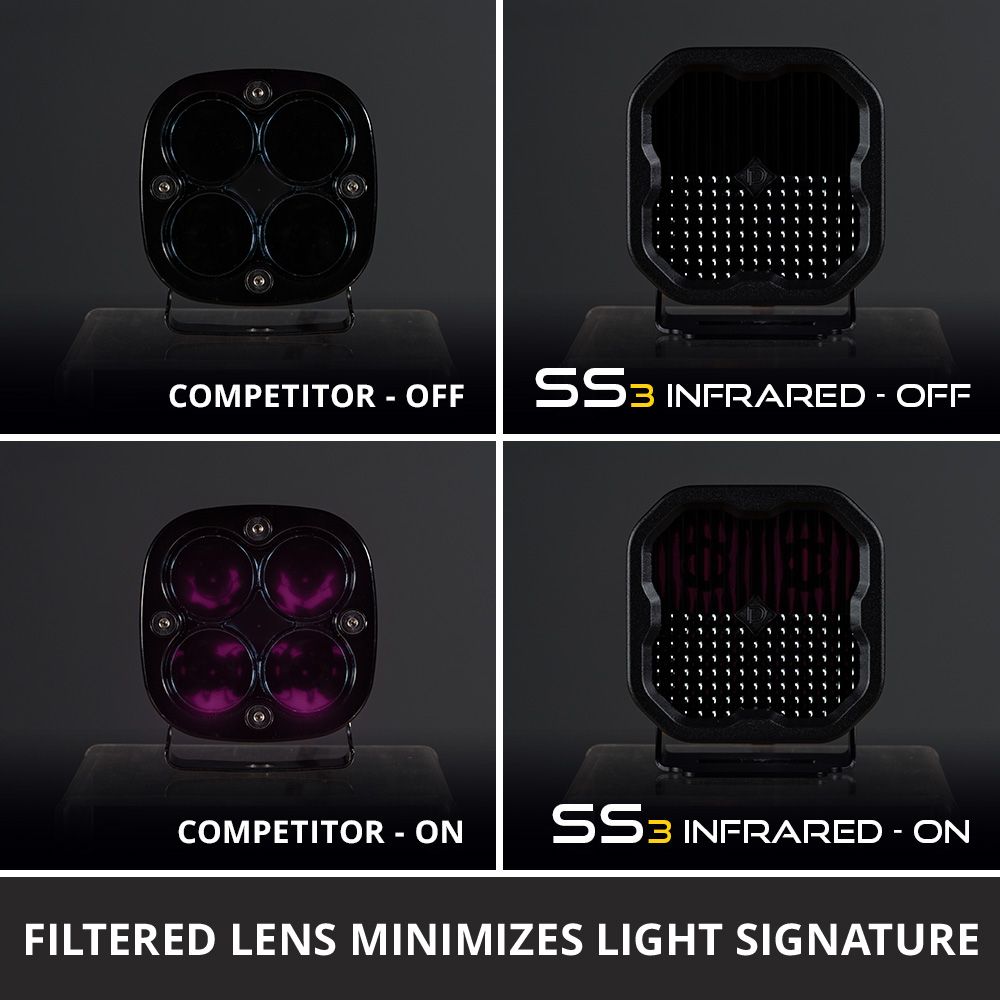

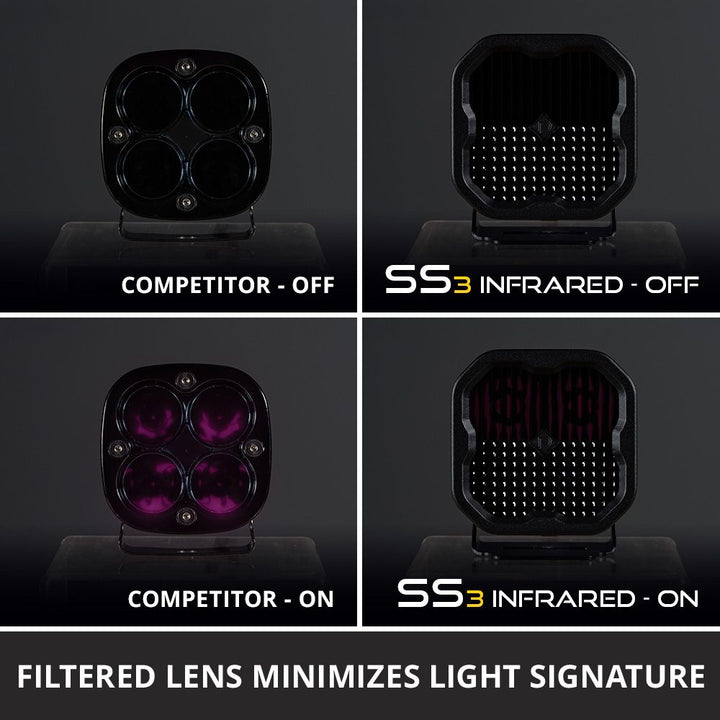

OSRAM IR emitters and an IR-filtering lens to reduce visible signature.

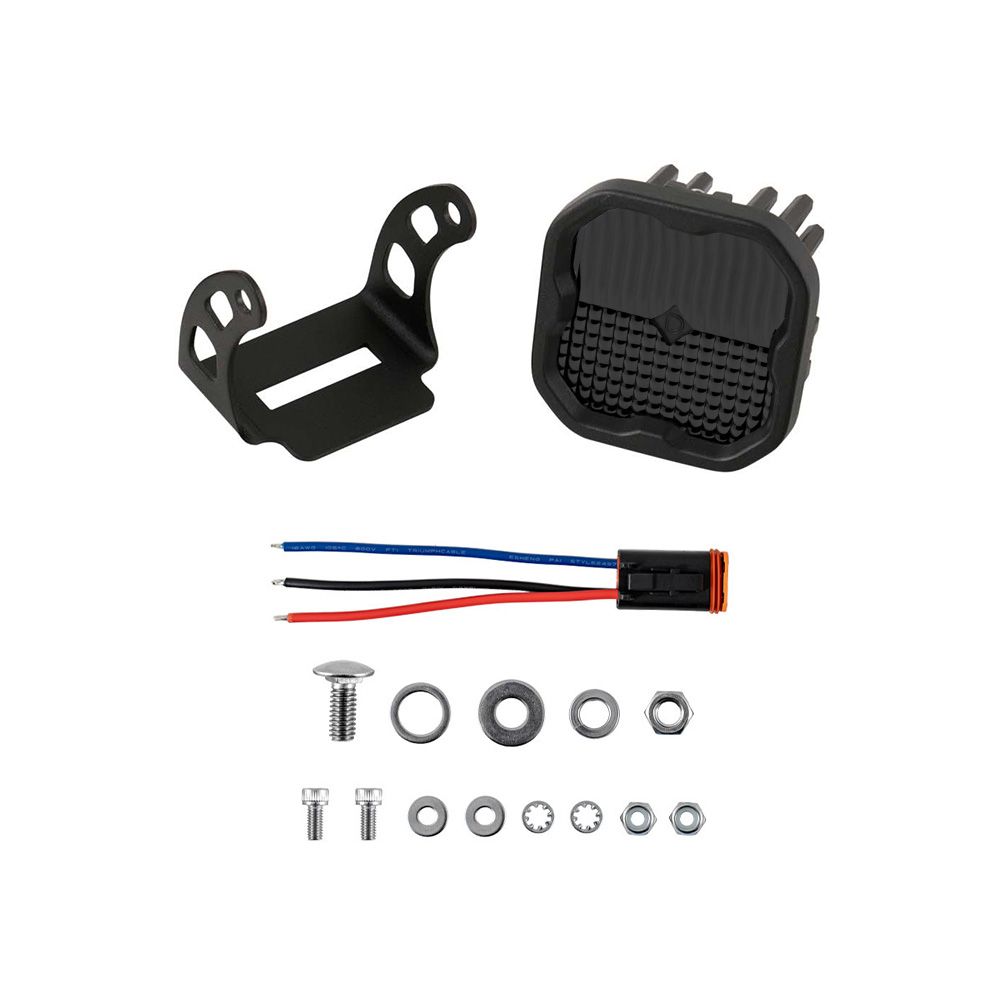

Included:
✔ 1x SS3 infrared LED pod
✔ 1x mounting bracket and hardware
Features
Purpose-Built Infrared. OSRAM infrared emitters and an IR-filtering lens deliver illumination for compatible night vision equipment. Unlike a visible-light SS3, both output modes are infrared: high for primary illumination and low when less output is needed.

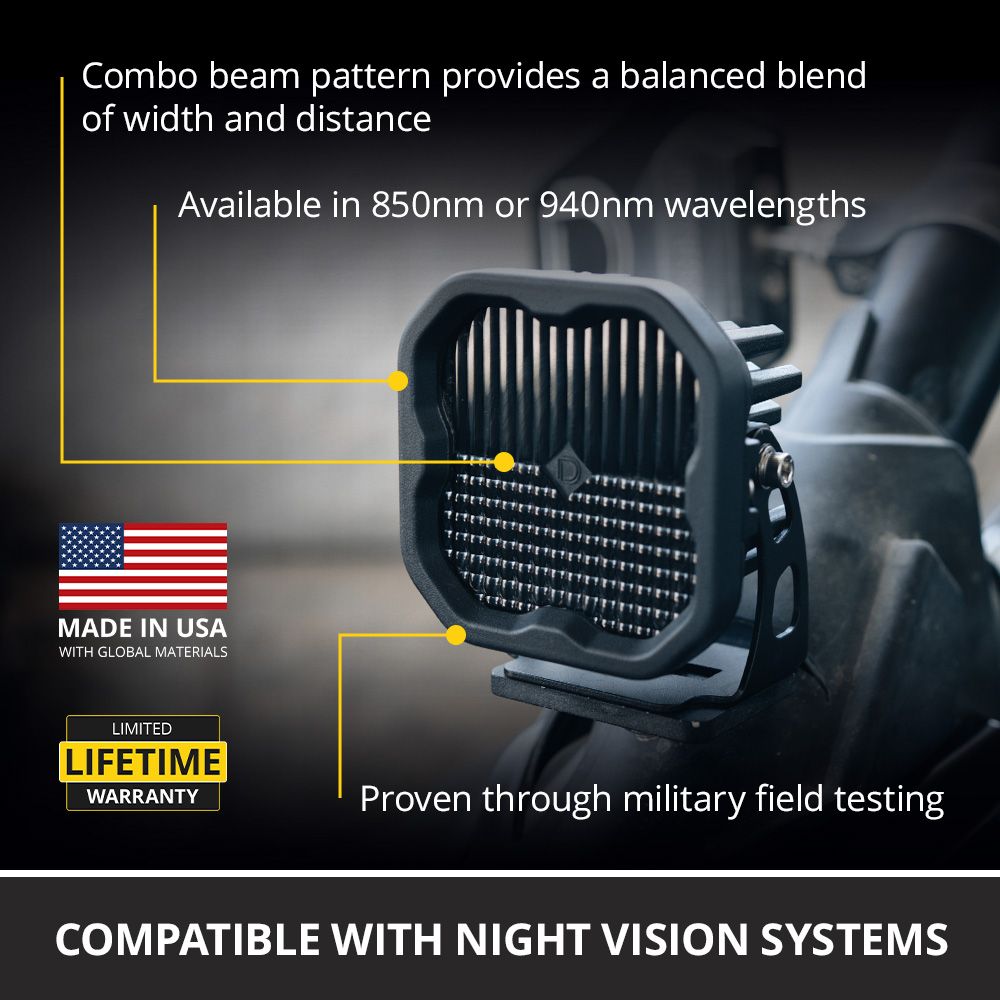

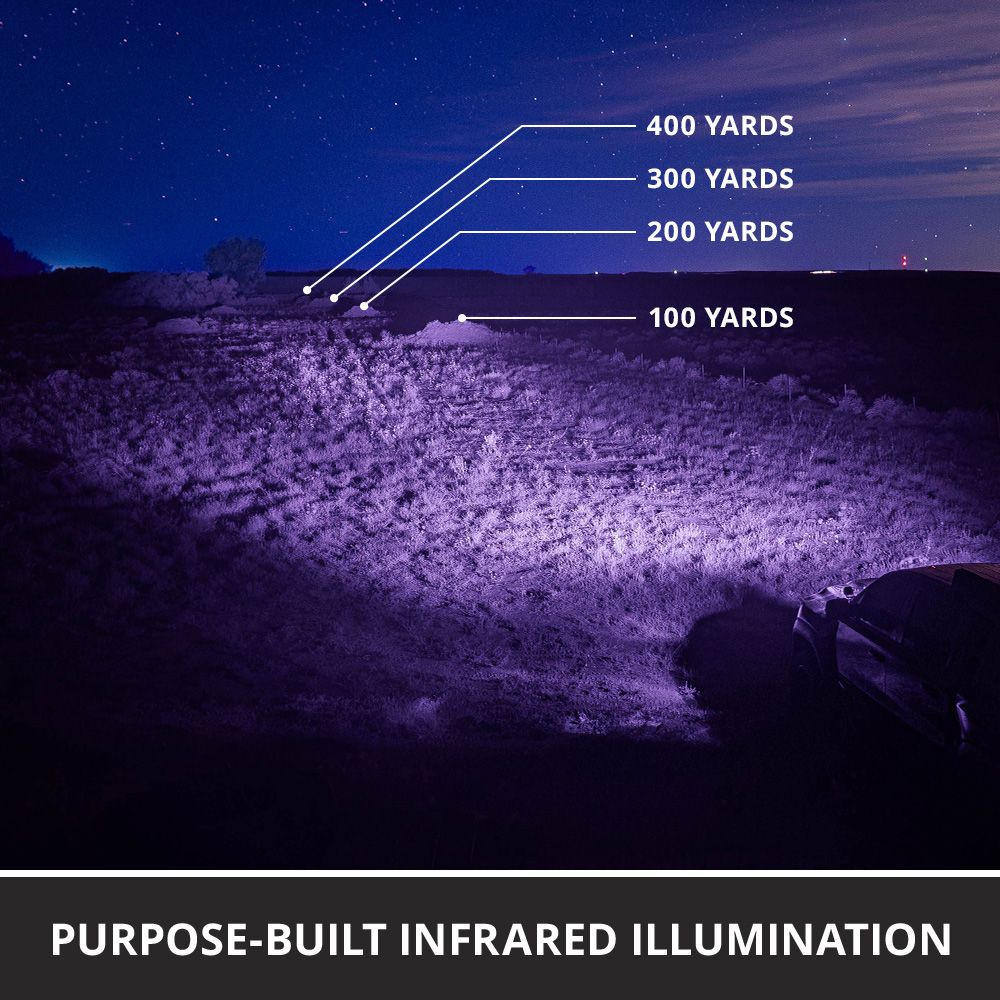

Balanced Coverage. The Combo pattern provides a blend of forward reach and lateral coverage. It is a practical choice for primary vehicle-mounted IR illumination without choosing a dedicated Spot or Flood pattern.
Sport and Pro. Choose Sport or Pro to suit the output requirements of your setup. Each power level retains selectable high and low IR modes.
Controlled Output. High and low IR modes provide control over illumination as the surroundings change. PWM and variable-voltage dimming allow further adjustment, helping you match the output to your equipment and the scene rather than relying on maximum output at all times.
Choose Your Wavelength. 850nm produces a more noticeable faint red glow at the emitter, while 940nm offers a lower visible signature. Night vision devices respond differently to each wavelength, so select the wavelength supported by your equipment rather than choosing by wavelength alone.
Built for Your Setup. The light operates on 9-16V systems and uses a Deutsch DT 4-Pin connection. One pod supplied in this package. The red wire controls high IR output, and the blue wire controls low IR output.
Proven Reliability. Developed through military field testing, this purpose-built IR lighting platform brings proven application experience to your night vision setup. Made in USA with Global Materials.
Infrared Safety. Infrared output may not be visible to the naked eye. Do not look directly into an operating infrared light.
Experience. For more than 20 years, Diode Dynamics has developed high-performance lighting solutions for automotive enthusiasts, beginning in the rally community where dependable lighting is essential. Today, our products are engineered, tested, and assembled by our team in the United States, giving us direct control over performance, quality, and reliability. From a dedicated night vision setup to a versatile auxiliary lighting system, you can count on Diode Dynamics for purpose-built lighting.
Made in USA with Global Materials.
Specs
Operating Voltage: 9-16V
Polarity: Polarity Specific Operating
Temperature: -40C to 85C (-40F to 185F) LED
Emitter: OSRAM IR
Connector(s): Deutsch DT
Input Materials: Sabic Lexan 121R IR Filter Cooling: Passive, Pin-Fin heatsink Intrusion Ratings: IP69K Waterproof, High Pressure Product

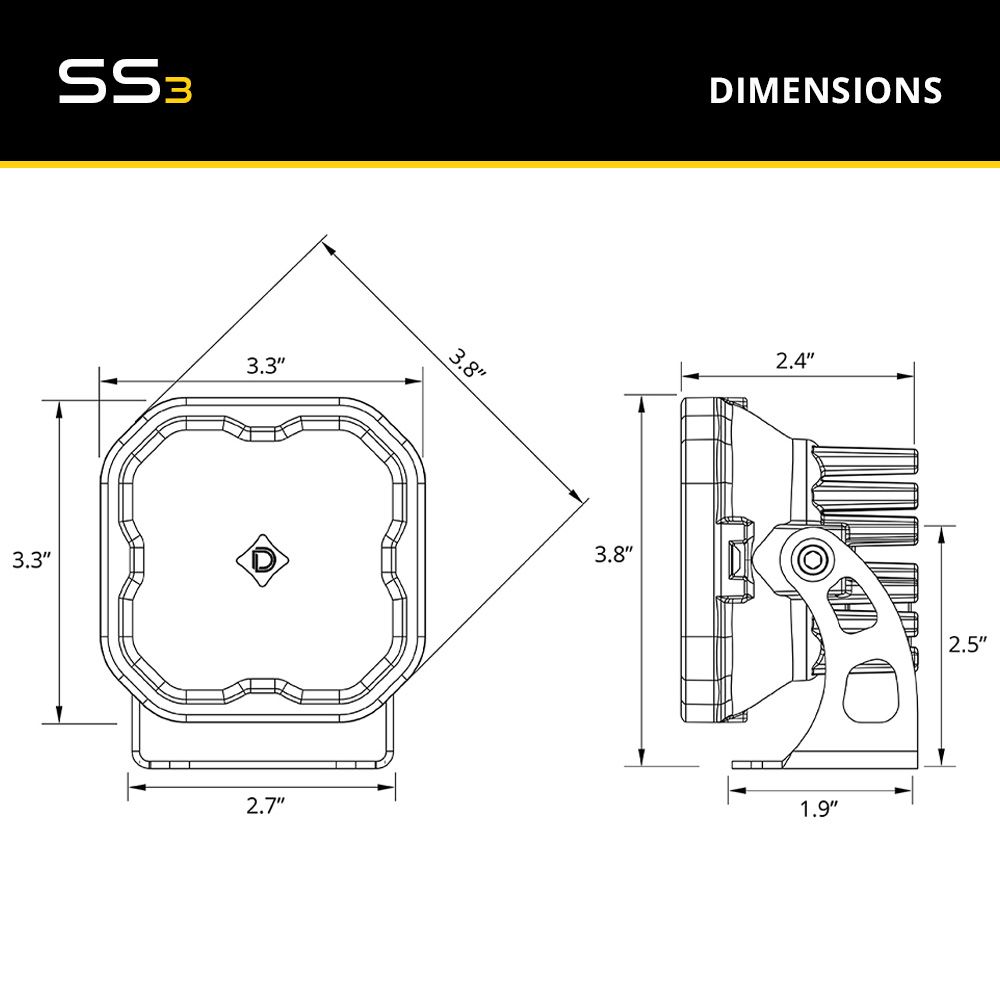

Dimensions (in): 3.3 x 3.3 x 2.4 Product Weight (lb): 1.4
NOTE: Specifications listed here are for each individual light. High and low values refer to the infrared operating modes.
Warranty
➜ Limited-Lifetime-Warranty
Disclaimer
➜ Return Policy: 30-day Return with no restocking fee.
