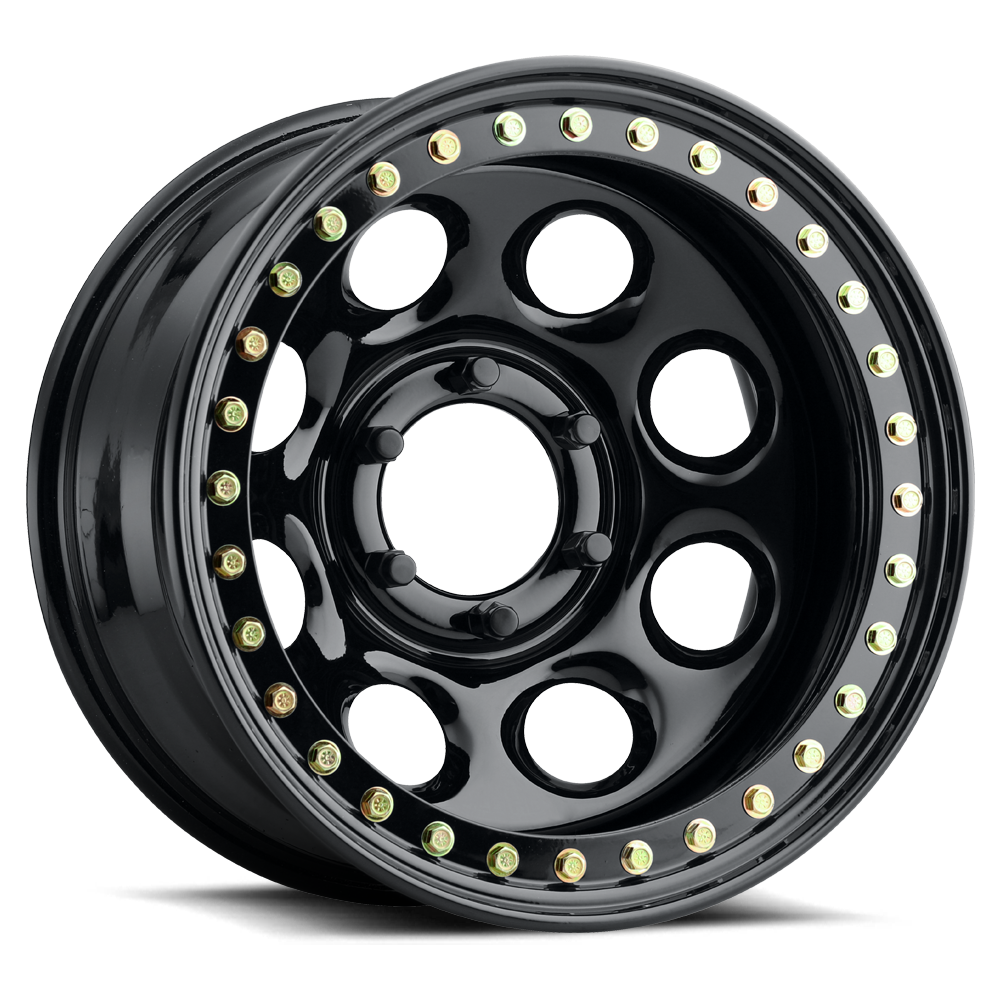

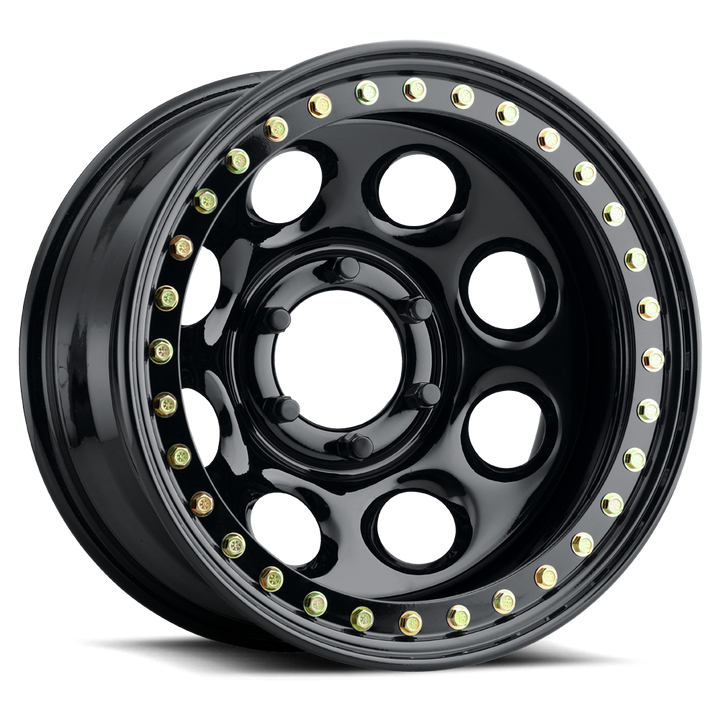

The RT81 Rock 8 steel beadlock was one of the first purpose built off-road beadlock ever made.
Designed for anything you can throw at it and 100% USA built! Raceline, the leader in wheel performance, design and durability!
• Classic 8 hole mod window embossed design for added strength and durability
• Wheel and ring constructed out of heavy-duty USA made carbon steel
• Engineered to be one of the strongest wheels available.
• US made grade 8 zinc beadlock hardware with hardened steel PEM-nuts that along with captive washers can be replaced as needed...no more stripped wheels that are deemed worthless. Another industry best that are standard issue.
• The Official Wheel of NORRA, MidAmerica Outdoors, Norcal Rock Racing, Southern Rock Racing Series, and Nor Cal Rock Racing to name a few.
Please Note: BEADLOCK WHEELS ARE FOR OFF-ROAD USE ONLY & ARE NOT DOT APPROVED FOR HIGHWAY USE.

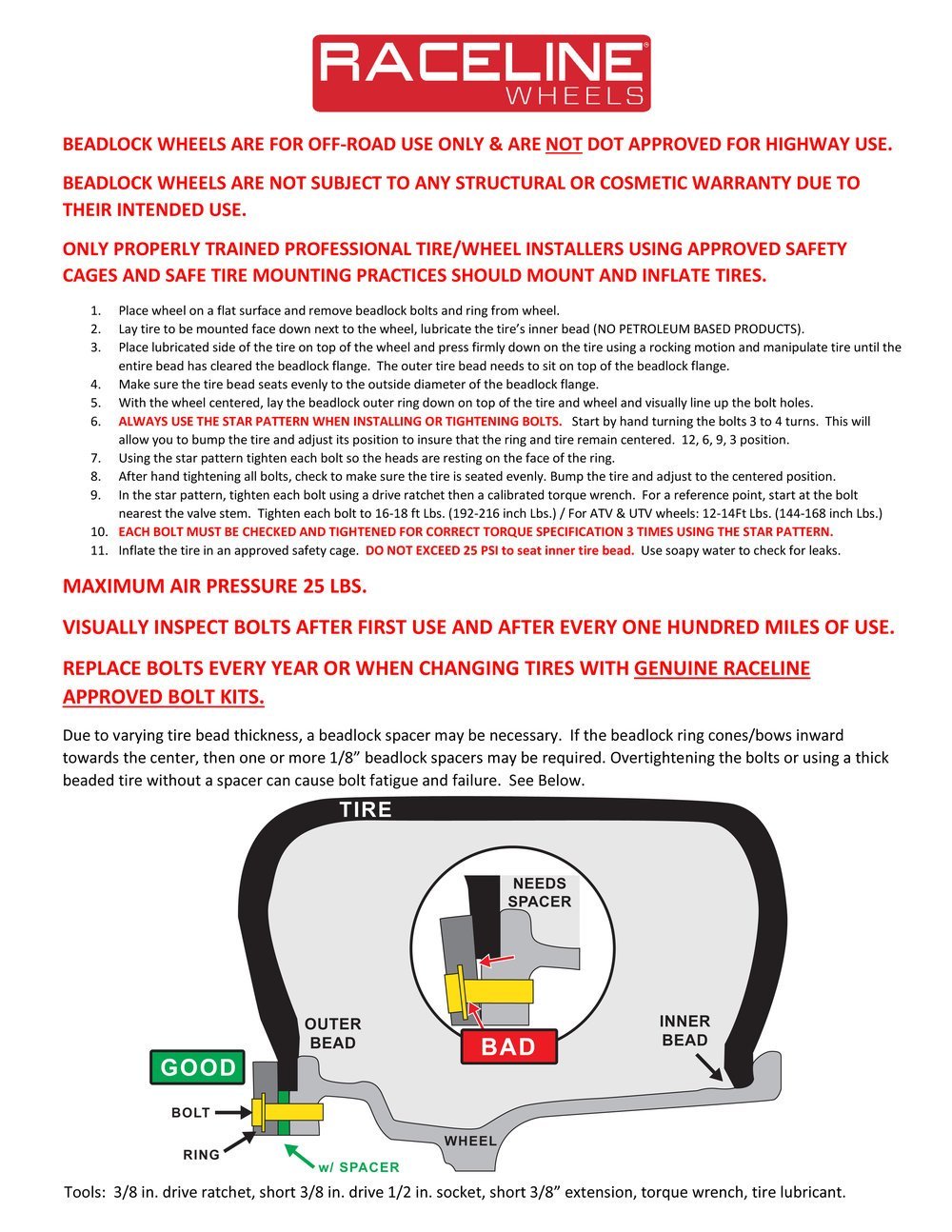

Installation Guide:
Patent pending.
• Steel Beadlock Bolts = 1.25" length
• Available in both 15”, 16” and 17” diameters in a number of different widths.
Proudly made in the USA.
➜ 15X7 | 5X4.5 | 3.75
Item Number: RT8158012
Size: 15X7
BOLT PATTERN (mm): 5X4.5
Back Space: 3.75
Hub Bore: 83.82
Weight: 39
➜ 15X8 | 6X5.5 | 3.75
Item Number: RT8158060
Size: 15X8
BOLT PATTERN (mm): 6X5.5
Back space (inches): 3.75
Hub Bore: 107.95
Weight: 34
➜ 15X10 | 5x4.5 | 3.75
Item Number: RT5150012
Size: 15X10
BOLT PATTERN (mm): 5x4.5
Back space (inches): 3.75
Hub Bore: 83.82
Weight: 39
➜ 15X10 | 6X5.5 | 3.75
Item Number: RT5150060
Size: 15X10
BOLT PATTERN (mm): 6X5.5
Back space (inches): 3.75
Hub Bore: 107.95
Weight: 39
➜ 16X8 | 5X4.5 | 3.75
Item Number: RT8168012
Size: 16X8
BOLT PATTERN (mm): 5X4.5
Back space (inches): 3.75
Hub Bore: 83.82
Weight: 43
➜ 16X8 | 6X5.5 | 3.75
Item Number: RT8168060
Size: 16X8
BOLT PATTERN (mm): 6X5.5
Back space (inches): 3.75
Hub Bore: 107.95
Weight: 43
➜ 17X8 | 5X4.5 | 3.5
Item Number: RT8178012
Size: 17X8
BOLT PATTERN (mm): 5X4.5
Back space (inches): 3.5
Hub Bore: 83.82
Weight: 46
➜ 17X8 | 6X5.5 | 3.5
Item Number: RT8178060
Size: 17X8
BOLT PATTERN (mm): 6X5.5
Back space (inches): 3.5
Hub Bore: 107.95
Weight: 46
➜ 17X9.5 | 5X4.5 | 3.5
Item Number: RT8179512
Size: 17X9.5
BOLT PATTERN (mm): 5X4.5
Back space (inches): 3.5
Hub Bore: 83.82
Weight: 52
➜ 17X9.5 | 6X5.5 | 3.5
Item Number: RT8179560
Size: 17X9.5
BOLT PATTERN (mm): 5X4.5
Back space (inches): 3.5
Hub Bore: 107.95
Weight: 52
➜ Lifetime-Structural Warranty: Raceline Wheels (Raceline) Limited Warranty covers the original purchaser of Raceline steel wheels from structural defects in material and workmanship under normal and intended use for the life of the product.
➜ 1-Year-Limited Warranty: Raceline warrants aluminum alloy wheels to be free from defects in material, finish and workmanship for a period of one (1) year from the original retail purchase date. Wheels are warranted to be free from structural defects, under normal and intended use, for as long as the original purchaser owns the product. The aluminum lifetime structural warranty and finish warranty excludes all truck beadlock wheels as well as all UTV wheels (beadlock and non-beadlock).
➜ 90-Days-Limited Warranty: The warranty period for steel wheel coatings, including paint, chrome plating or any other finishes, is ninety (90) days from the date of original retail purchase. The steel wheel structural and finish warranty excludes all truck beadlock wheels.
Refund policy: All products that were purchased from an Authorized Raceline Dealer must be returned to the original place of purchase.
Wheels must be returned in their original packaging. Credit will not be issued for damaged products returned as a result of non-compliance.
Claims for error or shortage of products, must be reported within five days. Any wheels that show signs of being mounted on tires or used, will not be subject to return for credit.
Return policy: Wheels must be returned within 30 days of the issuance of the RMA. Returns will be refused and returned freight collect if received without a proper RMA number visible on the outside of each package. No returns will be accepted on new merchandise after 60 days of original invoice date. All returns may be subject to a 20% restocking fee for any non-defective products. We will not accept returns on any Closeouts or Special-Order products such as Raceline Billet, Raceline Forged or custom-colored wheels. The cost of the return shipping is to be prepaid by customer. Return shipping and any handling fees are non-refundable.
