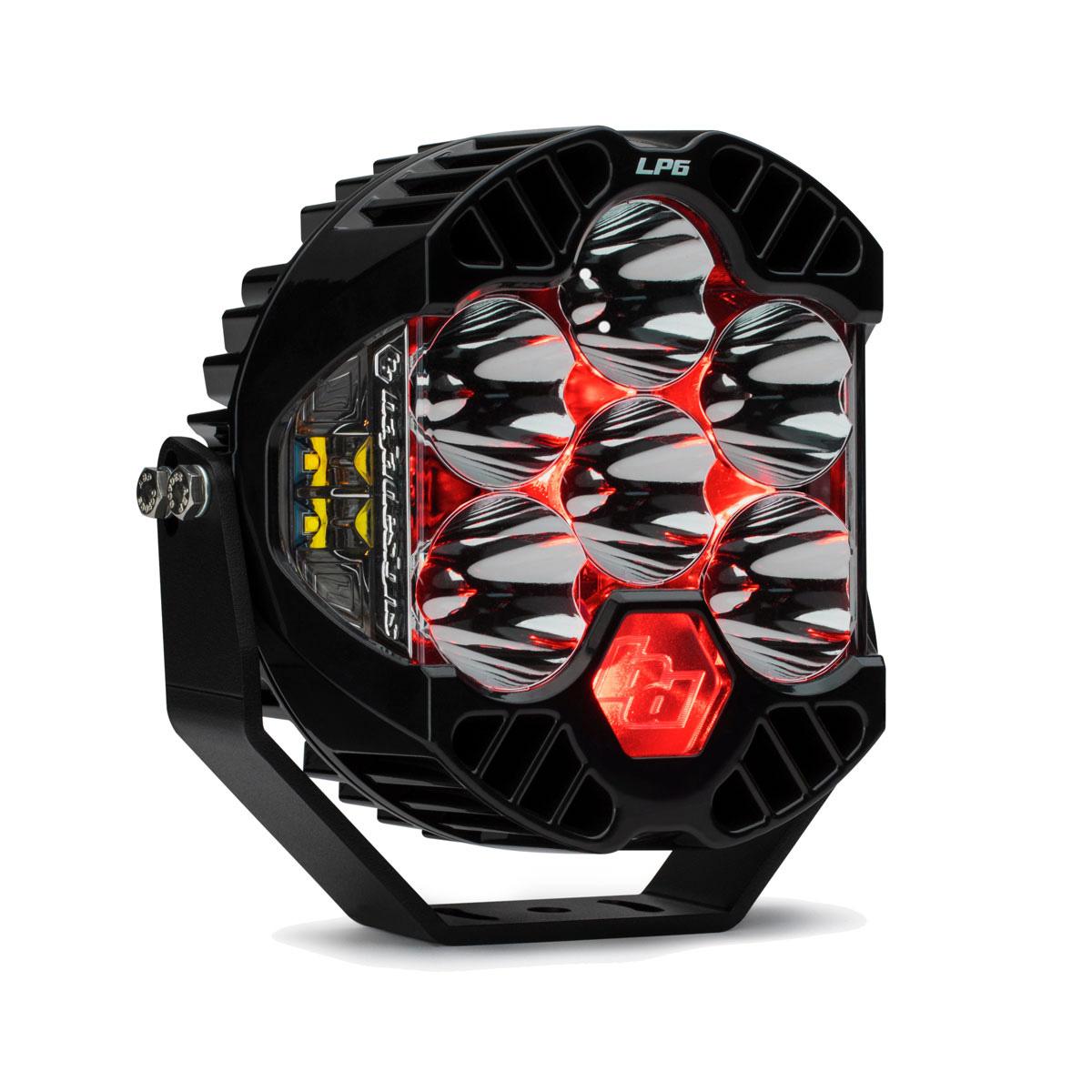

The LP6 Pro stands as a 6-inch powerhouse, delivering a total of 11,225 lumens and a 200-degree spread of usable LED light through our dedicated Integrated Peripheral Technology (IPT). For optimal performance, the LP6 integrates Direct Ducted Cooling (DDC) technology, allowing efficient air circulation over the rear heat sinks. Featuring colored daytime running light, low power, and high-power modes, the LP6 effortlessly caters to all your lighting needs.
Available in various patterns, the LP6 Pro suits diverse preferences. The Driving/Combo pattern offers maximum trail coverage with a blend of driving (42 degrees) and spot (8 degrees) optics for both near-field and distance applications. The Spot pattern, with its longer and narrower 8-degree beam focus, illuminates further down the trail or road, ideal for use with additional wide cornering or driving/combo auxiliary lights in Lighting Zones 4 & 5.
With additional red, blue, or green backlight options alongside the original amber, the LP6 Pro allows enthusiasts to customize their vehicle for shows, photo shoots, or anywhere attention is desired.
Please Note: Wiring Harness not included.
Direct Ducted Cooling (DDC): With so much power, a cooling system was an integral part of making the LP series perform at the highest level. Direct Ducted Cooling, or DDC has been designed in all of the LP series lights for exceptional heat dispersion. This acts as channels, allowing air to travel from the front of the housing to the rear heat sinks keeping the lights from overheating while in use.
Integrated Peripheral Technology (IPT): One of the features that makes the LP series the best on the trail is Integrated Peripheral Technology, or IPT for short. The IPTs allows the LP series to provide an incredible 200-degree spread of usable light, combining forward and cornering light in an all-in-one package.
Unique Design: The unique Baja Designs futuristic styling through 3D light face with flat and sloping surfaces blended to the case offers the LP9, LP6 and LP4 a characteristic unlike any other light on the market today.
Color Backlight Options: Our LP Pro series models offer color backlight options. Choose from amber, red, green, or blue giving enthusiasts the choice to customize their vehicles for shows, photo shoots, or anywhere they want to bring attention.
uService Lens Replacement: Keeping the LP series running at the highest level means having a lens that is free of damage. All LP series lights have been designed with Baja Designs uService technology. Changing a damaged lens and customizing your light pattern is made easy as unscrewing the housing bolts in the back and installing a new lens. All this can be done in your garage or on the trail without the fear of voiding your Lifetime limited warranty.
Standards & Compliance
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Dimensions
Depth (in.): 3.200
Height (in.): 6.500
Length (in.): 6.500
Weight (lbs.): 4.200
Specifications
Amperage Rating (A): 7.500
Average Rated Life (hr.): 49,930
Backlight Amperage Rating (A): 0.300
Backlight Wattage (W): 4.140
Beam Pattern: Driving/Combo
Bezel Material: Powder Coat Cast Aluminum
Brightness (Lumens): 11225
Description: Driving/Combo; Amber
Housing Color: Black
Housing Material: Powder Coat Cast Aluminum
Lens Color: Amber or Clear
Lens Material: Hardcoated Polycarbonate
Light Quantity: 1
Lighting Modes: High Beam/Low Beam/Day-Time Running Backlighting
Lighting Quantity: 6
Lighting Technology: LED
Lighting Type: Forward Projecting
Mounting Hardware Included: Yes
Mounting Hardware Material: Stainless Steel
Overvoltage Protection: Built-In
Product Type: LP6 Pro LED Light Pod
Secondary Amperage Rating (A): 1.000
Secondary Brightness (Lumens): 1972
Secondary Light Quantity: 4 LEDs
Secondary Lighting Technology: LED
Secondary Lighting Type: Integrated Peripheral Technology (IPT)
Secondary Wattage (W): 15
Terminal Connector: DT06-4S Deutsch
Terminal Type: Mating Connector
Universal or Specific: Universal
Wattage (W): 103.500
➜ Limited-Lifetime Warranty – Complete Purchase Protection
➜ Satisfaction Guarantee – 30-Day Money Back Guarantee
➜ Buyer is responsible for ensuring that it uses the products (and its vehicle) in accordance with all applicable laws, regulations, guidelines, and standards of care. Buyer acknowledges that some products may only be used when off-roading, and Buyer will comply with all vehicle and road safety guidelines. Buyer is solely responsible for (and will indemnify and hold Bestop harmless for) any claims, losses, damages, fines, fees, costs, or other amounts arising out of Buyer’s non-compliance with these provisions.
➜ Baja Designs LP series lights with red, blue, or green backlights are intended for exhibition use only. Avoid usage on public roads to prevent confusion with law enforcement or emergency vehicles. The owner/driver is responsible for adhering to all highway equipment laws and safety regulations.
