The FB153 is Fittipaldi Off Road’s signature beadlock wheel.

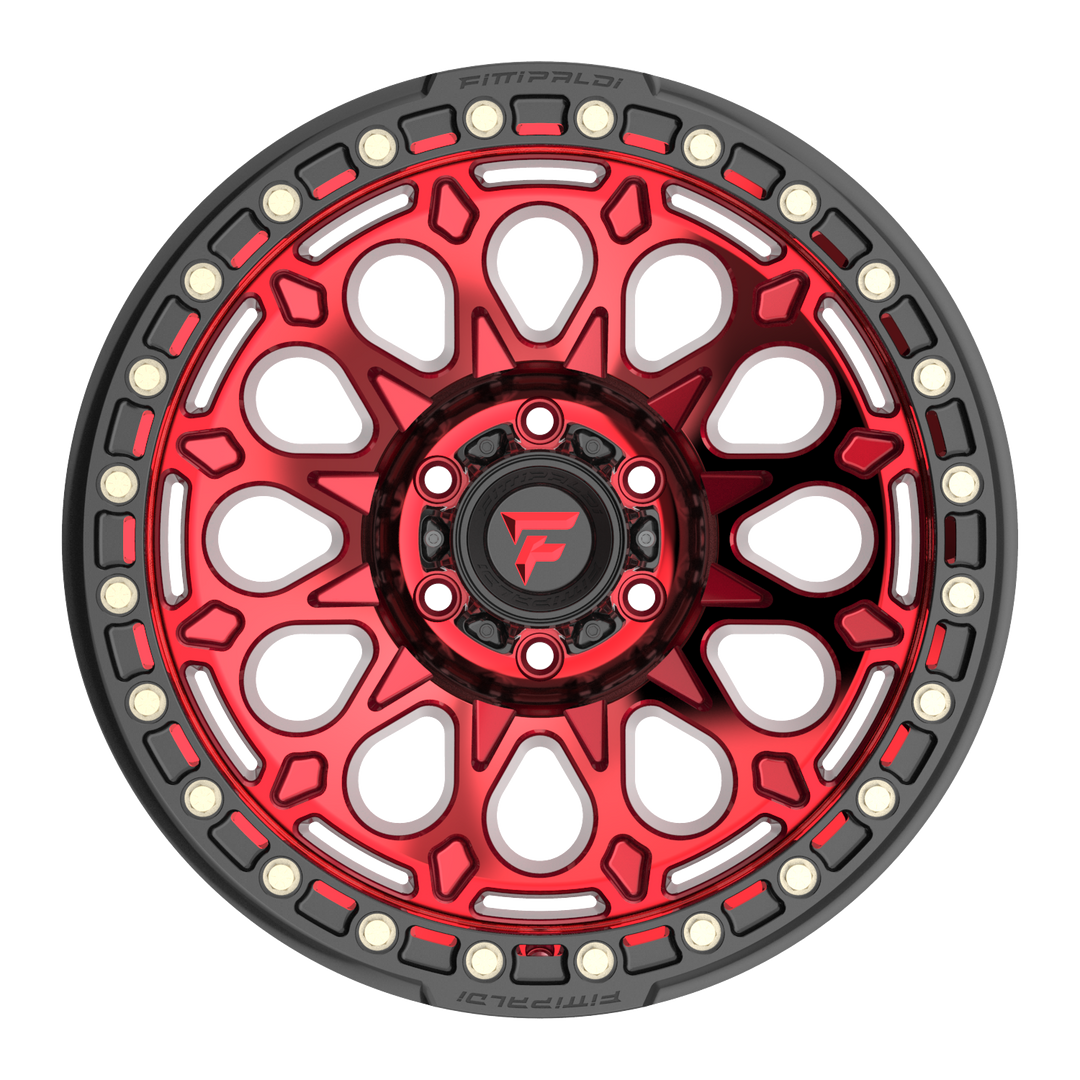

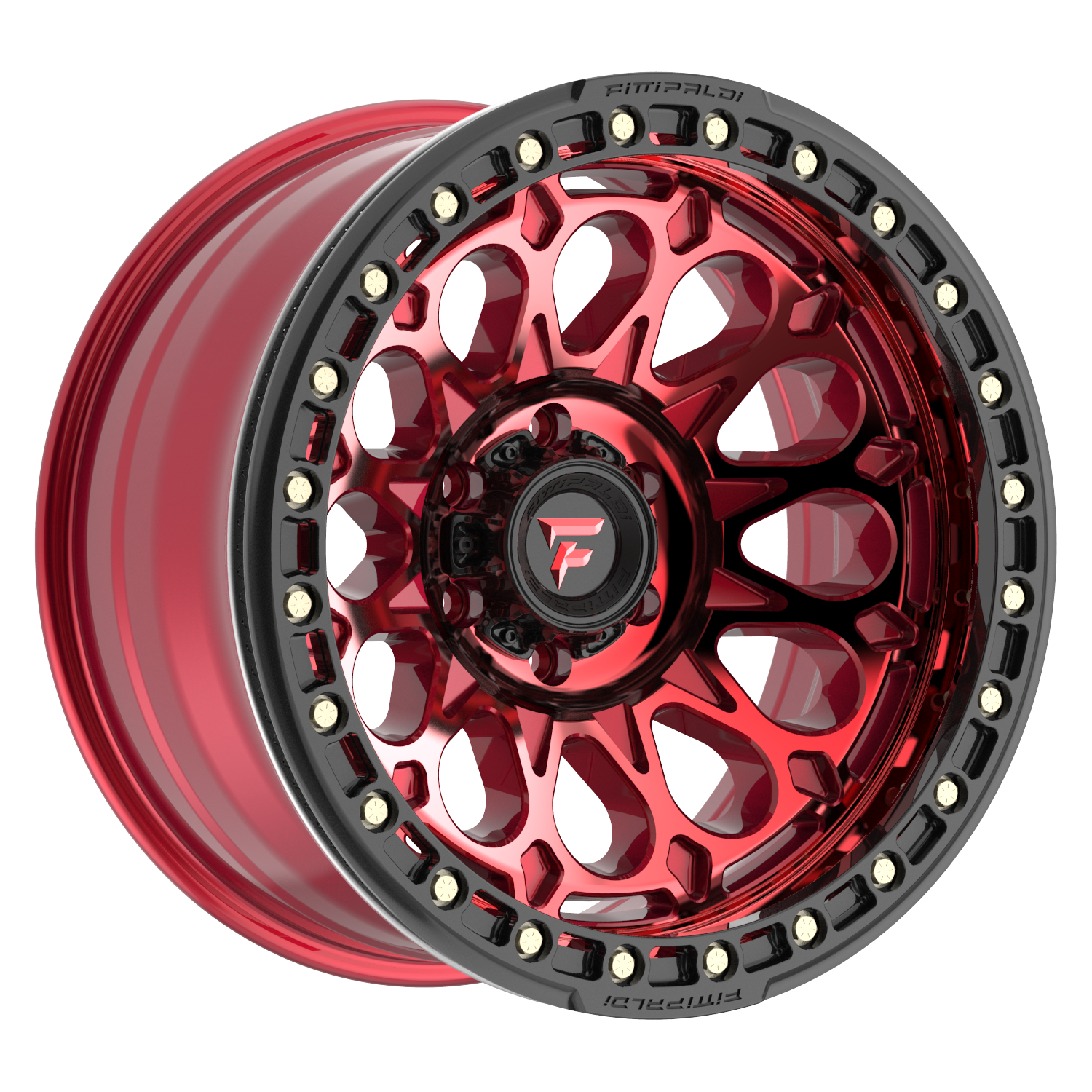

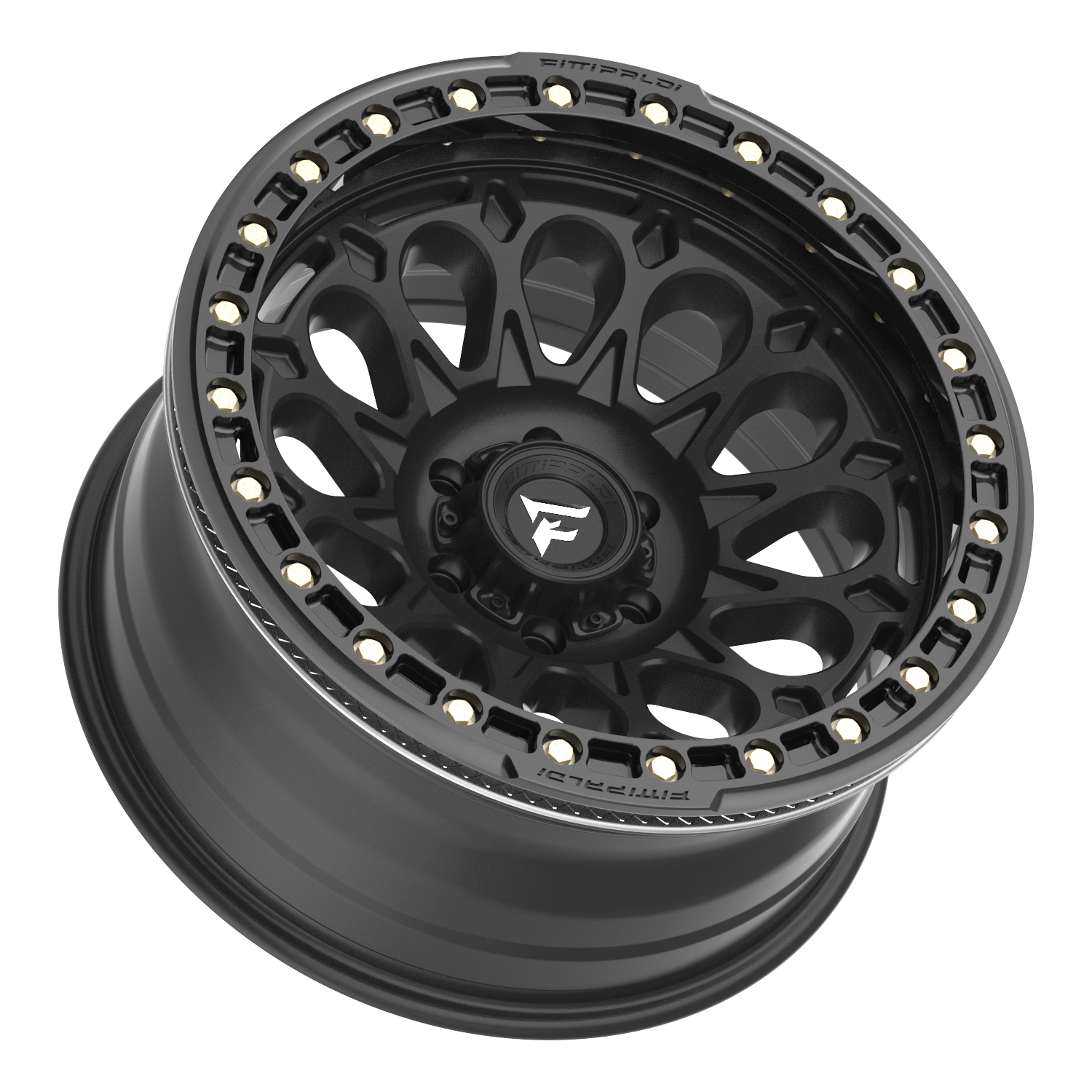

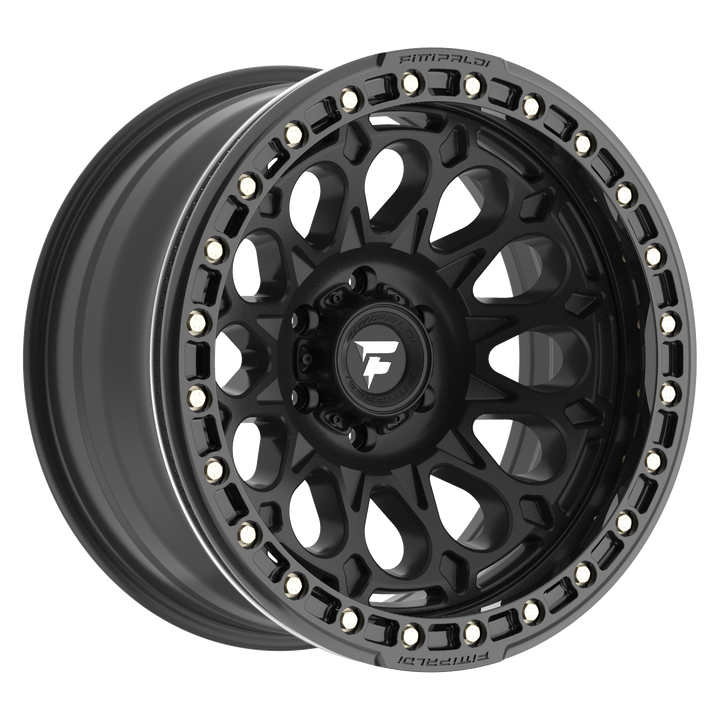

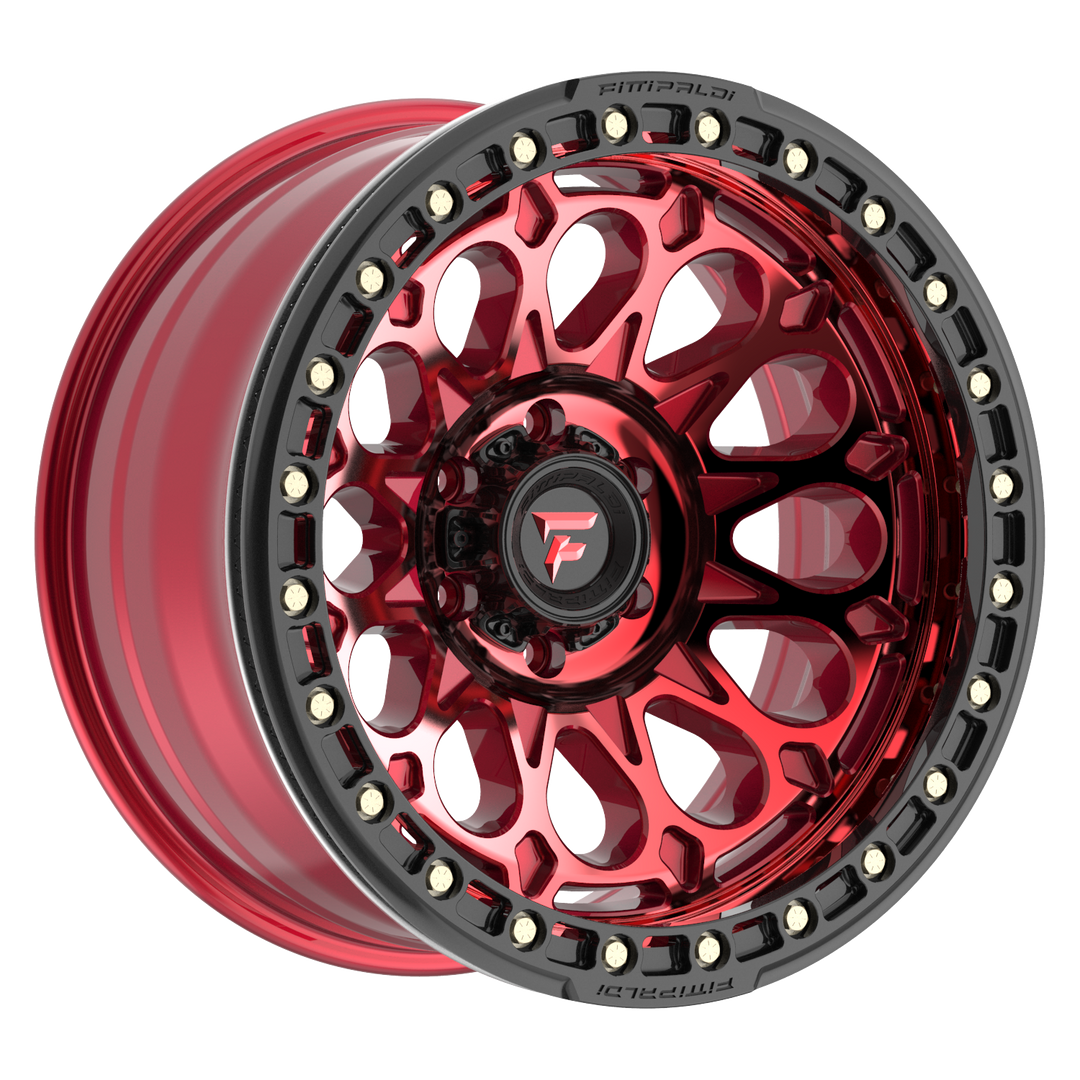

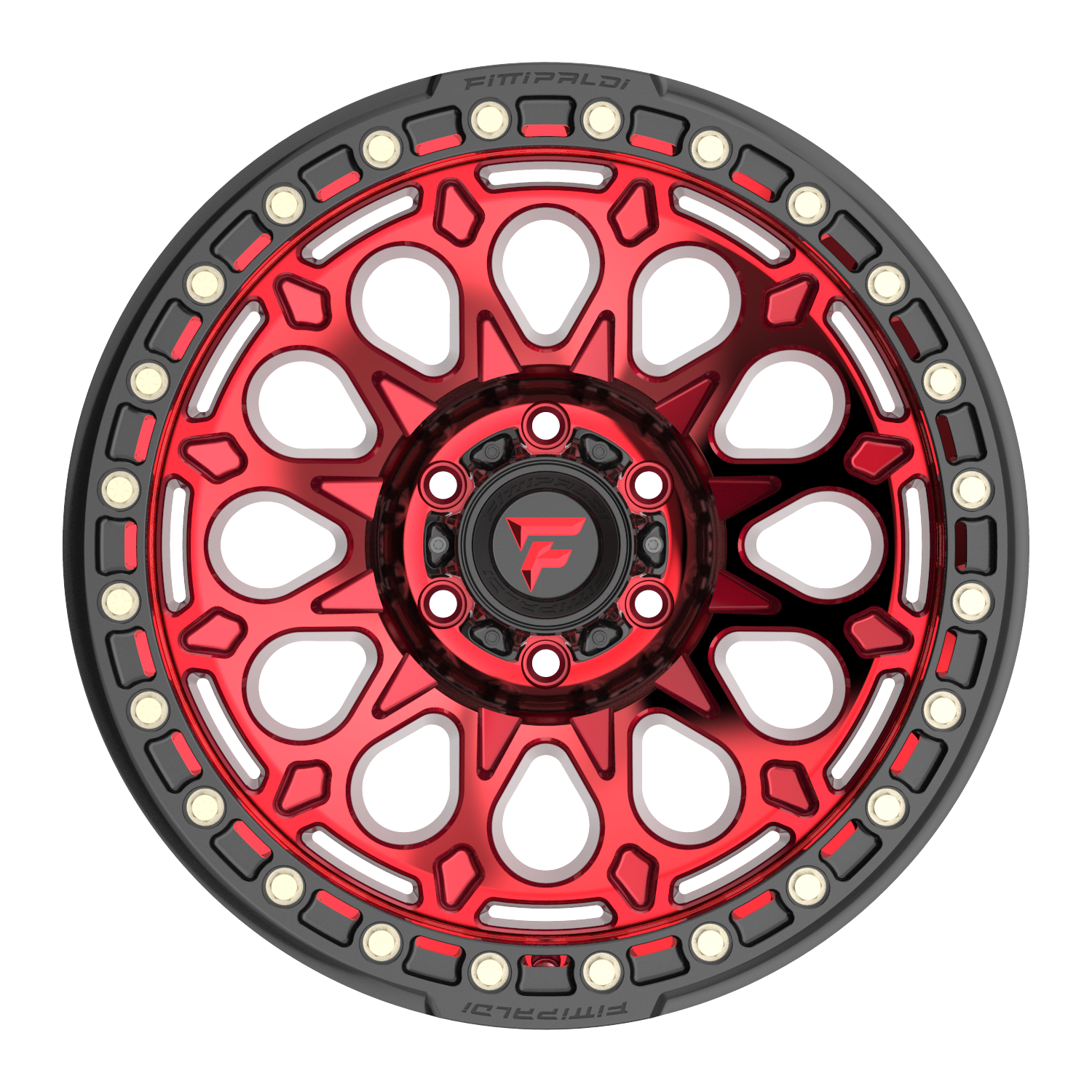

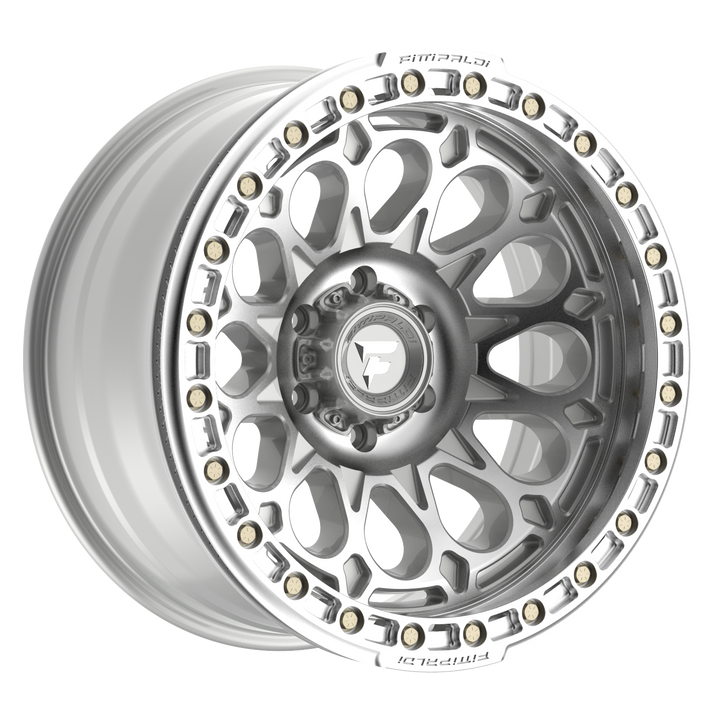

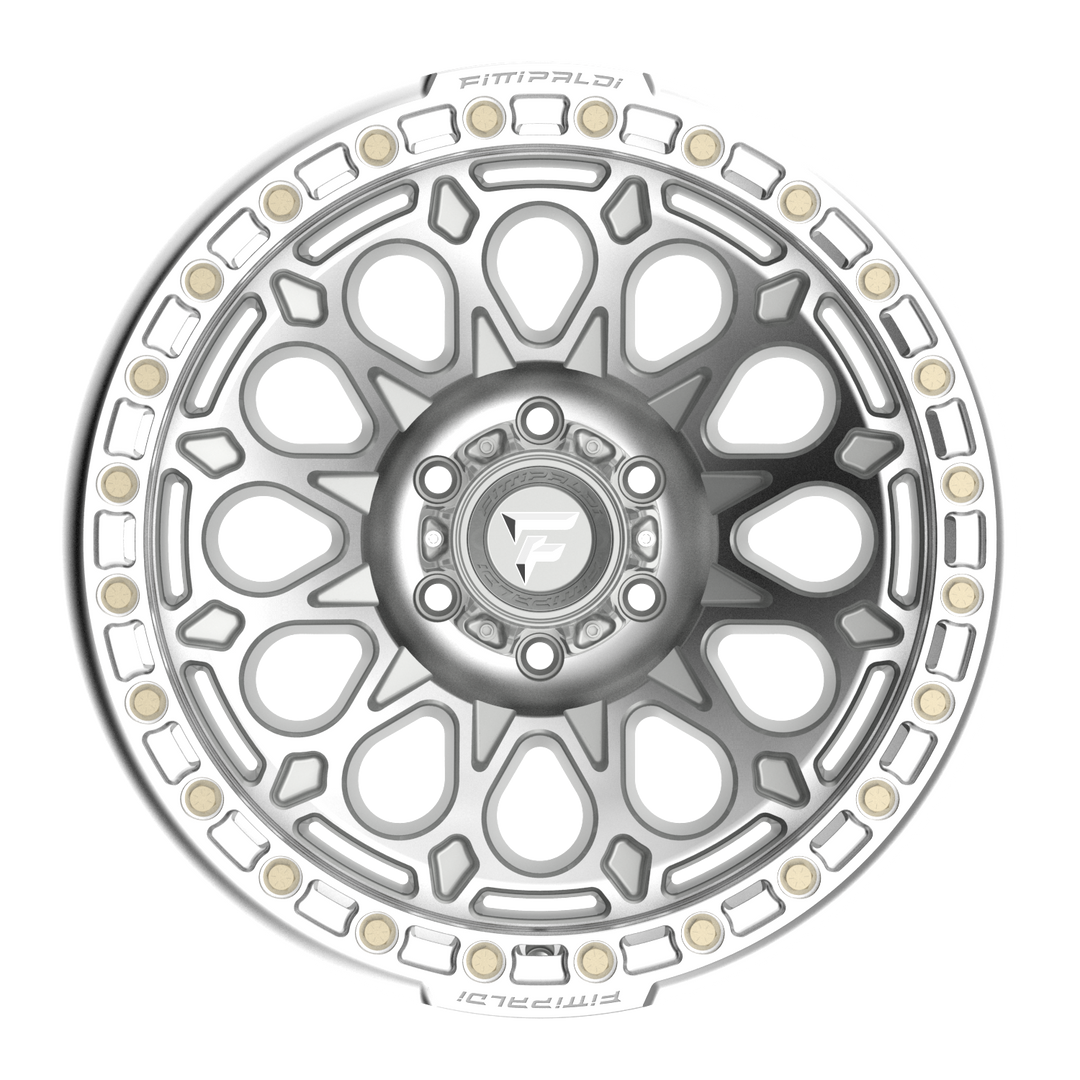

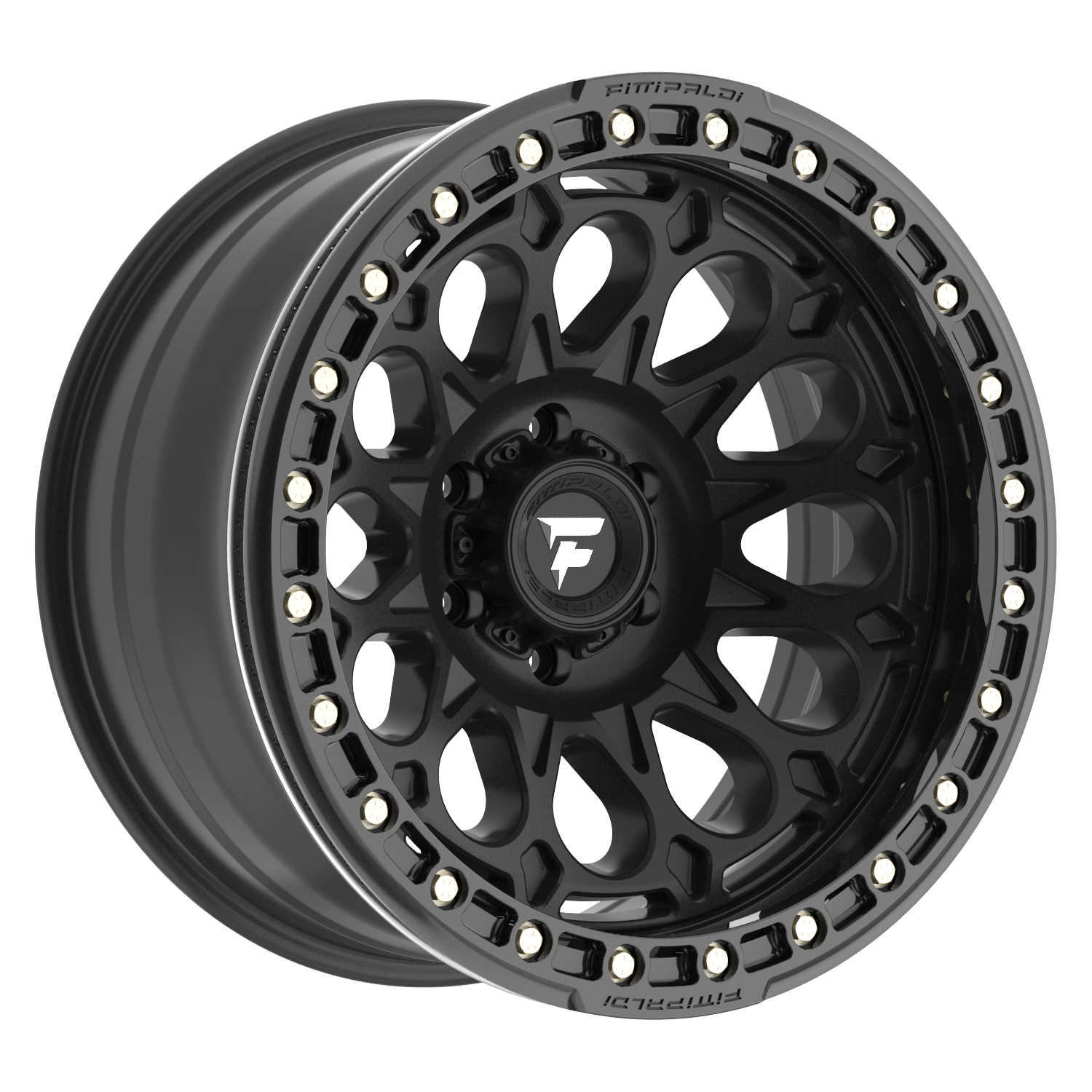

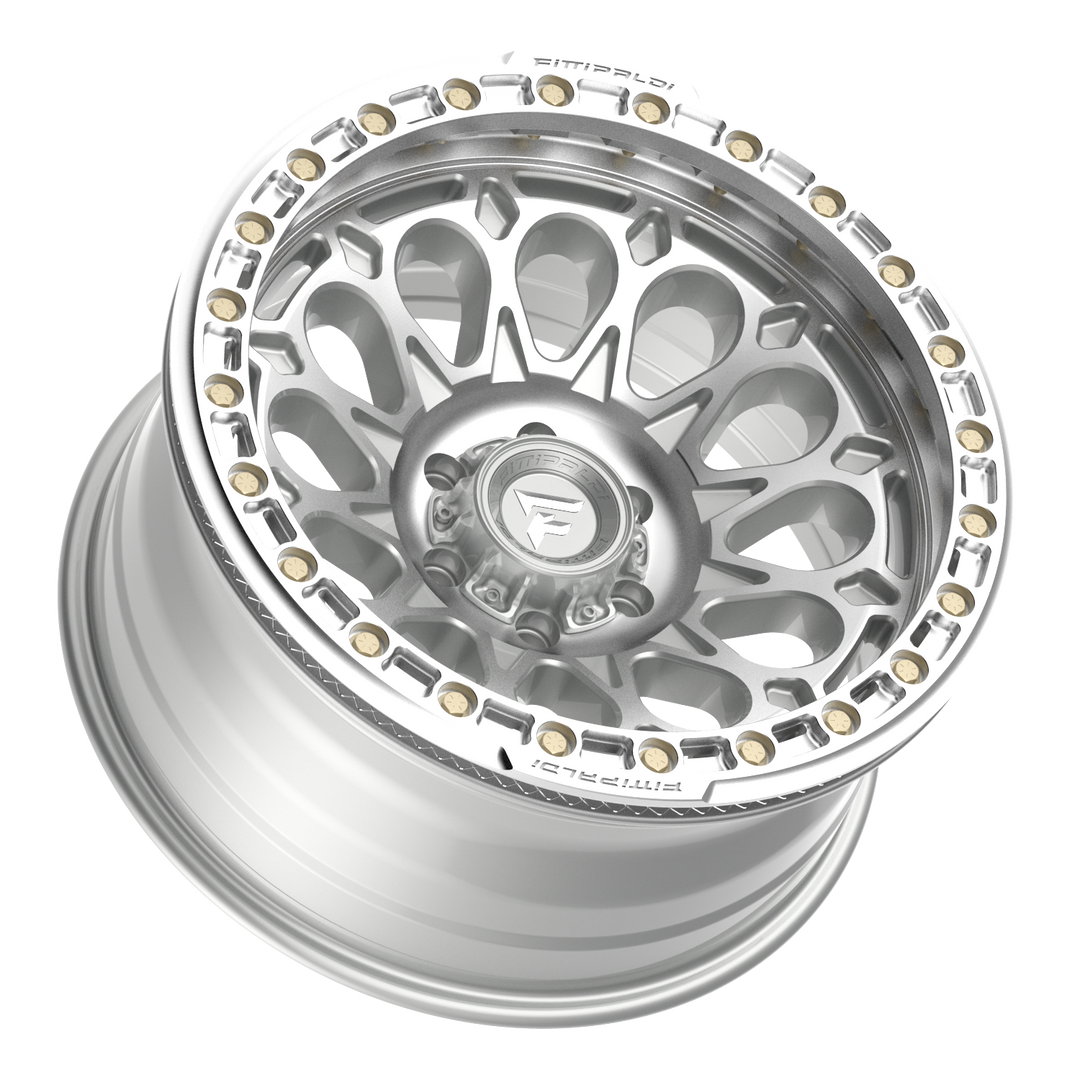

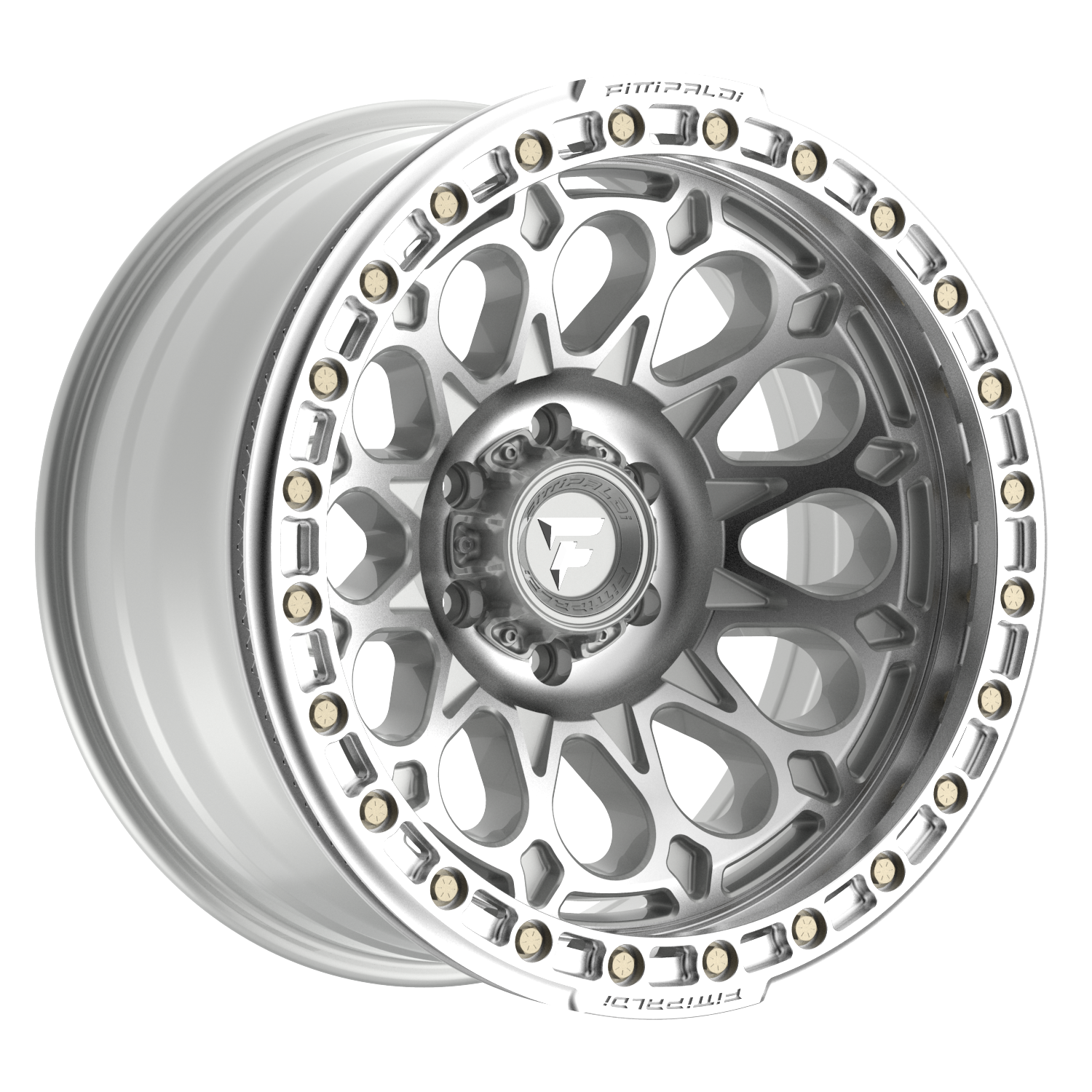

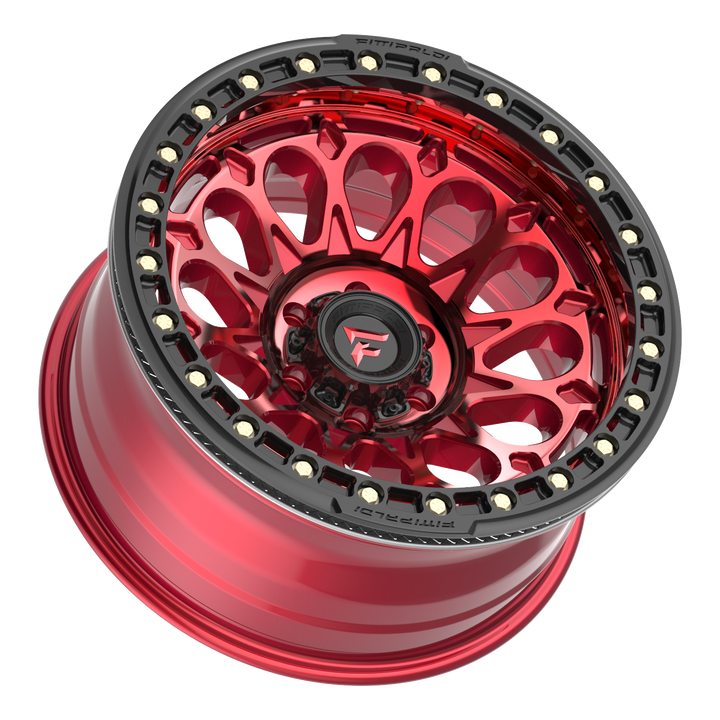

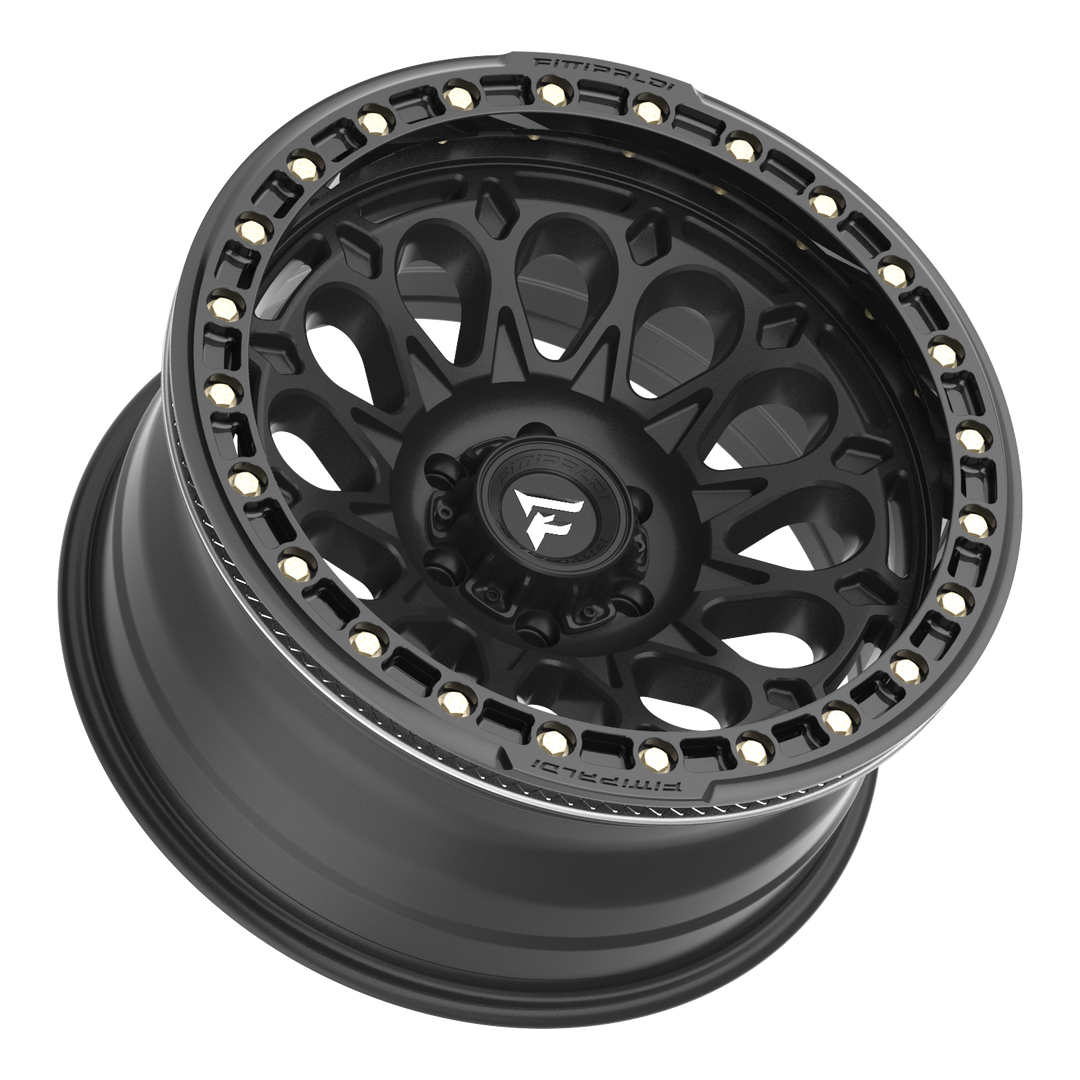

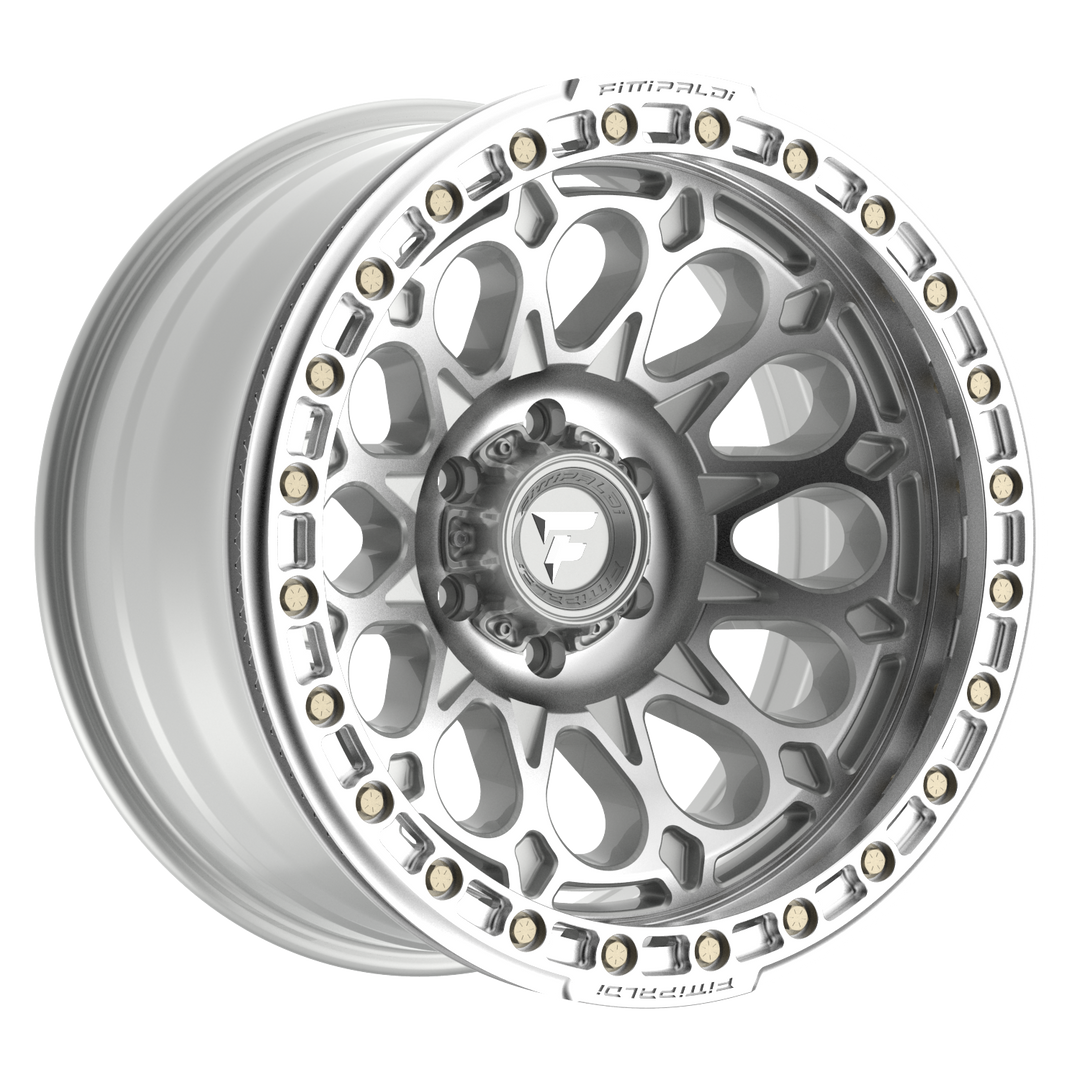

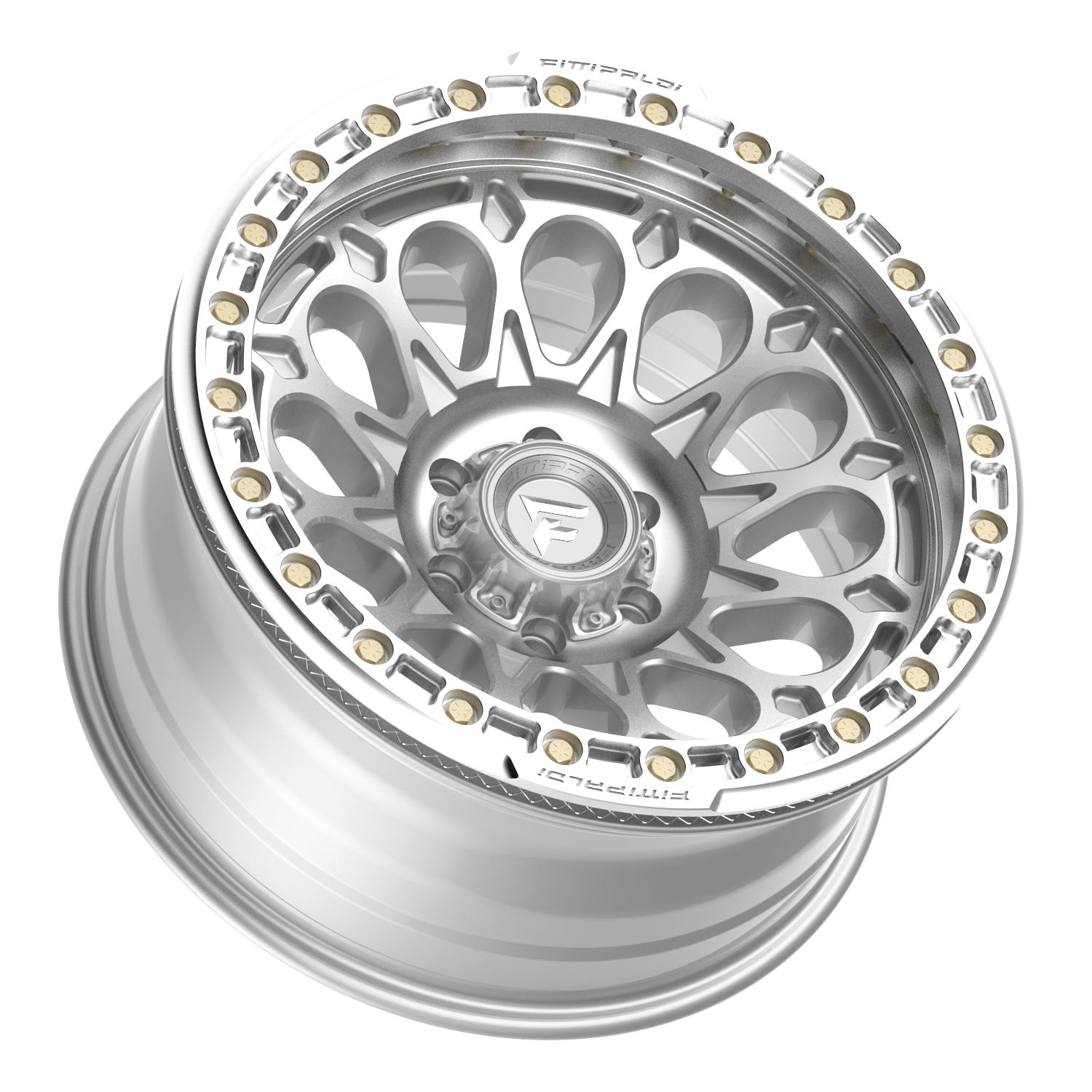

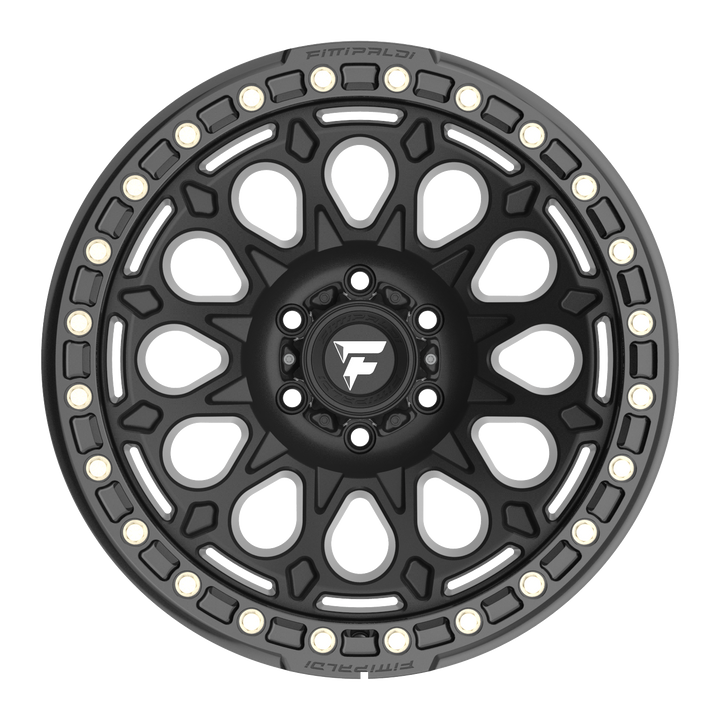

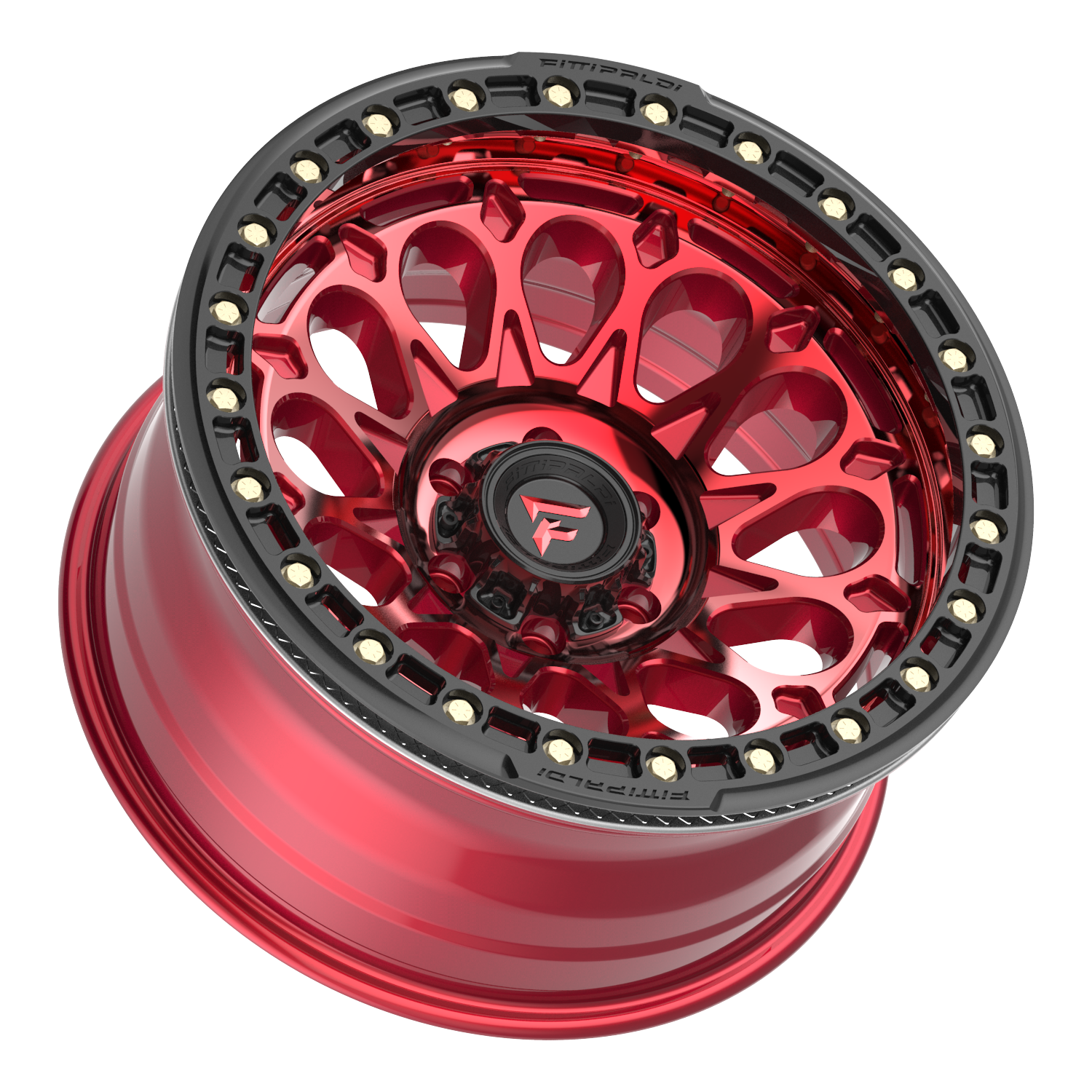

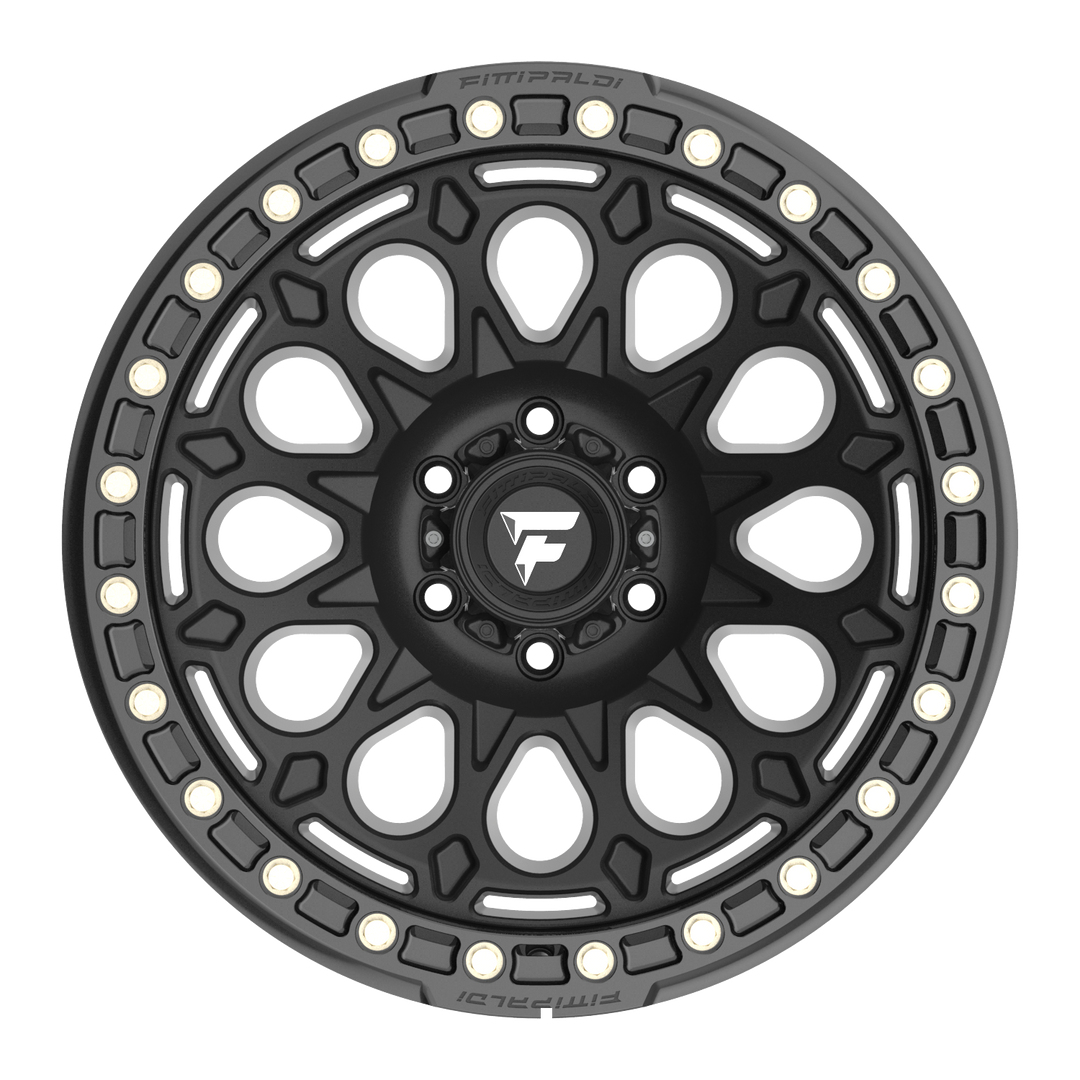

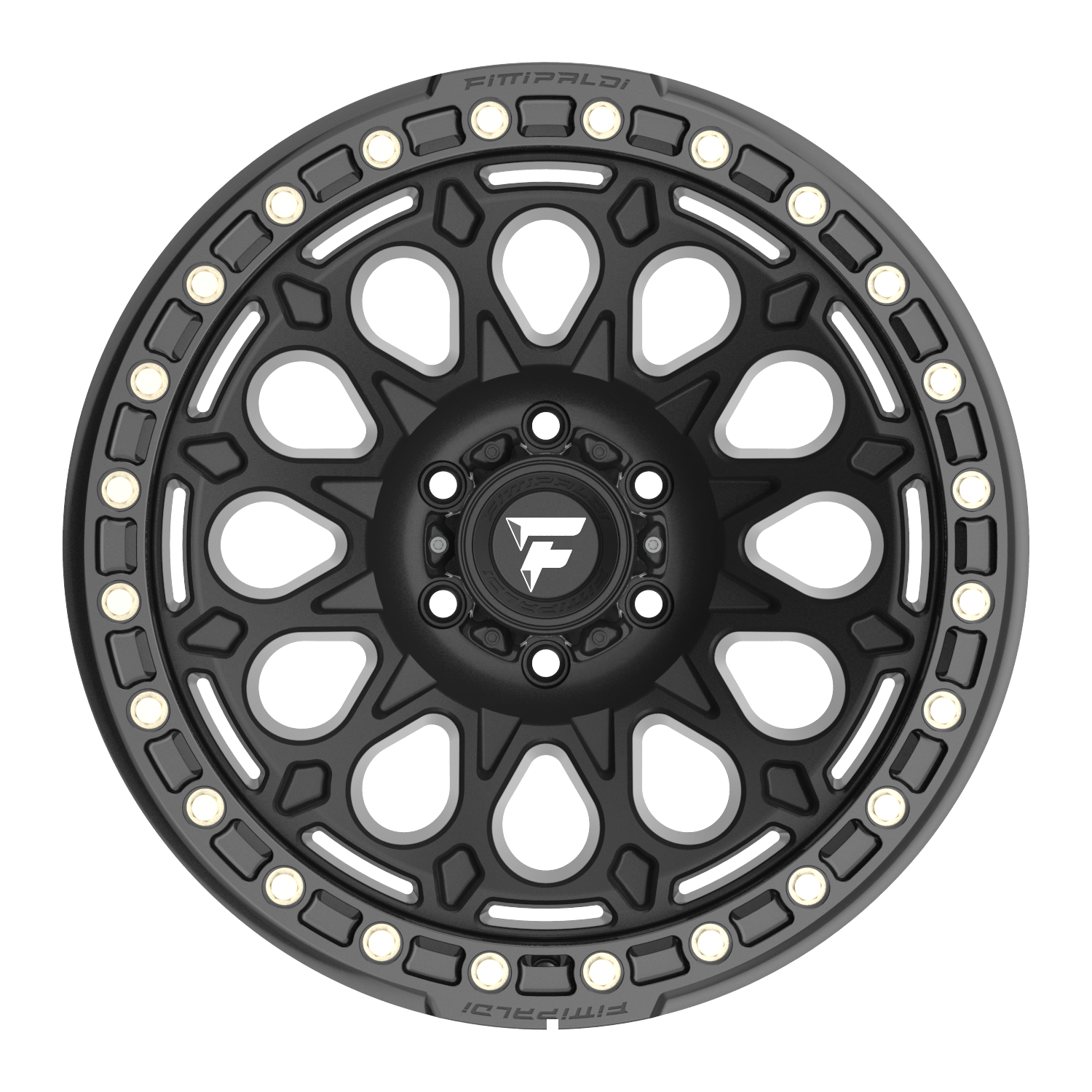

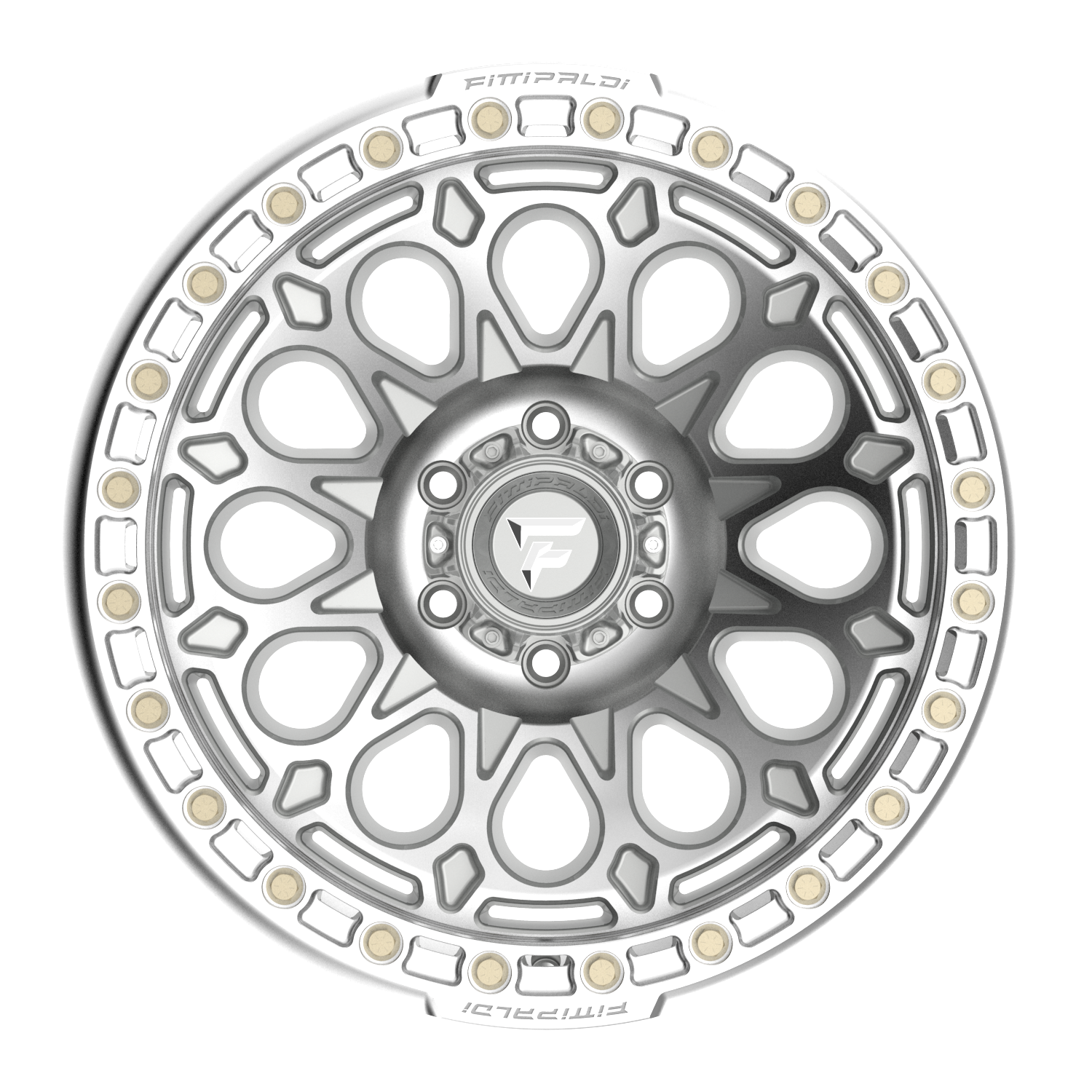

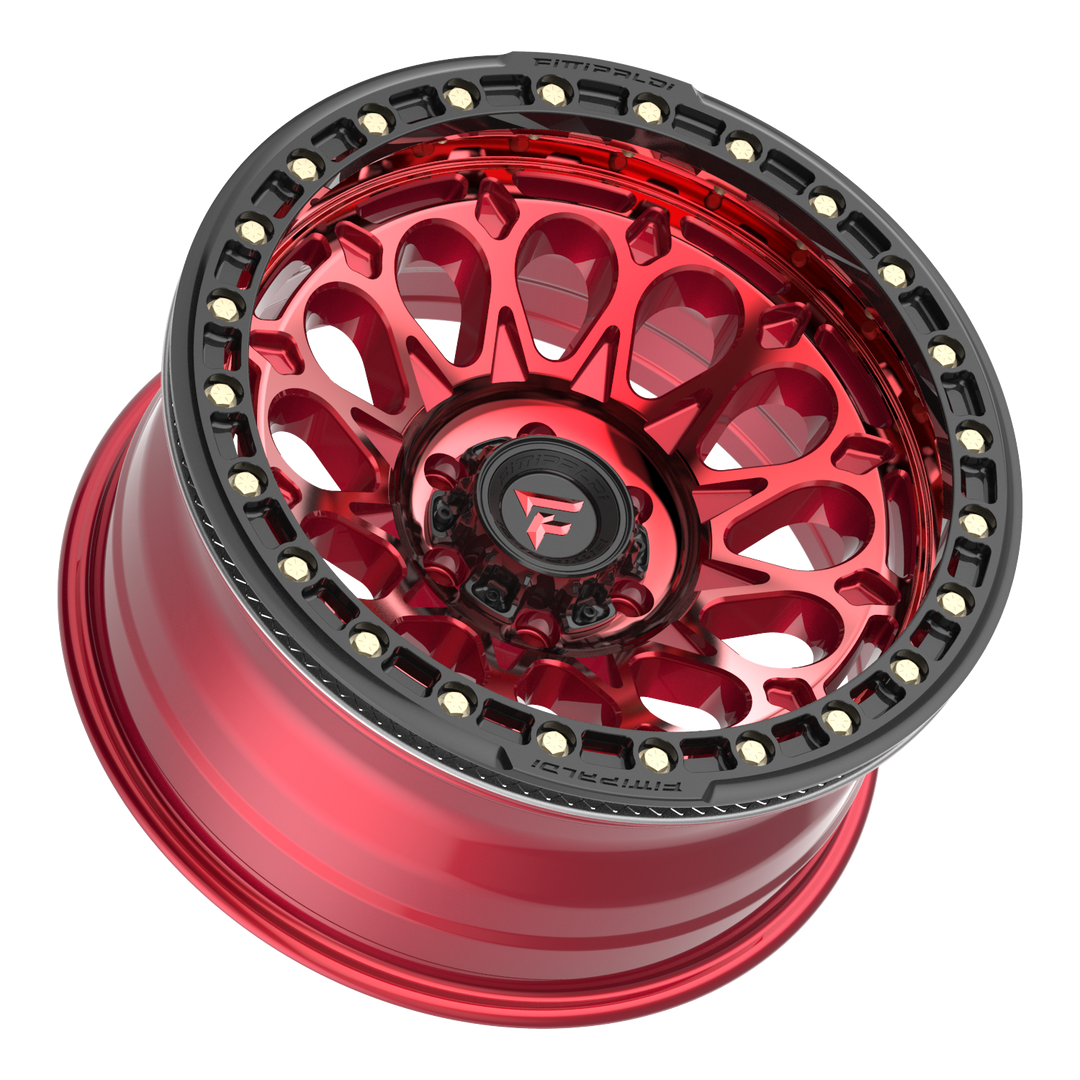

It takes form and function to the next level with its web of impact absorbing elements that remind us of a grand cathedral rose window. What we ended up with is an extremely durable off road wheel that cannot be ignored or mistaken for any other. FB153 is available in satin black with a gloss black ring, gloss clearcoated machined finish with a machined ring and gloss red tint machined with a gloss black beadlock ring.
Please Note:
➜ TPMS compatible.
➜ Requires 60° Conical Lug Nuts (Not Included).
Exceptionally strong A356 aluminum alloy.
T6 heat treated for maximum strength.
Super strong cathedral window design with a deep concave profile.
Forged & heat treated 6061-T6 aluminum beadlock ring with lightweight milling and Fittipaldi logo.
Reinforced, variable thickness barrel for optimum strength to weight ratio.
Double helix milled and serrated beadlock mounting surfaces for maximum grip.
High performance 3/8″ grade 8 yellow zinc-plated beadlock hardware.
Heavy duty steel threaded inserts for maximum durability and cross-threading resistance.
Centercap with Fittipaldi logo.
Incredibly tough 3250 lb. to 3650 lb. load ratings.
WHEEL SIZE: 17x9
BOLT PATTERN: 6X5.50
BOLT PATTERN: (METRIC) 6x139.7
OFFSET (MM): -15
BACK SPACING (IN): 4.41
HUB BORE (MM): 106.2
LOAD RATING (LBS): 3250
STANDARD CAP: CAP-FT-6-SBC
WHEEL WEIGHT: (LBS) 29.32
WHEEL SIZE: 20x10
BOLT PATTERN: 6X5.50
BOLT PATTERN: (METRIC) 6x139.7
OFFSET (MM): -38
BACK SPACING (IN): 4
HUB BORE (MM): 106.2
LOAD RATING (LBS): 3250
STANDARD CAP: CAP-FT-6-SBC
WHEEL WEIGHT: (LBS) 40.9
➜ WHEEL WARRANTY POLICY
1-Year-Limited Warranty: Fittipaldi Off Road warrants the factory painted finish on products for one (1) year from the original time of purchase and
2-Year-Limited Warranty : Mirror coat finish two (2) years from the original time of purchase. The warranty covers only peeling and separation of the paint from the wheel. The warranty does not cover surface rust and gold plating. Polished aluminum wheels that have not been clear coated will oxidize and require regular maintenance and are not covered under warranty.
