Description

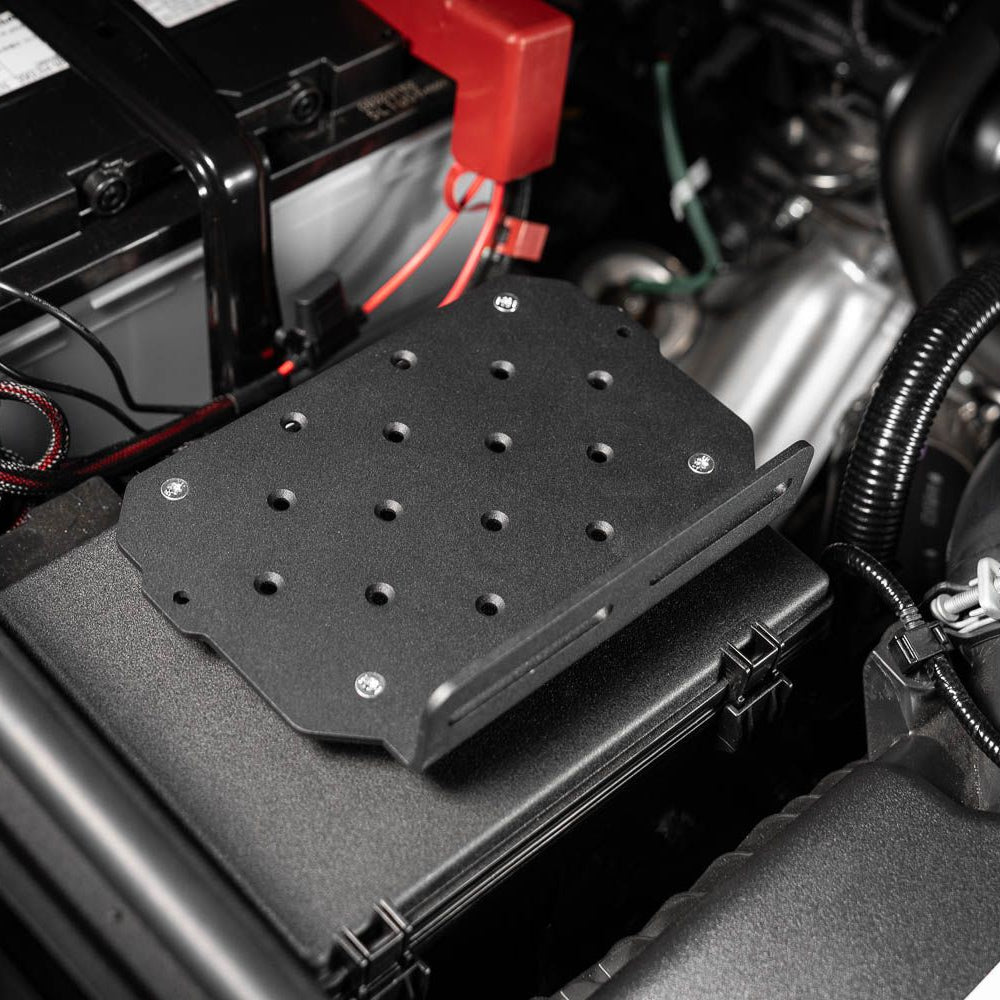

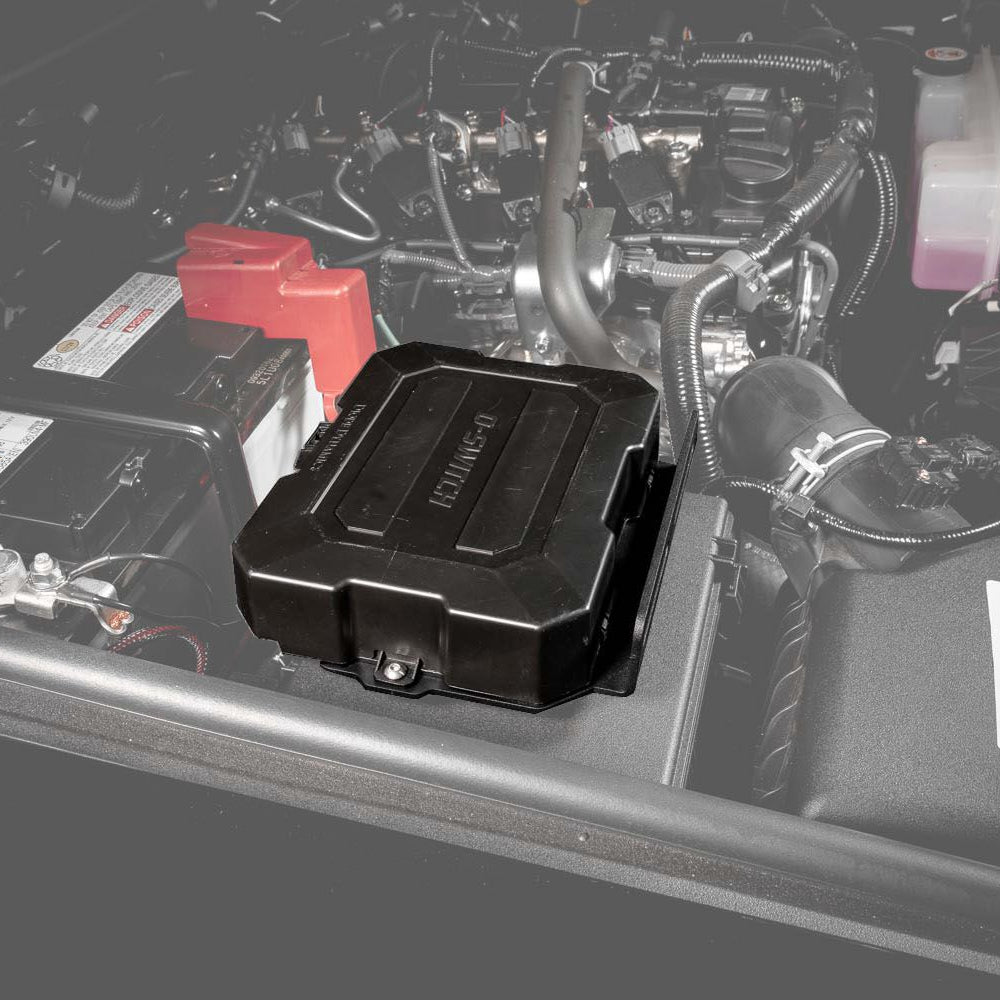

Unsure of where to mount your D-Switch Hub? Check this out! The D-Switch Hub Mount Kit for the Toyota Tacoma eliminates the guesswork and provides a simple, bolt-on mounting solution. This kit bolts directly to OEM mounting points in the engine bay, without interfering with the fuse box or battery, and allows for easy access to the D-Switch Hub.
Ultimate Control. The D-Switch is an advanced 8-channel switch panel that gives you full, customized control over any 12V accessory that you want to wire up. Our engineers have tailored it specifically to be the most functional and effective controller when it comes to your lighting setup.

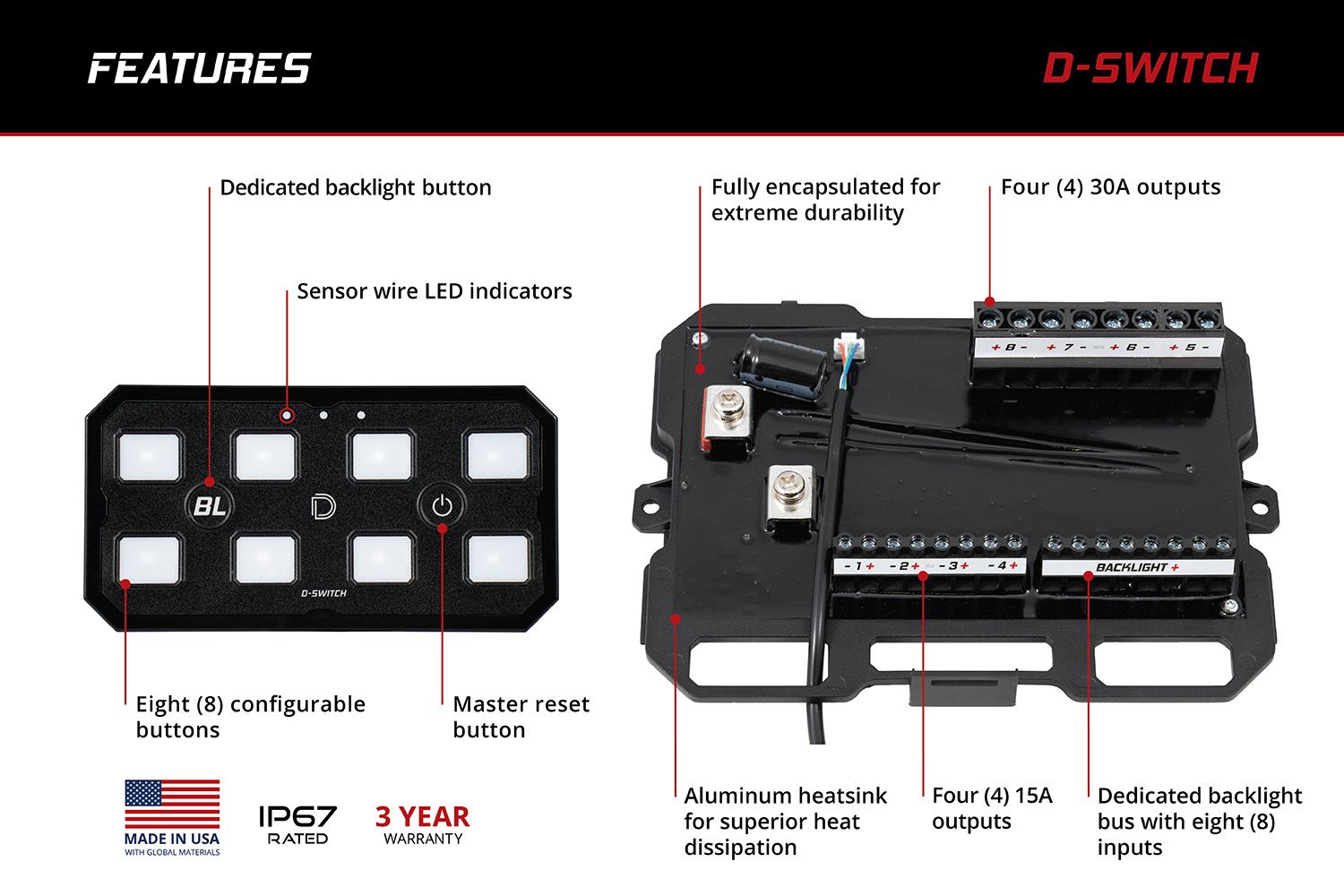

The D-Switch features four 30A outputs and four 15A outputs, putting it solidly into the "serious" category for total power delivery, but it’s packed with all kinds of other features to customize your setup!

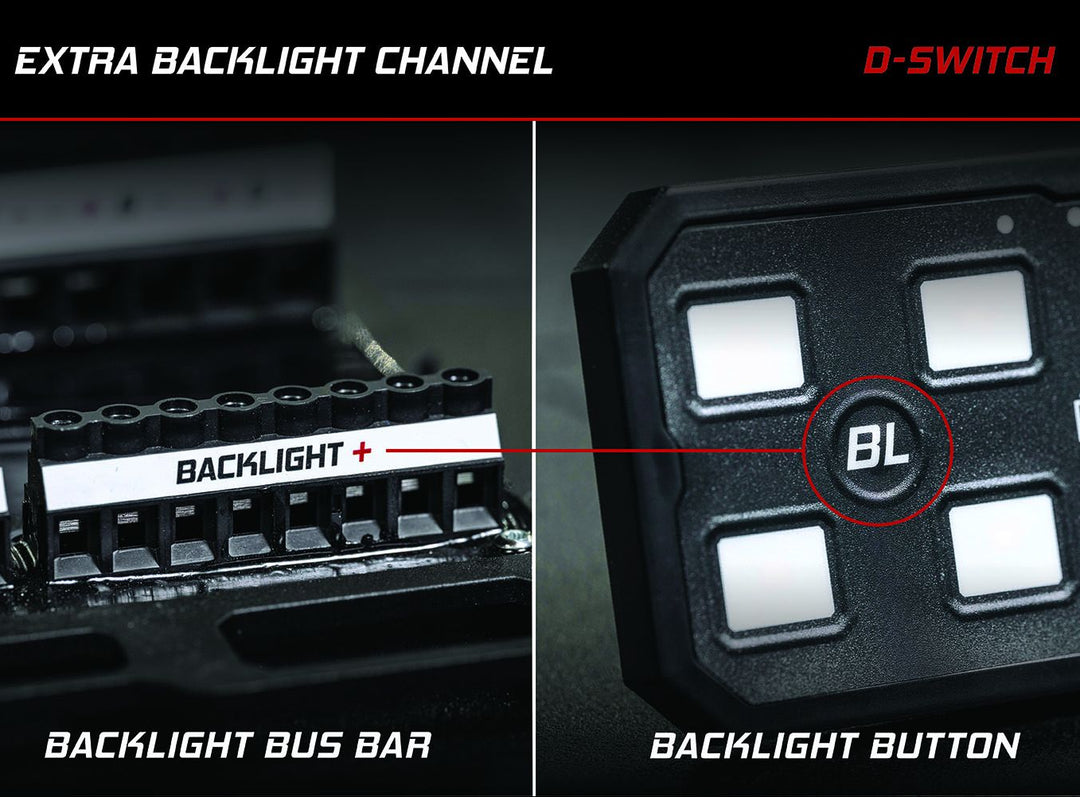

Dedicated Backlight Channel. While there are many 8-button controllers on the market, the D-Switch stands apart with a 9th button dedicated to the backlight bus bar. The backlight bus provides eight extra outputs for your accent lights, allowing you to connect all of your backlit accessories without using up any of your main outputs. With just the press of a button, you can now activate all of your backlights at once! This is a game-changer for any rig with multiple lights installed.

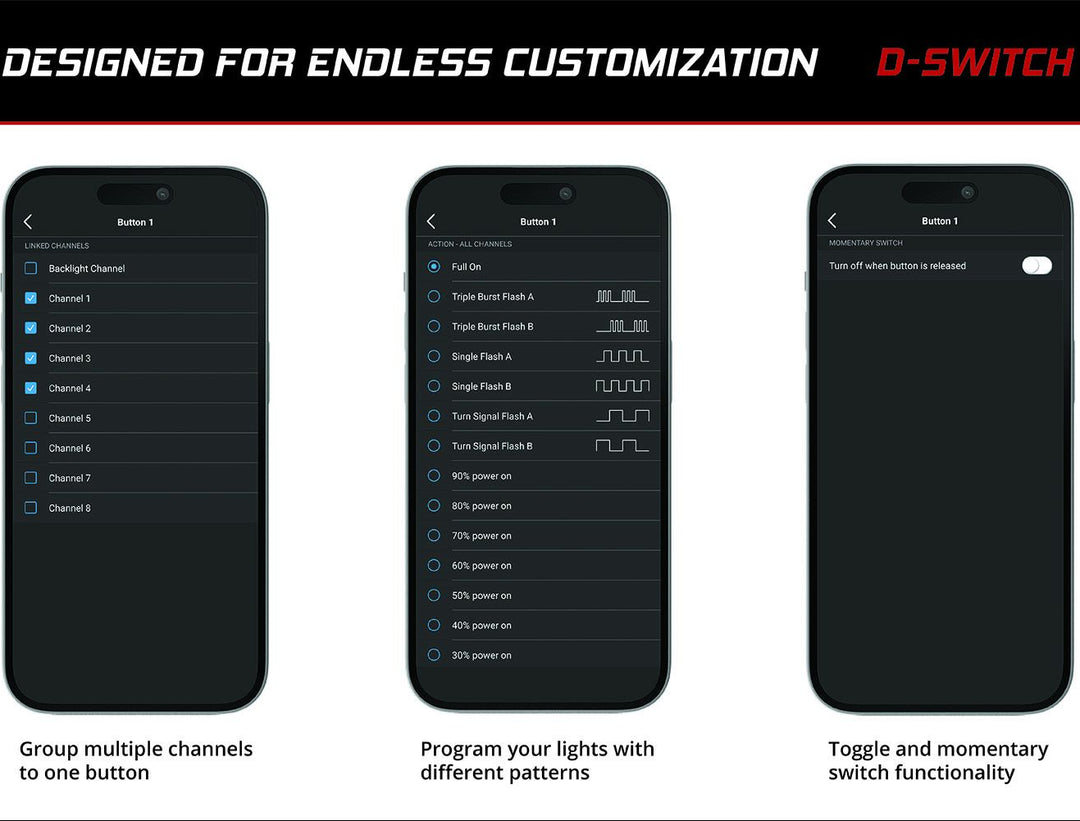

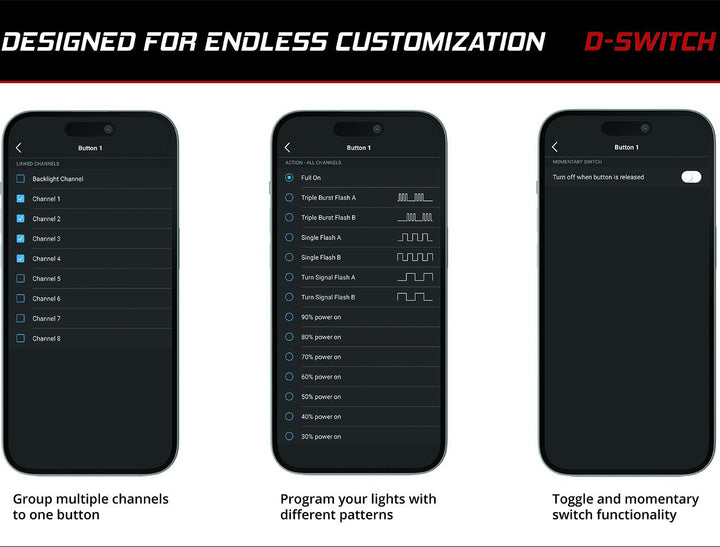

Dynamic Channel Assignment. The Diode Dynamics D-Switch is designed to give you complete control over your vehicle’s setup with eight customizable output channels. Unlike traditional automotive switch panels that are one-to-one, meaning Channel 1 is always tied to Button 1, the D-Switch allows you to group and configure multiple output channels per button, allowing you to control multiple outputs with a single button.
You can also power a single output with the different strobing patterns that are included. For example, you can program one button to strobe a light and another to run that same light at full power. Whether you're running Diode Dynamics off-road lighting or any other 12V accessories, the D-Switch allows you to customize each button to do exactly what you need.

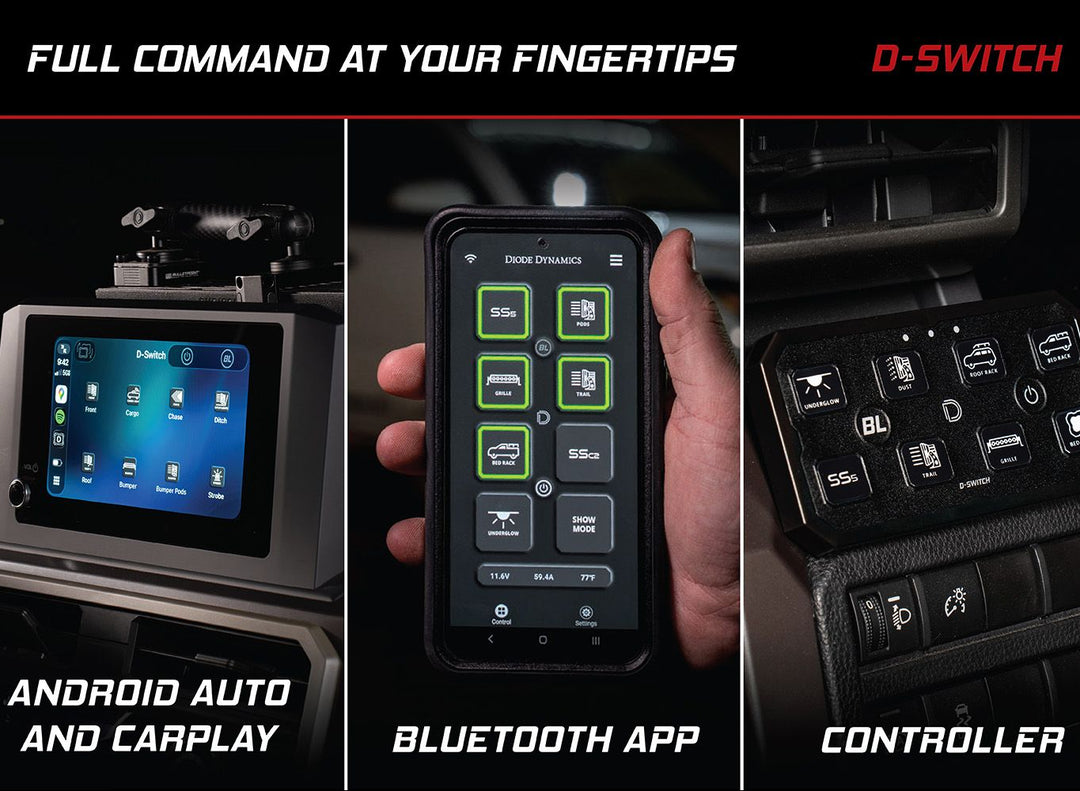

Fast, Responsive Bluetooth App. To activate and use the D-Switch, you can use the included controller, or control it using your phone through the Bluetooth App. That’s where you’ll configure and customize your setup, including button names, images, colors, and channel assignments. Say goodbye to switch panel apps that lag, freeze, or don’t connect. The D-Switch Bluetooth app for iOS and Android delivers instant response and easy programming with no loading screens or connection delays for a seamless and fast experience, every time. The app allows you to pair up to four individual D-Switch units for ultimate control over your entire setup.
Apple CarPlay and Android Auto Compatibility. The D-Switch now gives you even more ways to control your setup with compatibility for Apple CarPlay and Android Auto. Once your D-Switch is configured through the Bluetooth App, you can access your custom button layout directly from your vehicle’s infotainment screen for convenient in-dash control of all nine channels. Custom button names, images, unit names, and button colors carry over from the app, giving you a familiar control experience whether you’re using the physical controller, your phone, or your vehicle’s display.
OEM Signal Integration. The D-Switch includes four trigger wires, along with a dedicated Ignition wire for added flexibility. This allows you to control your whole setup using vehicle signals, for a completely integrated experience.
The ignition wire can be wired into an OEM ignition source and will activate the D-Switch when the ignition is turned on. It will also shut things down when the ignition is turned off. No need to manually turn your panel off! If you want to use any outputs without the ignition turned on, no worries - you can still turn the controller on manually at any time.
The three trigger wires provide seamless integration with any of your vehicle’s 12V factory signals, such as high beams, fog lights, or reverse lights. This allows you to activate your outputs automatically–no buttons or switches. With some simple programming, your entire setup can operate like it’s fully integrated on your vehicle.
Lastly, the Night Mode wire can be used to activate certain outputs, such as dimming outputs, or adjusting settings for low-light conditions. This trigger also adjusts the brightness of the controller’s backlighting automatically when driving at night.
Solid-State, Durable Design. Built for extreme durability, the D-Switch features a solid-state design with no mechanical relays to wear out, or physical fuses to replace. The hub is encapsulated with an aluminum heatsink, ensuring superior heat dissipation. Both the hub and controller feature an IP67 weather resistance rating for all electronics, excluding wiring terminals, ensuring long-term reliability and performance. The mount included in the kit is constructed out of 10-gauge stainless steel and finished in a durable powdercoat. With a 3-year limited warranty, this kit is built to withstand whatever you throw at it, whether you're off-roading or on the road.
Experience. After over a decade in business, Diode Dynamics is the most trusted name in automotive LED lighting. Unlike every other LED distributor, we directly manufacture and engineer an increasing number of products ourselves in the United States using globally sourced materials, for high quality and fast time-to-market of the newest and brightest LED technologies. We pride ourselves in offering only quality LED products, that will exceed your expectations. Please contact us if you'd like to discuss your lighting project!
Fitment: 2024+ Toyota Tacoma
Inclusion:

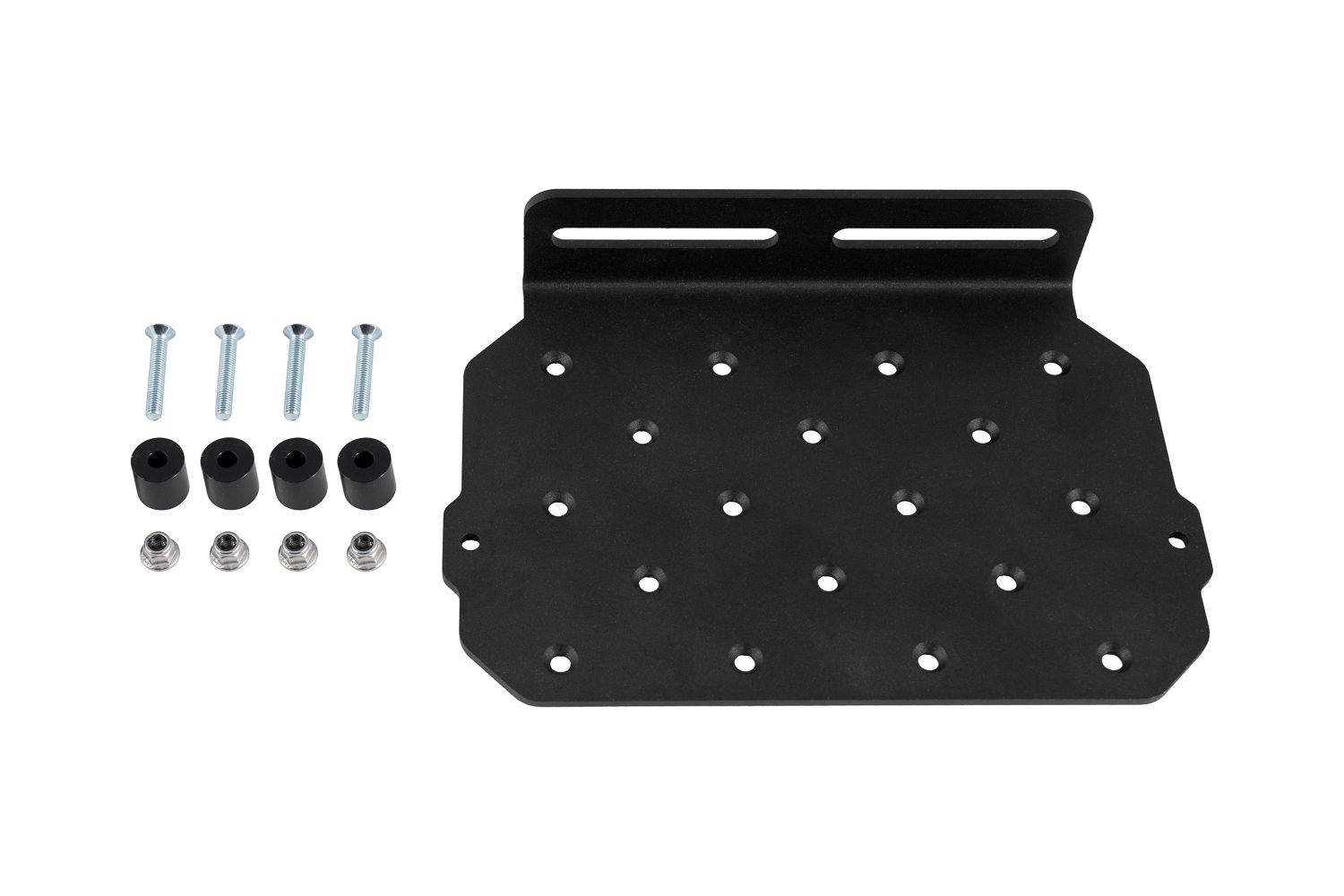

Bracket Only:

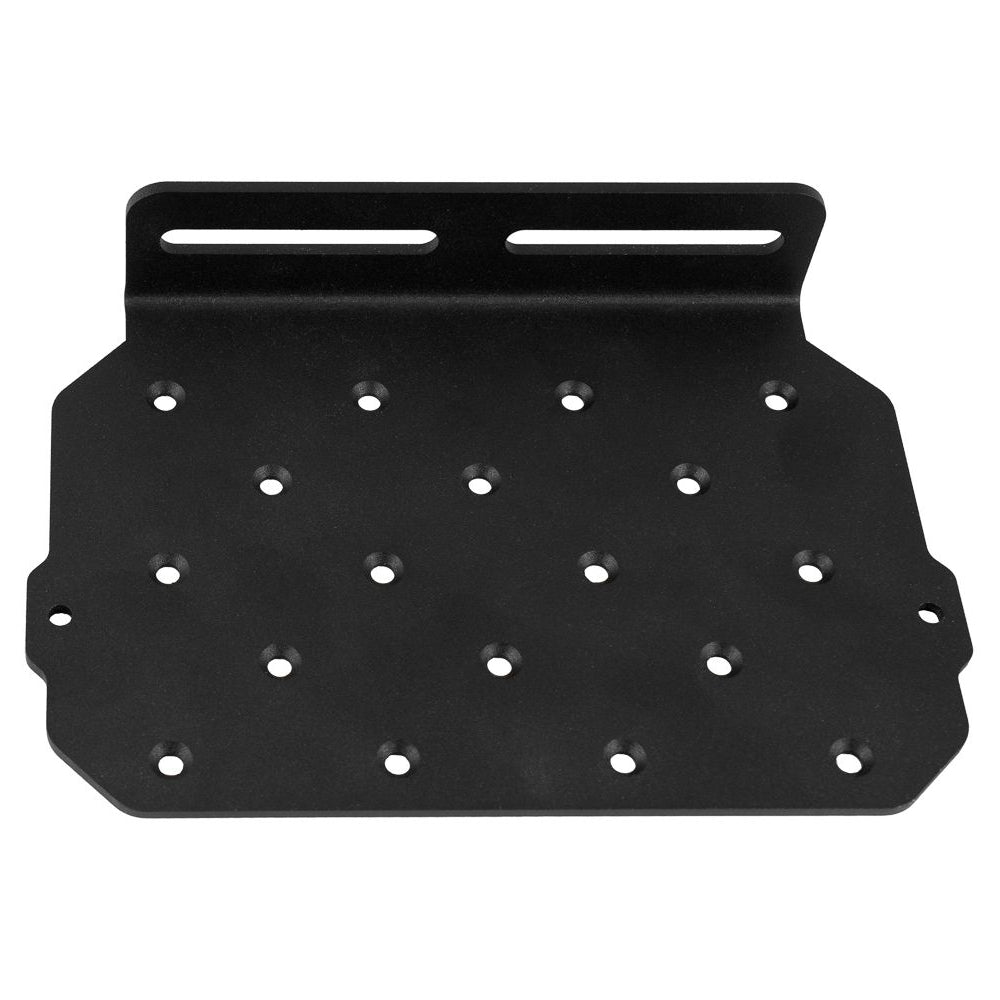

✔ One (1) Universal D-Switch Hub Bracket
✔ Four (4) 15mm Spacers
✔ Installation Hardware

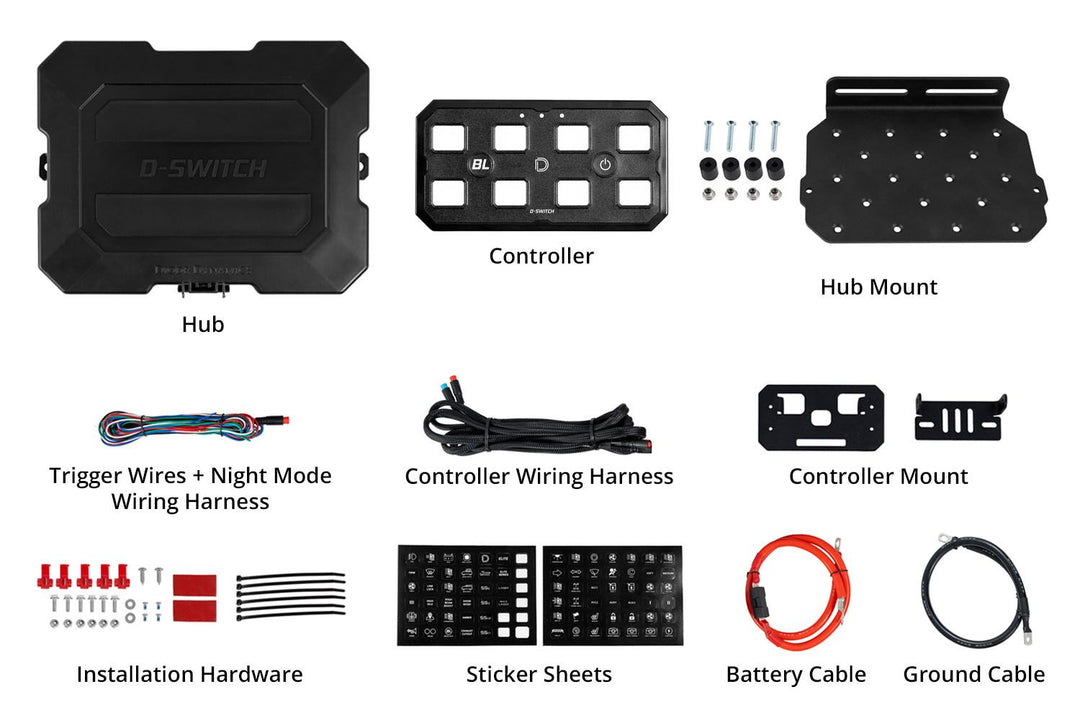

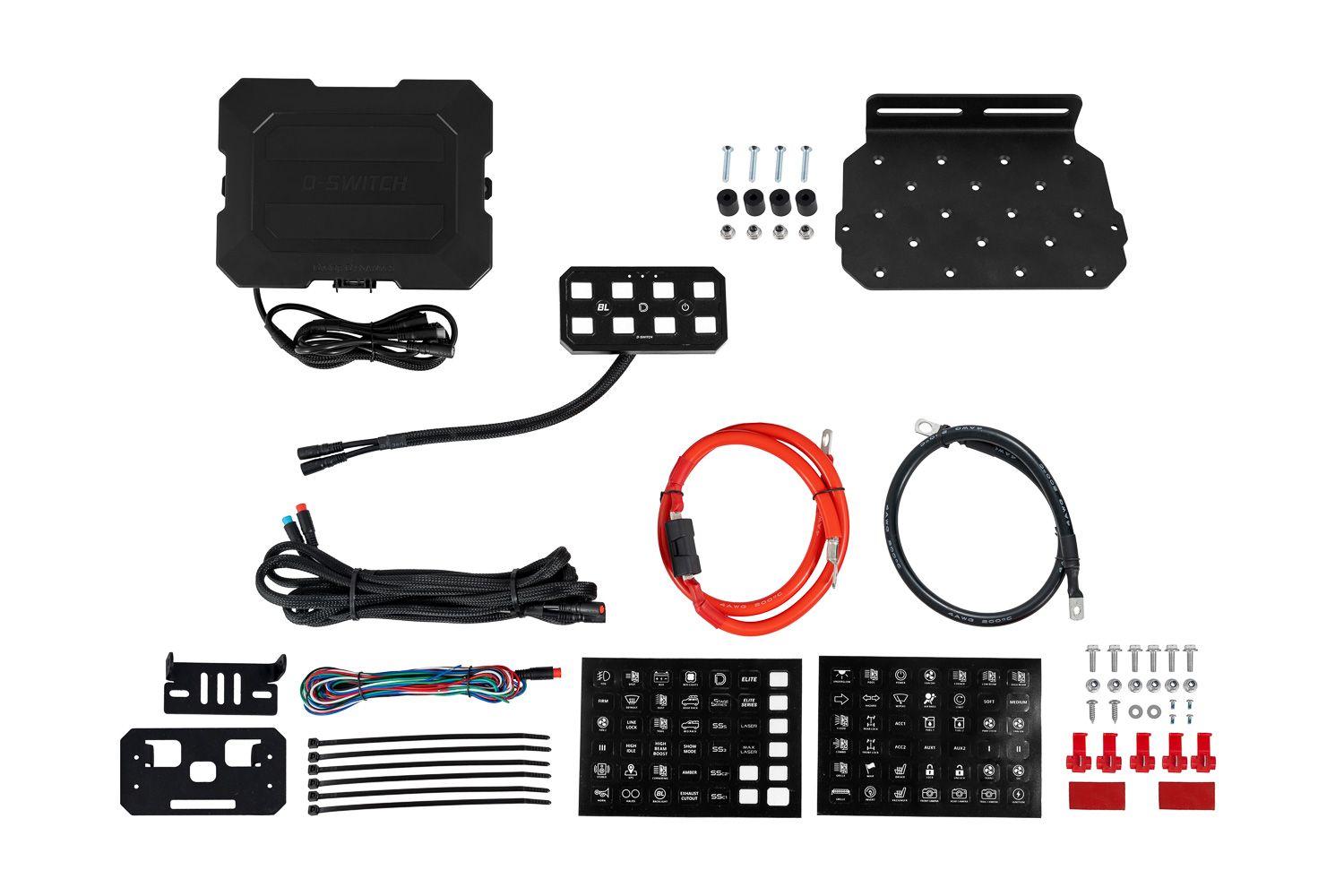

D-Switch w/ Bracket:
✔ One (1) Switch Panel Hub
✔ One (1) Switch Panel Controller
✔ One (1) Controller Universal Mounting Bracket
✔ One (1) Universal D-Switch Hub Bracket
✔ One (1) 10-foot Controller Wiring Harness
✔ One (1) Trigger Wires + Night Mode Wiring Harness
✔ One (1) 3-foot 4AWG Battery Cable
✔ One (1) 3-foot 4AWG Ground Cable
✔ Two (2) Button Sticker Sheets
✔ Five (5) T-taps
✔ Six (6) Zip Ties
✔ Four (4) 15mm Spacers
✔ Double-sided tape
✔ Installation Hardware
✔ Installation & Programming Guide

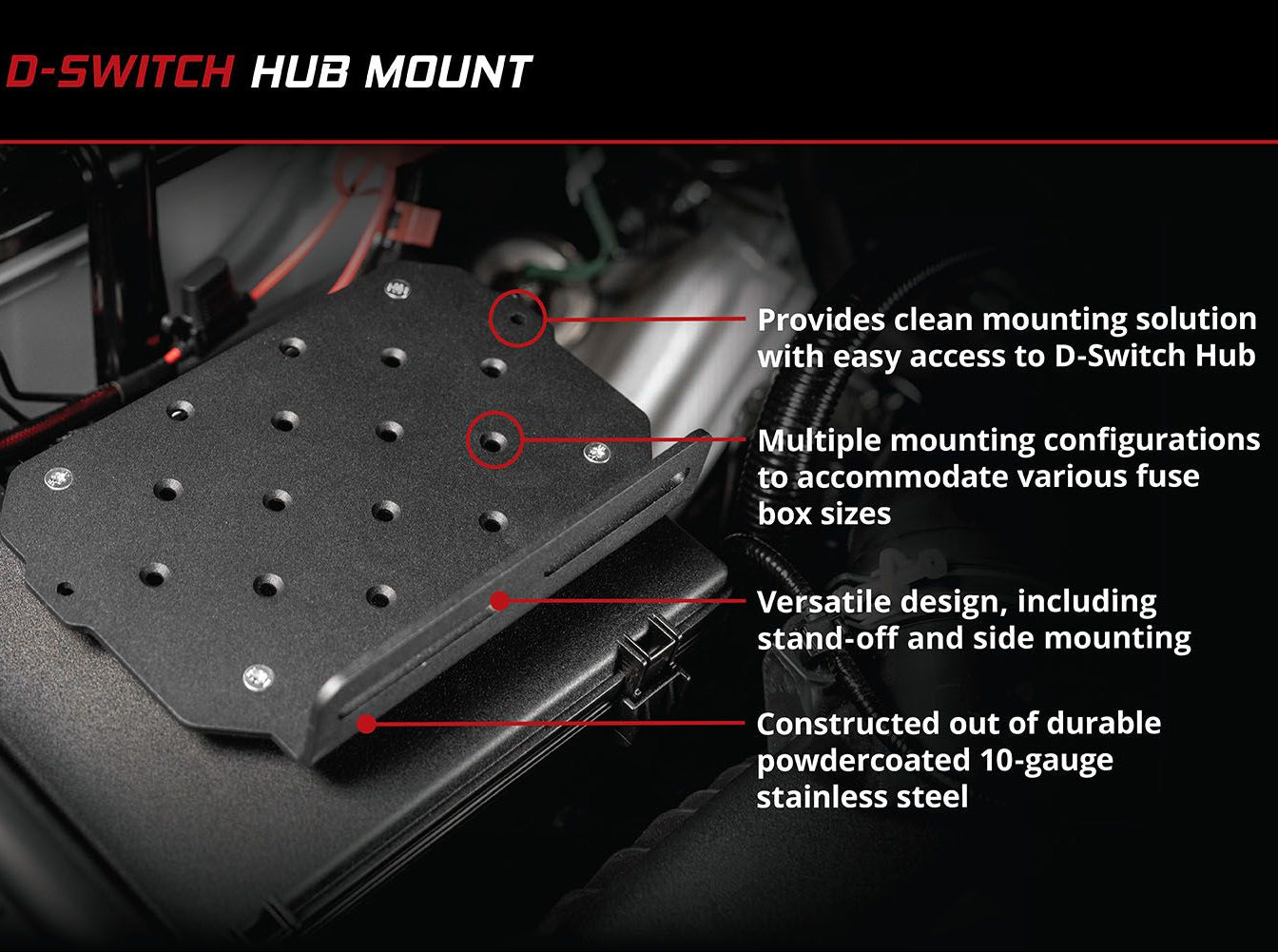

Features
Simple installation in the Toyota Tacoma engine bay.
Designed for easy access to your D-Switch Hub whenever you need it.
Optimal placement does not interfere with your fuse box or battery.
Powdercoated 10-gauge stainless steel construction for long-lasting durability.
Made in USA using Global Materials.
Specs
Channel Power: Channels 1 - 4: 15A (per channel), Channels 5 - 8: 30A (per channel), Backlight 15A (total)
Max Current: 125A
Electrical Compatibility: DC
Operating Voltage: 9-16V
Wire Size: 4AWG (Battery), 22AWG (Sensors), 26AWG (Controller)
Operating Temperature: -40C to 120C (-40F to 250F)
Materials: FR4 PCB, Powdercoated Steel, Aluminum Casting, ASA Plastic
Cooling: Passive, Pin-Fin heatsink
Intrusion Ratings: IP67 Weatherproof
FCC ID: 2BPIL-DD8373

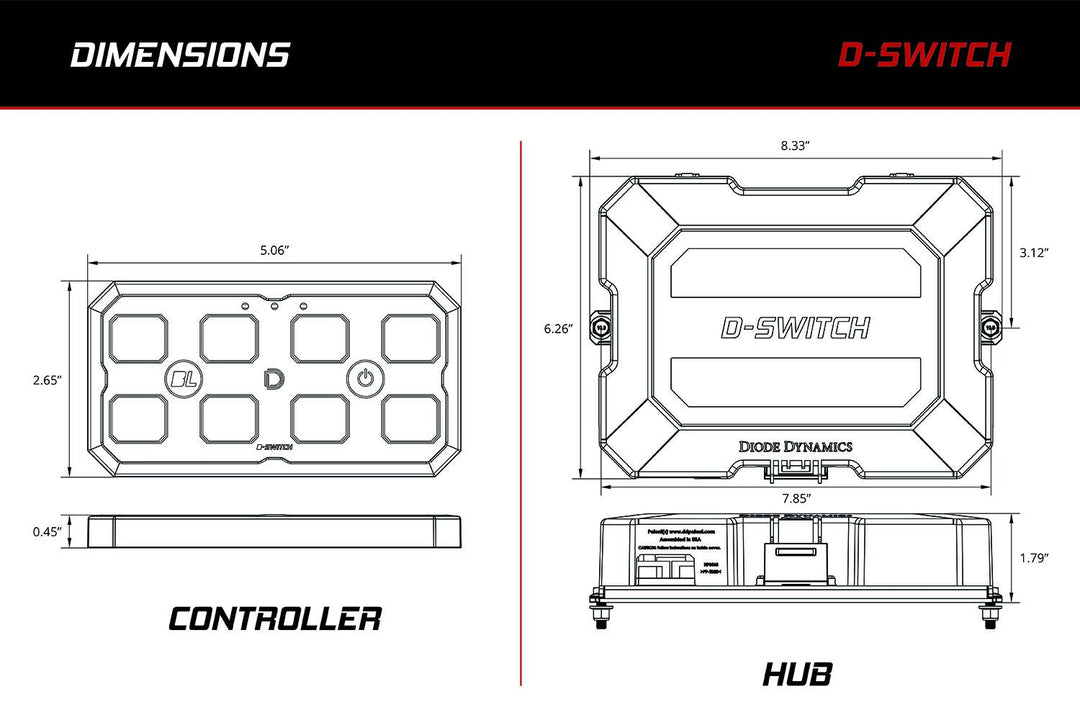

Product Dimensions (in): Controller: 5.06" x 2.66" x 0.45", Hub: 8.33" x 6.26" x 1.79"
Unit Weight (lb): 1.9
Product Weight (lb): 4.7
Shipped Weight (lb): 9.4
Warranty
3-Year Warranty
