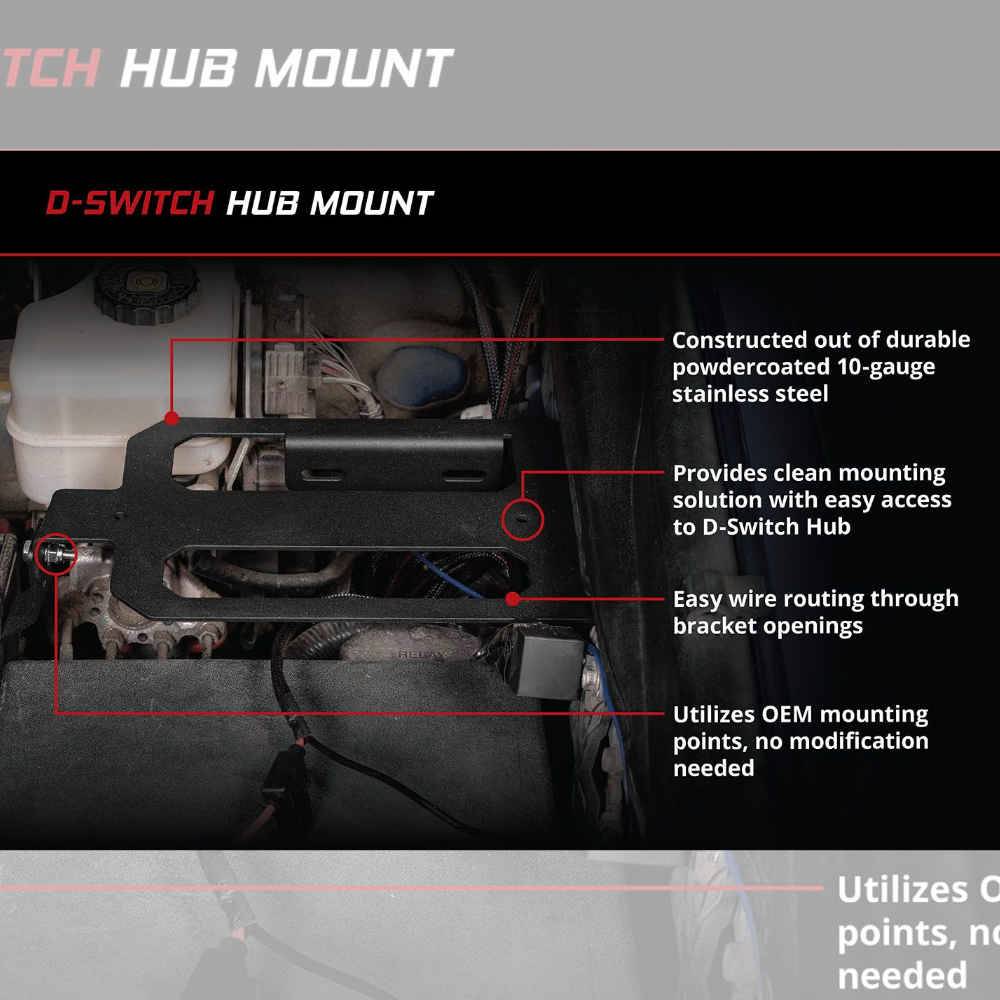

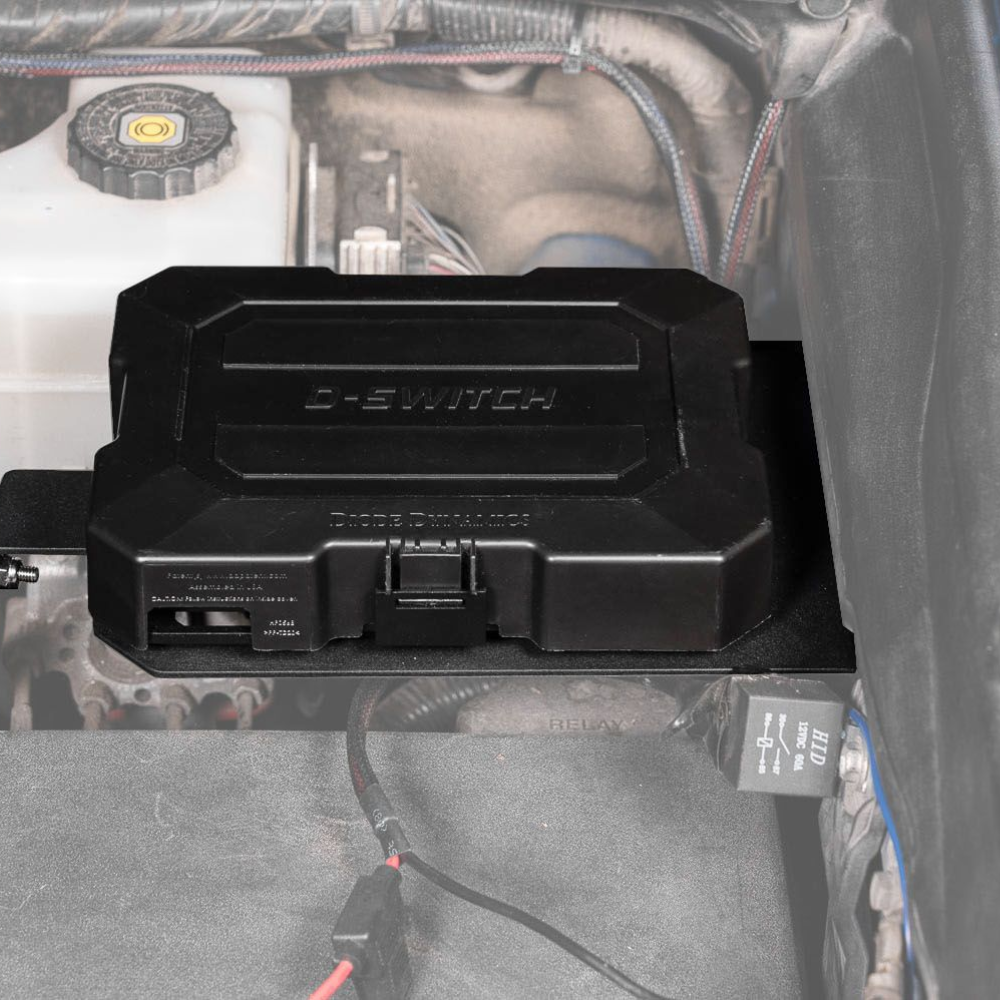

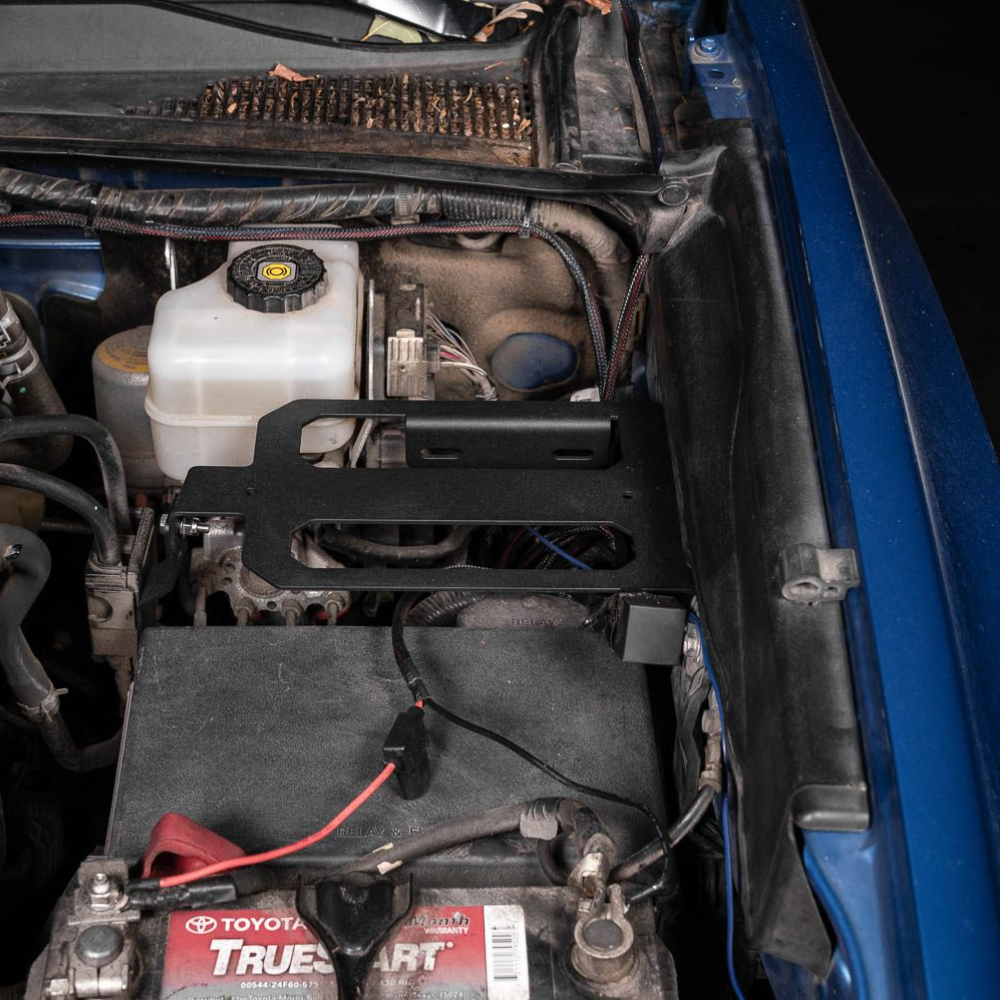

Unsure of where to mount your D-Switch Hub? Check this out! The D-Switch Hub Mount Kit for the Toyota Tacoma eliminates the guesswork and provides a simple, bolt-on mounting solution. This kit bolts directly to OEM mounting points in the engine bay, without interfering with the fuse box or battery, and allows for easy access to the D-Switch Hub.
Overview
Upgrade your vehicles setup with the Diode Dynamics D-Switch! This advanced 8-channel switch panel gives you full control over any 12V accessory with four 30A and four 15A outputs, delivering serious power with unrivaled customization.
Dedicated Backlight Channel. Unlike other 8-button controllers, the D-Switch includes a 9th button for the dedicated backlight bus bar, providing eight extra outputs for accent lighting. Activate all backlit accessories with a single press, freeing up main outputs for other functions.
Dynamic Channel Assignment. Unlike one-to-one switch panels, the D-Switch allows multiple output channels per button, giving you complete control over your setup. You can also assign multiple functions of an output to different buttons, such as configuring one button for flashing and another for full power of the same light.

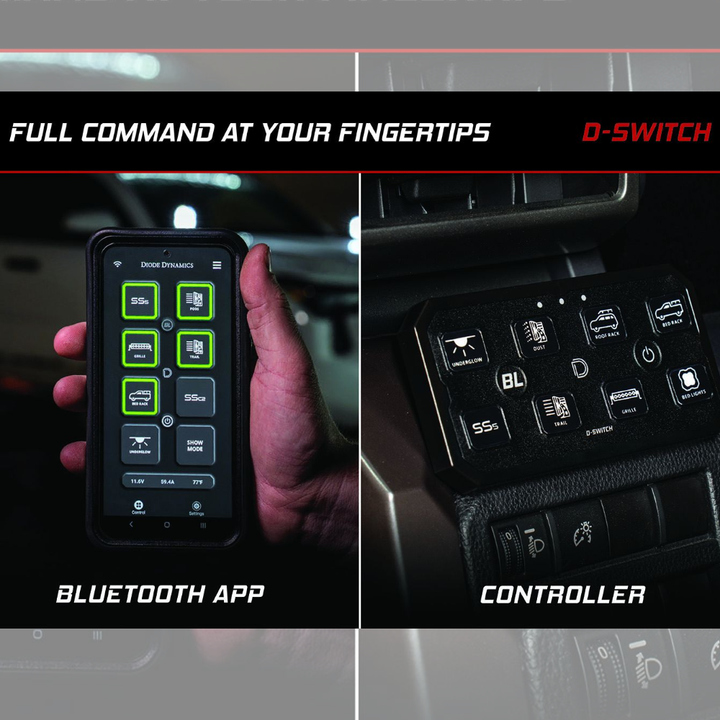

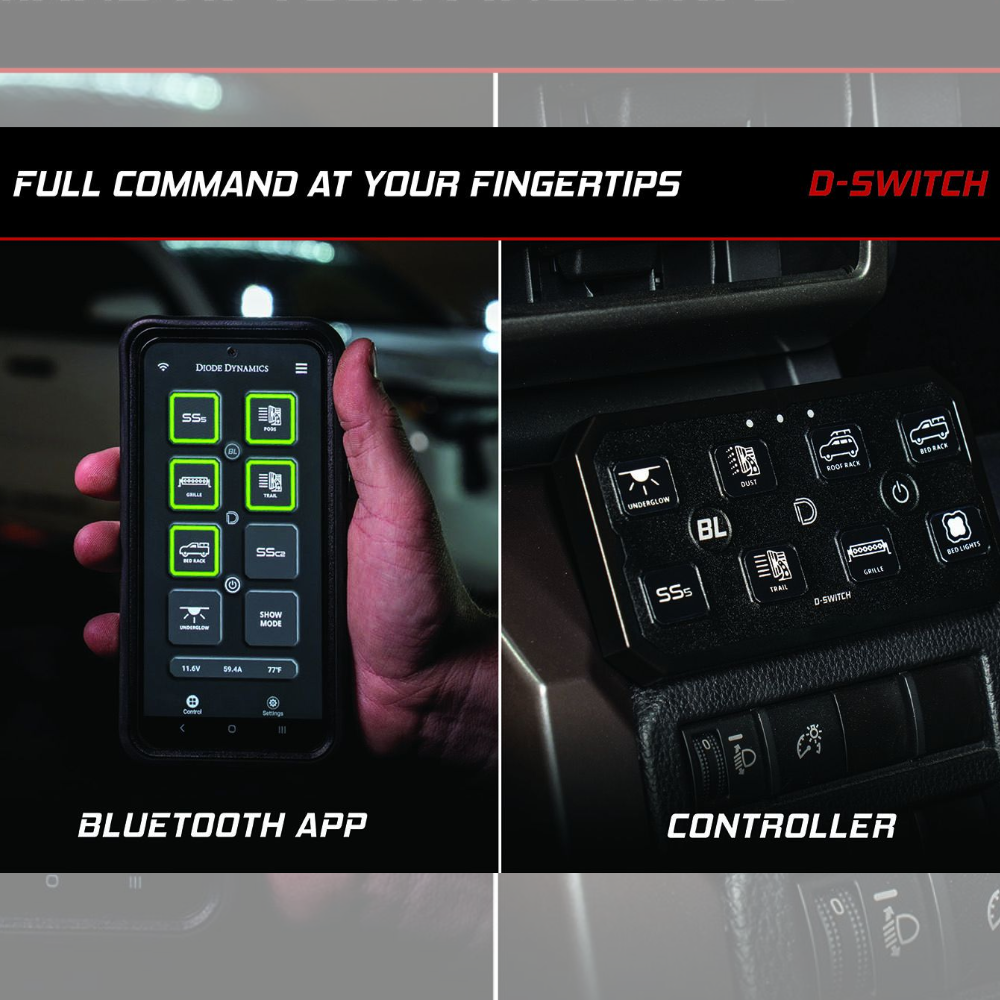

Fast, Responsive Bluetooth App. Control and configure settings using the Bluetooth app for iOS and Android, which delivers instant response, no lag, and seamless programming.
OEM Signal Integration. Three trigger wires are included to automatically activate your outputs with vehicle signals such as high beams, fog lights, or reverse lights. The ignition wire powers the controller when the vehicle starts, shutting it down automatically when turned off. The Night Mode wire adjusts output settings and controller brightness for low-light conditions.
Solid-State, Durable Design. The D-Switch is built to withstand the toughest conditions, with a solid-state design and an IP67-rated aluminum heatsink for superior heat dissipation. No mechanical relays to wear out or physical fuses to replace!
Whether for off-road lighting or other 12V accessories, the D-Switch offers unmatched power, customization, and reliability.
Included:

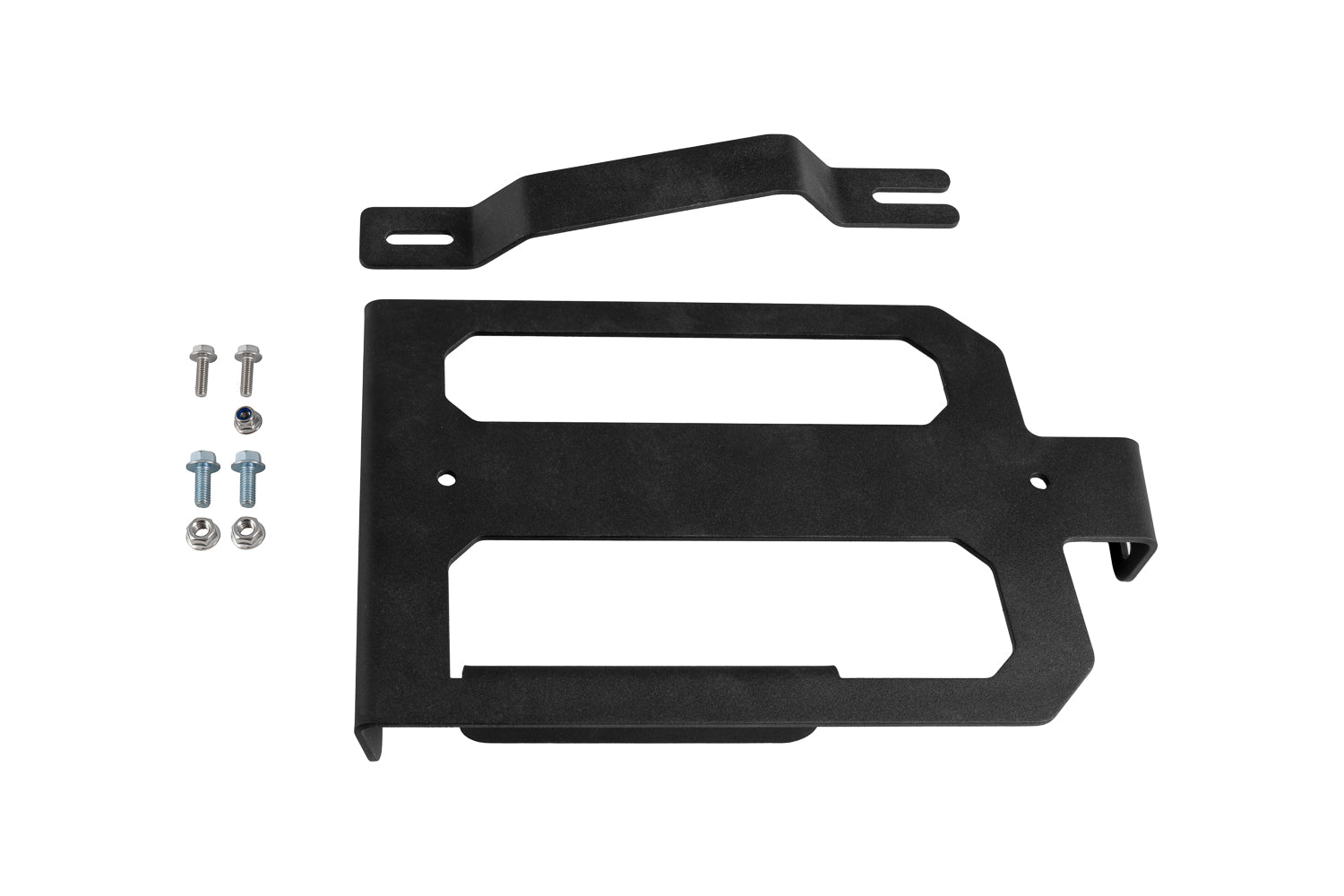

Bracket Only:
✔ One (1) Vehicle Specific D-Switch Hub Bracket
✔ One (1) Support Bracket
✔ Installation Hardware

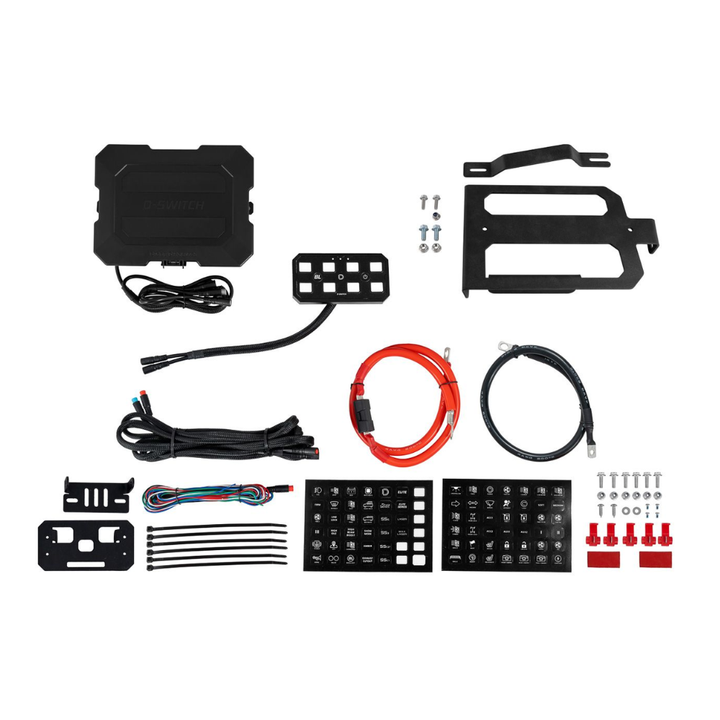

D-Switch w/ Bracket:
✔ One (1) Switch Panel Hub
✔ One (1) Switch Panel Controller
✔ One (1) Controller Universal Mounting Bracket
✔ One (1) Vehicle Specific D-Switch Hub Bracket
✔ One (1) Support Bracket
✔ One (1) 10-foot Controller Wiring Harness
✔ One (1) Trigger Wires + Night Mode Wiring Harness
✔ One (1) 3-foot 4AWG Battery Cable
✔ One (1) 3-foot 4AWG Ground Cable
✔ Two (2) Button Sticker Sheets
✔ Five (5) T-taps
✔ Six (6) Zip Ties
✔ Double-sided tape
✔ Installation Hardware
✔ Installation & Programming Guide
Group and control multiple outputs with a single button.
Dedicated backlight channel to control your accent lighting.
Fast, responsive Bluetooth App - no lagging or loading screens!
Solid-state, fully-encapsulated design for extreme durability.
Three trigger wires for OEM-like control through vehicle signals.
Engineered and assembled in USA.
Channel Power: Channels 1 - 4: 15A (per channel), Channels 5 - 8: 30A (per channel), Backlight 15A (total)
Max Current: 125A
Electrical Compatibility: DC
Operating Voltage: 9-16V
Wire Size: 4AWG (Battery), 22AWG (Sensors), 26AWG (Controller)
Operating Temperature: -40C to 120C (-40F to 250F)
Materials: FR4 PCB, Powdercoated Steel, Aluminum Casting, ASA Plastic
Cooling: Passive, Pin-Fin heatsink
Intrusion Ratings: IP67 Weatherproof
FCC ID: 2BPIL-DD8373
Product Dimensions (in): Controller: 5.06" x 2.66" x 0.45", Hub: 8.33" x 6.26" x 1.79"
Unit Weight (lb): 1.9
Product Weight (lb): 4.7
Shipped Weight (lb): 9.3
