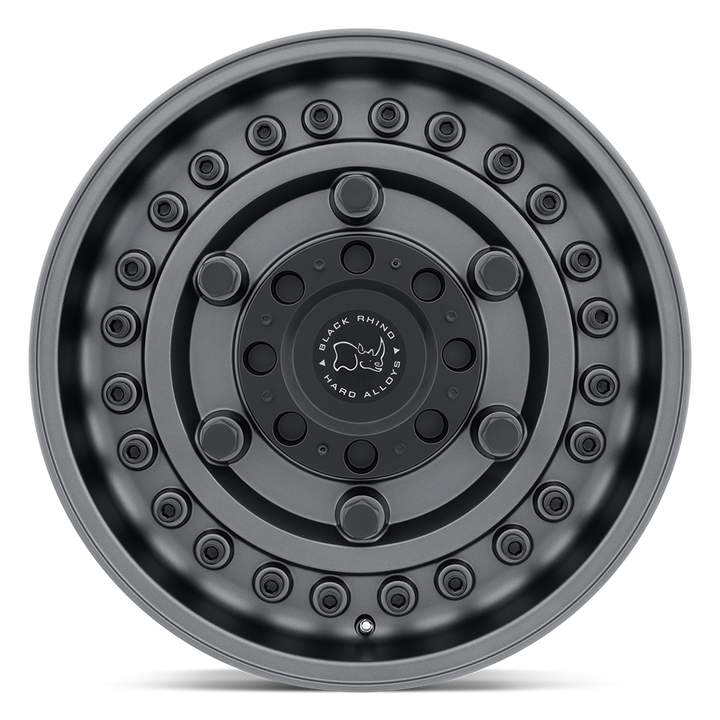

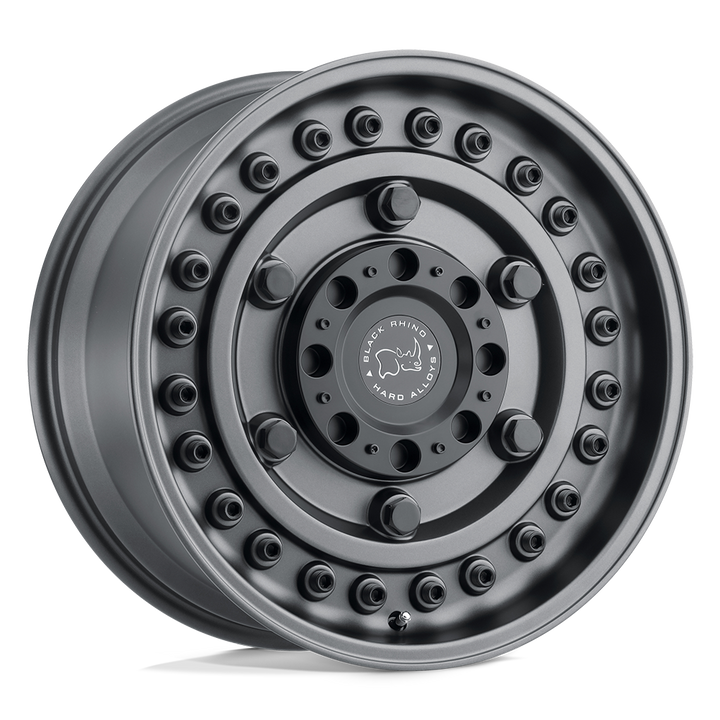

Make the Black Rhino Armory the weapon of choice for your next off-road operation.
Featuring renowned Black Rhino tactical style and mil-spec attitude, the Armory is a dramatic statement of ruggedness that's perfect for the military-minded off-road enthusiast. Our mission was to cover the best range of stock and lifted off-highway vehicles; that's why Armory off-road wheels are available in 16x8, 17x9.5, 18x9.5, 20x9.5 and 20x12 sizes. Offsets range from -44mm to +45mm and 5, 6 and 8-lug bolt patterns, including an 8x180 pattern for newer GMC and Chevrolet heavy duty trucks. Gear up and get out with the Black Rhino Armory.
Location: Front and Rear
Material: Cast Aluminum
16" | 16X8 -10mm | 6X139.7

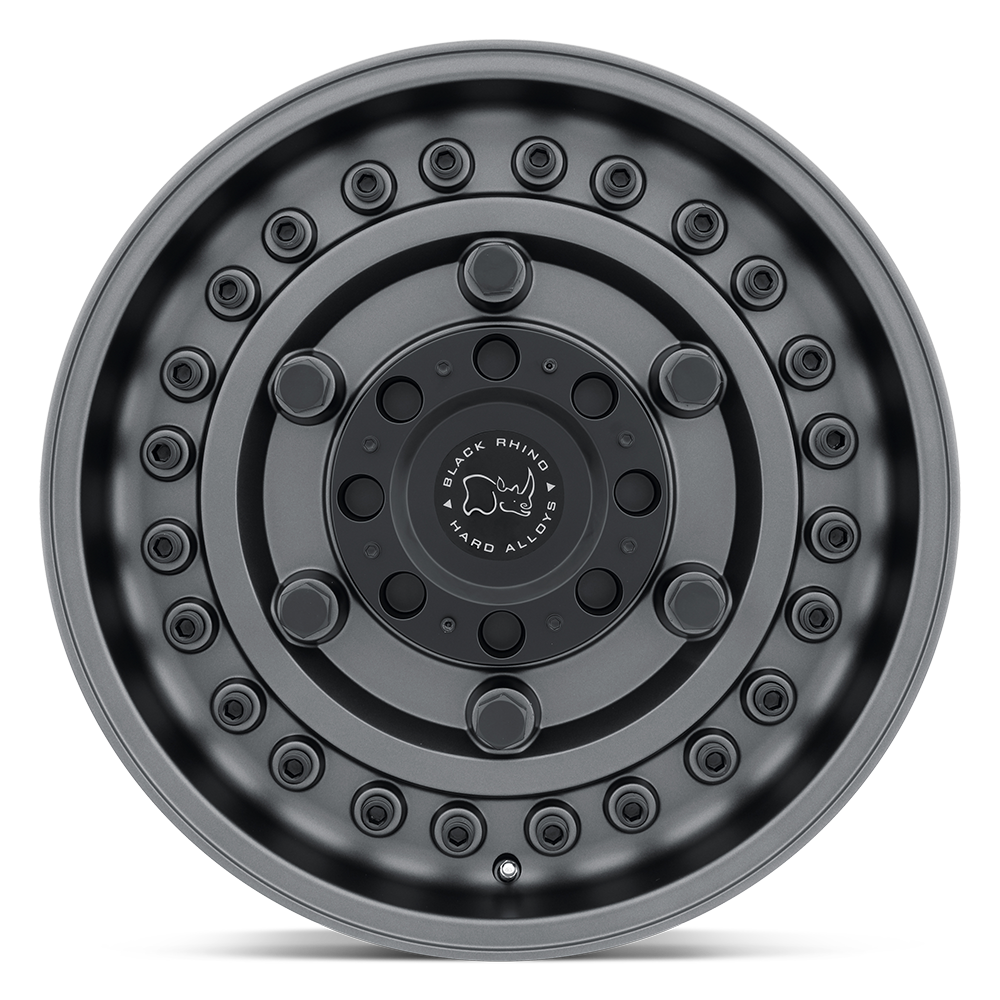

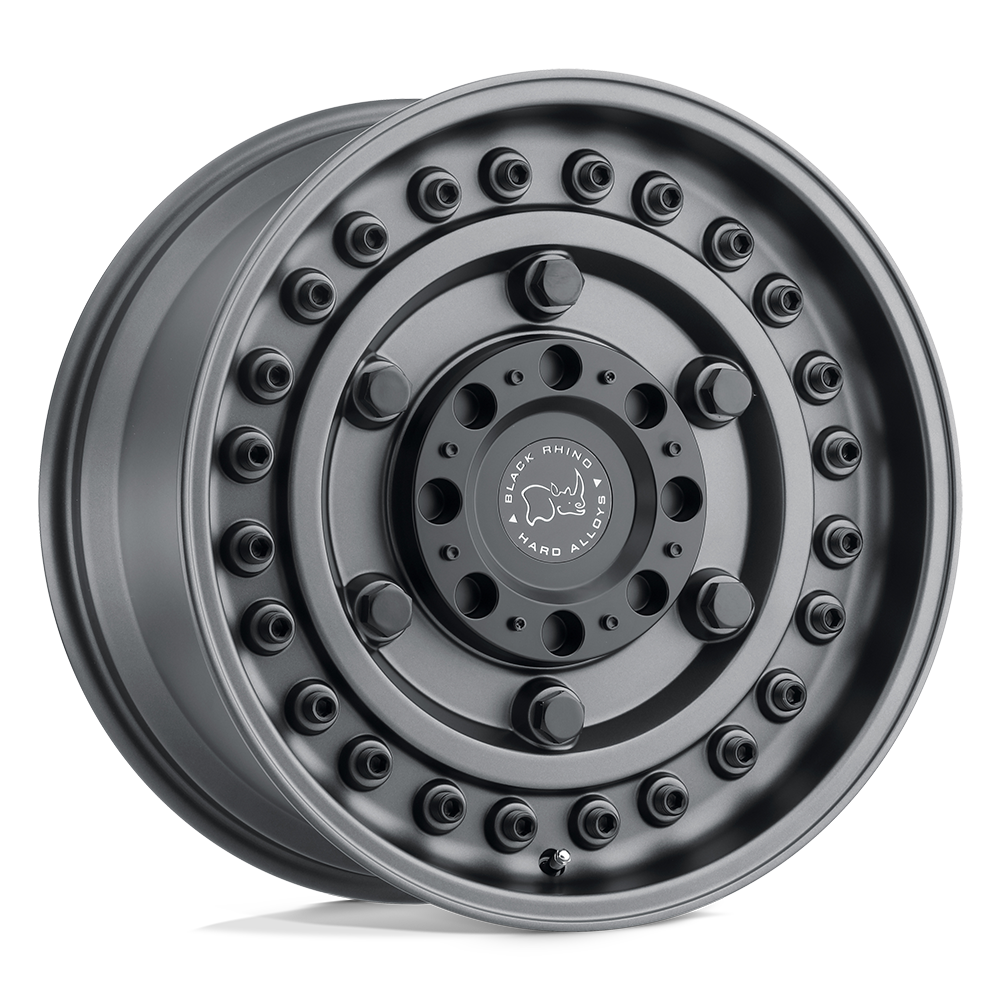

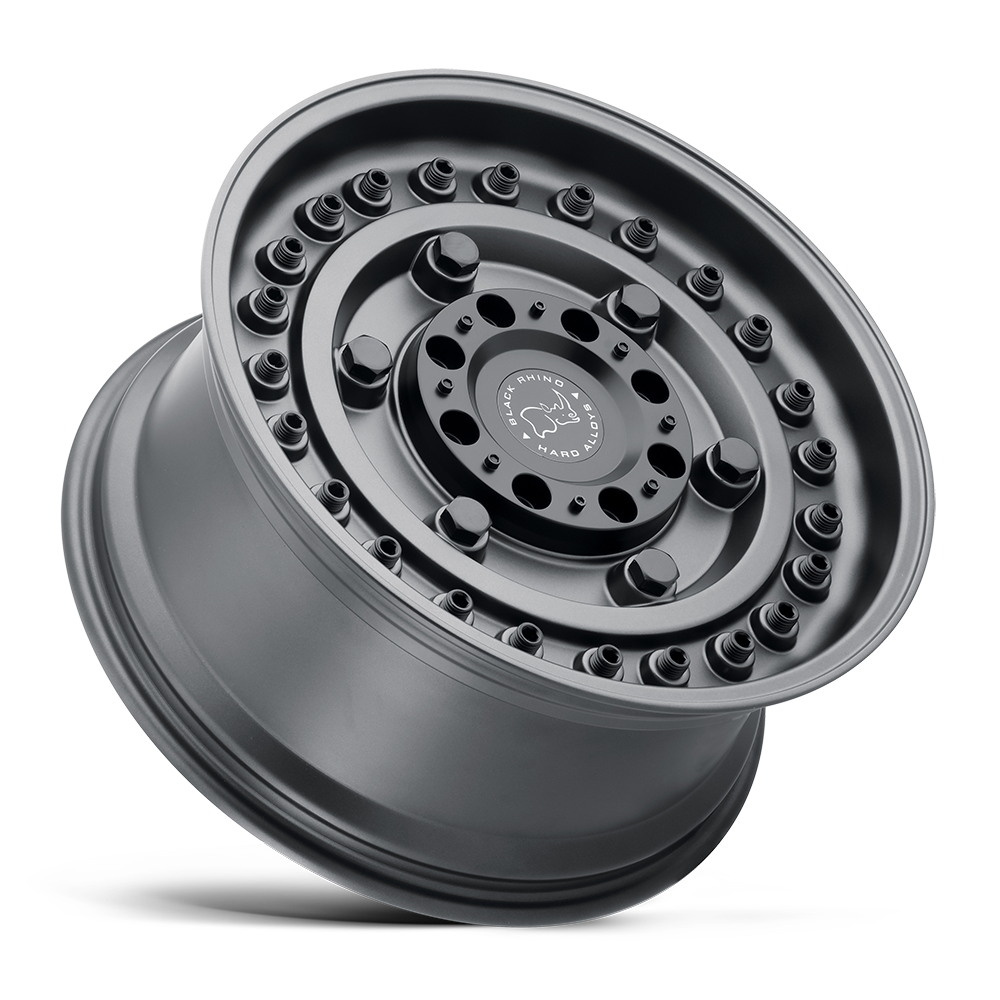

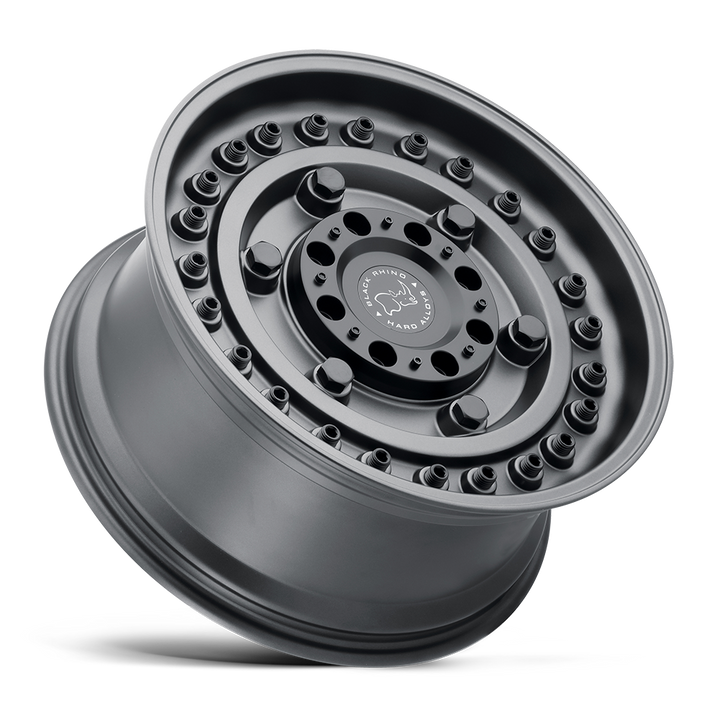

Finish GUN BLACK
Size: 16X8
Bolt Pattern: 6X139.7
Backspace: 4.11
Offset: -10mm
Bore: 112.10
Weight: 28.2 lbs
Load: 2700
Lip Size: 0.88

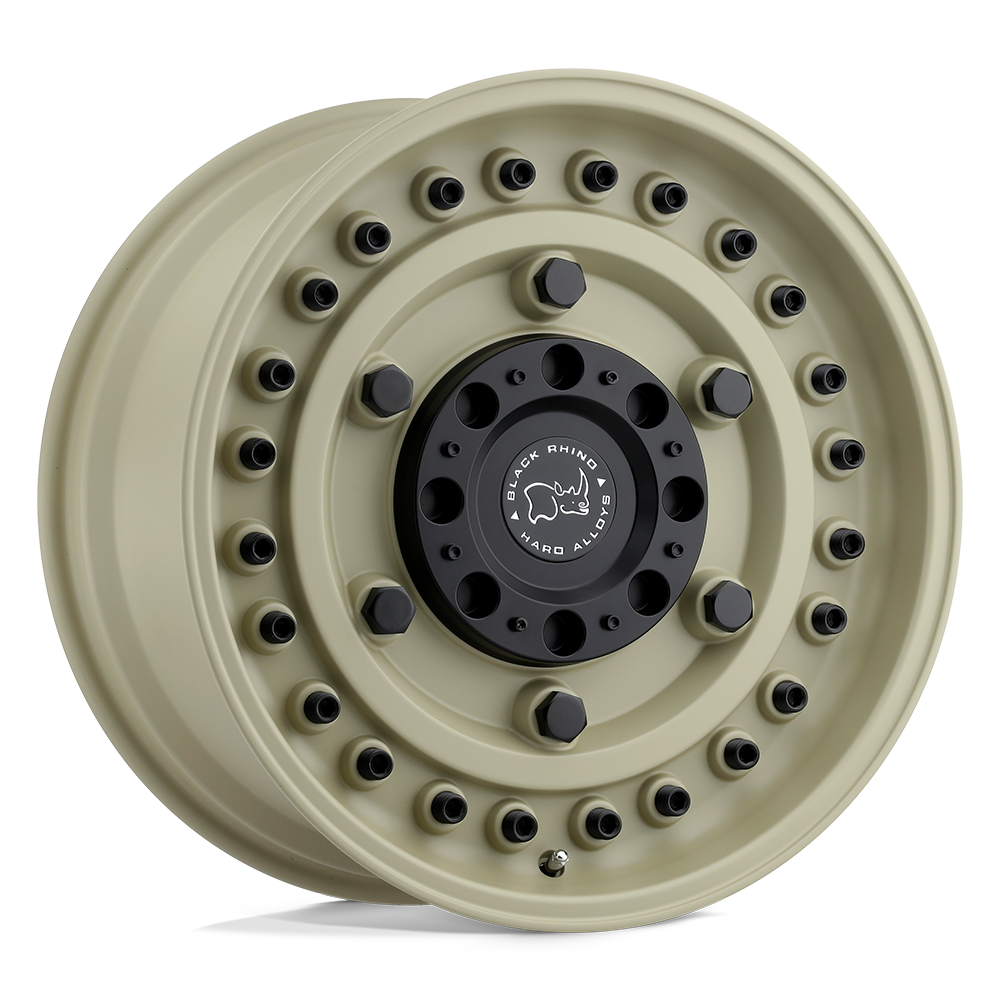

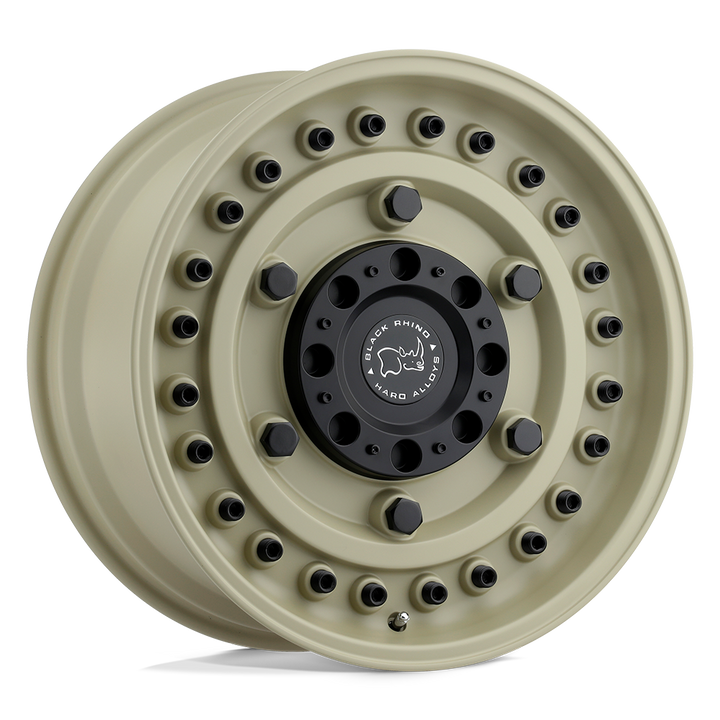

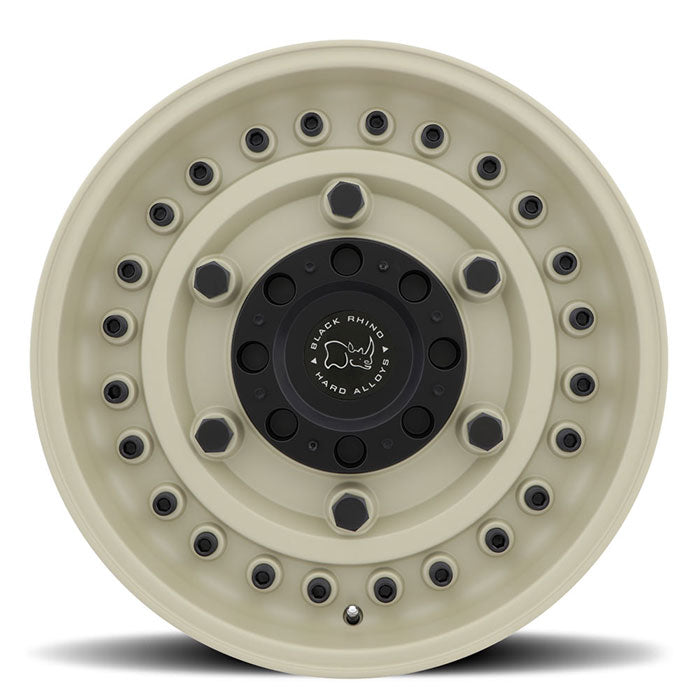

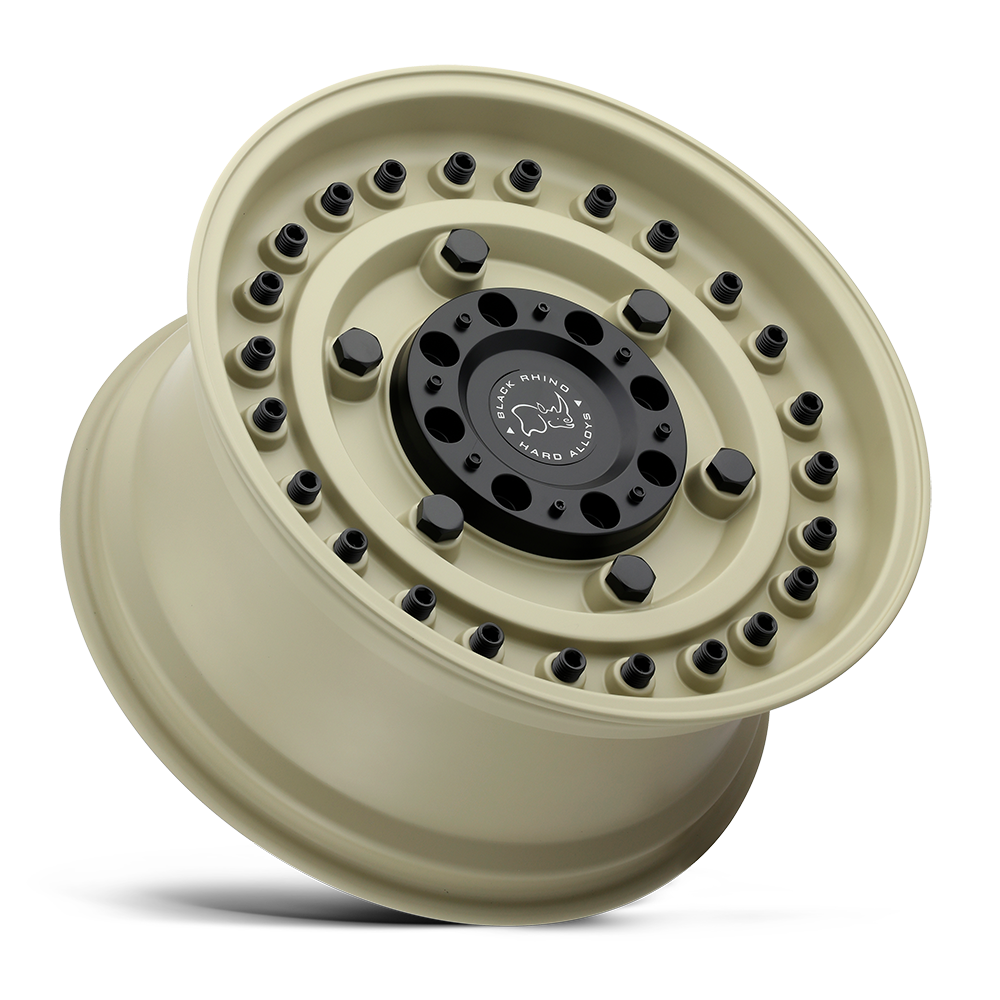

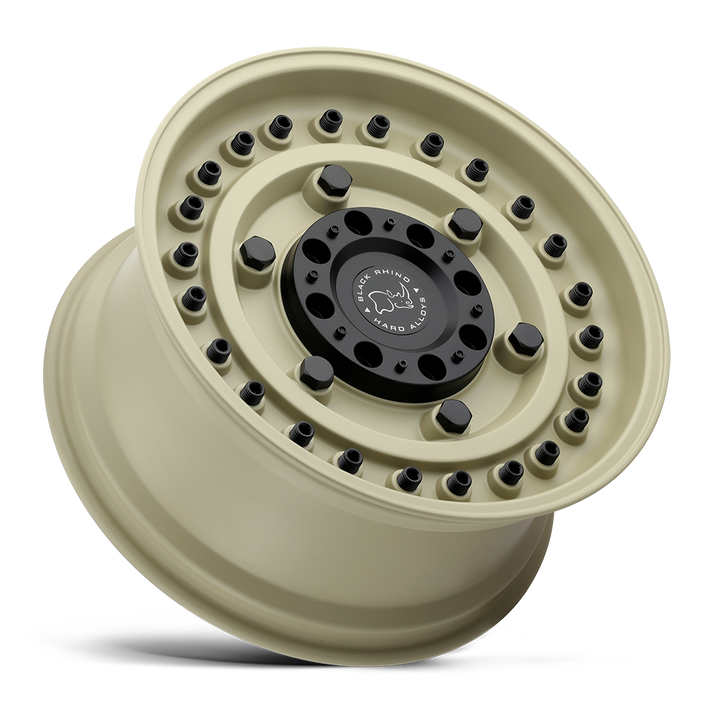

Finish DESERT SAND
Size: 16X8
Bolt Pattern: 6X120/6X139.7
Backspace: 4.11
Offset : -10mm
Bore: 78.10
Weight: 33.66 lbs
Load: 2700
Lip Size: 0.88
17" | 17X9.5 -18mm| 6X135/6X139.7
Finish GUN BLACK
Size: 17X9.5
Bolt Pattern: 6X135/6X139.7
Backspace: 4.54
Offset: -18mm
Bore: 106.10
Weight: 38.94 lbs
Load: 2500
Lip Size: 1.52
17" | 17X9.5 6mm | 6X135/6X139.7
Finish GUN BLACK
Size: 17X9.5
Bolt Pattern: 6X135/6X139.7
Backspace: 5.49
Offset: 6mm
Bore: 106.10
Weight: 36.52 lbs
Load: 2500
Lip Size: 1.52
Finish DESERT SAND
Size: 17X9.5
Bolt Pattern: 6X135/6X139.7
Backspace: 5.49
Offset : 6mm
Bore: 106.10
Weight: 36.52 lbs
Load: 2500
Lip Size: 1.52
18" | 18X9.5 -18mm | 6X135/6X139.7
Finish GUN BLACK
Size: 18X9.5
Bolt Pattern: 6X135/6X139.7
Backspace: 4.54
Offset: -18mm
Bore: 106.10
Weight: 39.6 lbs
Load: 2500
Lip Size: 1.71
18" | 18X9.5 6mm | 6X135/6X139.7
Finish GUN BLACK
Size: 18X9.5
Bolt Pattern: 6X135/6X139.7
Backspace: 5.49
Offset: 6mm
Bore: 106.10
Weight: 37.4 lbs
Load: 2500
Lip Size: 1.71
20" | 20X9.5 -18mm | 6X135/6X139.7
Finish GUN BLACK
Size: 20X9.5
Bolt Pattern: 6X135/6X139.7
Backspace: 4.54
Offset: -18mm
Bore: 106.10
Weight: 43.34 lbs
Load: 2500
Lip Size: 2.26
20" | 20X9.5 6mm | 6X135/6X139.7
Finish GUN BLACK
Size: 20X9.5
Bolt Pattern: 6X135/6X139.7
Backspace: 5.49
Offset: 6mm
Bore: 106.10
Weight: 42.9 lbs
Load: 2500
Lip Size: 2.26
➜ Wheel Pros warrants that our wheels will be free from structural failure under normal and intended use for as long as the original retail purchaser owns the product. Customers are specifically directed to the Wheel Pros Consumer Information and WTC Aftermarket Wheel Installation Guidelines, supplied with the wheel. Failure to comply with these instructions shall void this warranty.
➜ Wheel Pros warrants that chrome and painted aluminum finishes will be free from peeling or lifting on the face of the wheel for a period of one year.
➜ Wheel Pros warrants that PVD finishes will be free from peeling or lifting on the face of the wheel for a period of two years.
➜ Polished aluminum wheels, that have not been clear coated, oxidize. They require regular maintenance. Polished aluminum finishes are not covered under warranty.
➜ Excluding surface rust or corrosion, Wheel Pros warrants the paint and plating on steel wheels for a period of 90 days.
