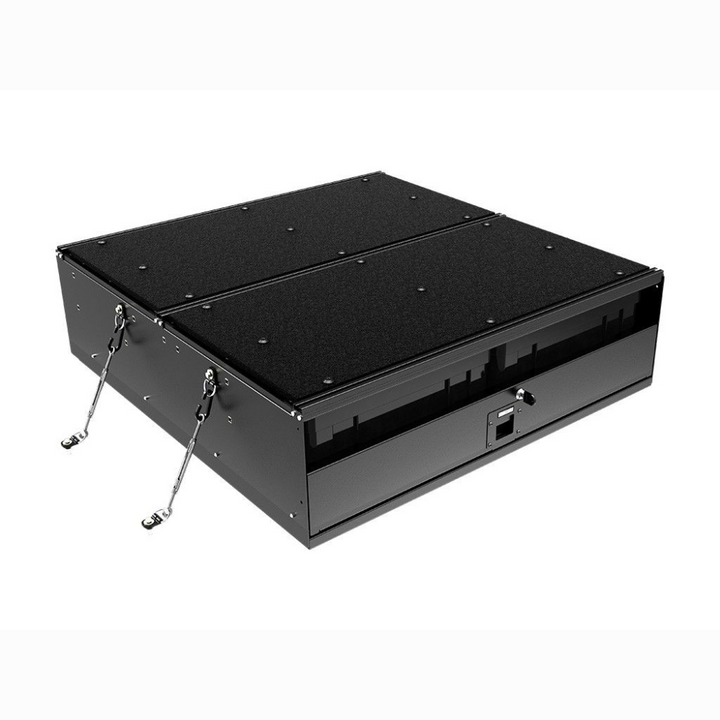

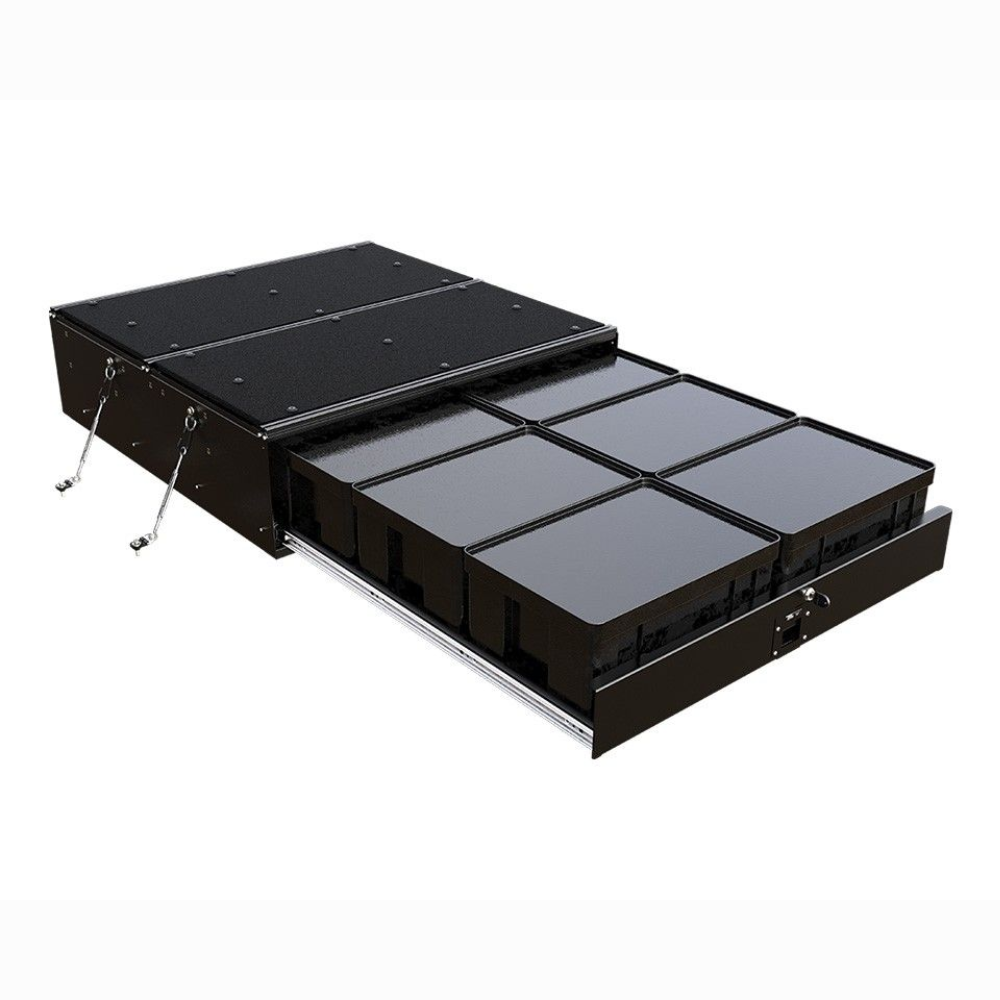

6 Cub Pack Drawer / Wide Incl. Boxes
This Cub Pack based lockable drawer system provides a comprehensive and practical vehicle based storage solution. The removable Cub Pack boxes simplify the organizing and transporting of stored items between the vehicle and the campsite, garage, store, etc. This Removable Box Drawer can be fitted in a variety of vehicles as a “universal” drawer solution. Engineered tough for both on and off-road conditions.
Front Runner Cub Packs, the heart of this modular storage system, are perfectly sized for kitchen supplies, dried goods, tools, camera gear, toiletries, even clothes.
Customize your own storage configurations. Stack and secure luggage, Wolf Pack Pros, Cub Packs, aluminum boxes and other storage containers to the top deck using Stratchits or other straps.
Since this drawer will only fit into appropriately sized vehicles, please see SPECS for exact product measurements.
Included:
✔ 1 x Drawer unit with 1 Opening Drawer
✔ 1 x Push to close latch with 2 keys
✔ 3 x Accessory Channels
✔ 6 x Tie Down Rings
✔ 6 x Cub Packs
✔ Installation Hardware
✔ Fitting Instruction
Please Note:
➜ These "universal” drawers do not come with a vehicle specific deck completion set or faceplates.
➜ If this Drawer system is not mounted onto a rigid surface, we recommend adding Drawer Mount Kit or Drawer Mount Kit / Tall.

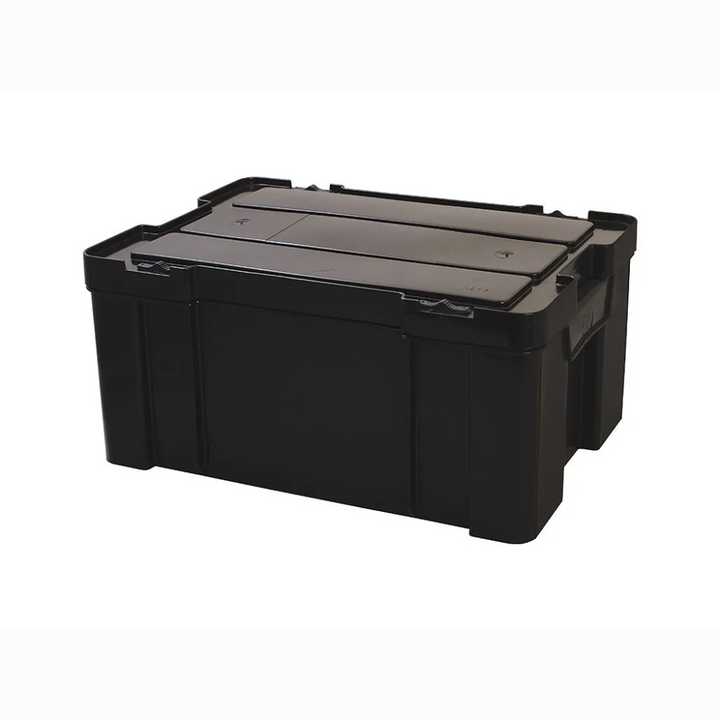

These stackable and durable Cub Pack storage containers are made from black, high strength plastic and have integrated grips for easy carrying.
Hold open feature: drawer “locks” open while parked on uneven surfaces.

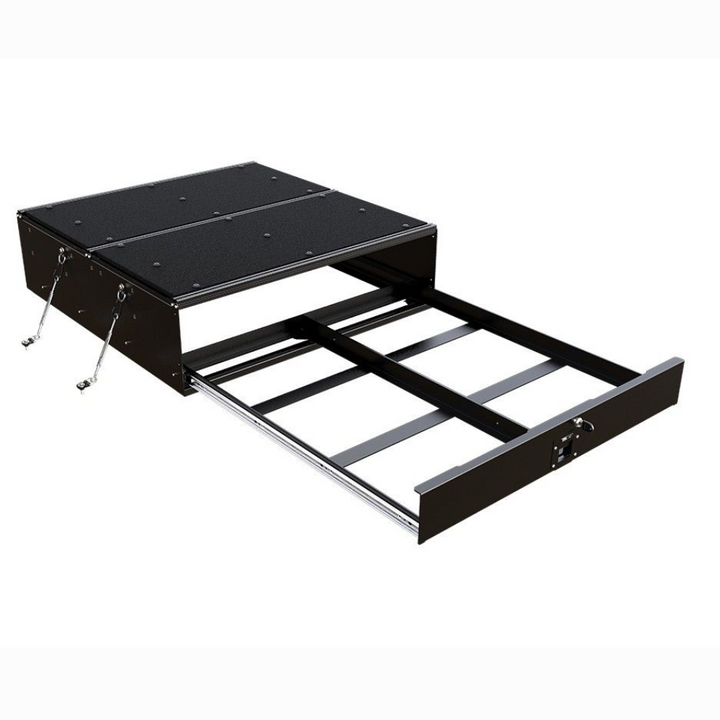

High-strength bearing slides allows the drawer to extend nearly 100% from the anchored base.
The push-to-latch mechanism is lockable when closed.
Provide peace of mind and security by locking away important support gear.

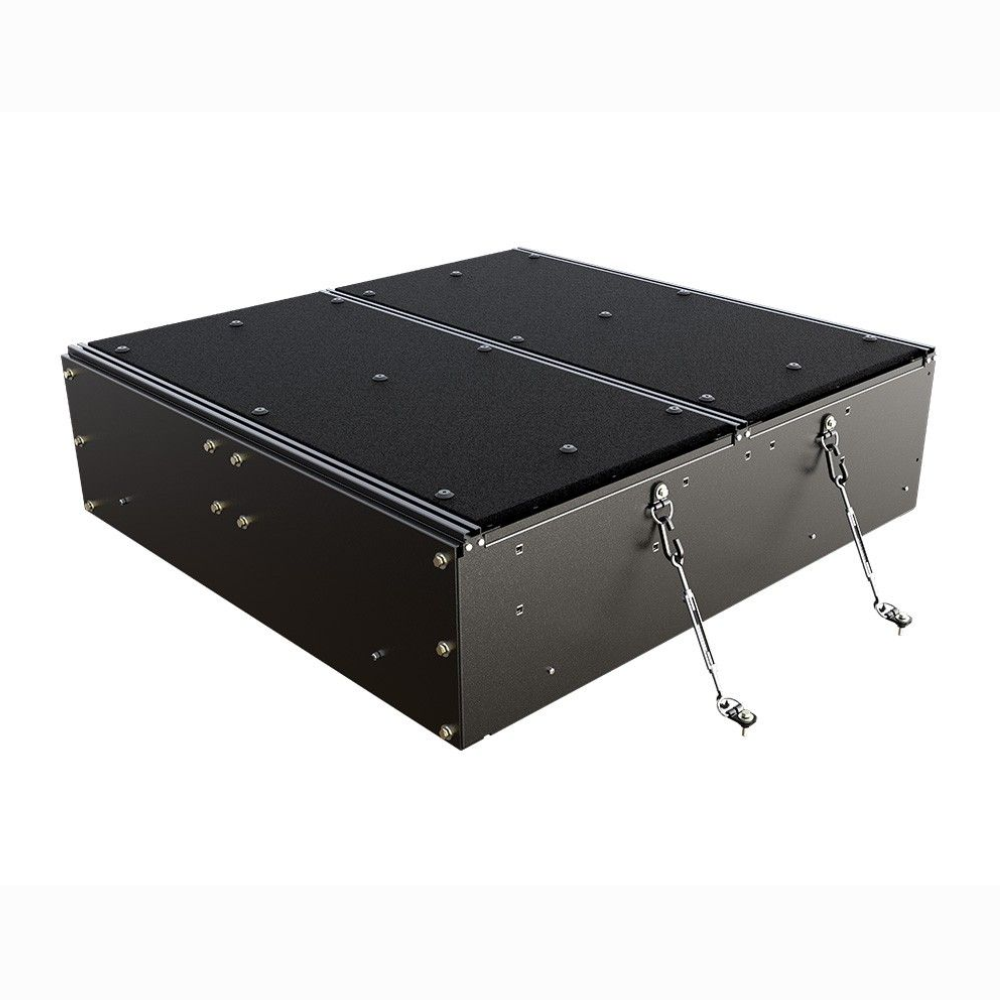

The flat deck incorporates three cargo attachment channels and 6 black tie down rings / Eye Nuts.
The deck above the drawer can also be used to mount Front Runner Cargo / Fridge Slides.
The deck is covered with a durable, UV resistant nylon pile carpet.
The nylon carpet surface creates resiliency for securing cargo while insulating against noise and vibration.
Finished with the same durable black powder coating as Front Runner Roof Racks and other Front Runner products.
This Front Runner Removable Box Drawer can be easily installed in minutes by attaching the supplied C-hooks and turnbuckles to the vehicle’s existing mounting points. Removing the drawers is just as easy.
This storage system is designed for interior use.
Materials Used:
Black powder coated steel - Frame
Carpet & Laminated Plywood - Top Deck
Product Dimensions
Overall Dimensions:
1000mm (39.4") L x 950mm (37.4") W x 285mm (11.2") H
Open Drawer Dimensions:
1915mm (75.4") L x 950mm (37.4") W x 285mm (11.2") H
Inner Drawer Dimensions:
946mm (37.2") L x 890mm (35") W x 222mm (8.7") H
Weight: 64.3kg (141.8lbs)
Load Rating: 113kg (250lbs)
Special Notes:
Items can be secured to the top deck using the 6 supplied tie down rings and fitting them accordingly to the 3 accessory channels on the top deck.
Drawer has a hold open feature.
