Description

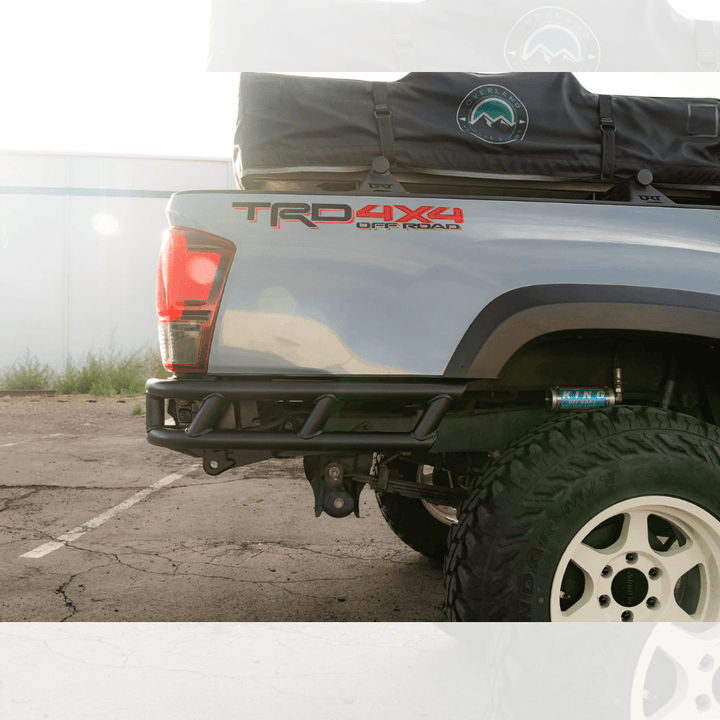

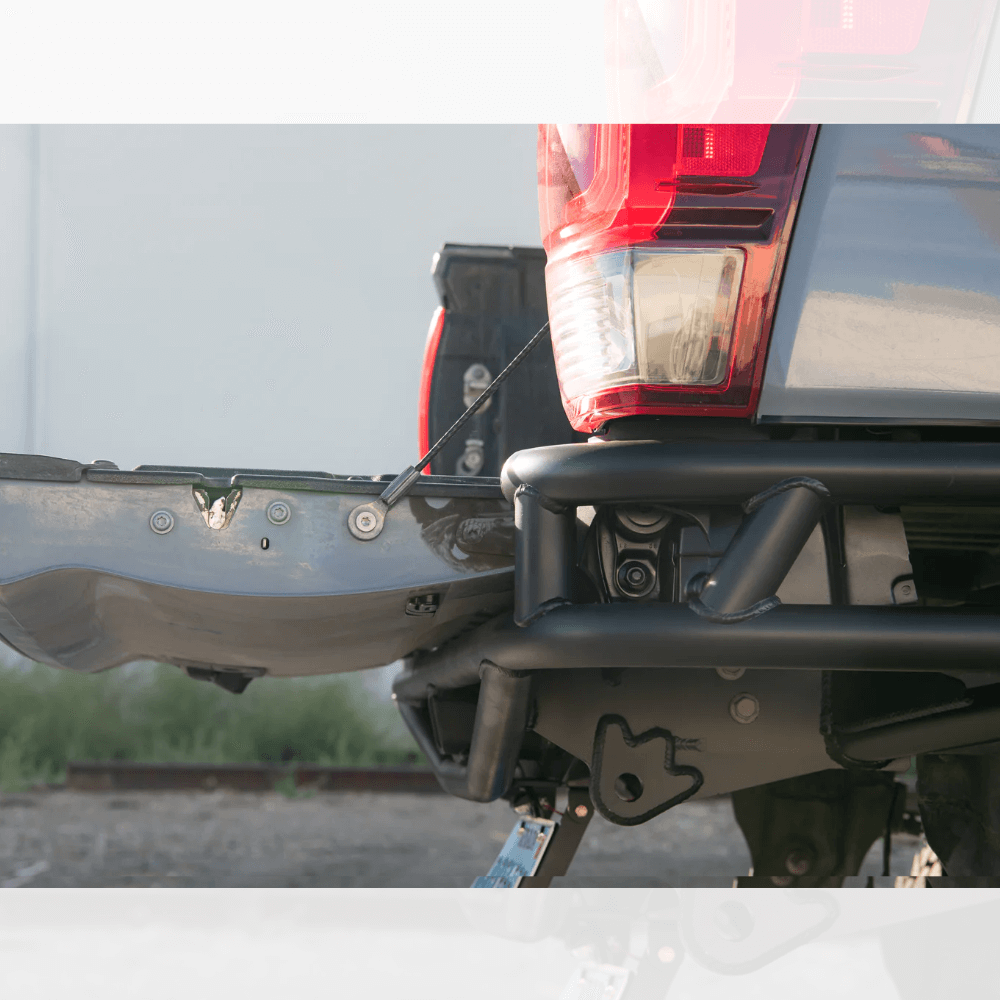

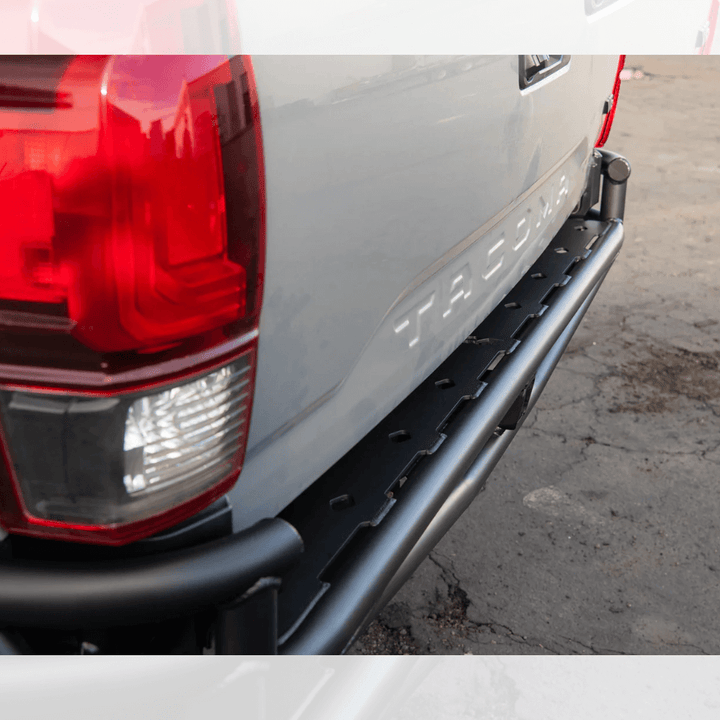

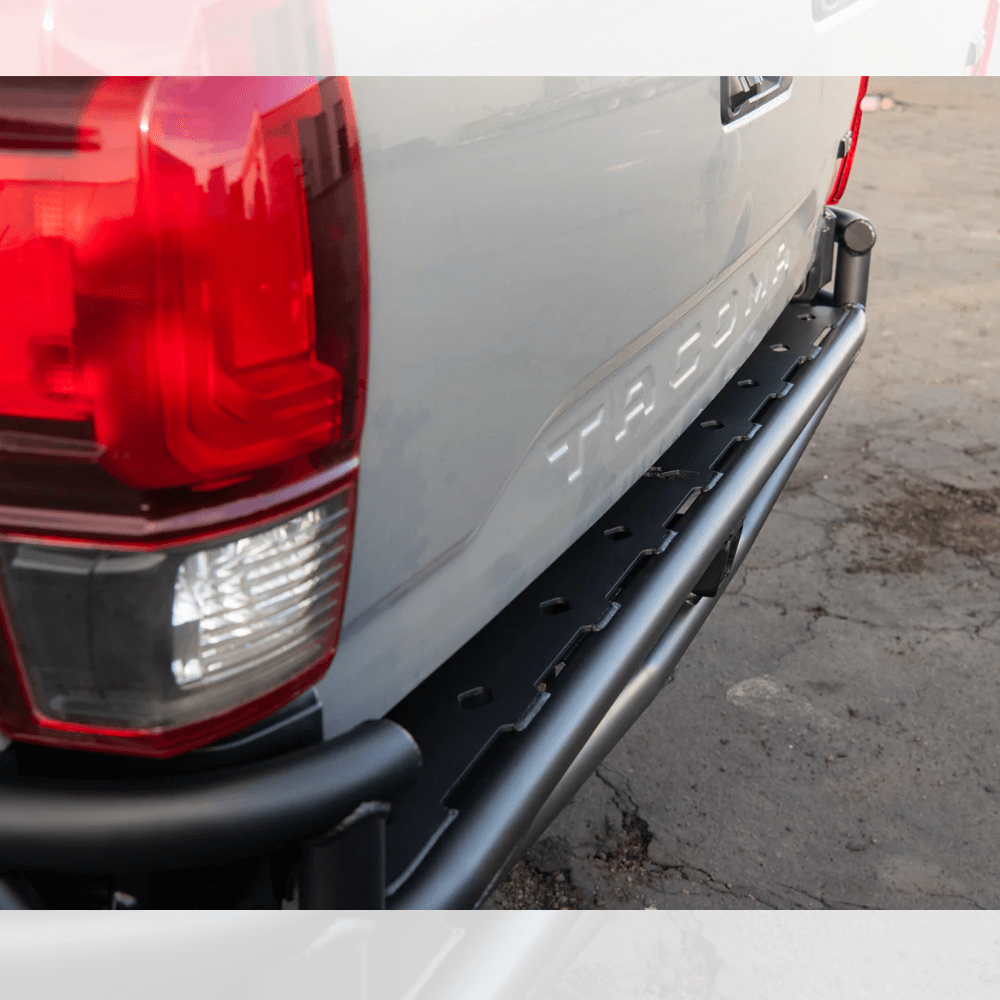

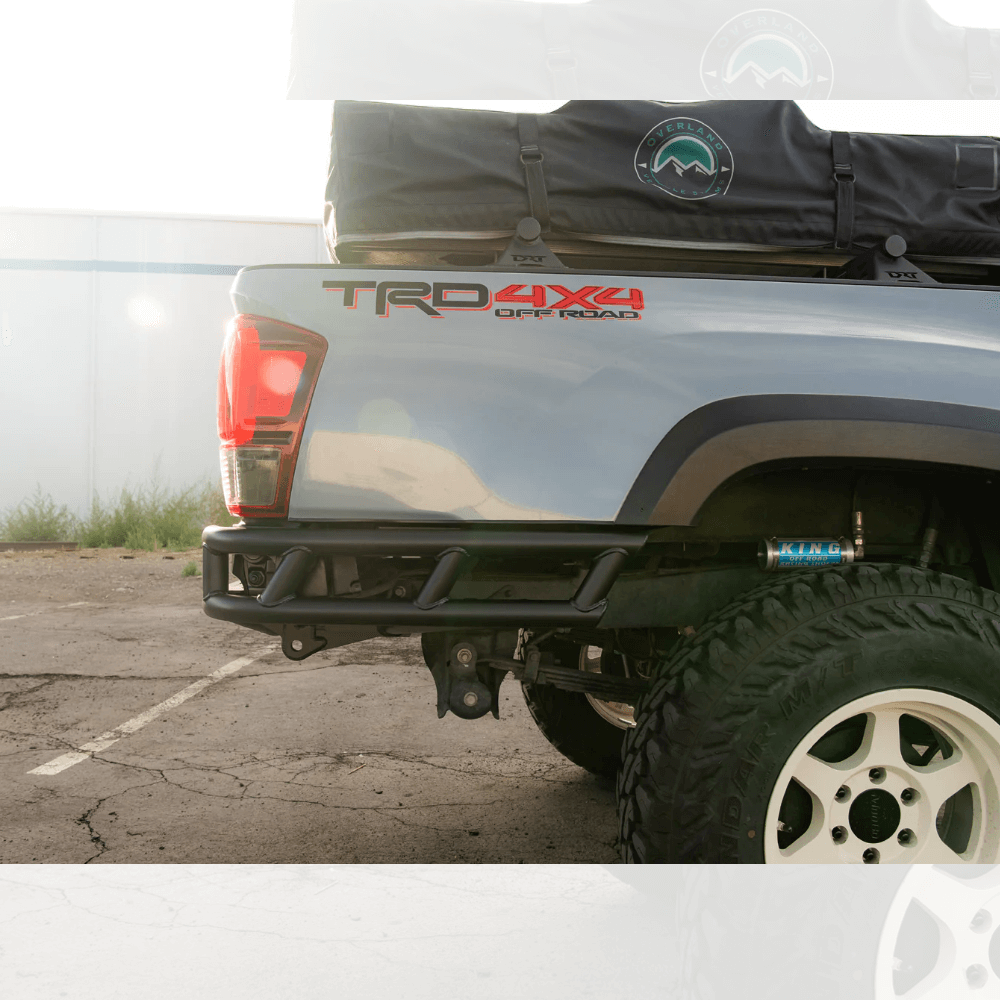

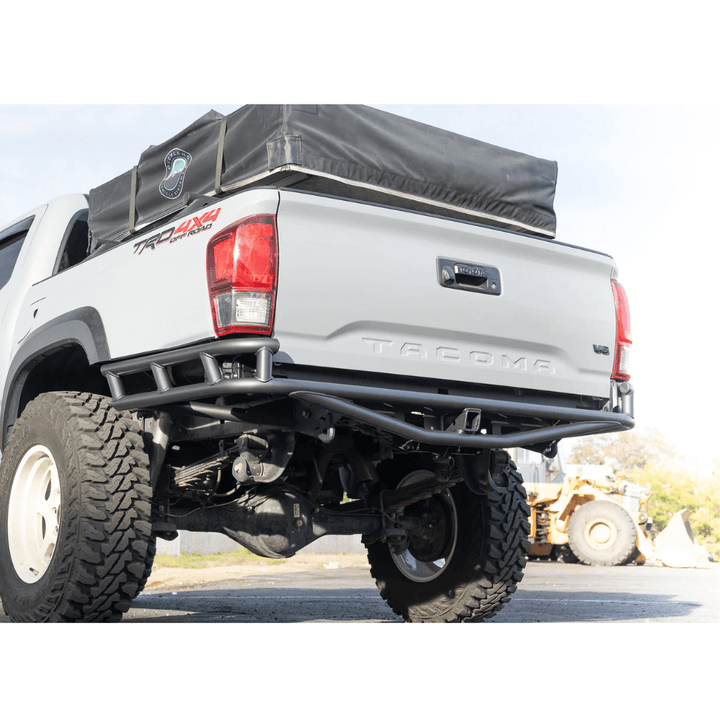

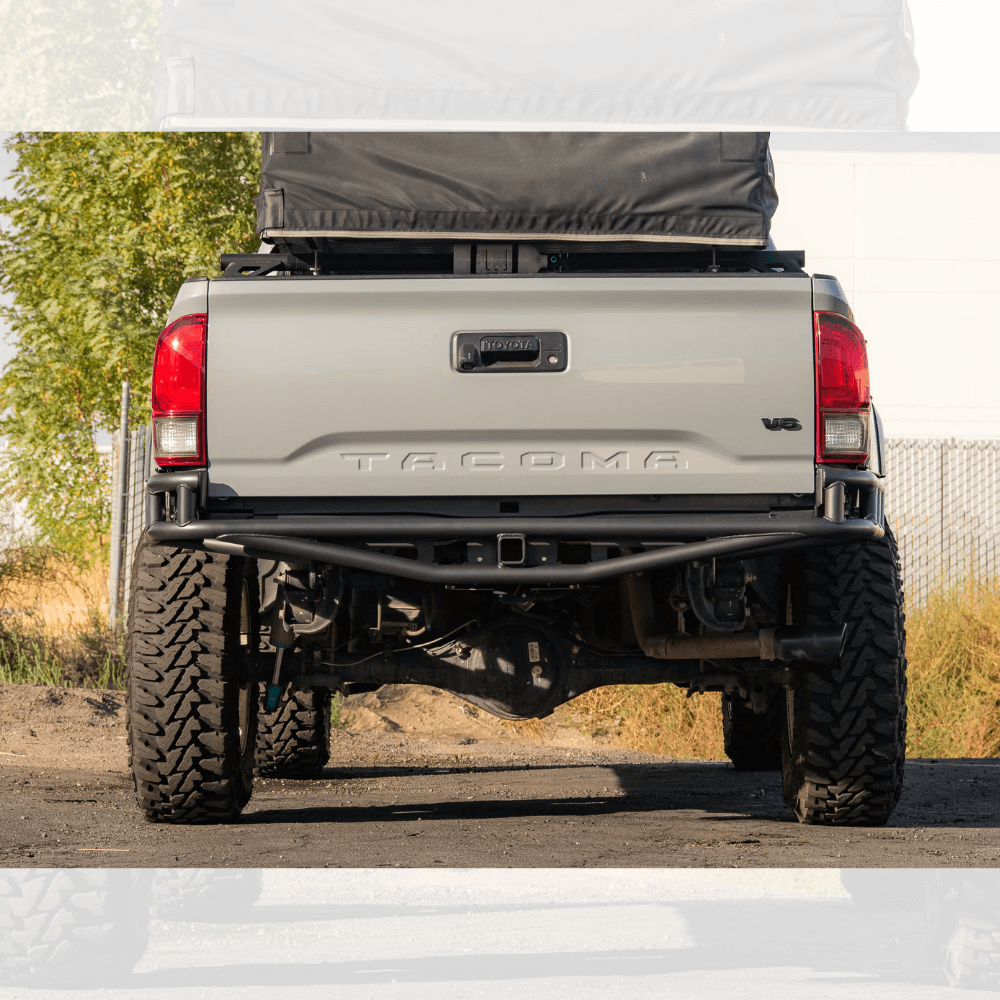

Looking for the ultimate high clearance rear bumper?! Well, you've come to the right place! Our new "Black Diamond" series 2016-2023 Tacoma high clearance rear tube bumper offers ULTRA high clearance and sleek good looks.
This is the ultimate rear bumper for extreme off road use, offering the MOST departure angles and side clearance we've ever offered in a 3rd gen Tacoma bumper.
✔ Standard integrated and recessed recovery locations for common 3/4" D-ring.
✔ Mounts with the 5 factory tow hitch bolt locations per frame rail. (3 side and 2 lower locations per side)
✔ Gusseted Internal bracing between frame mounting and side section of bumper.
✔ Standard back up light cutouts for the Baja Designs S2 Flush mount lights. and the KC Hi-Lites Flush Mount FE1 (new feature)

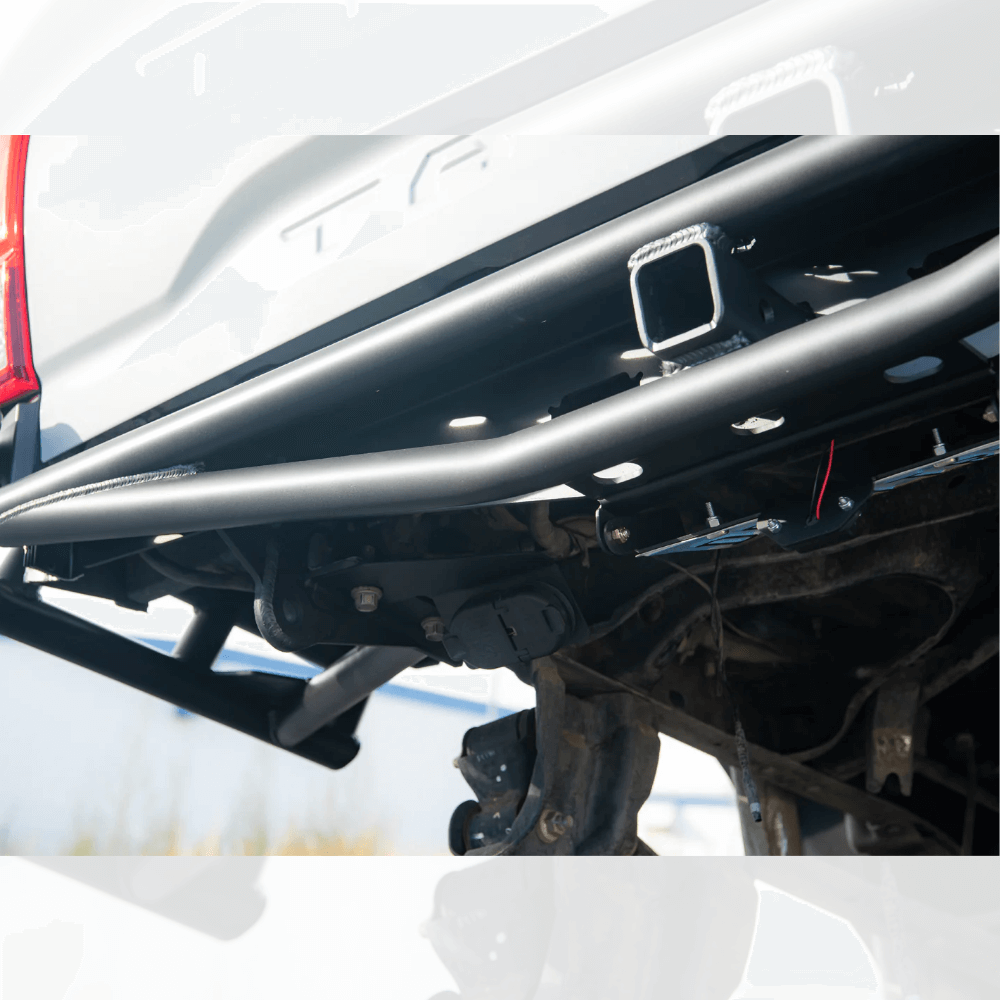

✔ Integrated High Clearance Hitch (Not Load Rated)
✔ Trailer 7-Pin wiring relocation bracket
✔ Corner gussets incorporating rock light mounts for a pair of KC Cyclone or Baja Designs Rock Lights.
✔ Sides are shortened to line up with trimmed fenders/flares.
Bumper is "backwards" compatible for anyone with our plate high clearance looking to make the switch to this bumper, just cut bedsides in new higher location.
Included:
✔ New LED License Light
✔ Custom Relentless integrated Flip up license plate mount for clearance on the trail.
Fitment: 2016-2023 Toyota Tacoma
Please Note:
➜ Cutting factory bedsides is required for installation.
➜ ALL BUMPERS SHIP BARE METAL: Bumpers must be coated prior to install or they will rust!
➜ NOT COMPATIBLE with Relentless Fabrication tire carrier offerings
Specs
1.75" DOM Tube construction
1/4" Steel Mounting plates
Approx. weight: 90lbs.
