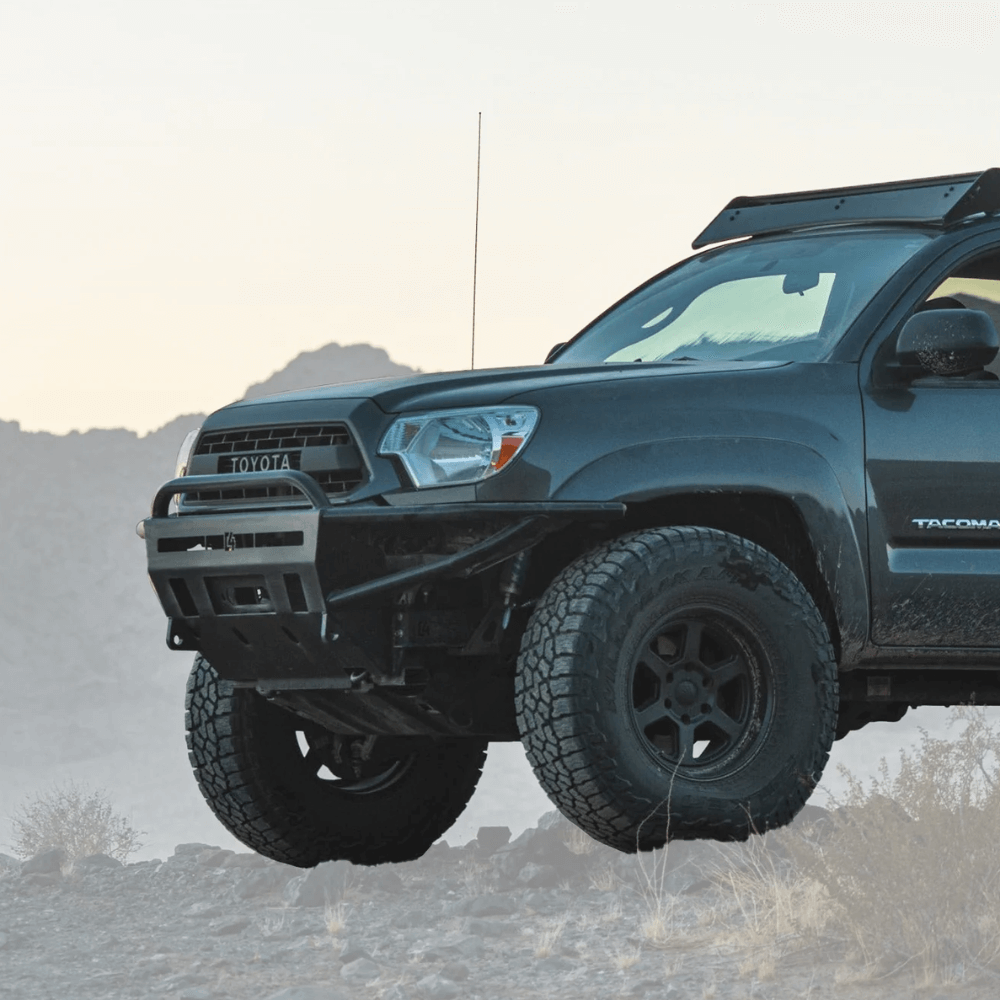

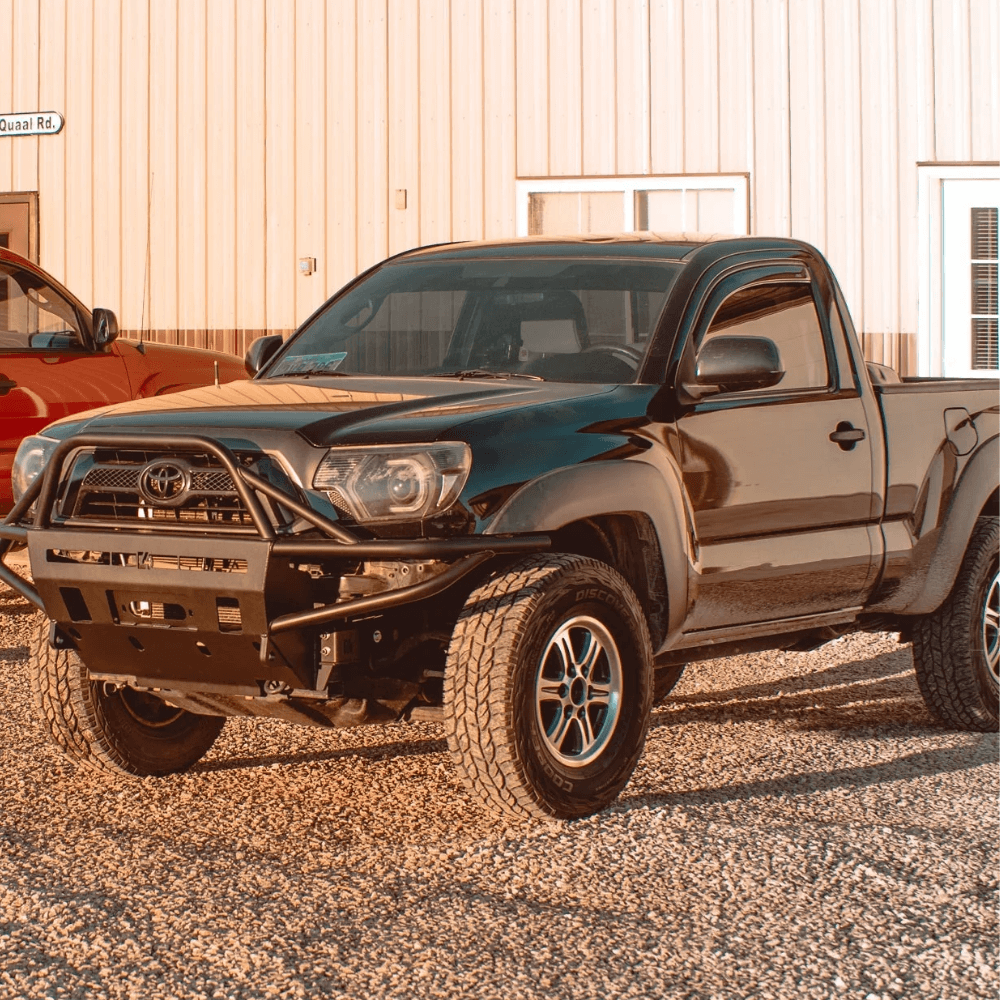

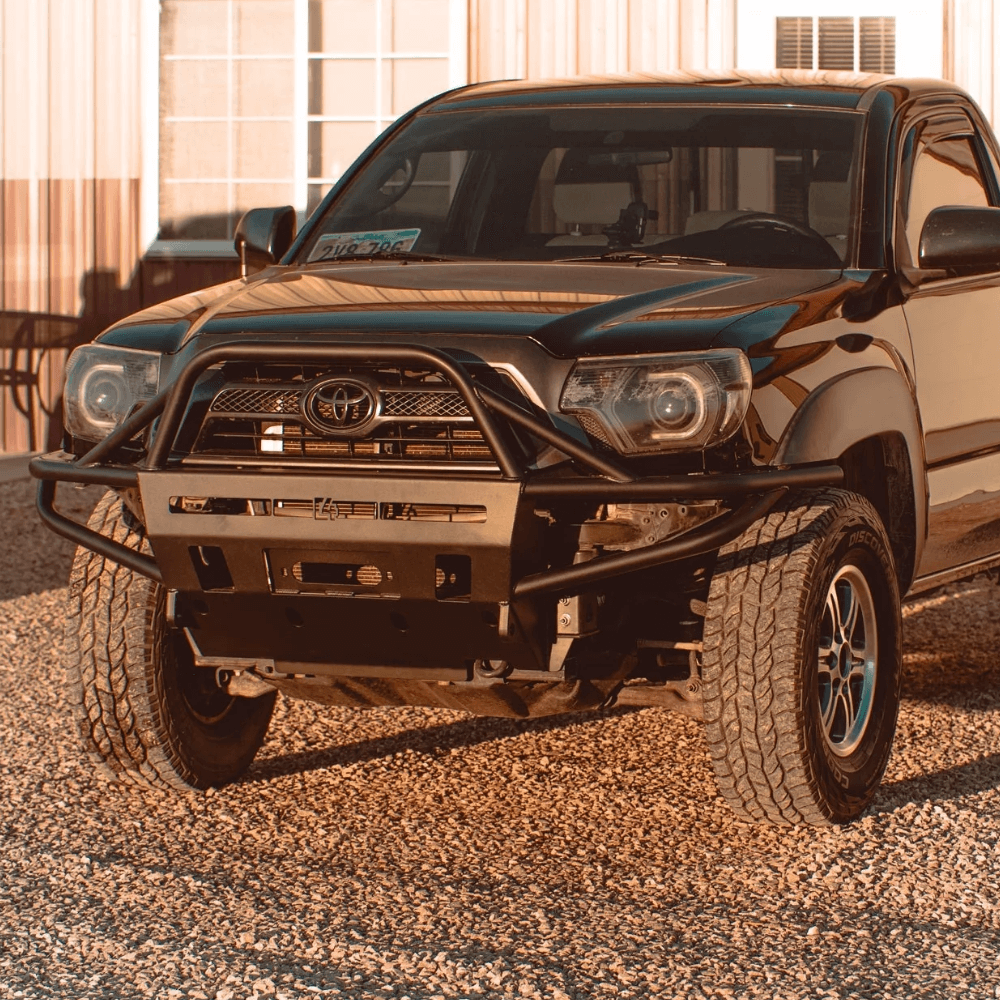

Bumper is 100% bolt on. Minor trimming of the Sheet metal bracket under the headlights is required. No welding or plastic bumper cutting required for installation.

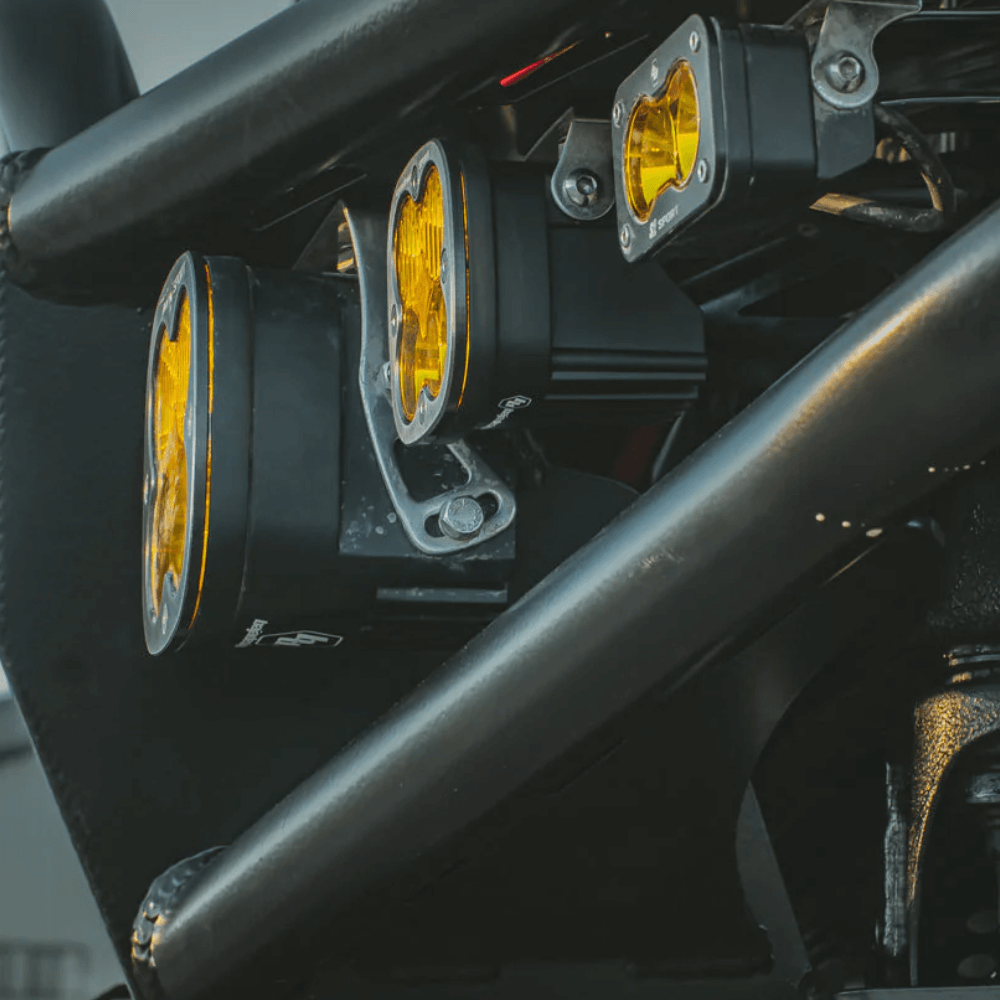

Bumper is designed to fit 30″ single row light bars (specifically designed for Baja Designs S8 light bar). Extreme LED 30″ 5D light bar and RIGID 30″ SR series, will also fit.
All bumpers are winch compatible and have cutouts in the front to allow access to winch rope and clutch lever. We recommend using winches with synthetic rope and a hawse style fairlead for the best fitment and functionality. Some roller fairleads may be too large to fit the recessed fairlead mounting plate in the bumper. Winches with the ability to relocate the electrical control box are recommended.

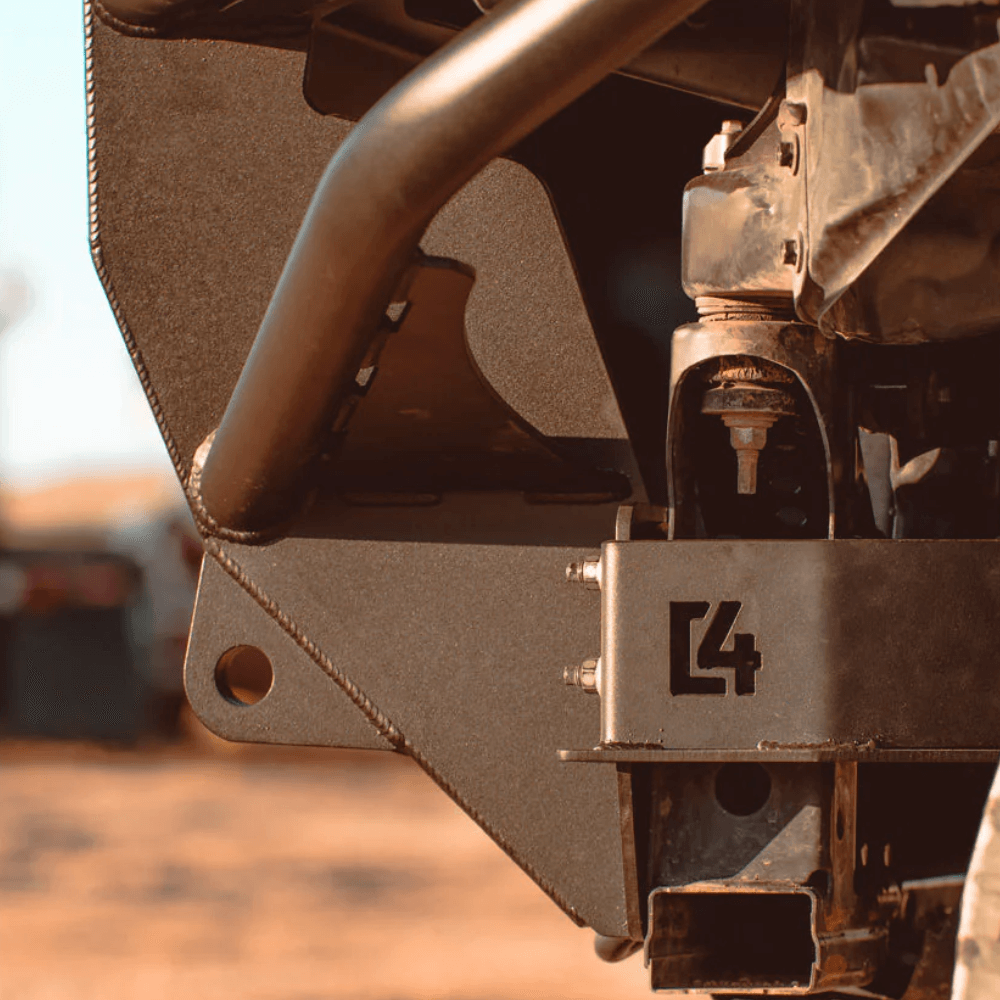

Additional Front Bumper Frame Support Brackets included with all 2nd Gen Tacoma Overland and Hybrid front bumpers!
Fitment: 2012-2015 Gen Toyota Tacoma
Please Note: UNLESS YOU CHOOSE OUR POWDER COATED OPTION, this product will need to be painted or powder coated before installation to prevent rust.
Thickness:
✔ Bumper winch plate and mounting plates are 1/4″ thick steel.
✔ Bumper main body is 3/16″ thick steel.
✔ Tubing is all 1 3/4″ OD, 1/8″ wall thickness.
✔ D-Ring tabs standard on every bumper are 3/4″ thick and come fully welded front and back.
Weight: 125 lbs without bull bar | 130 lbs with mid-height bull bar | 137 lbs with full height bull bar and and side tube gussets.
Warranty: C4 FAB LLC will warranty all products produced and distributed by C4 FAB LLC for ONE YEAR after the shipping date of the product.
