Name: 2005-2015 Toyota Tacoma High Clearance Rear Plate Bumper
Brand: Relentless Fabrication
Price: 1599.0 USD
Availability: InStock

2005-2015 Toyota Tacoma High Clearance Rear Plate Bumper

$ 1,599.00

Quantity

THIS PRODUCT WILL BE SHIPPED BARE METAL

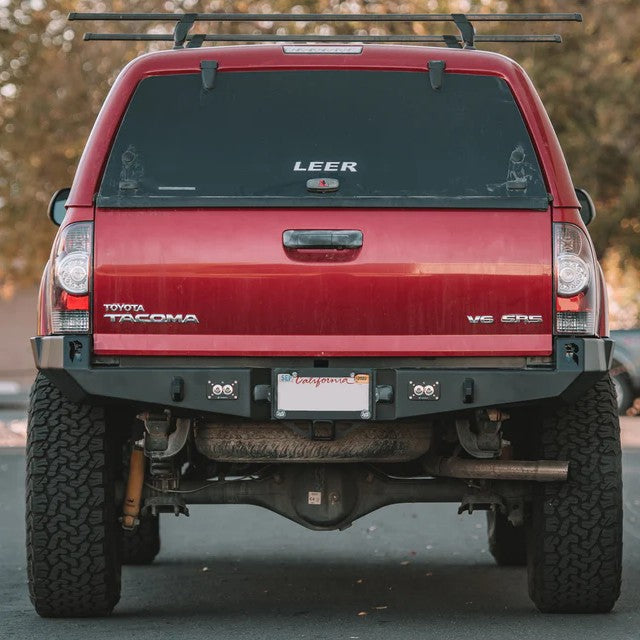

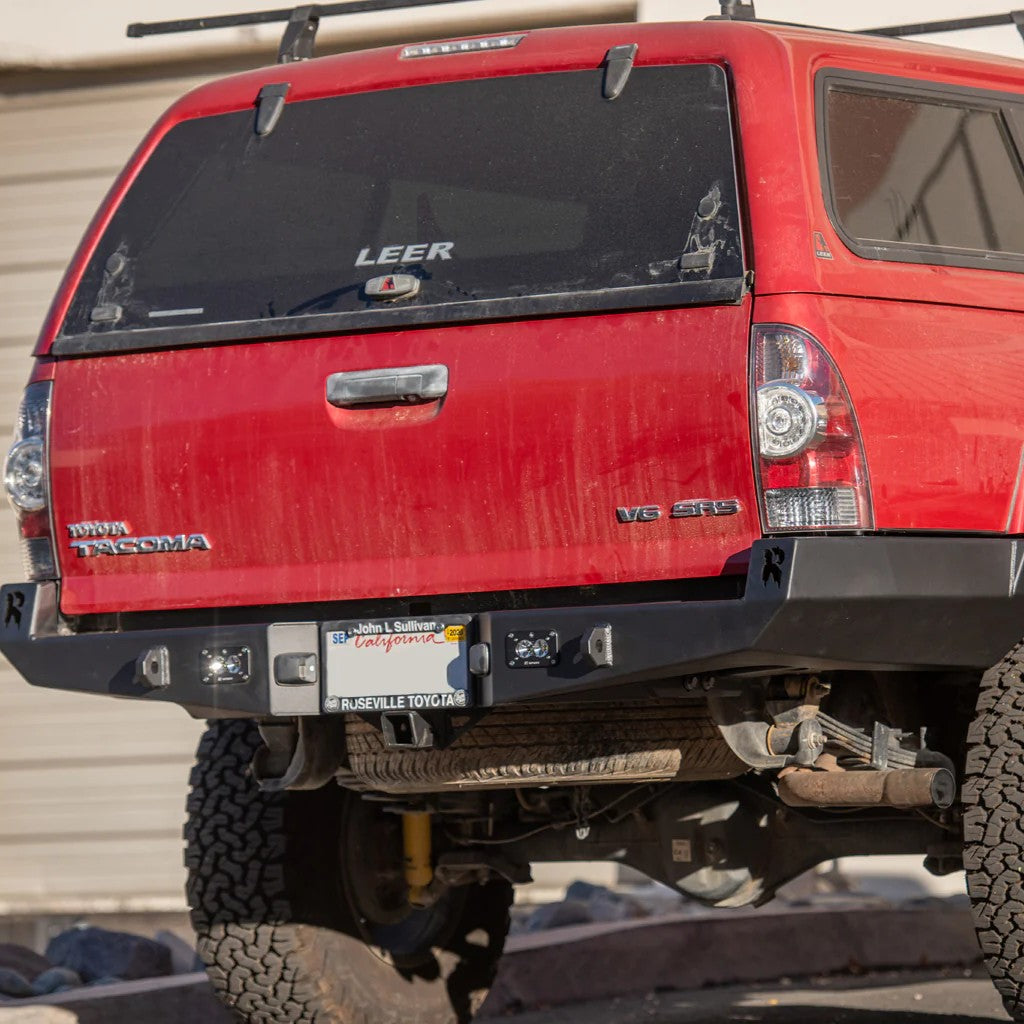

This is the 2005-2015 Tacoma High Clearance rear plate bumper. Each bumper is hand made to order from a CNC cut sheet of US steel, then CNC press brake formed and precision MIG welded together by skilled fabricators in our Nevada fab shop.

This is the ultimate rear bumper for extreme off road use, offering the maximum departure angles and side clearance while adding some bedside protection, and giving an aggressive and clean look on your Tacoma. Every bumper includes standard recovery points, and includes any necessary installation hardware. Requires cutting off bed sides at bottom of tail lights!

Steel bumpers are made with a solid 3/16" steel outer shell, with 1/4" mounting plates and solid 3/4" thick through-welded recovery points.

Approximate weight is 130lbs base bumper weight.

Standard with back up light cutouts for the Baja Designs S2 Flush mount lights.

Fitment: 2005-2015 Toyota Tacoma

Rear Bumper Swingout Tire Carrier Add-On

Ordering one of our rear bumpers and need a sturdy way to carry your oversized off-road tires and more? Add this item with your rear bumper order for us to integrate a swing-out tire carrier onto the bumper! Not for individual sale.

Carriers come standard with Rotopax backing plate. Bolt any Rotopax Pack mount directly to our tire carrier backing plate. (You do not need the round Rotopax base plate included with their handles to mount to our backing plate)

Optional add on Dual Jerry can holder will fit 2 Jerry cans (Flush weld seam cans only). This Jerry can holder will bolt directly to our Rotopax backing plate so you can switch it up depending on your adventure.

Tire carriers are made out of combination of 1 3/4" x 1/8" thick round DOM tubing, 2x2x.120" square, and 2x3x.120" rect. tubing along with 3/16" steel gussets and 1/4" pivot mount plates. Jerry can holder is formed from 14ga steel (.075"). Pivot spindle is dual shear mounted and grease-able. Default compatibility of up to a 35" tire size on a 4.5" BS wheel.

Comes standard with integrated Backing plate for easy install of Rotopax mounts.
Optional lockable Dual Jerry Can holder.
Heavy Duty lockable tensioning latch to secure carrier arm.
Standard tire carrier mount integrated into swing arm.
