Name: 2016-2023 Toyota Tacoma XB Evo LED Headlights
Brand: Morimoto
SKU: LF2-530
Price: 1500.0 USD
Availability: InStock

2016-2023 Toyota Tacoma XB Evo LED Headlights

$ 1,500.00

Quantity

THIS PRODUCT IS ON PRE-ORDER. CURRENT ETA IS EARLY JANUARY 2025

The all-new XB Evo headlights are a showcase of everything Morimoto is made of.

Packed with features that demonstrate a true attention to detail including the latest in technology, compliance, quality, and styling, these headlights are designed for enthusiasts who are serious about all the above, even if it comes at a premium.

Our patent-pending heating system warms the surface temperature of the headlight lens to minimize frost buildup when driving through wet and snowy conditions in the wintertime. The signal swap system allows users to personalize how the daytime running lights and turn signals operate according to personal preference, all through a simple plug n play key on the back of each headlight. The daytime running light can be configured to run full-time in either white or amber with no compromise in intensity either way. When starting your Tacoma, the optics will automatically illuminate in a multi-stage sequence before turning back off. XB Evo headlights aren't cheap, but they are built to a high standard and should easily last the life of your Tacoma! We're proud to stand behind the product with an industry-leading five-year warranty.

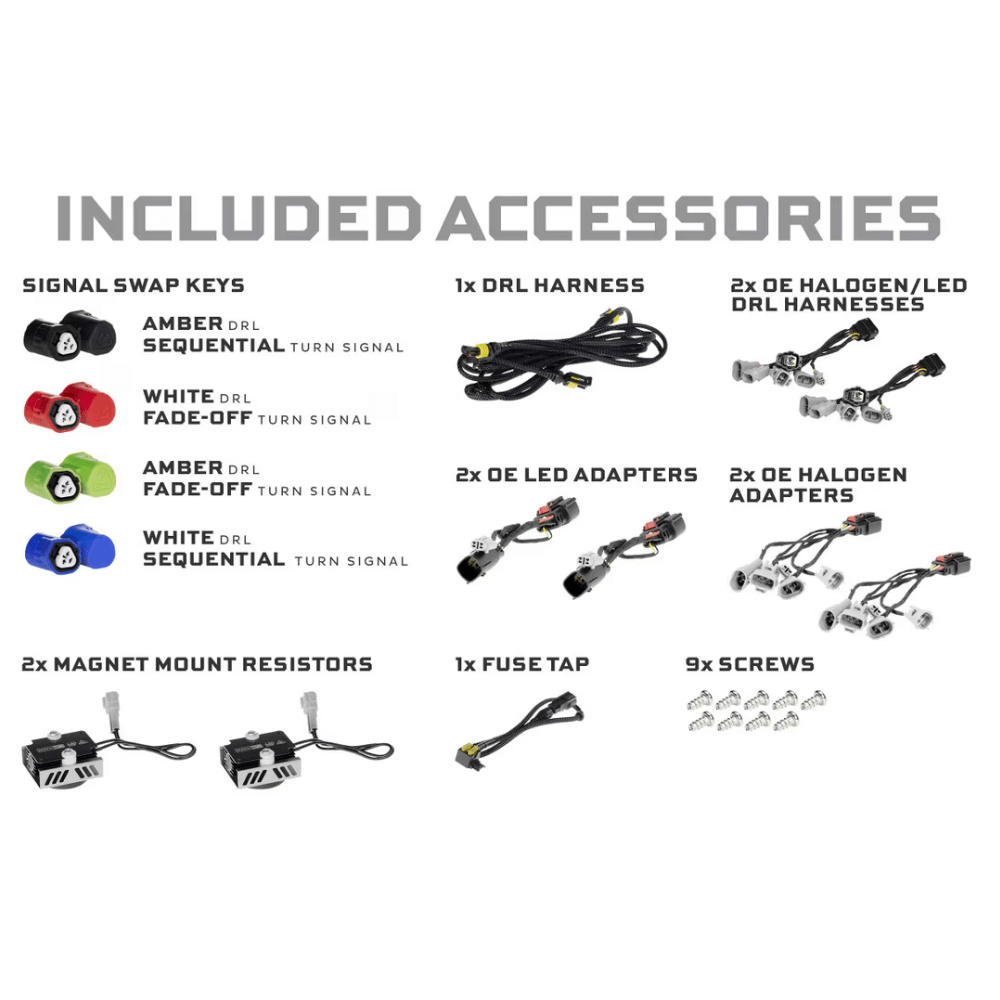

Included:
✔ Headlights: 2x (One Pair) 16-23 Toyota Tacoma XB Evo
✔ Function Selectors: 8x (Four Pairs) For DRL and Turn Signal Settings
✔ Wiring: 2x Halogen Adapters, 2x LED Adapters, 2x Magnet Mount Resistors, 1x DRL ✔ ✔ Harness, 1x Fuse Tap, 9x Screws

Fitment: 2016-2023 Toyota Tacoma

Please Note:
➜ Installation of Optional Supercharged Drivers results in non-compliant intensity. Not for on-road use in USA or Canada.
➜ These headlights were developed for compatibility with North American vehicles. Morimoto does not guarantee compatibility on trucks outside of North America.

Installation Guide Here

XB Evo: Much more than a design refresh, these headlights showcase Morimoto's commitment to technology, compliance, quality, styling, and performance for serious enthusiasts.

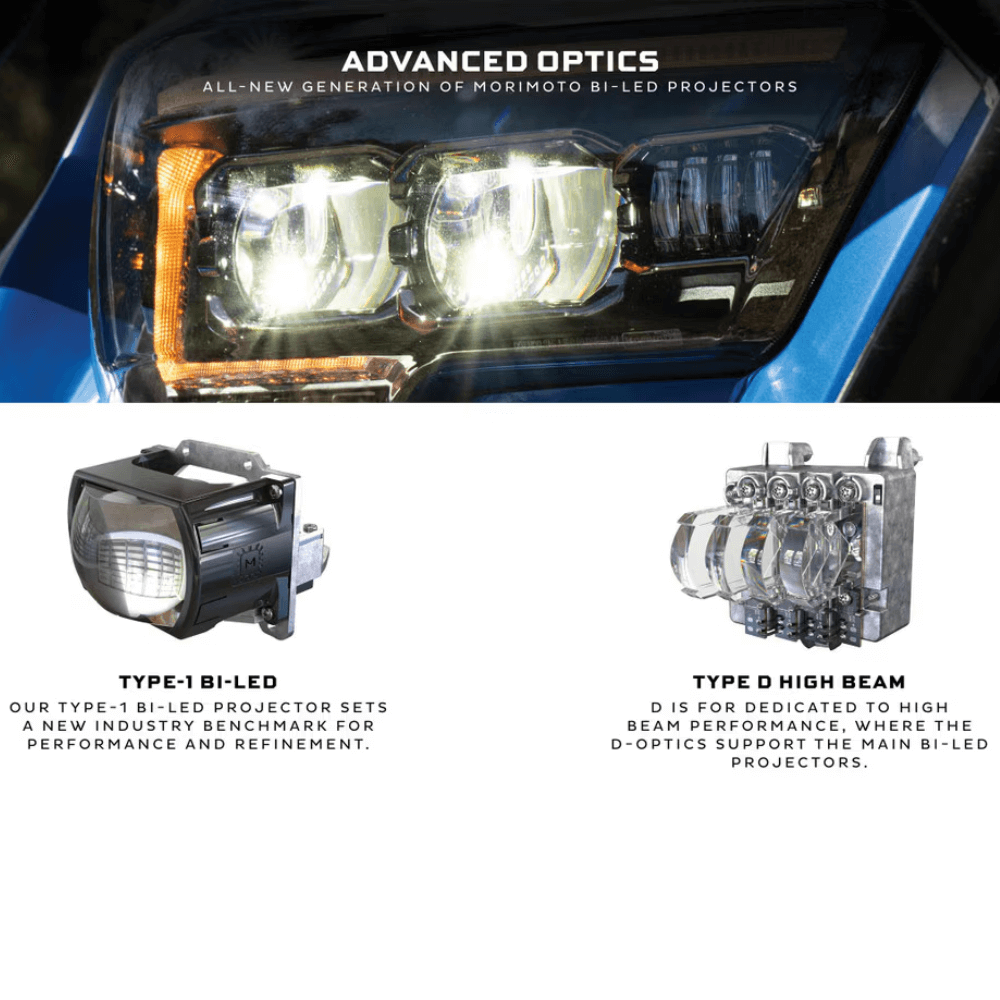

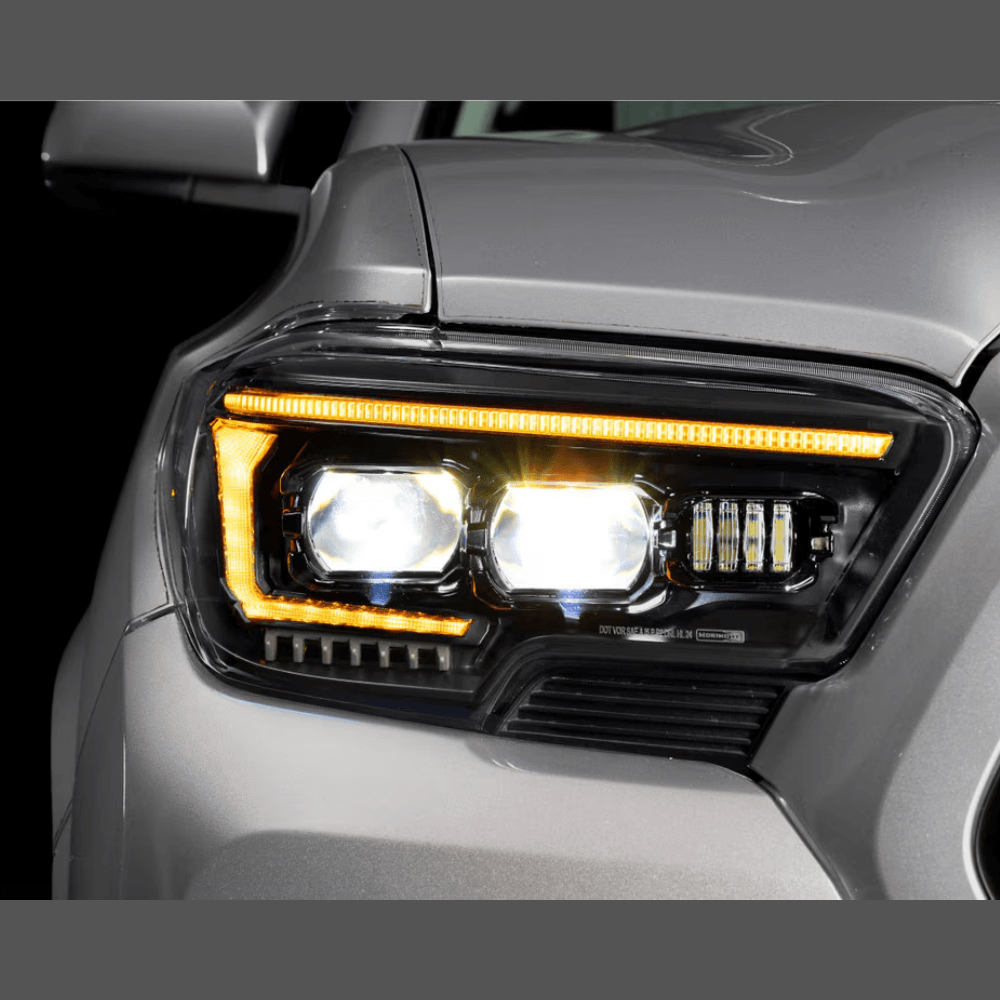

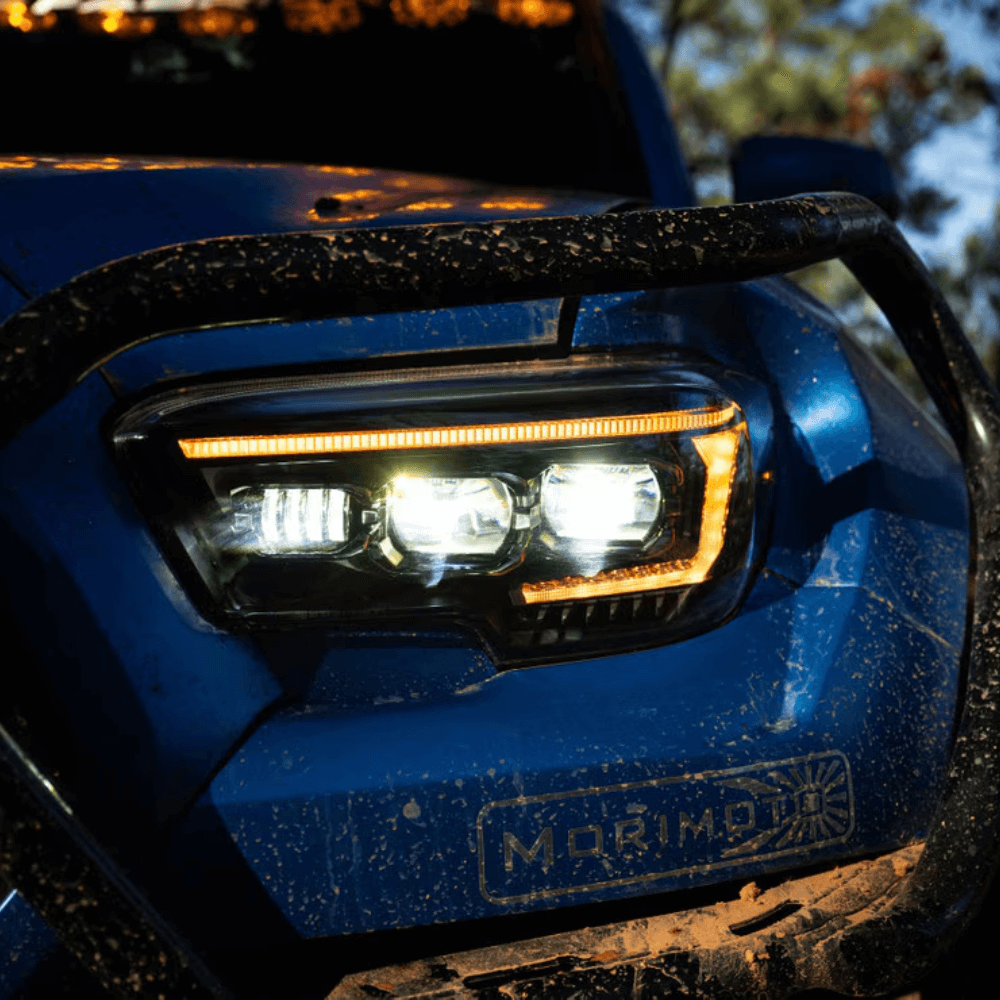

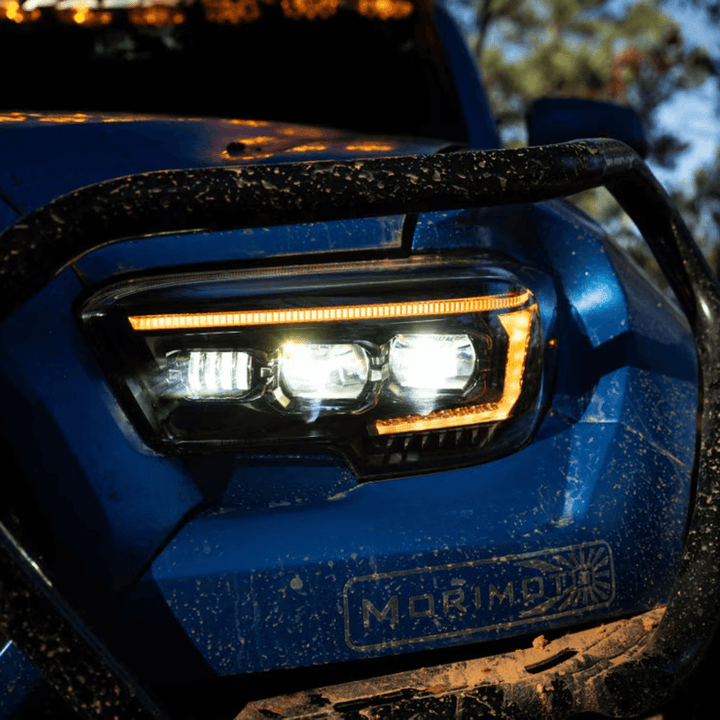

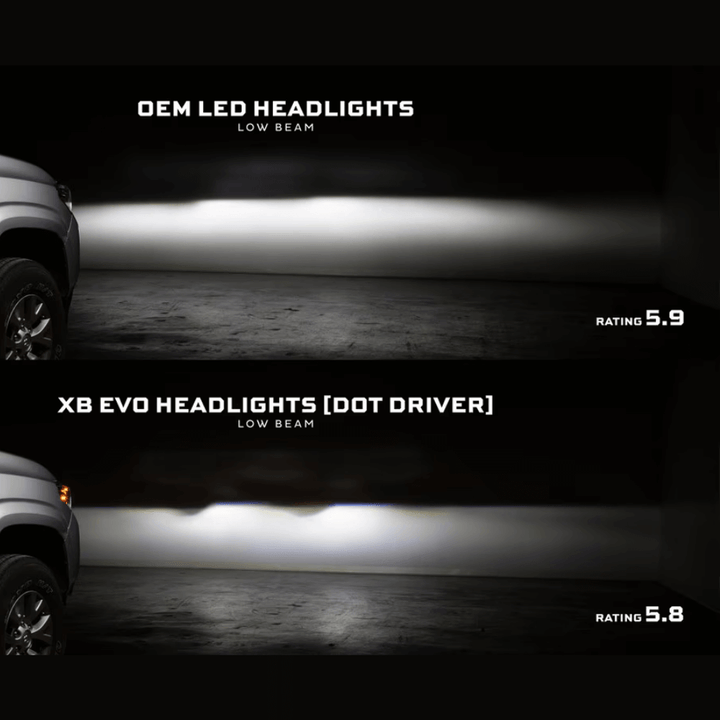

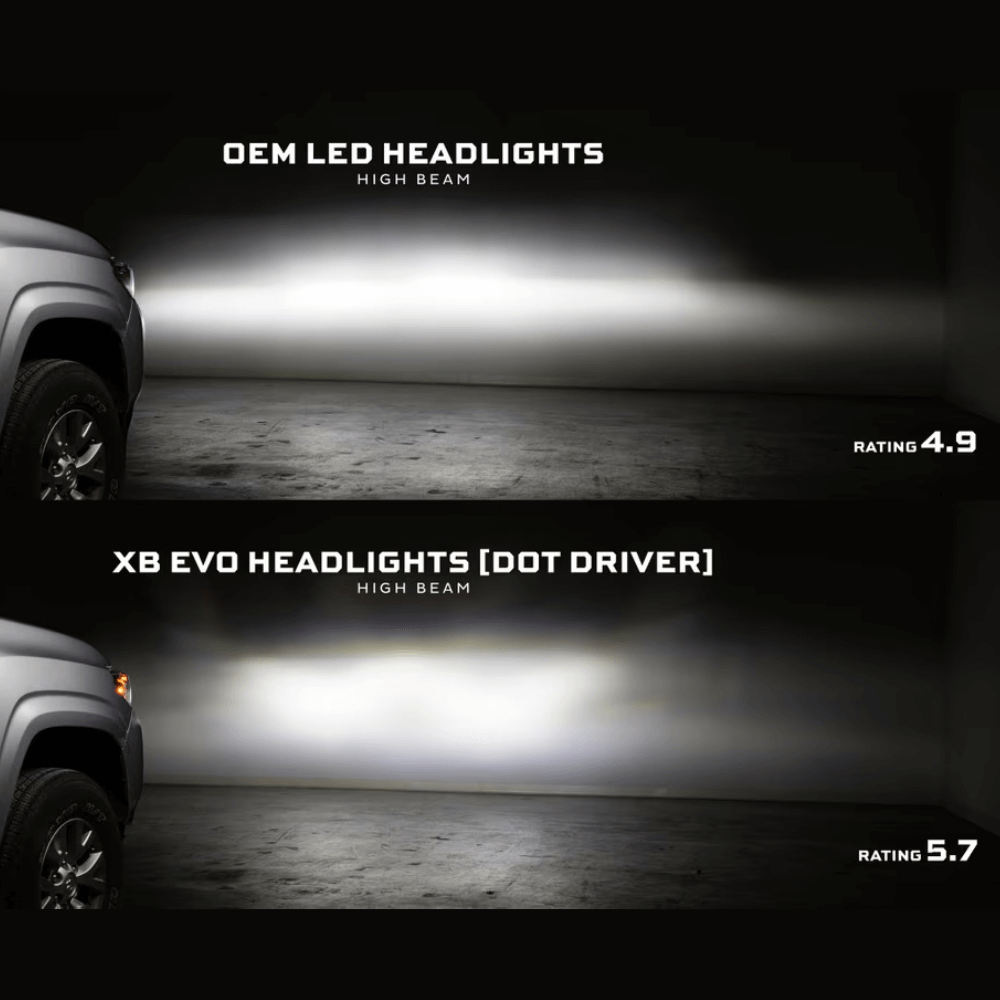

All New Optics: Enables light output that exceeds the rigorous standards of the IIHS, with exceptional intensity and distribution. Utilizing dual Bi-LED projectors powered by Nichia's latest automotive LEDs, nothing will outperform the XB Evo.

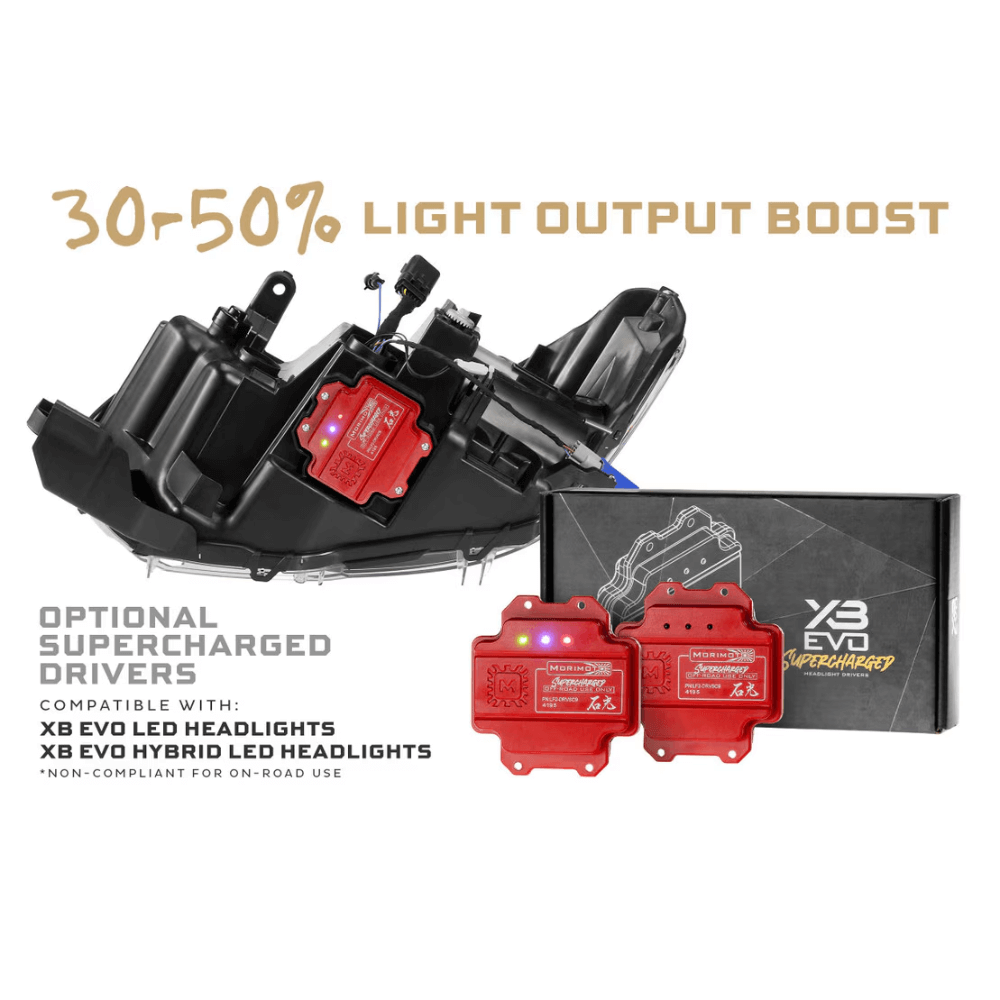

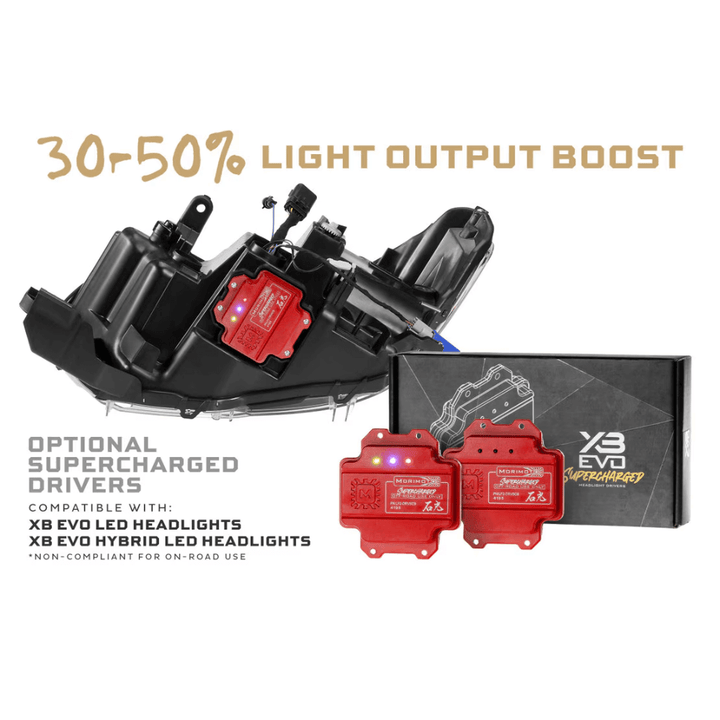

On and Off Road: DOT Compliant for public roads in the USA in standard form, with an optional Supercharged LED driver to boost intensity by 30%, making them the brightest option for Tacoma owners who want to maximize output for off-road use.

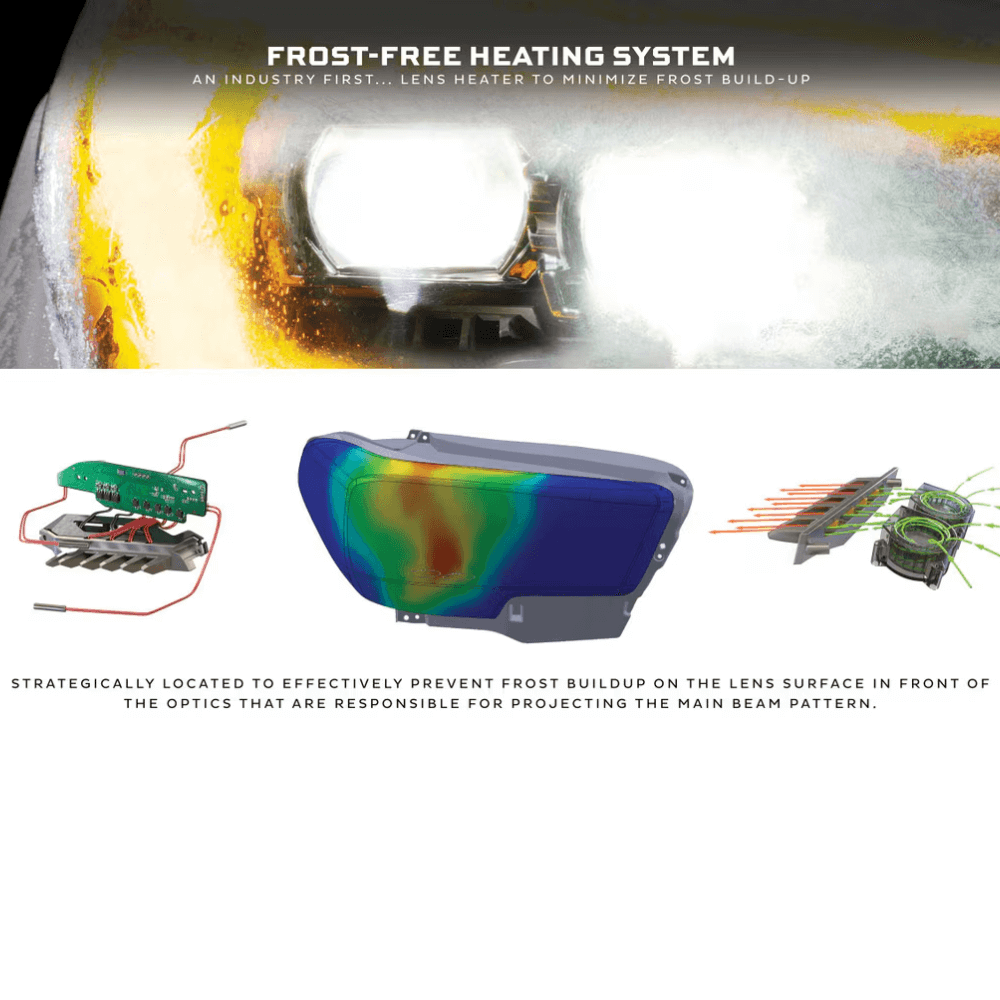

Frost-Free System: Warms the lens surface to prevent frost buildup during wet and snowy conditions in winter. Activated by flashing the high beams four times when the temperature drops below 5C/41F, this ensures consistent headlight performance in cold climates.

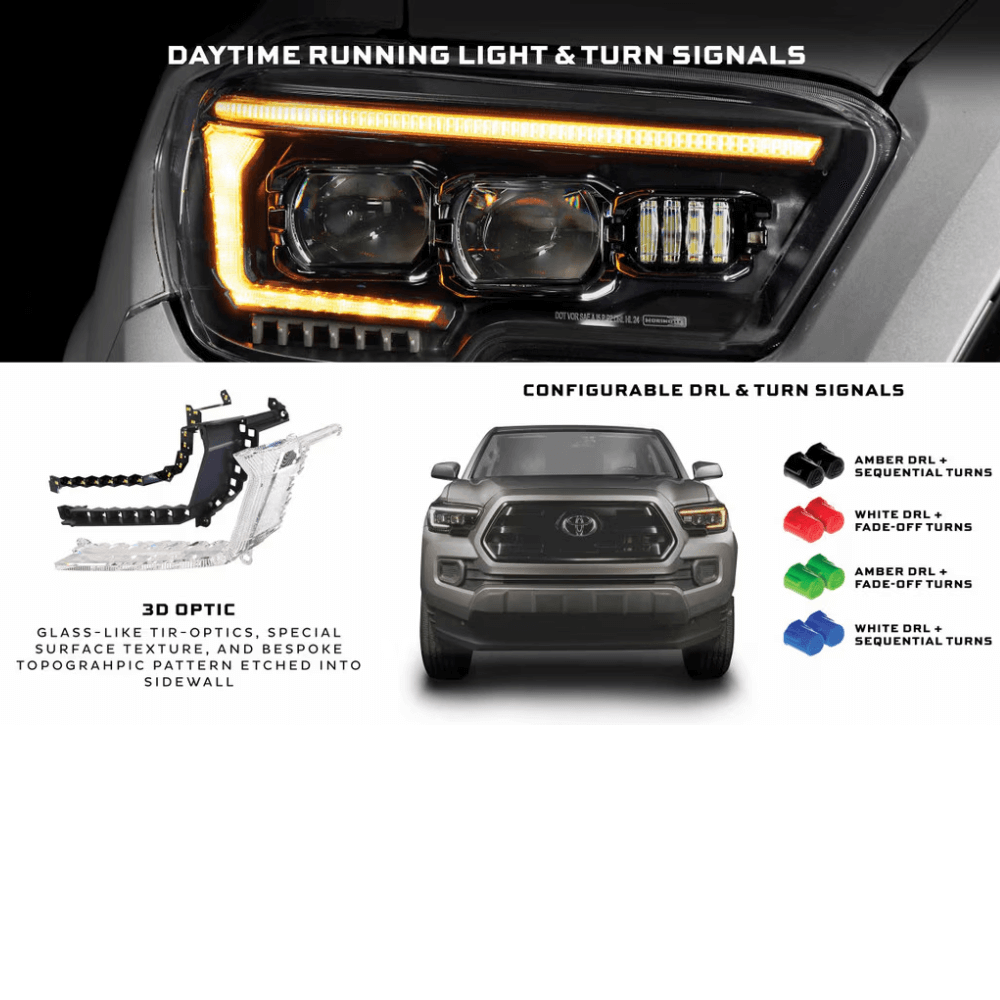

Signal Swap Keys: Enable users to personalize the operation of daytime running lights and turn signals via a plug-and-play key. The XB Evo can be configured to run with white or amber daytime running lights and sequential or standard turn signals.
Designed, engineered, and tested: In the USA by Morimoto, the XB Evo headlights are built with the highest standards, using the latest in technology and raw materials available today, and are backed with an industry-leading five-year warranty.

Traffic Pattern: LHD / Right Hand Traffic Only
Output (Standard Drivers): DOT (FVMSS108) Compliant (LB2V and UB2)
Output (Supercharged Drivers): Non-Compliant
Main Optics: 2x Type 1 Ishida Optic Bi-LED (1x Nichia NC4W193F @ 750mA)
High Beam Assist: 1x Type D Ishida Optic HB (4x Nichia NCSW131G @ 750mA)

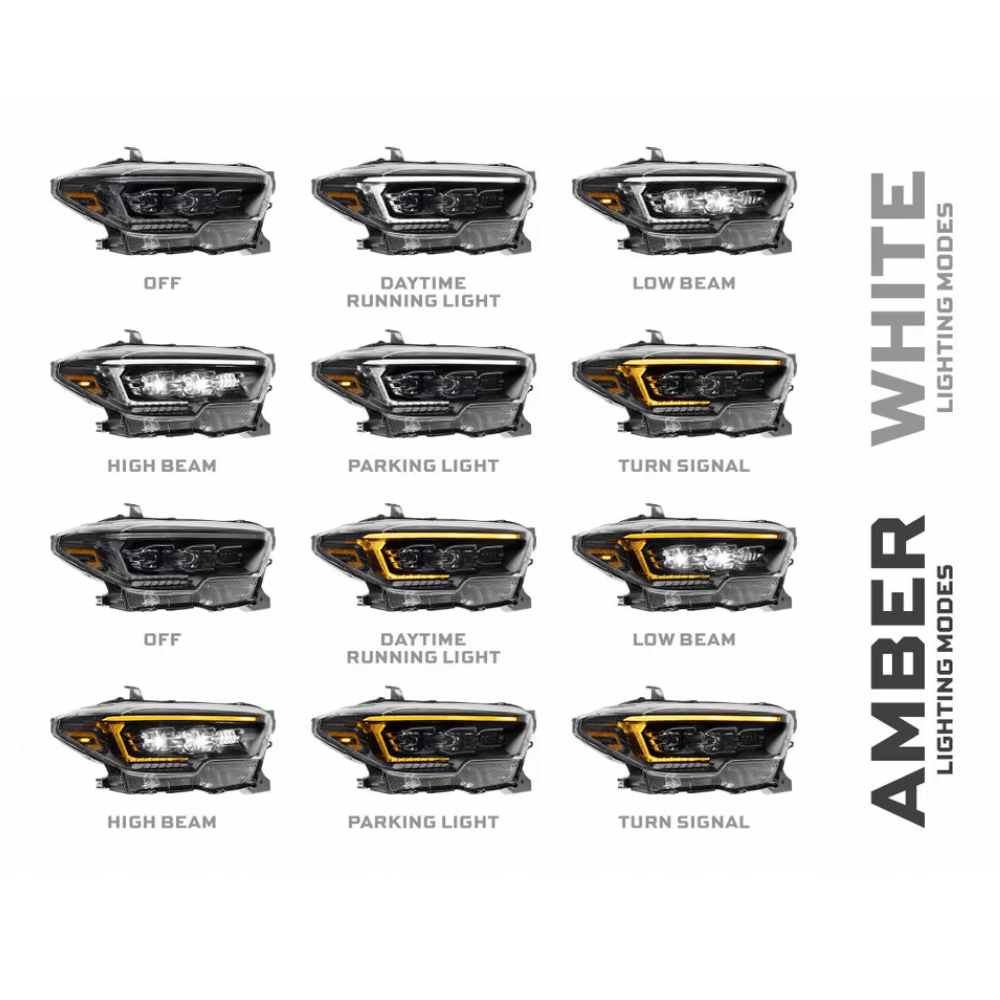

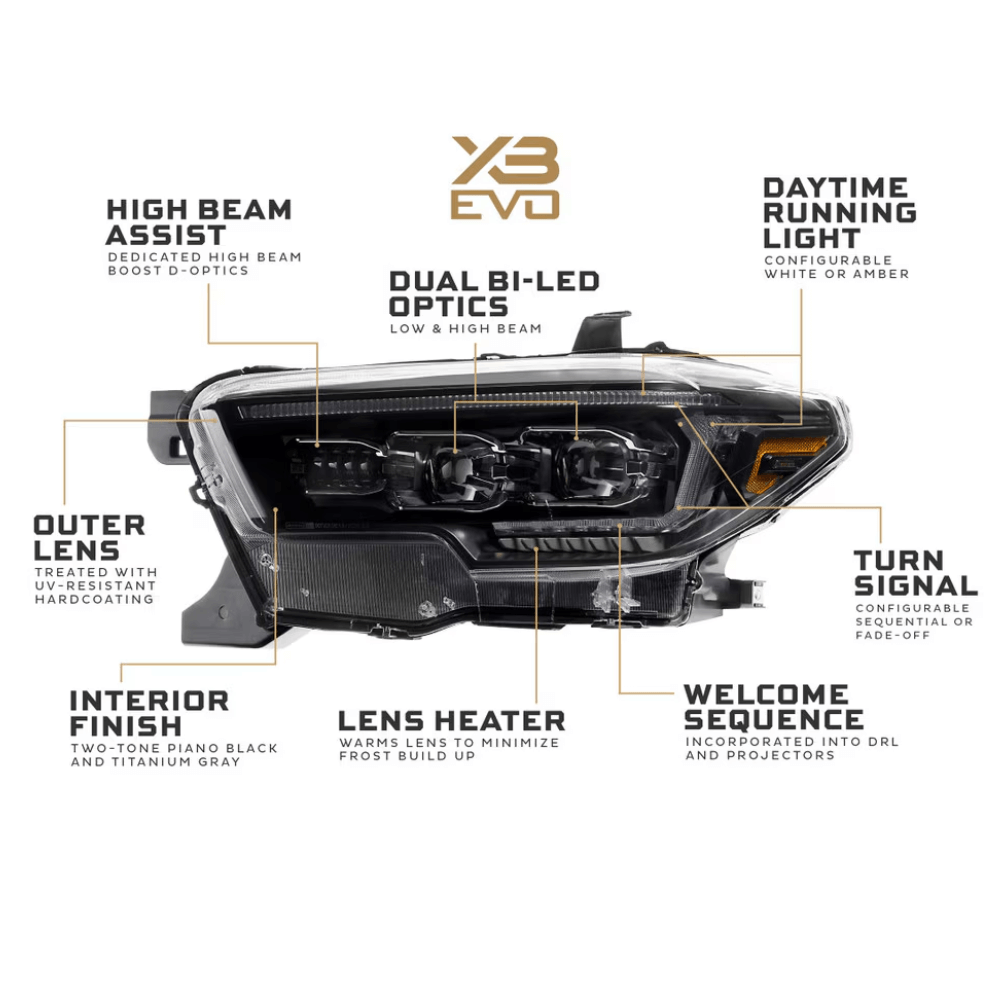

Functions: Low, High, Park, Turn, DRL, Welcome, and Lens Heating
Turn Signal Modes: Sequential or Fade Off (Integrated)

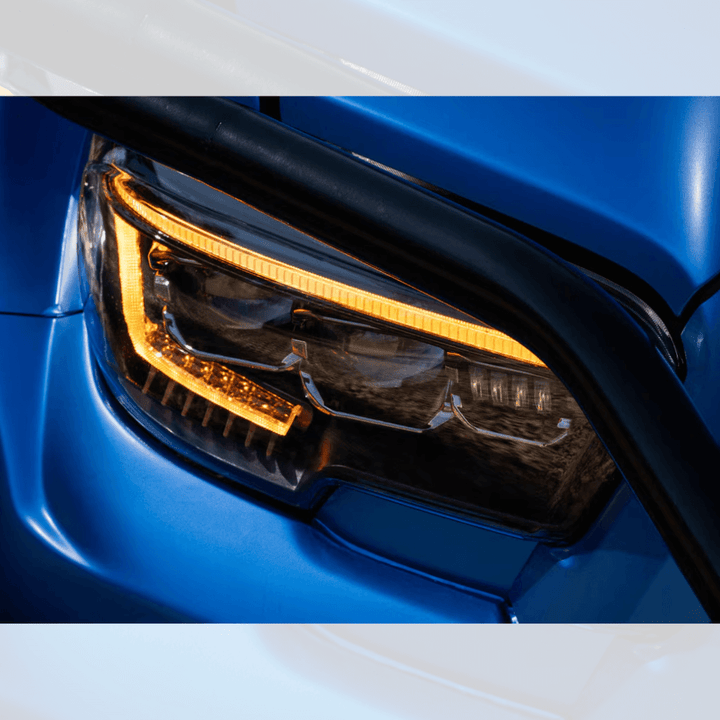

DRL Colors: White or Amber (Integrated)

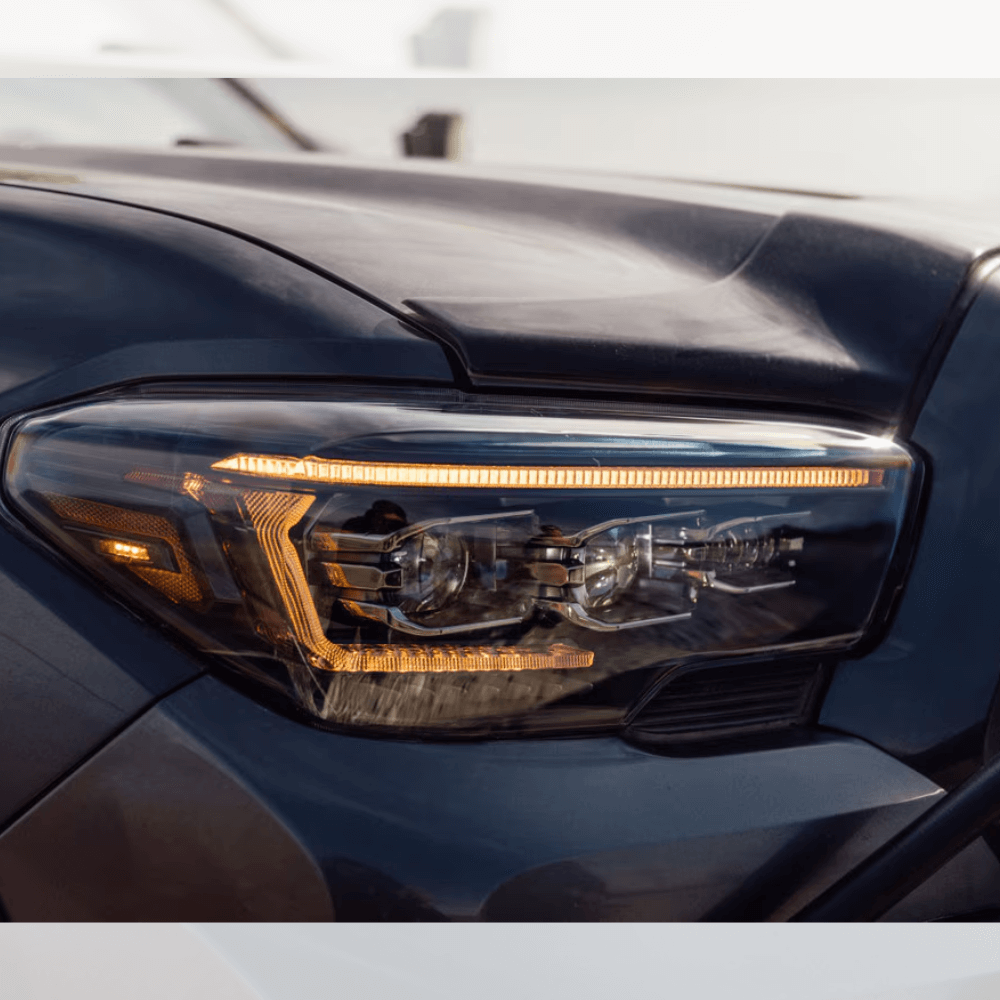

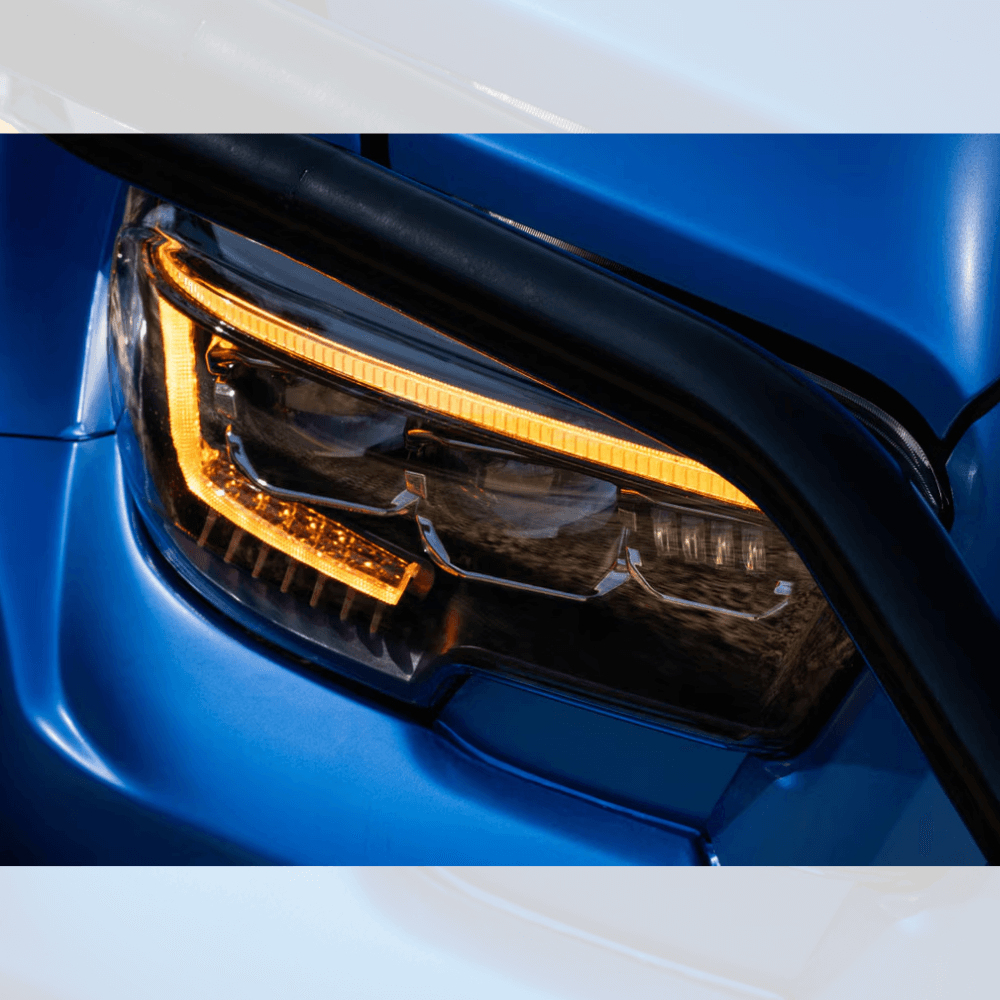

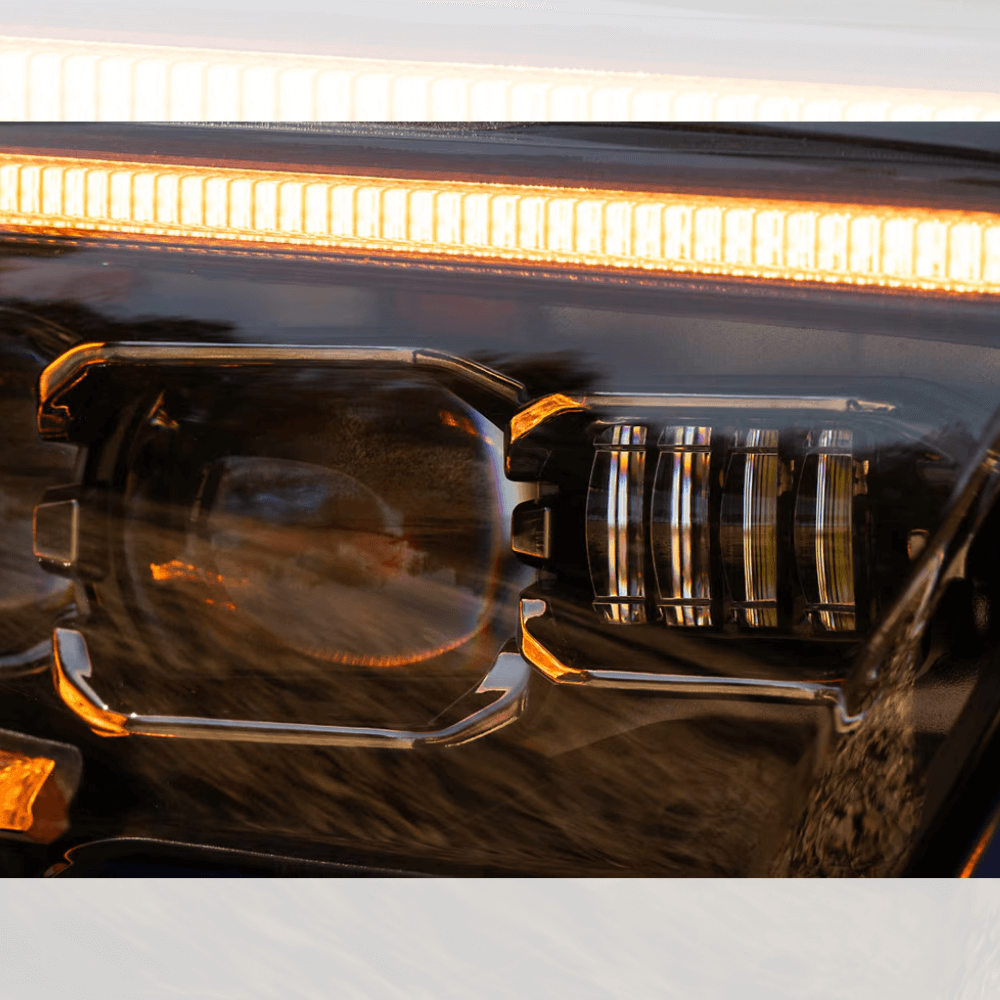

DRL/Signal Optics: Glass-like 3D TIR Optics with Topography sidewall pattern
Frost-Free System: Logic Controlled 50W Ceramic w/ circulation fans
Internal Finish: Two-Tone Piano Black and Titanium w/ contrasting textures
Side marker: Amber side reflex reflector (DOT compliant)
Wiring: Plug n Play for all sub-models within model year range
Lens Details: Polycarbonate with UV-Shield Hard coating (Exceeds OE Toyota benchmark)
Compliance: Meets all DOT, SAE, and FMVSS108 Standards. *NOTE: Installation of Optional Supercharged Drivers results in non-compliant intensity. Not for on-road use in USA or Canada.

5-Year Limited Warranty

This Morimoto product includes a Five (5) Year limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. In the event of any issues upon installation, please document it via photo/video and contact us prior to removing the light(s).
