Description

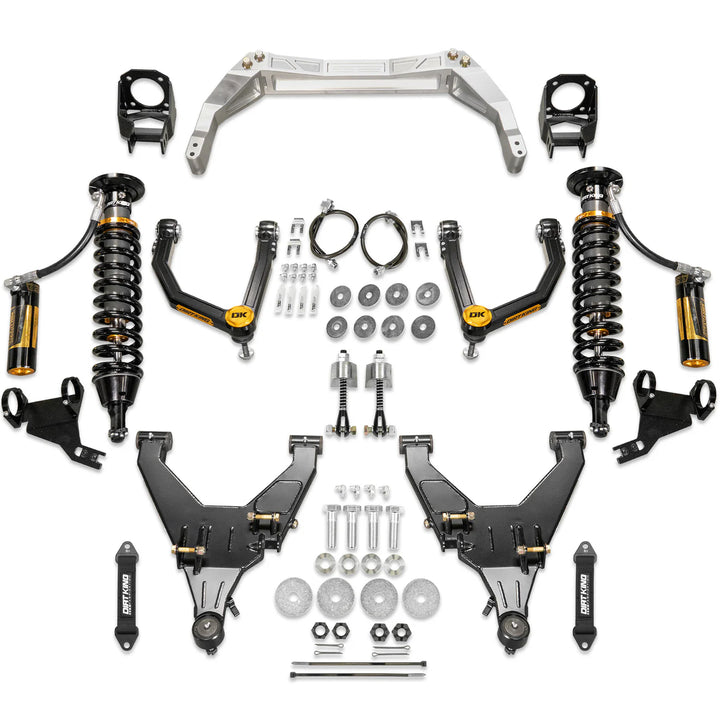

Take your 2024+ Tacoma to the next level with the Dirt King Long Travel Kit!

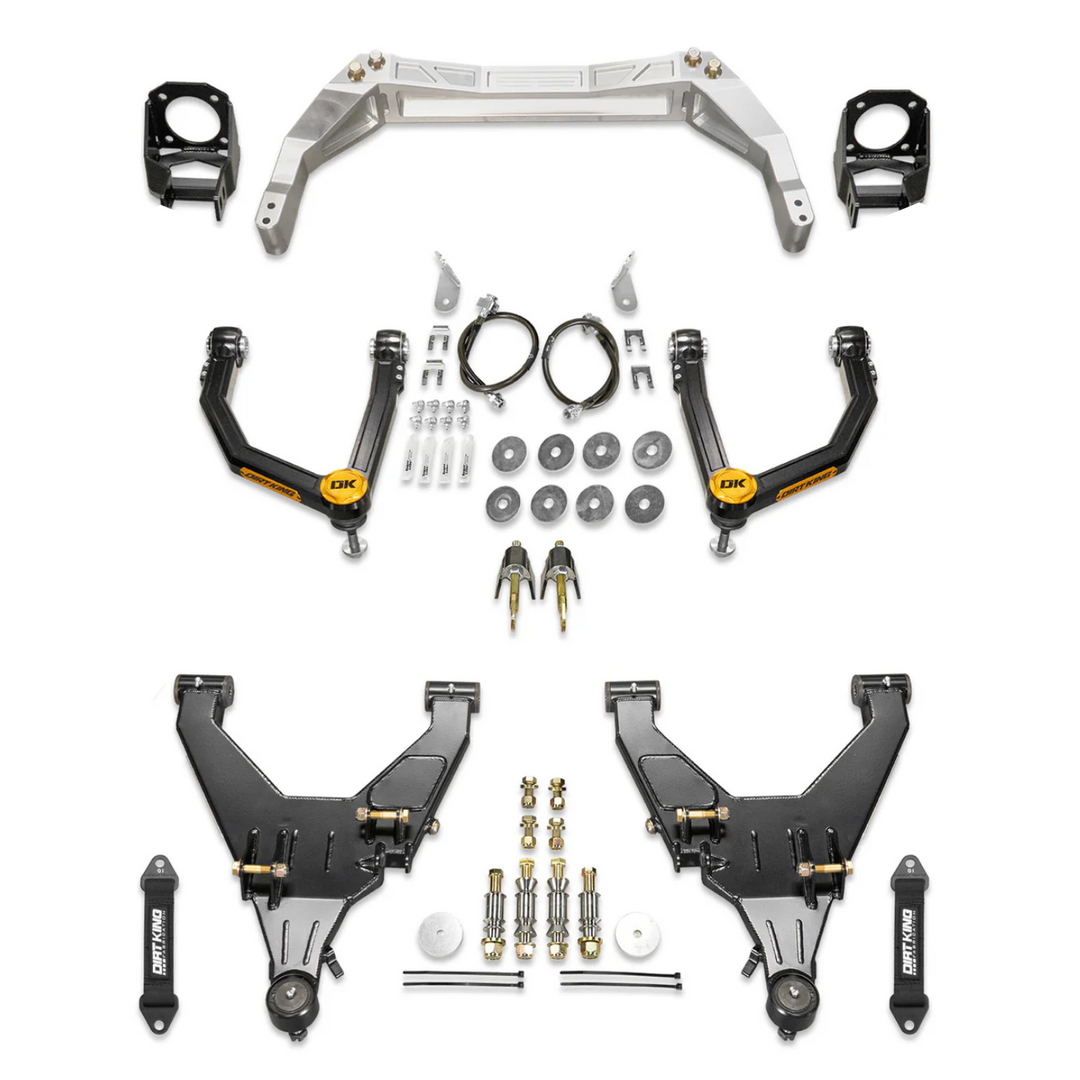

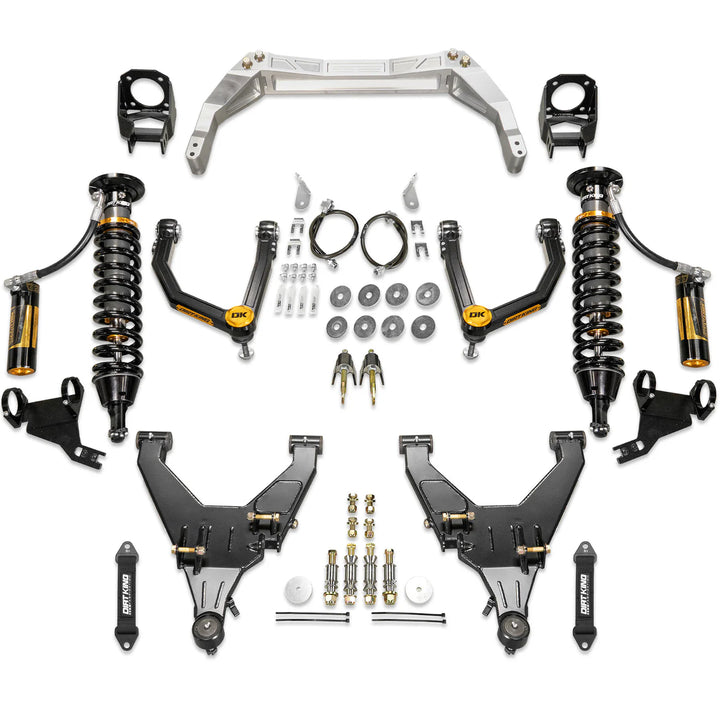

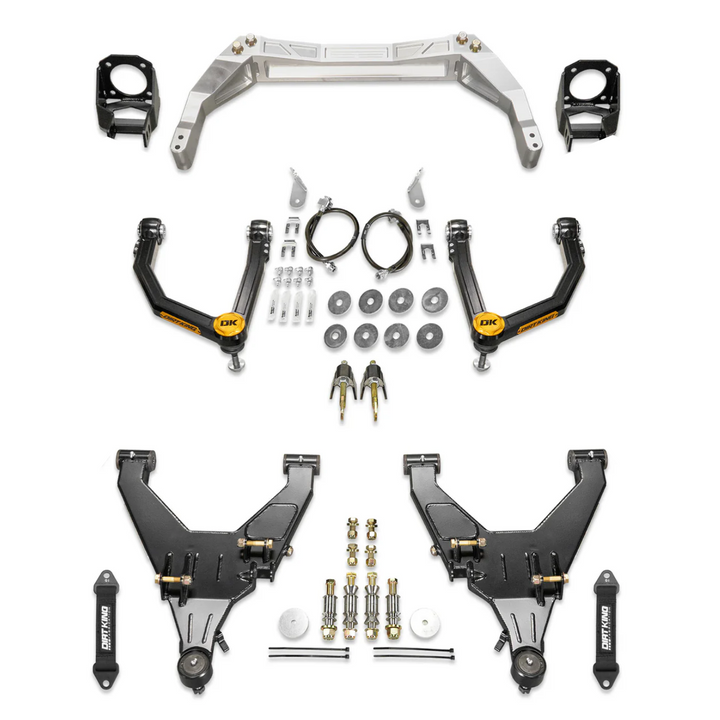

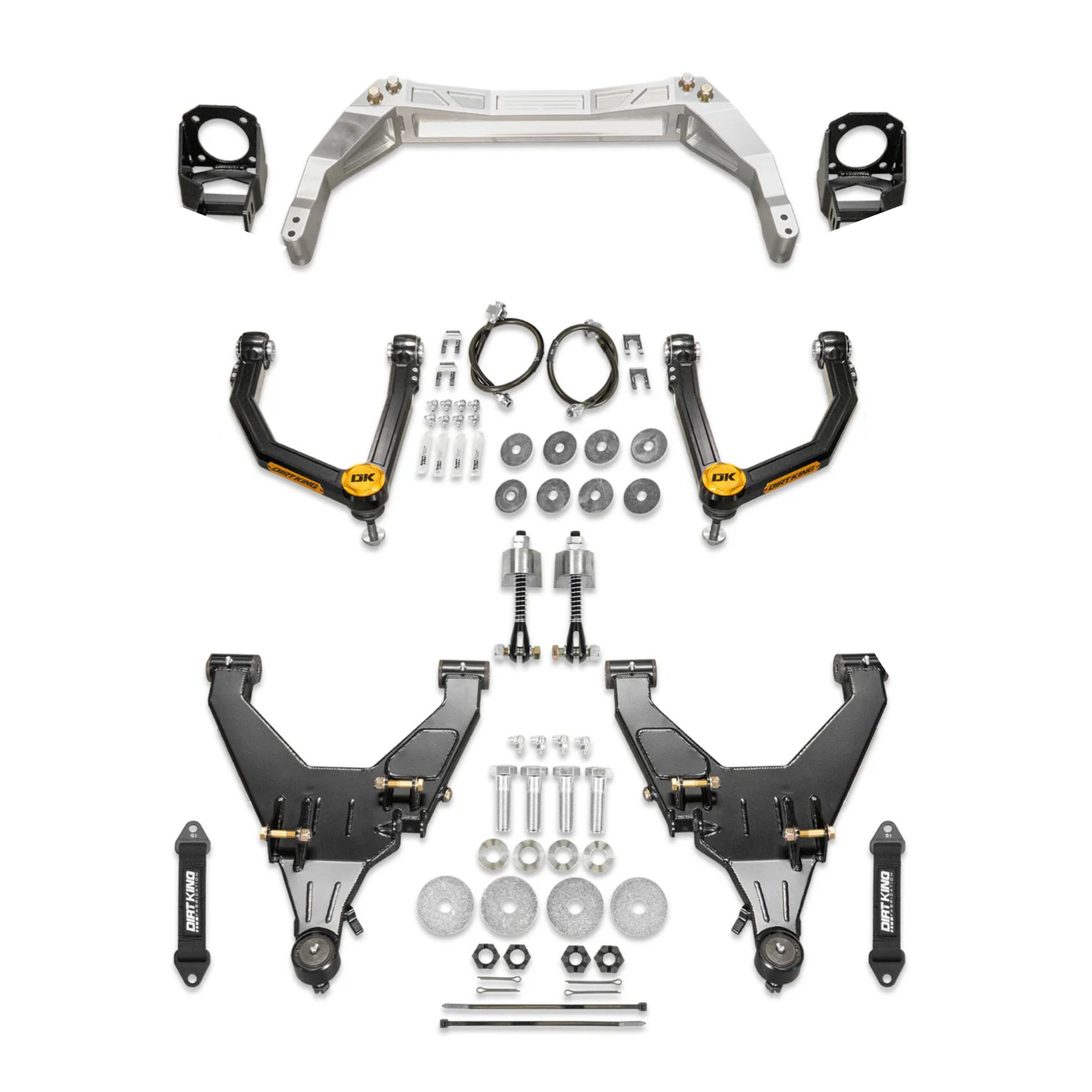

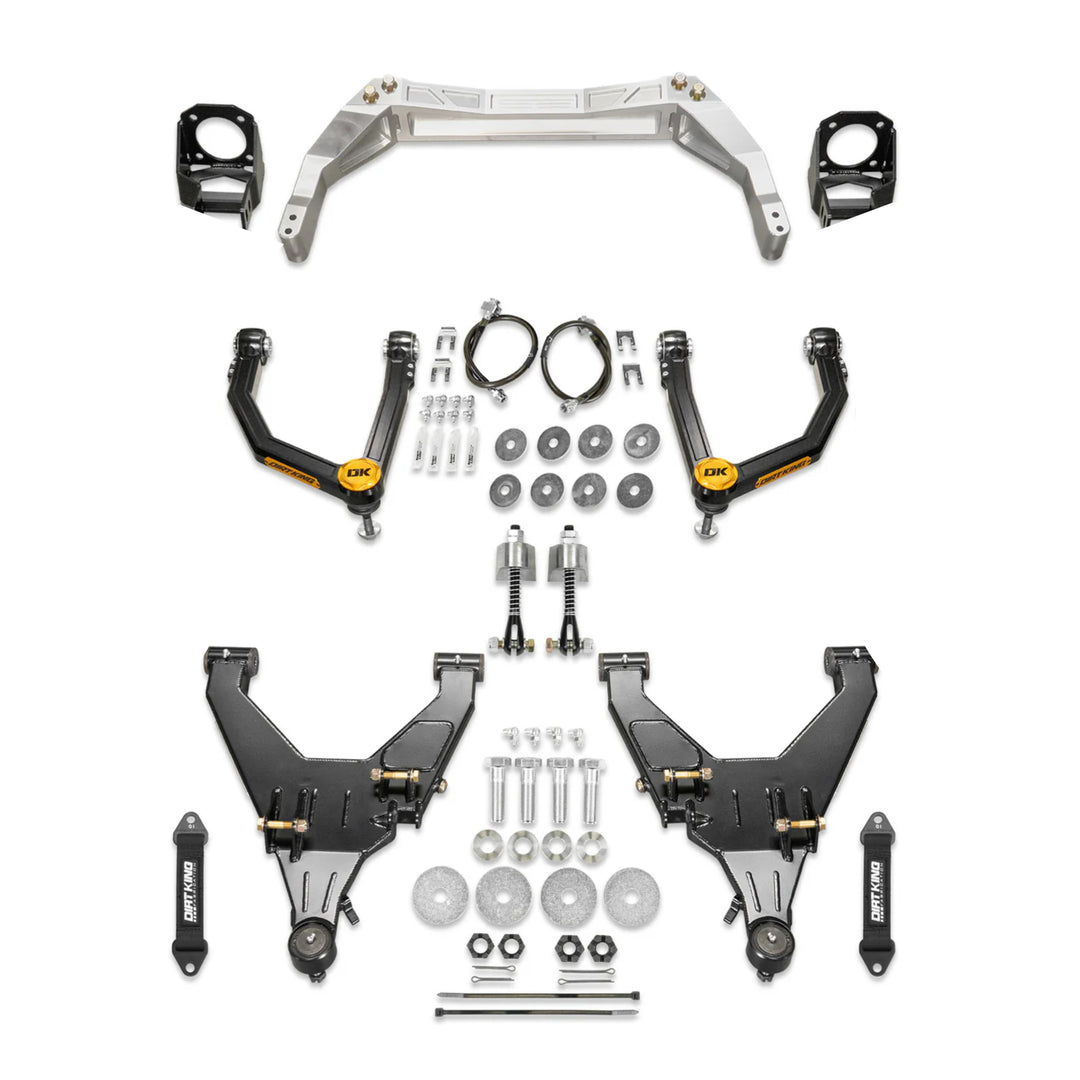

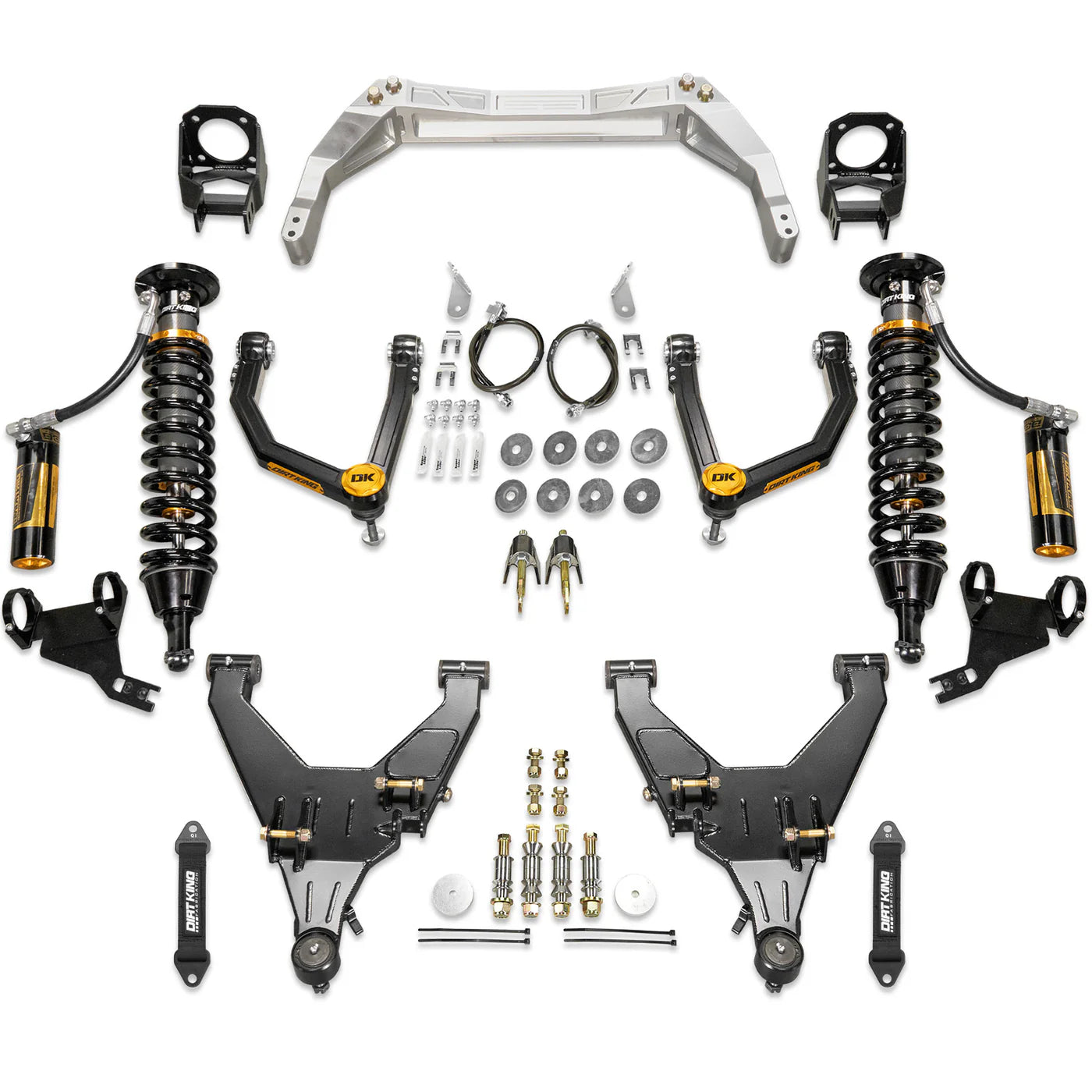

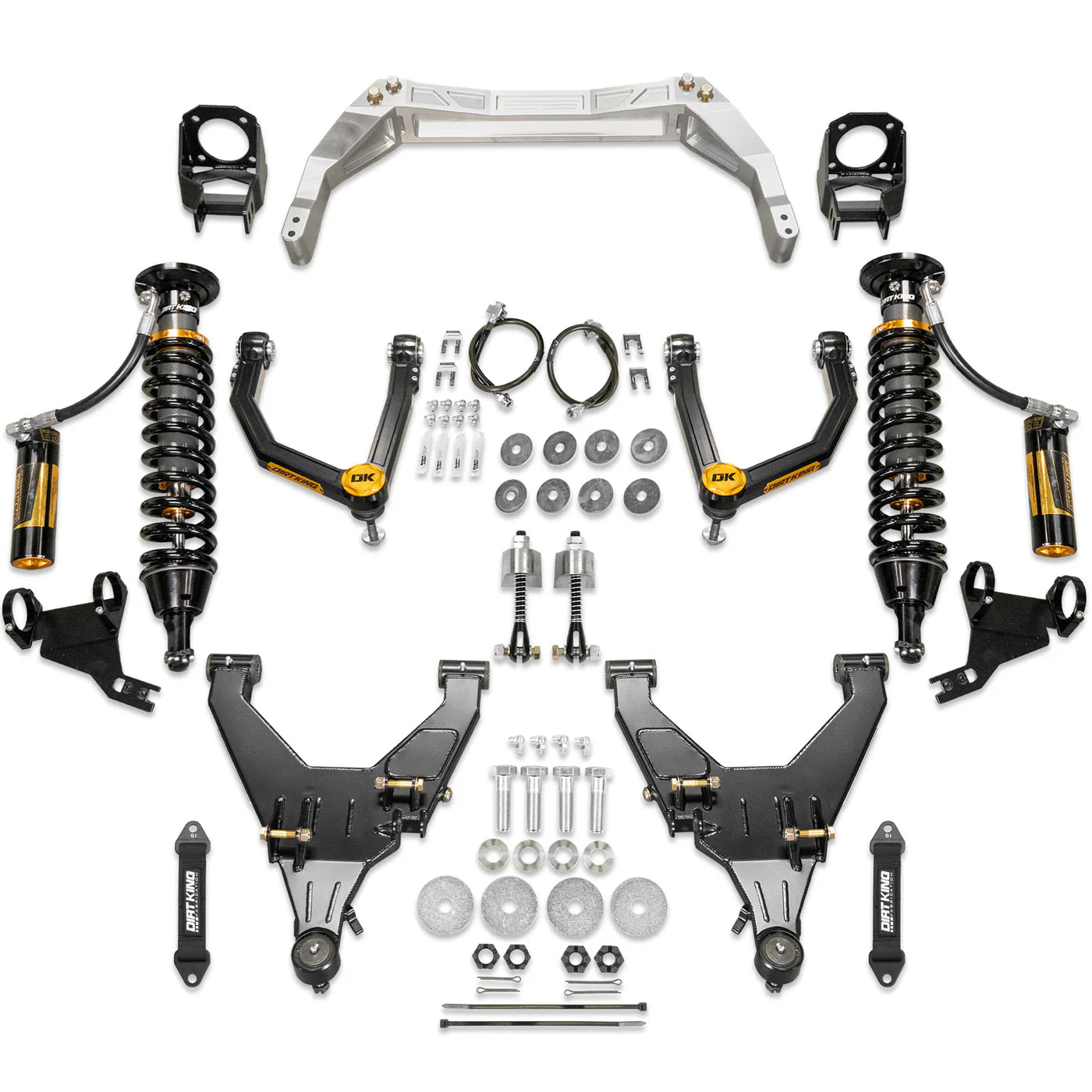

Engineered for superior off-road performance while still providing everyday on-road comfort. Our most advanced system yet—featuring billet upper control arms, optional billet bolt-on cross brace, and Dirt King LT shocks for a complete, next-level package.
The system widens the track by 3.5” per side and provides 13" of wheel travel, a major upgrade over stock. The revised geometry also stretches the wheelbase just enough to clear up to 37” tires.
Durability and low maintenance were at the core of our design. The upper control arms use greaseless SilentSpin bushings, while the lower control arms feature PTFE-infused Delrin bushings for smooth operation. For the outer pivots, we chose heavy-duty ball joints over uniballs for increased strength and a sealed design that enhances longevity in harsh environments.
All essential mounting hardware is provided, and the kit supports multiple installation setups, whether you opt for coilovers only, coilovers with bypasses, or coilovers with bump stops.

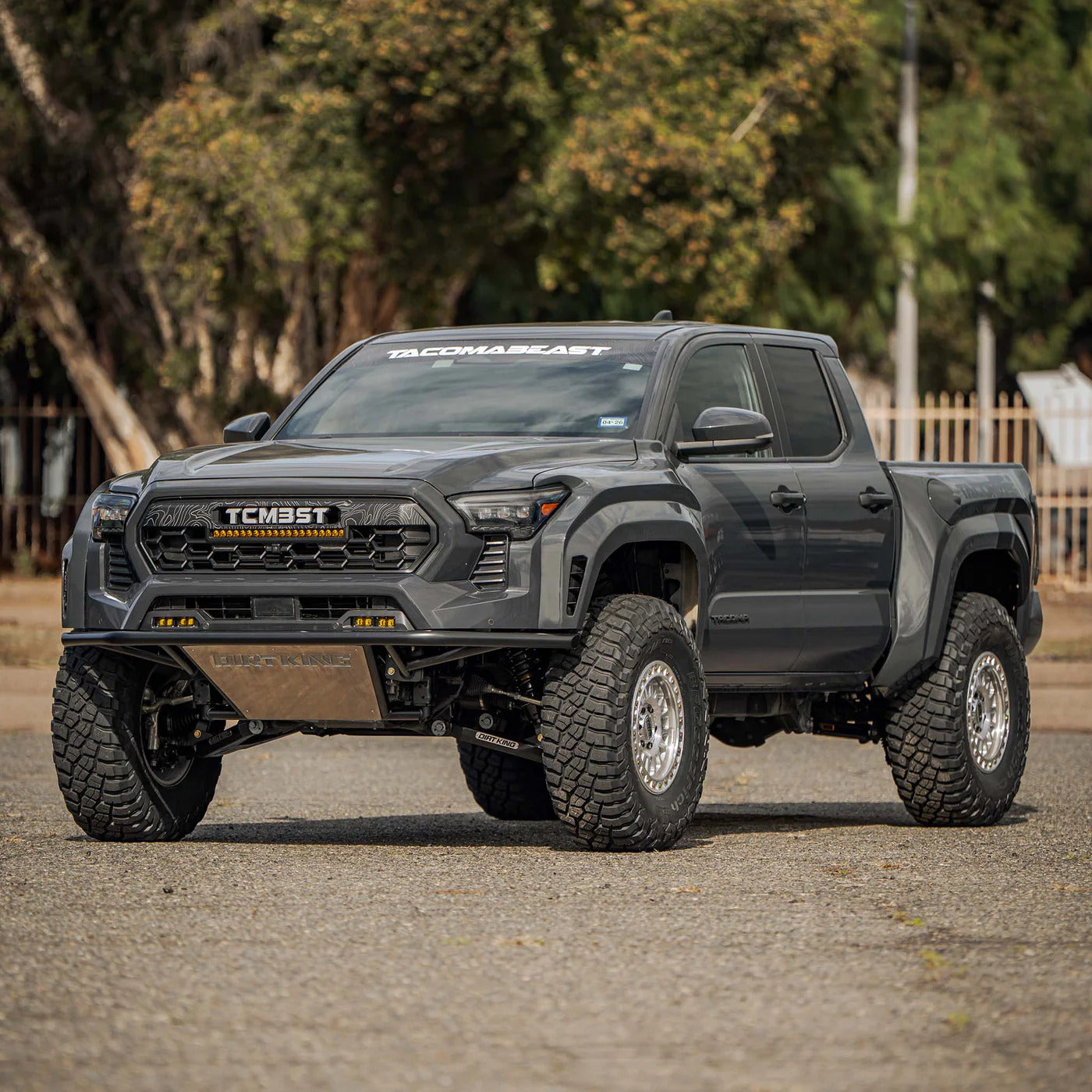

From capability and comfort to style and stance, this kit delivers the full upgrade. The added width and premium components give your Tacoma a confident, aggressive look built for real off-road adventure.
Fitment: 2024+ Toyota Tacoma 2WD / 4WD

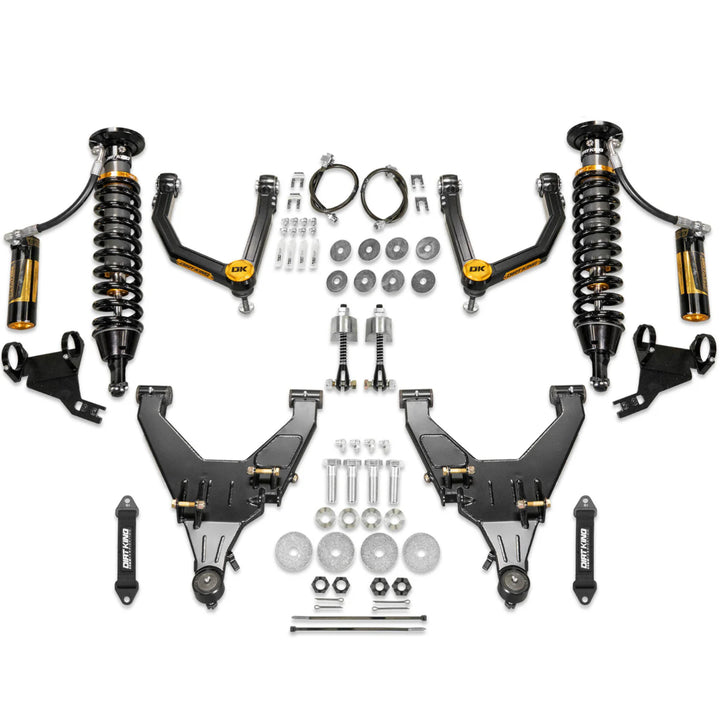

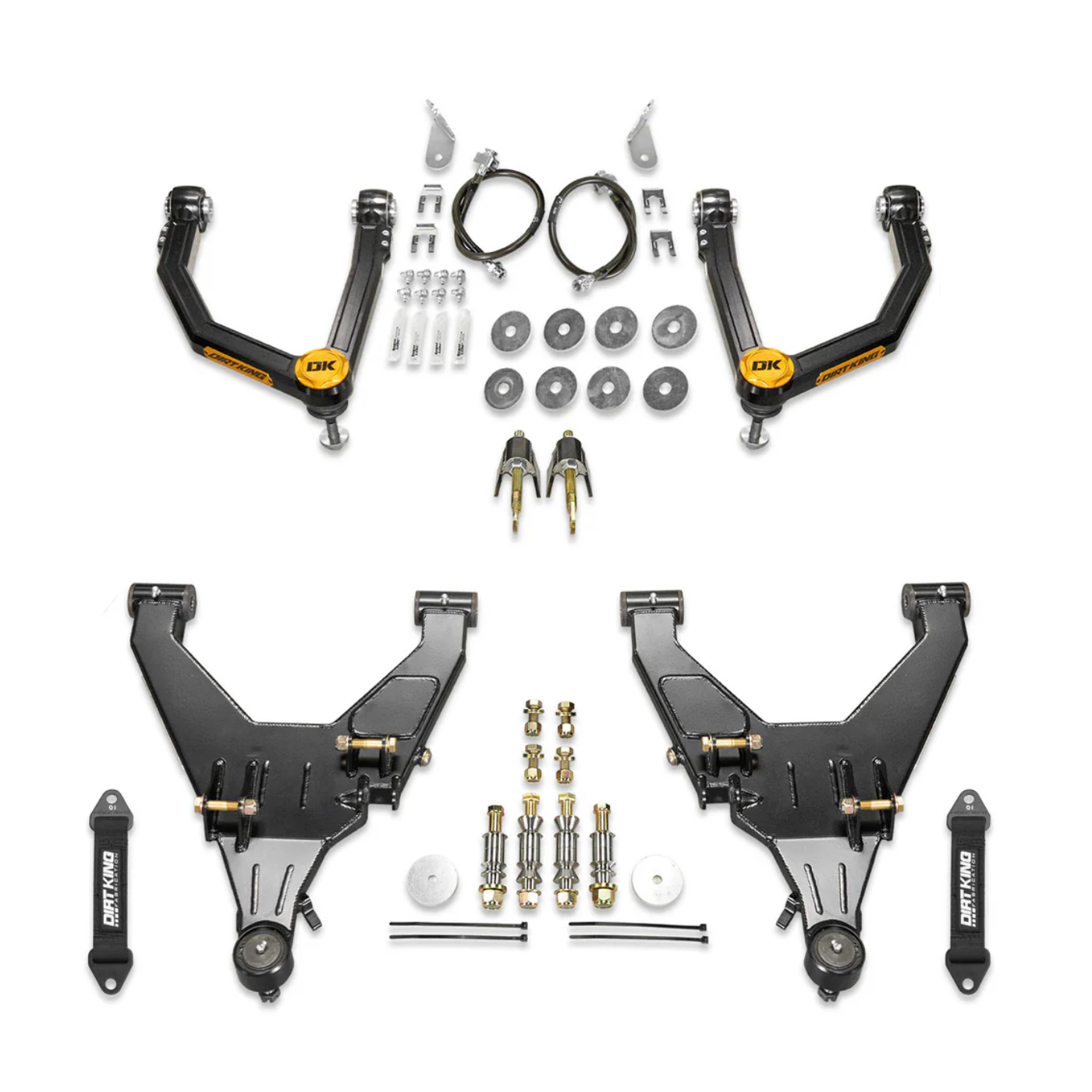

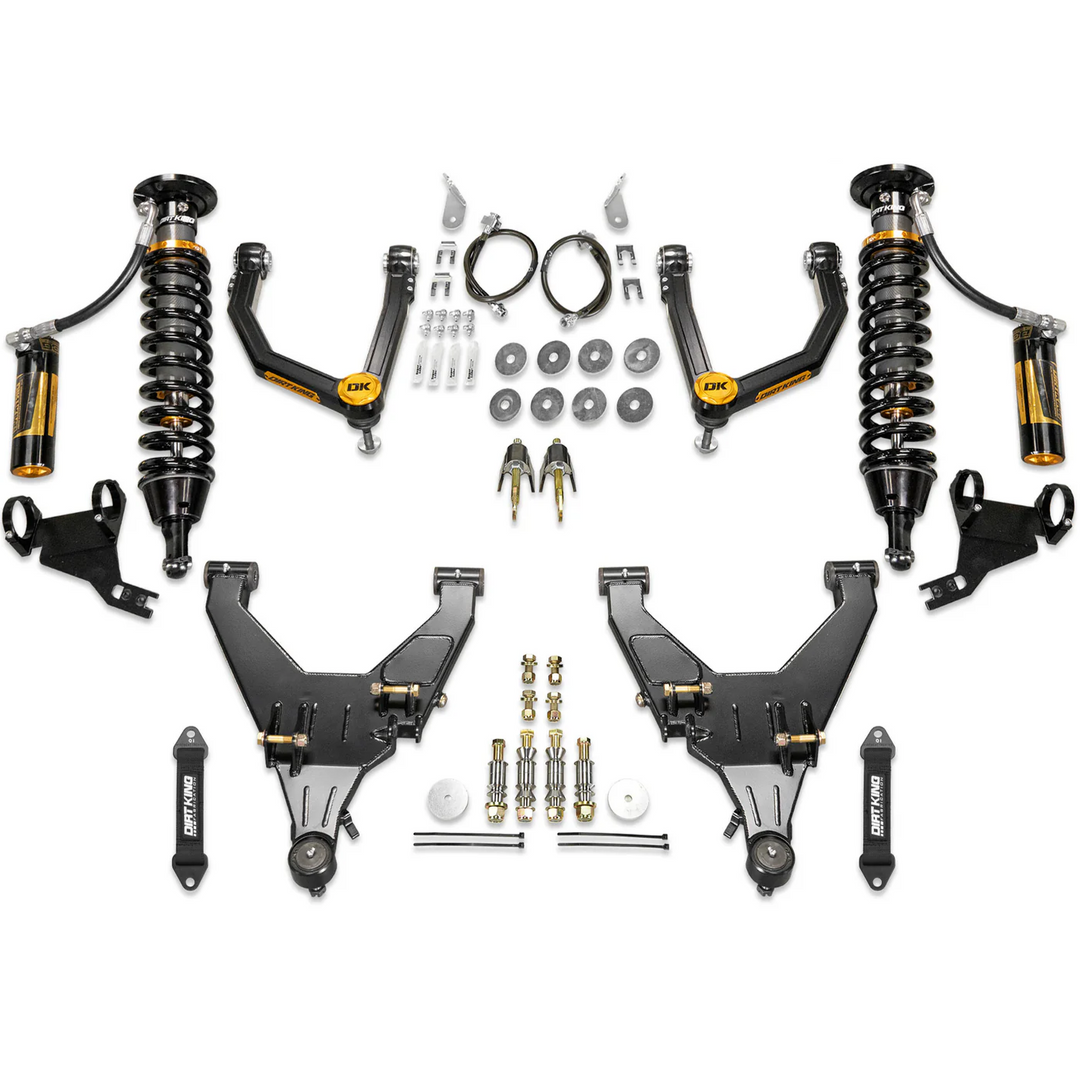

Included:
✔ Billet upper control arms
✔ Boxed lower control arms
✔ Limit straps
✔ Weld-on adjustable limit strap mounts
✔ 17-4 stainless steel tie rod extensions
✔ DOT approved extended brake lines
✔ Grade 8 mounting hardware
✔ Sway bar end links
Please Note: This product is designed to pair with OEM and Dirt King parts. Compatibility with other brands must be approved by the respective manufacturer.
Features
3.5” Wider Per Side: Increases track width for extra stability and unlocks up to 13” of suspension travel.
Big Tire Clearance: Geometry supports up to a 37” tire.
Billet Upper Control Arms: CNC-machined arms feature heavy-duty Probearing ball joints and adjustable inner pivots for fine-tuned alignment.
SilentSpin Bushings: Greaseless, zero-maintenance bushings for the upper control arms.
Delrin/PTFE Bushings: Lower control feature PTFE-infused Delrin bushings.
Sealed Heavy-Duty Ball Joints: Chosen over uniballs for improved durability and a fully sealed design that resists dirt and moisture.
Complete Hardware: Grade 8 mounting hardware and DOT-approved extended brake lines included.
Made in the USA: Designed, tested, and manufactured in the United States.
Specs
Wheel Travel: 13”
Lift Range: 0–3”
Track Width: 3.5” wider per side
Maximum Tire Size: 37”
Maximum Backspacing: 5.75”
Minimum Rim Size: 17”
Warranty
All Dirt King suspension kits are backed by a comprehensive one year warranty.
Special Notes
🔥 EXCLUSIVE LAUNCH
Dirt King Long Travel Kit
The Most Advanced Suspension System for 2024+ Toyota Tacoma
TacomaBeast is proud to be the exclusive launch partner for the all-new Dirt King Long Travel Kit. Engineered for serious off-road performance while maintaining everyday comfort, this is the ultimate upgrade for your 4th Gen Tacoma.
WHEEL TRAVEL
MAX TIRE SIZE
Dirt King Fabrication
Why This Kit Changes Everything
The 2024+ Tacoma deserved a suspension system that matches its capability. Dirt King answered with their most advanced long travel kit yet, combining race-proven engineering with everyday reliability.
This isn't just a lift kit. It's a complete front suspension transformation that widens your track, increases wheel travel by over 100%, and gives you the clearance to run up to 37" tires. Whether you're hitting the whoops at speed or commuting to work, this kit delivers.
✅ Designed specifically for 2024+ 4th Gen Tacoma
✅ Billet CNC-machined components for maximum strength
✅ Dual Compression Adjusters for tunable performance
✅ Sealed ball joints for durability in harsh conditions
✅ Zero-maintenance SilentSpin bushings

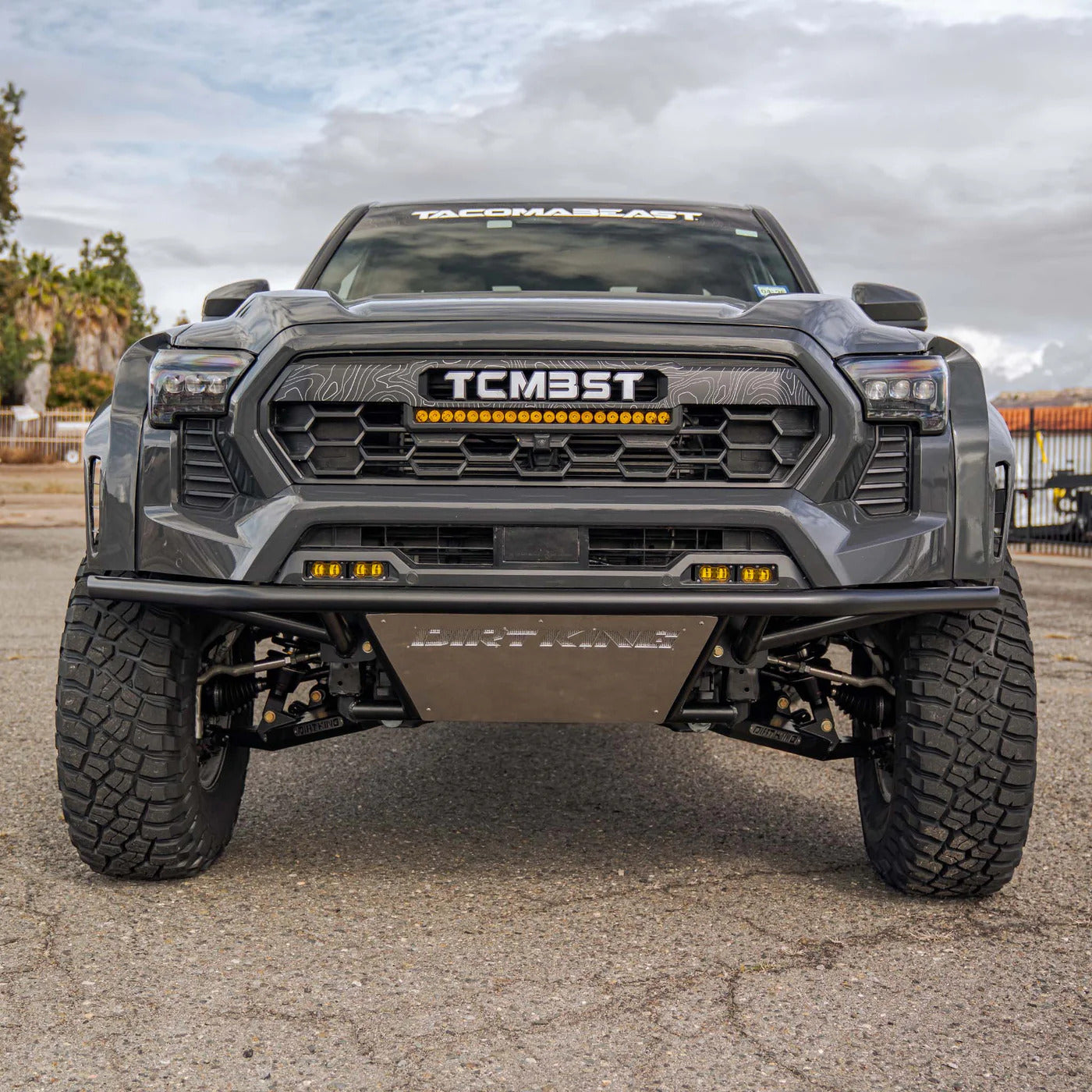

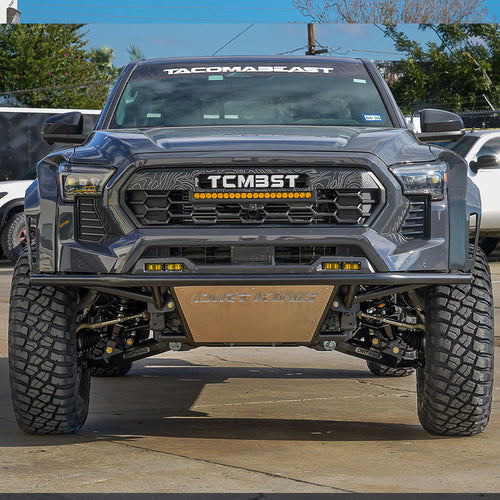

3.5" Wider Per Side = Total Control
The increased track width isn't just about looks (though your Tacoma will look incredible). The wider stance dramatically improves stability during high-speed off-road runs, reduces body roll in corners, and gives you confidence on off-camber terrain.
Combined with 13" of wheel travel, you'll be able to keep all four wheels planted over terrain that would leave a stock suspension bouncing and skipping.

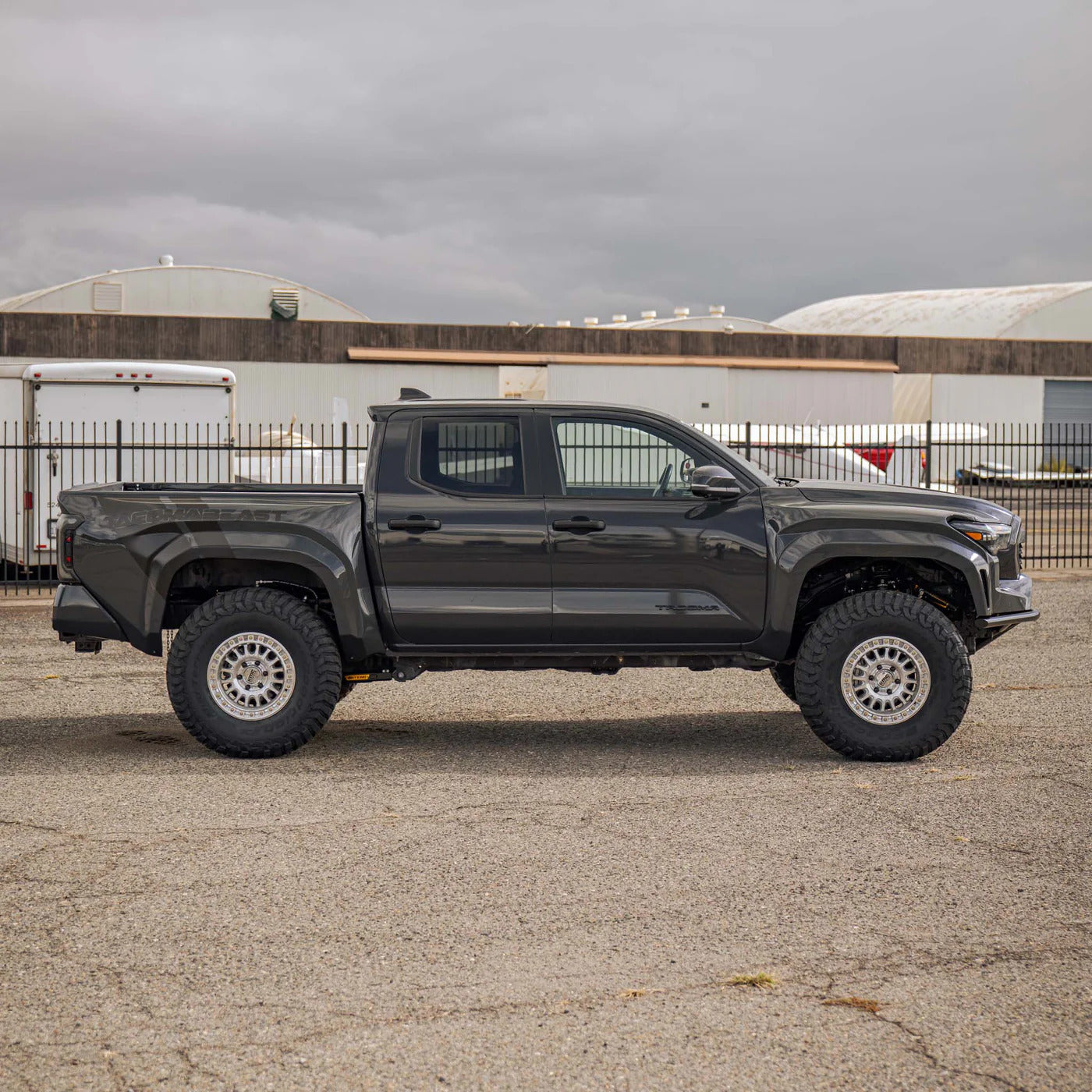

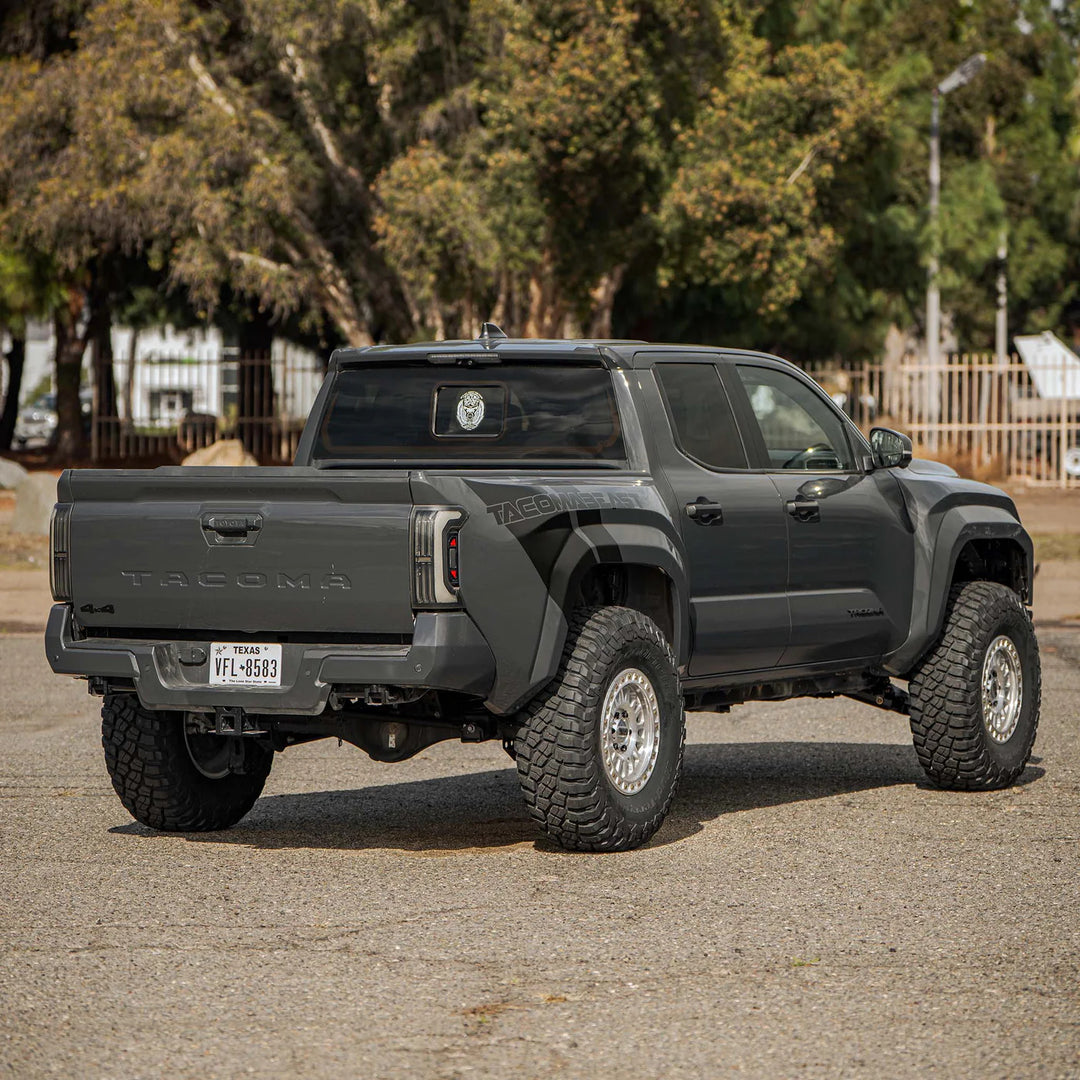

Run Up to 37" Tires
The revised geometry doesn't just add width. It also stretches the wheelbase just enough to accommodate up to 37" tires without rubbing. That means you can run serious rubber for maximum traction and ground clearance.
Minimum 17" wheels required, with maximum backspacing of 5.75" to take full advantage of the wider track.

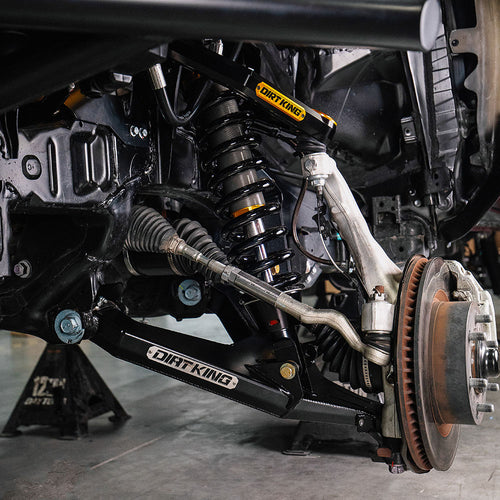

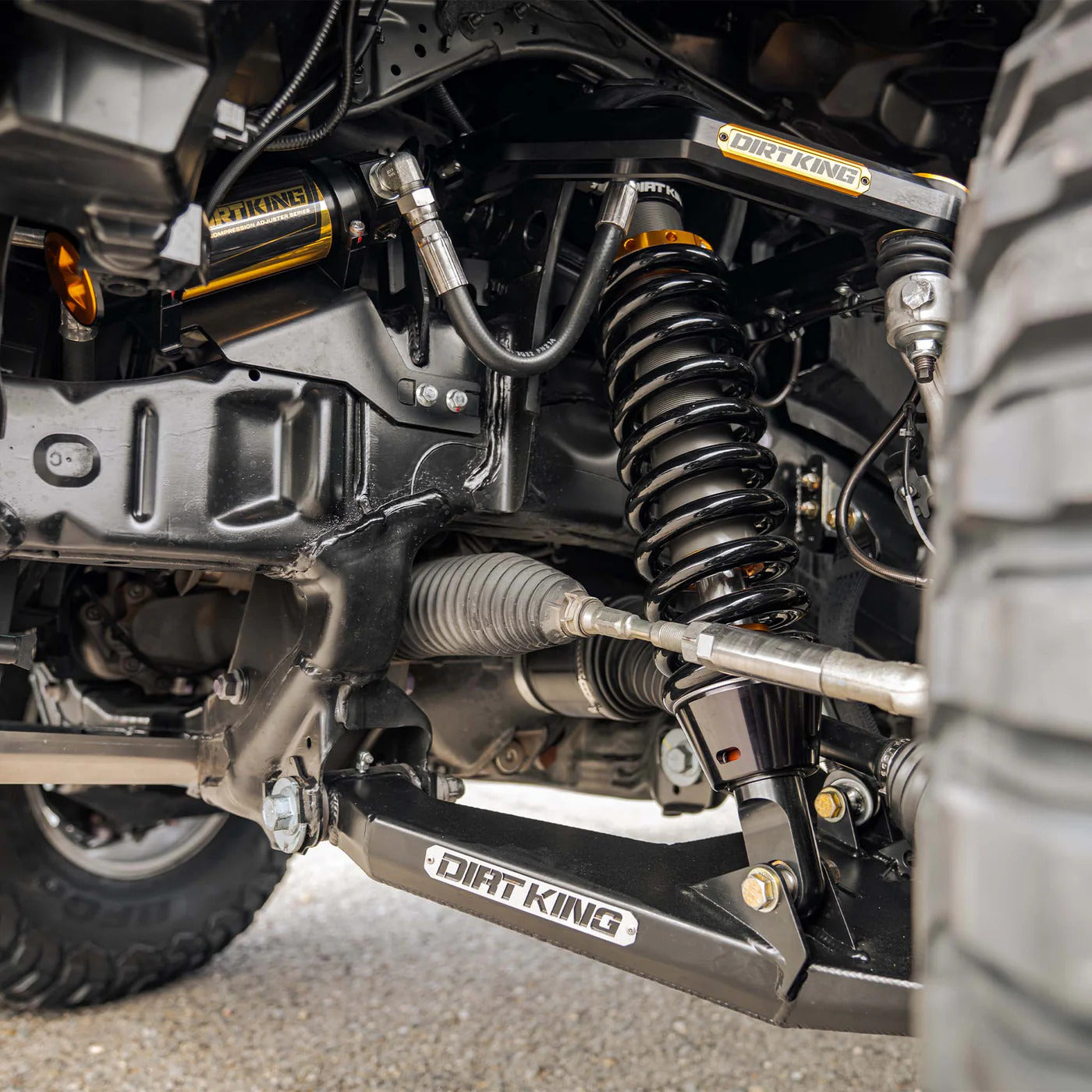

Billet Upper Control Arms
Dirt King didn't cut corners. The upper control arms are CNC-machined from solid billet aluminum, featuring heavy-duty Probearing ball joints and adjustable inner pivots for precision alignment.
The SilentSpin bushings require zero maintenance (no greasing) while providing smooth, quiet operation on the street and durability when you're pushing hard off-road.
Engineered for Performance
Sealed Ball Joints
Heavy-duty ball joints instead of uniballs mean increased strength and a fully sealed design that resists dirt and moisture for longer life.
PTFE-Infused Bushings
Lower control arms feature Delrin bushings infused with PTFE for smooth operation and long-term durability with minimal maintenance.
DOT-Approved Lines
Extended brake lines are DOT-approved and included, ensuring safe braking performance throughout the full range of suspension travel.
Grade 8 Hardware
All mounting hardware is Grade 8 for maximum clamping force and reliability. No cheap fasteners that could fail under load.

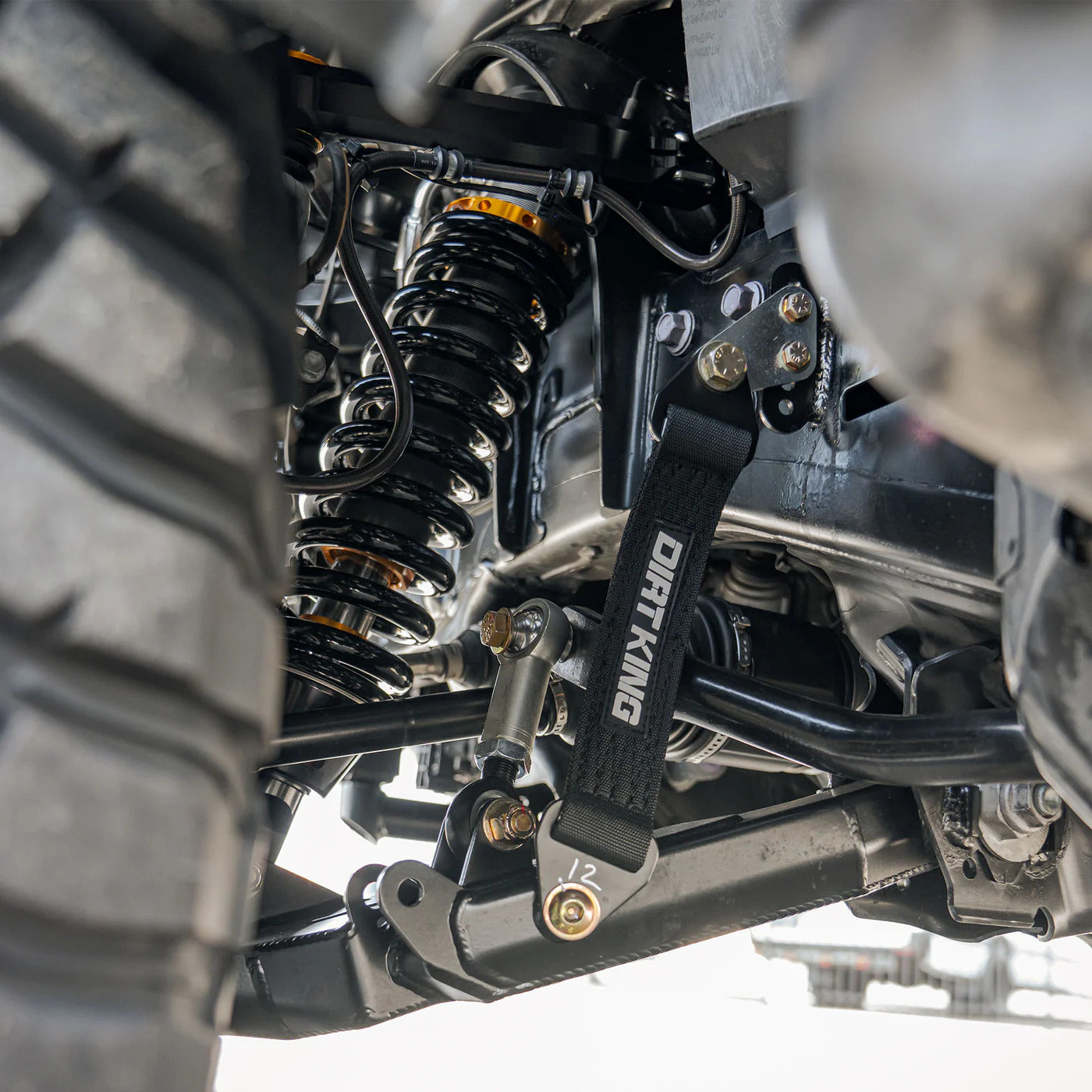

Adjustable Limit Straps
Weld-on adjustable limit strap mounts let you fine-tune your droop travel to prevent damage at full extension.
Made in the USA
Designed, tested, and manufactured in the United States with strict quality control at every step.

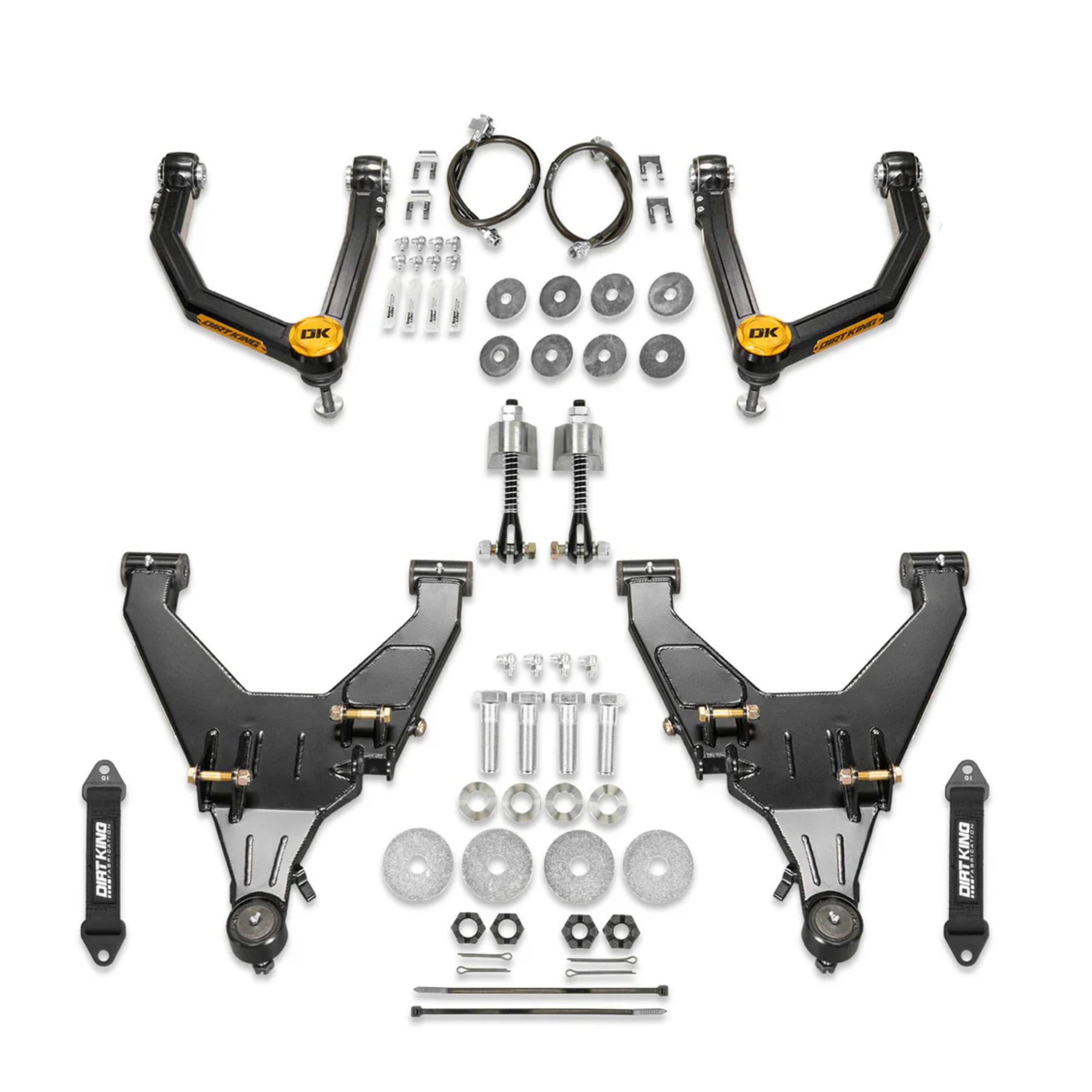

Complete Kit Includes
Everything you need for a professional Long Travel Setup
- Billet upper control arms
- Boxed lower control arms
- Limit straps
- Weld-on adjustable limit strap mounts
- 17-4 stainless steel tie rod extensions
- DOT approved extended brake lines
- Grade 8 mounting hardware
- Sway bar end links
Dual Compression Adjusters (DCA)
When you add Dirt King 2.5 DCA coilovers to your kit, you get the ultimate in tunable performance. Adjust both low-speed and high-speed compression to dial in your ride for any condition.
Soft Setting
LS: 8 clicks out
HS: 7 clicks out
Ideal for daily driving and maximum on-road comfort. Perfect for commuting and highway cruising.
Medium Setting
LS: 7 clicks out
HS: 5 clicks out
Factory default. Balanced for both on-road comfort and off-road capability. Great all-around setting.
Firm Setting
LS: 5 clicks out
HS: 3 clicks out
Best for high-speed desert running and handling large hits. Maximum control in demanding conditions.
Understanding Your Adjustments
Low Speed Compression (Gold Knob):
Controls how the shock responds to slow movements like cornering, braking, or rolling bumps. Tighten if the ride feels bouncy or bottoms out on rolling terrain. Loosen if the ride feels rough on small bumps.
High Speed Compression (Black Knob):
Controls how the shock responds to rapid movements when hitting large obstacles. Tighten if you're bottoming out on big hits at speed. Loosen if the ride feels too firm on small, frequent bumps.

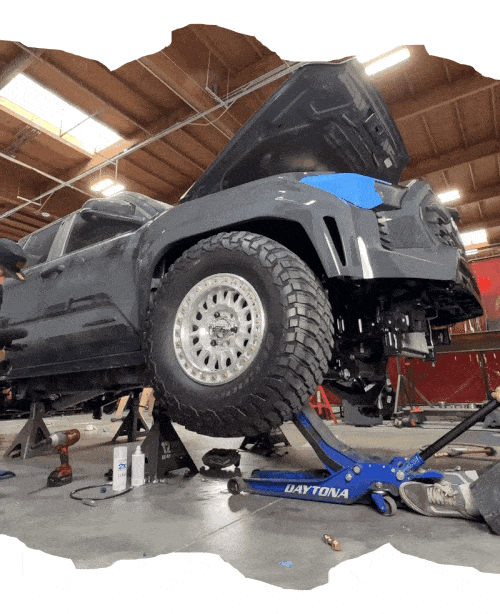

Installation & Maintenance
1
Professional Installation Recommended
2
Long-Term Durability
While experienced builders can install this kit at home, we strongly recommend professional installation to ensure proper alignment, torque specifications, and safety.
The kit includes weld-on limit strap mounts which require welding equipment and expertise. A professional alignment is mandatory after installation.
Installation Time: Expect 8-12 hours for a complete installation by an experienced shop.
Frequently Asked Questions
Find answers to common questions about the Dirt King Fabrication Long Travel Kit for 2024+ Toyota Tacoma.
The kit requires welding the adjustable limit strap mounts to your frame. This is a permanent modification. No cutting of body panels or frame is required for the kit itself, though trimming may be necessary depending on your tire size.
If you have significant mechanical experience, proper tools (including welding equipment), and a way to safely lift and support your vehicle, yes. However, we strongly recommend professional installation to ensure safety and proper setup. A professional alignment is mandatory after installation.

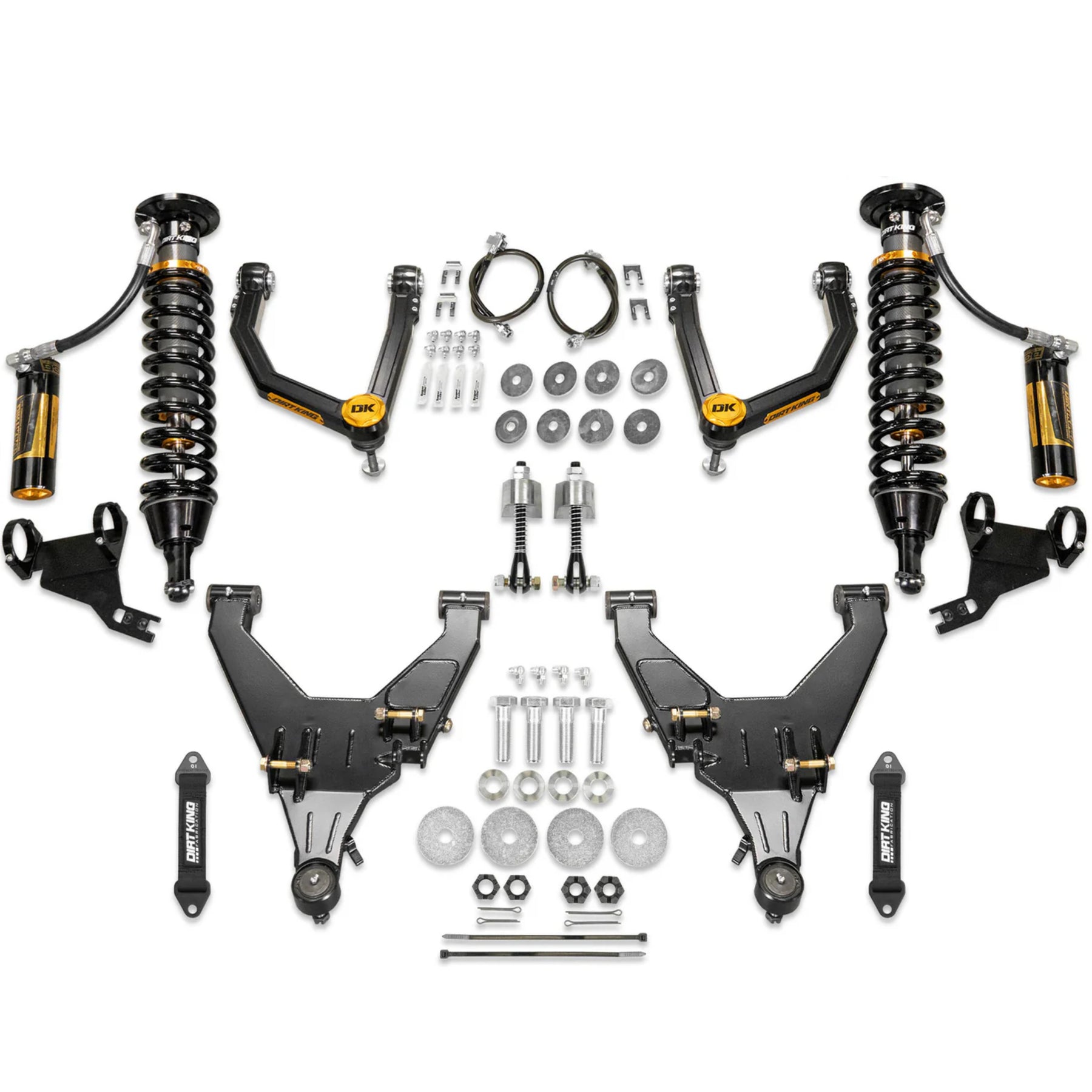

The kit can be purchased without shocks if you want to source your own, or you can select the coilover option when ordering to get a complete system with Dirt King 2.5 DCA coilovers. We recommend the complete system for optimal performance.
The kit is designed to work with OEM and Dirt King parts. If you have aftermarket components from other brands, you can verify compatibility with Tacomabeast (Reach out here). Some bumpers or skid plates may require modification.
Any modifications to your suspension will likely void certain aspects of your factory warranty. Check with your dealer for specifics. The Dirt King kit itself is backed by a comprehensive 1-year warranty against defects in materials and workmanship.
Minimum 17" diameter wheels are required. For the full track width benefit, you'll want wheels with a maximum of 5.75" backspacing. We recommend consulting with a wheel specialist to find the right offset for your desired tire size.
When properly set up with the DCA adjusters, this kit actually improves on-road handling thanks to the wider track and high-quality components. The adjustable compression damping lets you dial in a comfortable street ride while still having the performance for serious off-road use.
