A package of proven components all designed to work together, from 1 trusted source, Archive Garage. Whether you're off road trail running or taking on your next overland expedition we have the right leaf spring for your rig and usage.
All components are designed and manufactured in USA.
Unlock ultimate performance with this complete Archive Garage kit and save.
Fitment: 2005-2023 Toyota Tacoma

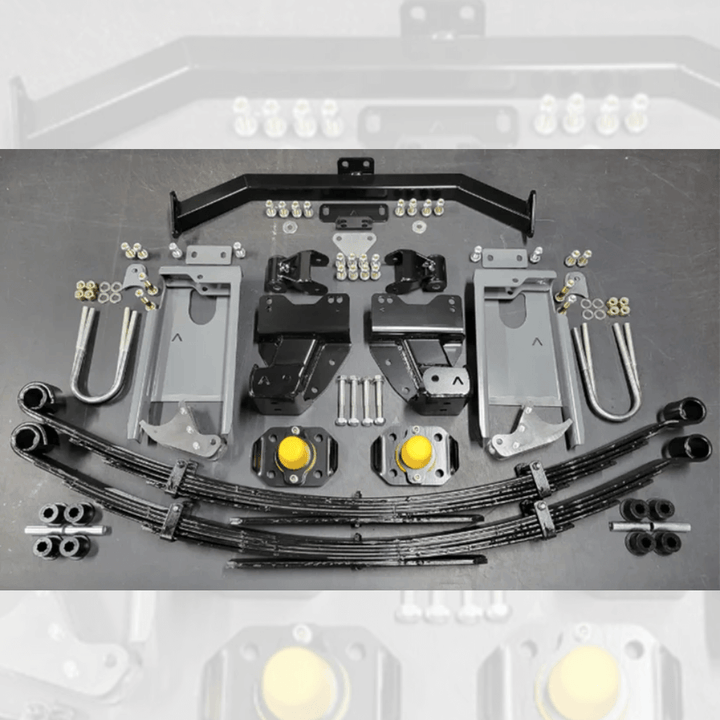

Included:
✔ HAMMER HANGERS® - 2005-2023 TOYOTA TACOMA HD SHACKLE HANGERS with 3.6" shackles
✔ Cross Tube For Hammer Hangers`
✔ 2005-2023 TACOMA SHOCK RELOCATION TOWERS 2.5 X 12" TO 14" MID TRAVEL
✔ ARCHIVE EXPLORER SERIES "ERIKSON" TACOMA LIFT SPRINGS
✔ STEALTH HD TOYOTA U-BOLT FLIP KIT: Option 3, Option 4, Option 5 (air bump)

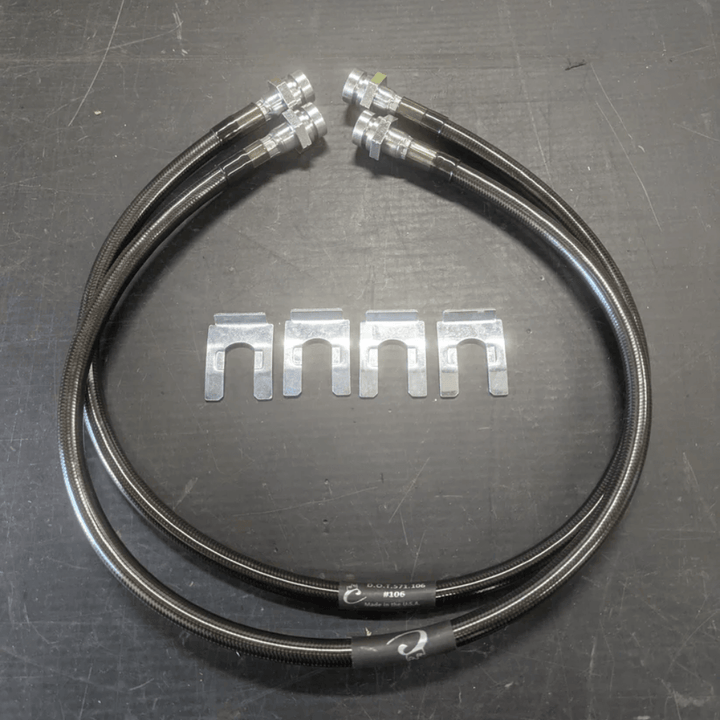

✔ Extended Rear Brake Line Hose Pair for 2005-2023 Toyota Tacoma
Please Note:
➜ REMOTE RESERVOIR ONLY, piggy back resis don't work. Order STRAIGHT hose fitting off shock body - 2.5x12" shocks are the best for HD springs, give the best ground clearance, HD springs max out @ 12" shock travel.
➜ Don't mix LT and MT, true LT SUA conversions that move the springs outboard may will interfere with these axle tabs. For all and u-bolt saddle. Proper install involves setting up off of MAX bump height Details: Puts top shock as high as possible! (3.8"+ higher than other kits) This allows FULL bump travel, which is critical on the Tacoma. Wheel Spacer required minimum 4.75 BS Wheel + 1.25" spacer or equivalent wheel offset.
Fitment Chart
2005-2023 Tacoma DCSB
Leaf Pack | Estimated Lift Amount AG Leafs | Axle-Tube-to-Frame-Bottom |
Stock 3/1 - 0lbs | 0in | 8.25in |
Archive MD - 0lbs | 3.25in | 11.25in |
Archive MD - 300lbs | 2.5in | 10.75in |
Archive MD - 600lbs | 2in | 10.25in |
Archive HD - 600lbs | 3in | 11.25in |
Archive HD - 1250lbs | 2in | 10.25in |
Archive XD - 1250lbs | 3in | 11.25in |
Archive XD - 1750lbs | 2.5in | 10.75in |
Recommended Shocks (Confirmed Fit & Performance)
Shock | Brand |
Accutune Fox Factory RR 2.5x12 | Fox |
Accutune Fox Factory RR 2.5x14 | Fox |
AccuTune Fox Factory RR DSC 2.5x12 | Fox |
AccuTune Fox Factory RR DSC 2.5x14 | Fox |
AccuTune King RR 2.5x12 | King |
AccuTune King RR 2.5x14 | King |
AccuTune King RR 2.5x12 w/ adjuster | King |
AccuTune King RR 2.5x14 w/ adjuster | King |
ADS Smooth Body 2.5x12 | ADS |
ADS Smooth Body 2.5x12 w/adjuster | ADS |
*If using HD Springs or XD 12in is best
For additional options reach out to shock company to confirm with specs below
Shock Specs Needed
2.5" & 3.0" Smooth Body Shock Remote Resi
Shock Travel
12-14in
Fittings/Spacers
Standard rod-end shocks (1.5" wide, 1/2" bolt)
2.5" Bypass
Note: We do not guarantee that all bypasses will fit due to the numerous brands and possible custom layouts you can order.
-Many have successfully installed 2.5" bypasses, 3.0 bypass will not fit
-Best tube layout: bypass tubes placed forward towards engine, with remote hose elbow towards the rear bumper.
-We recommend only 12" travel bypasses because shock piston at normal ride height needs to be below comp. tube ports/zones.
Wheel Fitment Needed
Wheel Backspacing
4.75" + 1.25in Spacer
Disclaimer: Archive Garage in no way recommends exceeding Toyota's GVWR. Owner assumes all risk when exceeding Toyota's GVWR or GAWR.
