Ghost Box
Pairs well with
Accessory control redefined
The PROJECT X Ghost Box wireless ecosystem reimagines the market standard for switch boxes, creating a totally customizable and wirelessly controlled experience.

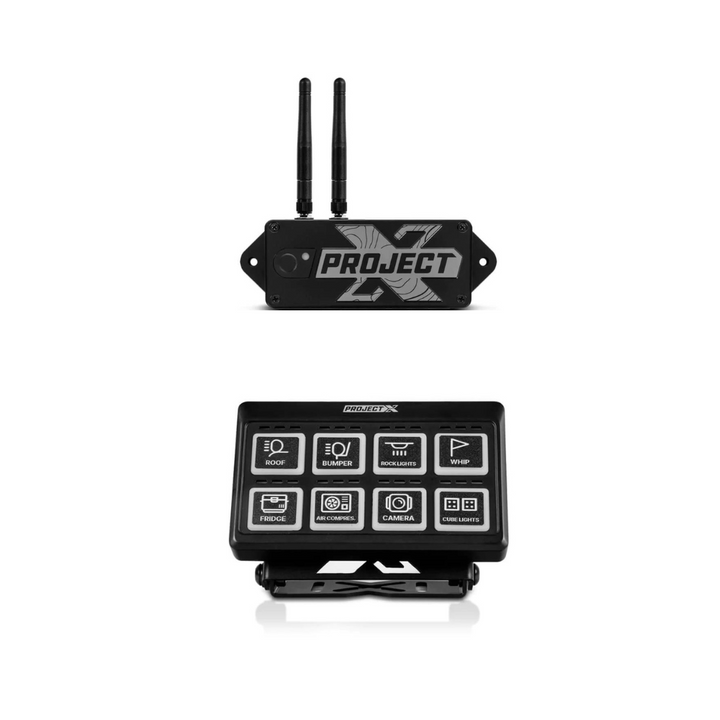

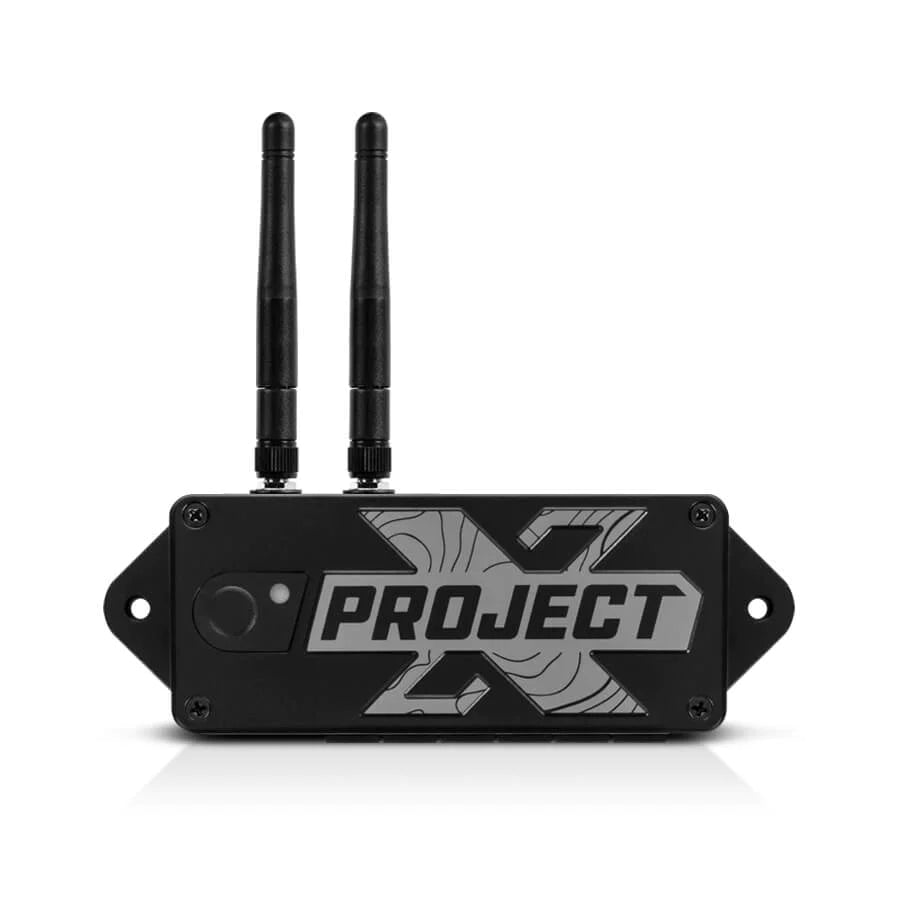

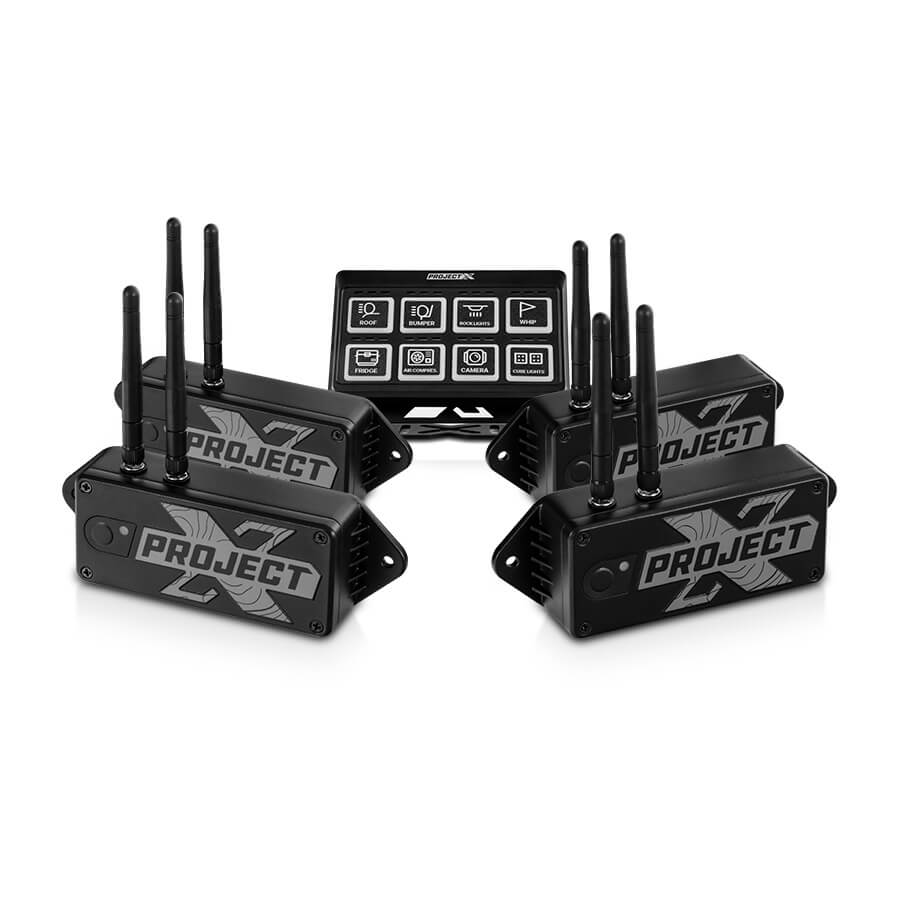

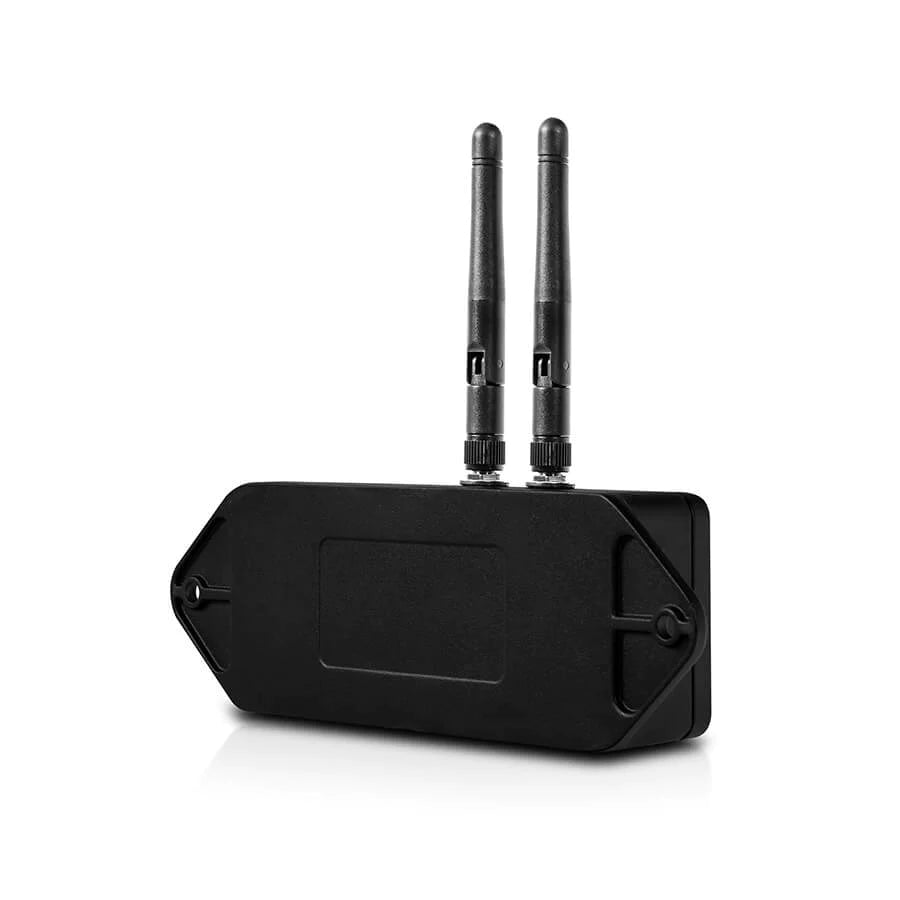

The fully expandable system includes a two-circuit control module that wirelessly communicates to the PROJECT X app or to an optional control keypad which can be programmed via the PROJECT X app as well. Control a single module for an easy accessory install, or create a large ecosystem of Ghost Box connected accessories across all your vehicles, trailers and equipment. Create presets you can incorporate across all of your accessories and set up groups and timers for maximum functionality. With the PROJECT X Ghost Box we make it easy to Connect with the Wild.

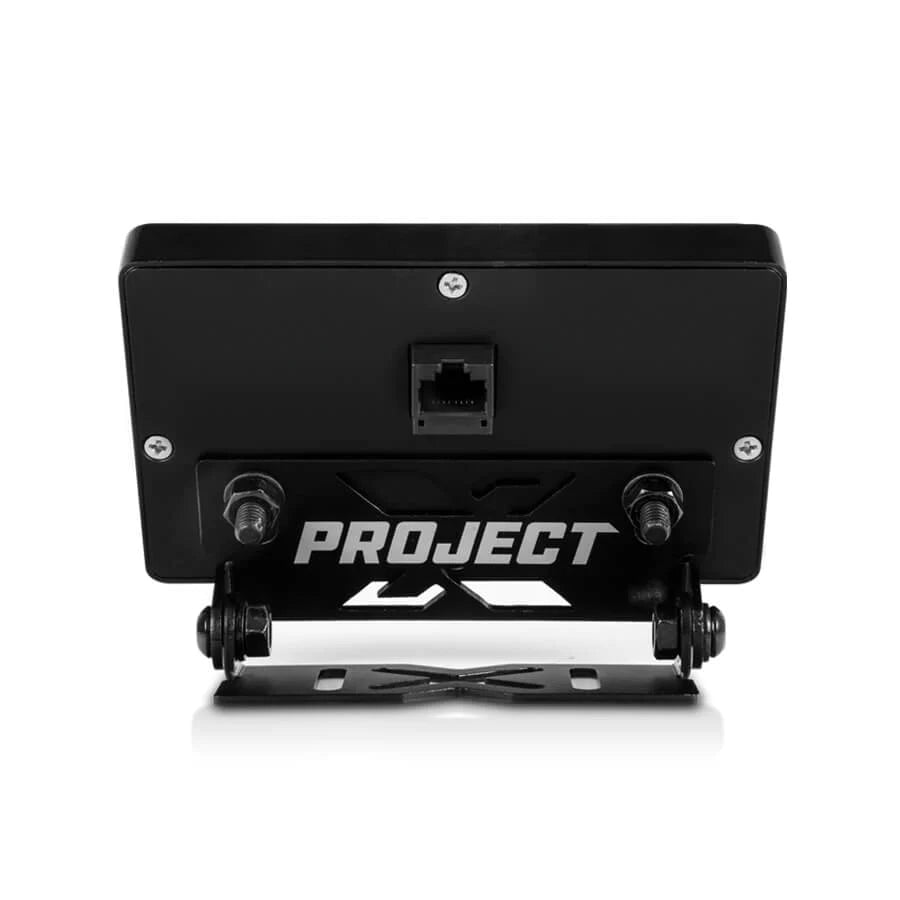

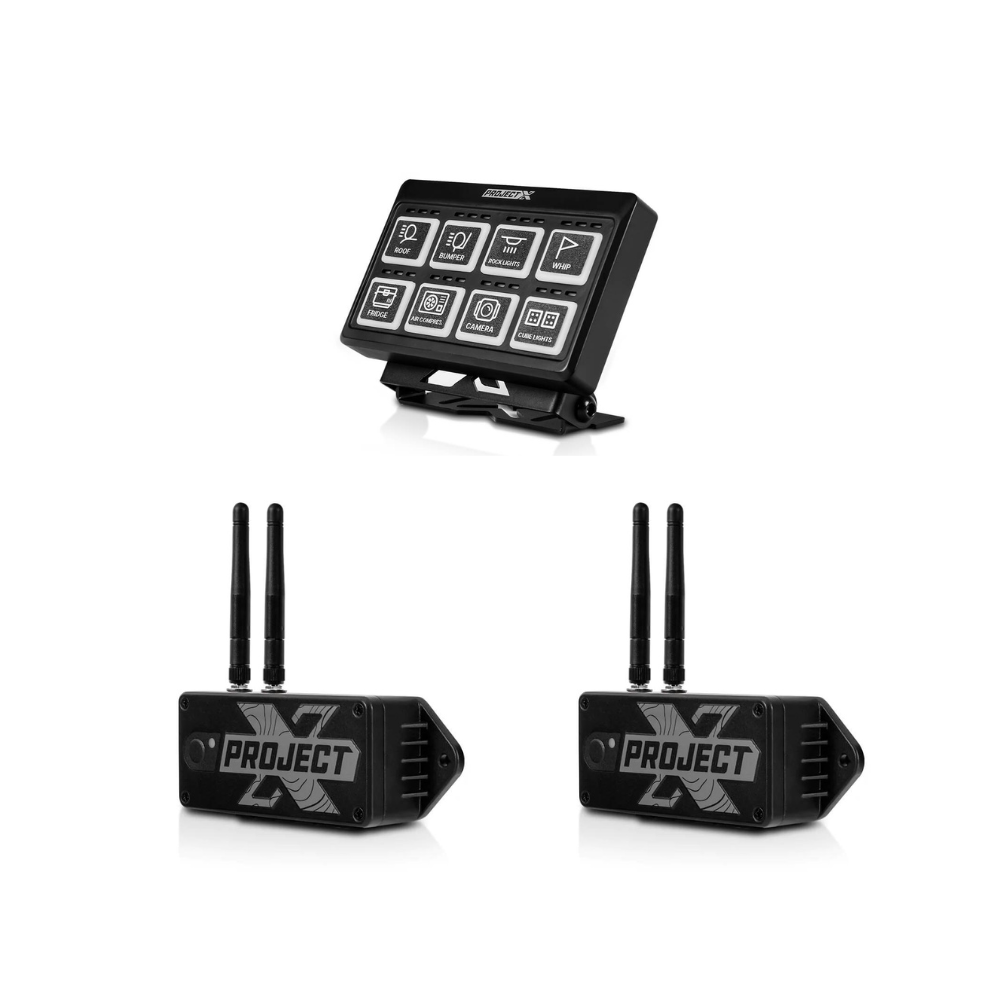

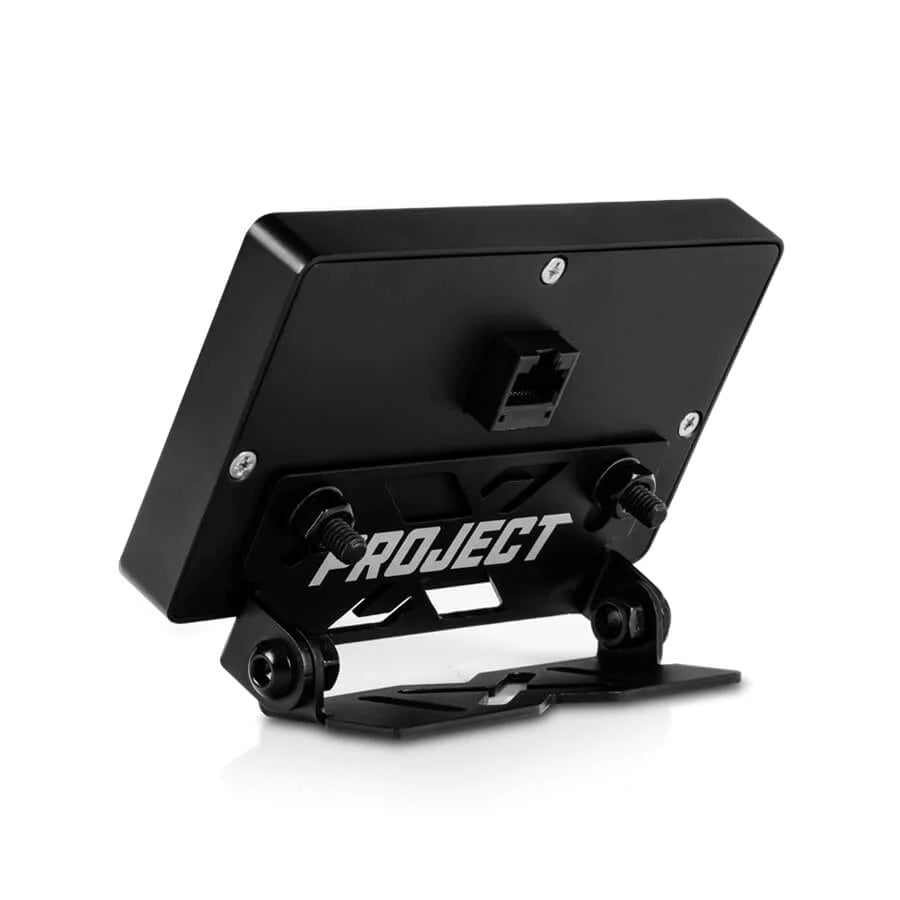

Expand the functionality of your PROJECT X Ghost Box by adding the wireless control keypad. Install this keypad anywhere in your vehicle to wirelessly control your Ghost Box connected accessories with the touch of a button. The keypad comes with eight (8) LED backlit switches, a mounting bracket with universal bolt patterns for your interior or windshield and requires only a single cable to function.
User Guide:
Ghost Box Wireless Accessory Control Ecosystem User Manual Here
MADE TO WIN : Winner of the 2022 SEMA Show Global Media Award.
EASY TO PAIR : Intuitively connect your vehicle accessories the same way you would sync any Bluetooth product to integrate into your PROJECT X ecosystem.

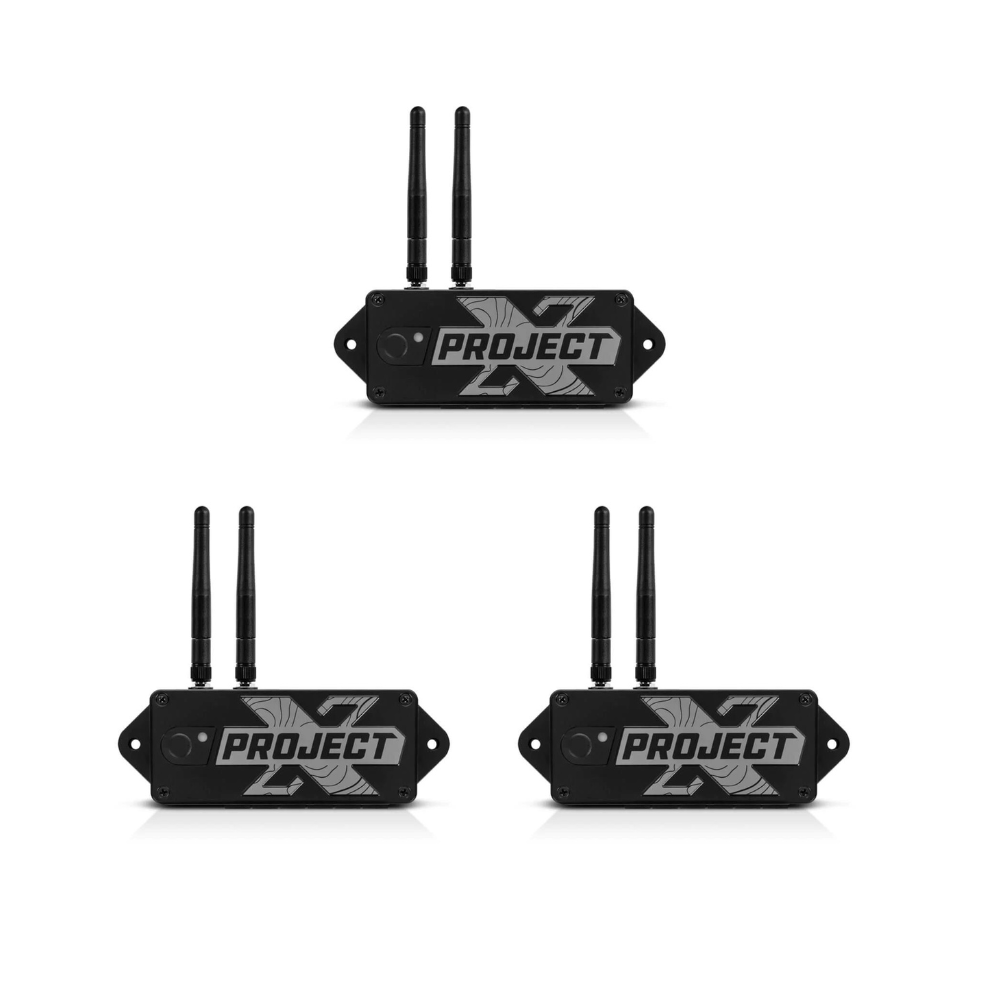

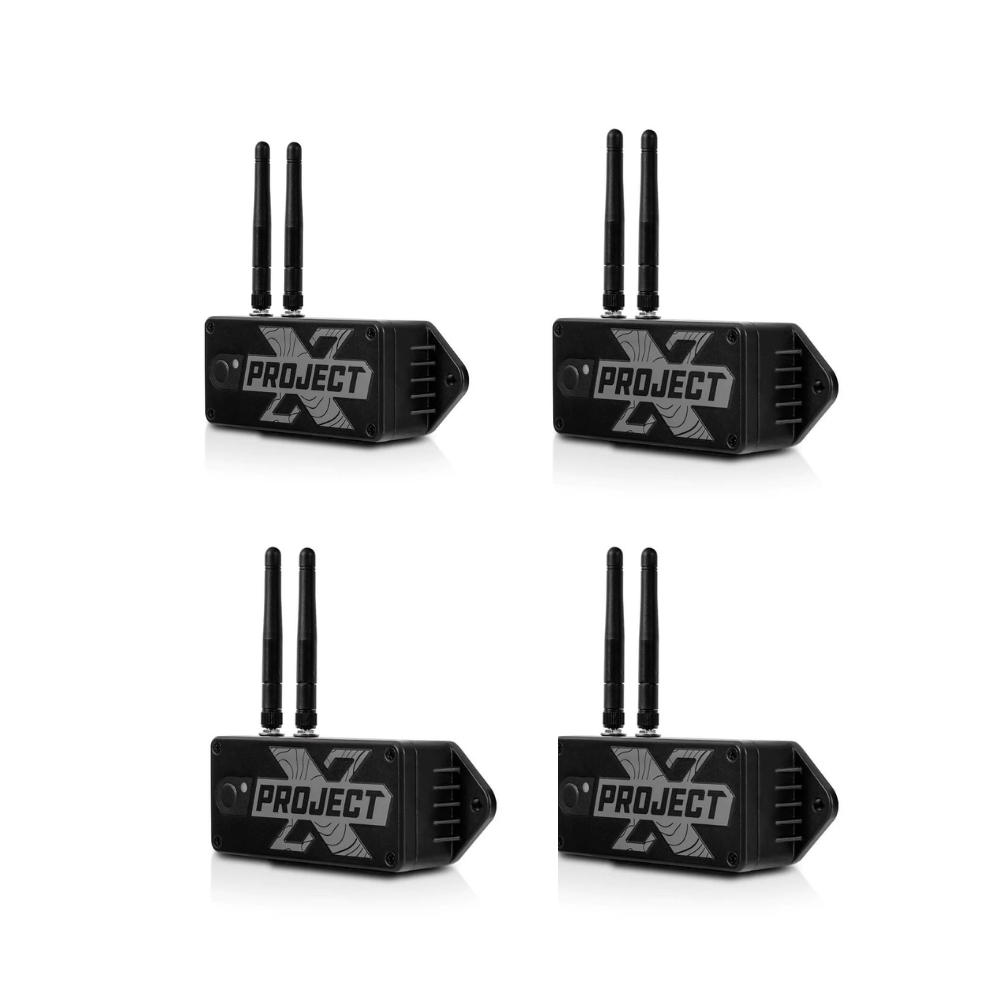

EXPAND YOUR CONTROL : Add up to 24 control modules across your vehicle, trailers and other equipment to link your system together as needed. Intuitively connect your vehicle accessories the same way you would sync any Bluetooth product to integrate into your PROJECT X ecosystem.
Wireless Accessory Control Ecosystem
➤ Fully Customizable Ecosystem : The PROJECT X Ghost Box allows you to create a fully customizable ecosystem using our PROJECT X app. Create lighting scenes, preset colors, control groups, timers and more.
➤ Make Any Accessory Smart : Add your Ghost Box control module to any accessory power harness to wirelessly integrate it into the PROJECT X ecosystem.
➤ Wireless Control : Wirelessly connect all your Ghost Box control modules to the optional keypad via 2.4GHz RF Wireless and without having to route wires into your cab – simply tap the optional control pad to power and go!
➤ Dual Circuit : Utilizing both Bluetooth and RF Wireless, the Ghost Box system gives you a reliable connection to your vehicle accessories ensuring your control is never severed.
Keypad
➤ Maximum Function, Minimum Hassle : The PROJECT X Ghost Box keypad allows you to expand your Ghost Box ecosystem to wirelessly control up to 8 connected accessories with a physical switch.
➤ RGB Backlit : Individually customize each button with their own unique RGB colors through the PROJECT X App.
➤ Wireless Control : Wirelessly connect all your Ghost Box control modules to your control pad via 2.4GHz RF.
Wireless Accessory Control Ecosystem
➜ POWER
Input Voltage : 9-16V | Output Voltage : 9-16V
Output Maximum Current : 40A @12V DC | Output Maximum Power : 480W @12V DC
➜ TEMPERATURE
Operating Temp : -22°F to 149°F | Storage Temp : -40°F to 185°F
➜ CONSTRUCTION
Waterproof Rating : IP64
Wireless Frequency : 2.4 GHz RF Wifi & Bluetooth 5.0
Wireless Range (RF Wifi) : 98.4 Feet (without interference or obstruction).
Wireless Range (Bluetooth) : 33 Feet (without interference or obstruction).
Dimensions : 6.7in x 3.4in x 3.4in
Keypad
➜ POWER
Input Voltage : 9-16V
Maximum Current : 0.075A @12V DC | Maximum Power : 0.9W @12V DC
➜ TEMPERATURE
Operating Temp : -22°F to 149°F | Storage Temp : -40°F to 185°F
➜ CONSTRUCTION
Waterproof Rating : IP64
Wireless Frequency : 2.4 GHz RF Wifi & Bluetooth 5.0
Wireless Range (RF Wifi) : 98.4 Feet (without interference or obstruction).
Wireless Range (Bluetooth) : 33 Feet (without interference or obstruction).
Dimensions : 4.8in x 2.9in x 0.7in
➜ 1-year limited warranty against defects in material and workmanship.
