Name: 2005-2015 Toyota Tacoma | Reference 500 | Double Cab Sound System
Brand: OEM Audio Plus
SKU: TYT-TCD-REF504-0515
Price: 1649.0 USD
Availability: InStock

2005-2015 Toyota Tacoma | Reference 500 | Double Cab Sound System

$ 1,649.00

Quantity

CURRENT ESTIMATED LEAD TIME IS 14-21 BUSINESS DAYS

Built-in-batches

The Reference 500 transforms your ’05-15 Toyota Tacoma Double Cab into a finely tuned concert hall, providing unparalleled clarity and loudness. Delivering ever-present bass without impeding vocals: amplifier(s) , speakers, & subwoofer(s).

Clean Crisp Clear: Refining the sound is a process on its own. Objective adjustments take you only so far. The ultimate test is our ears, as the final sound is only achieved through extensive listening sessions amongst company peers. What you’re hearing is OEM Audio Plus.

✔ Speakers:
Superior dynamics, blending and low frequency response
Engineered for the perfect fit (drop-in installation)
Cutting edge performance w/ carbon fiber cone & neodymium magnet
✔ Subwoofer:
All the emotional weight of your music
14-liter sealed fiberglass cabinet
Installs seamlessly using factory hardware locations
Non-invasive design preserves all usable space
✔ Amplification:
Highly efficient Class HD Speaker Amplifier
Powers and remasters all speakers + subwoofer
Superior dynamics, volume, and impact
360 Watts RMS (Continuous / @ 2-ohms)
Subwoofer Amplifier (Optional)
Subwoofer gain control knob.
320 Watts RMS (Continuous / @ 4-ohms)
✔ 64-Bit Digital Signal Processing:
Calibrated to deliver high-resolution audio upon plug in
You can expect seamless, full-range, detailed sound reproduction
Extremely powerful 64 bit processing power and sound optimization
295 MHz DSP Chip | Class HD Topology

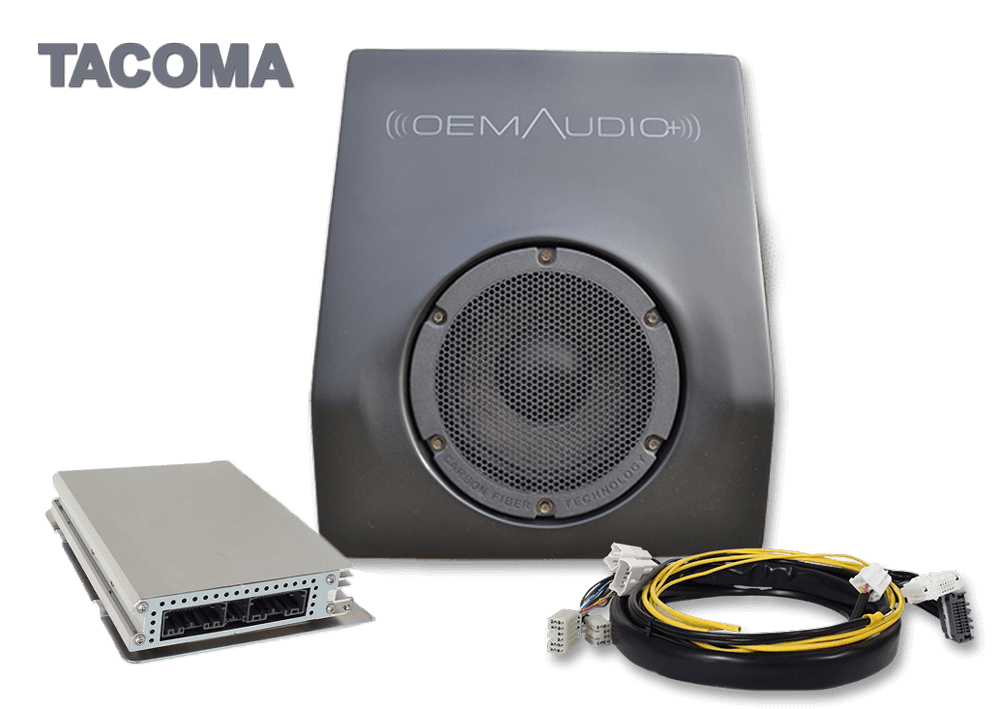

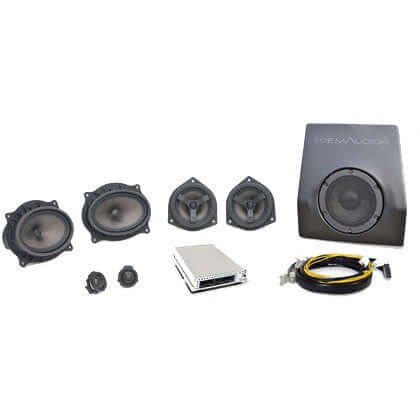

Included:
✔ Reference Series Multi-Channel Amplifier
✔ Quick-Sync Wiring Harness
✔ 2005-2015 Tacoma-Specific Subwoofer System (*Dual Option*)
✔ Dedicated Subwoofer Amplifier w/ Gain Control Knob (*Optional*)
✔ Front 1″ Soft Dome Tweeter
✔ Front 6″ x 9″ Carbon Fiber Woofer
✔ Rear 6.5″ 2-way Coaxial Carbon Speakers

Fitment: 2005-2015 Toyota Tacoma

Installation Guide:

➤ MULTI-CHANNEL 64-BIT DSP POWER AMPLIFIER
360 Watts RMS (Continuous / @ 2-ohms)
Cirrus-Logic 64-Bit Digital Signal Processing
Real-time system diagnosis for trouble-free operation
Meets all OEM standards including AEC-Q100
➤ QUICK-SYNC WIRING HARNESS
Maintains all factory functionality
Constructed of genuine OEM connectors
Fuse Holder Assembly is element proof butt-connectors w/ built-in solder
< 4lbs / 1.8kg
➤ 2005-2015 TACOMA SPECIFIC SUBWOOFER SYSTEM (*DUAL OPTION*)
8″ Quad Voice-Coil Subwoofer
Genuine Carbon Fiber Cone Woofer
100W RMS (200 Peak)
Sensitivity 88.9 dB (1 W,1M)
Frequency Response: 20 -1000 Hz
➤ DEDICATED SUBWOOFER AMPLIFIER* (OPTIONAL)
Adds More Headroom + Low-Frequency Extension
500 Watts RMS
Class D (95% efficient)
Includes Gain Control Knob for precision adjustability
*Can be added in the future seamlessly
➤ FRONT 1″ SOFT DOME TWEETER
Silk soft dome
4-ohms
50W RMS (100 Peak)
Sensitivity 91.8 dB (1 W,1M)
Frequency Response: 3,000-20,000 Hz
Built-in 6db/Oct. High Pass Filter
Neodymium Magnet Structure
➤ FRONT 6″ X 9″ WOOFER
Carbon Fiber Cone Woofer
2-ohms
50W RMS (100 Peak)
Sensitivity 90.2 dB (1 W,1M)
Frequency Response: 50-12,000 Hz
➤ REAR 6.5″ 2-WAY COAXIAL SPEAKERS
Featuring 1″ Tweeter
Carbon Fiber Cone Woofer
2-ohms
50W RMS (100 Peak)
Sensitivity 90.2 dB (1 W,1M)
Frequency Response: 55-20,000 Hz

30-day Satisfaction Guarantee & 3 Year Warranty
Each of our Sound Solutions is made specifically for you based on your provided configuration notes when submitting your order. None of our products are mass-produced. Lead Times Are Estimates. ALL OEM AUDIO PLUS SALES ARE FINAL, NON-REFUNDABLE, & NON-CANCELABLE.

Please check our Terms & Conditions Here
