2005-2022 Toyota Tacoma Soft Top Compatible Truss Bed Rack
LEAD TIME IS 3 WEEKS
Pairs well with

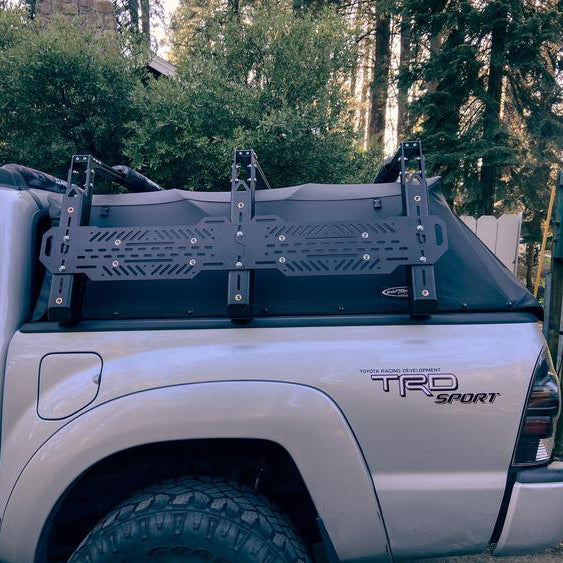

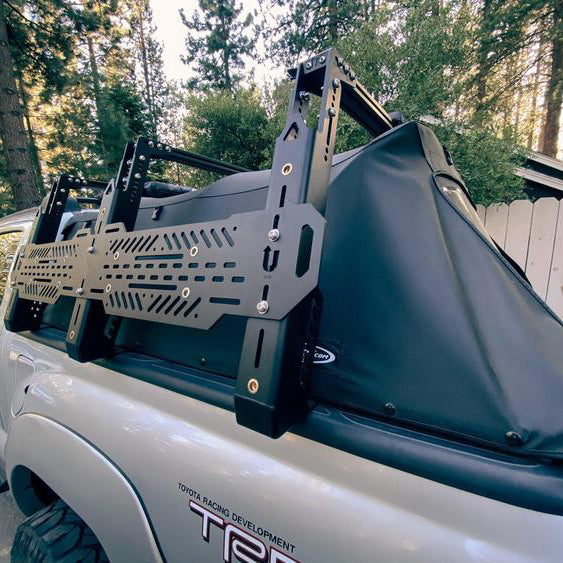

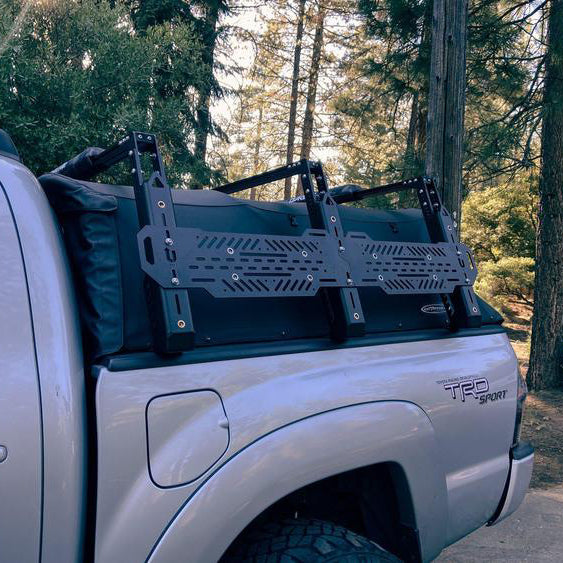

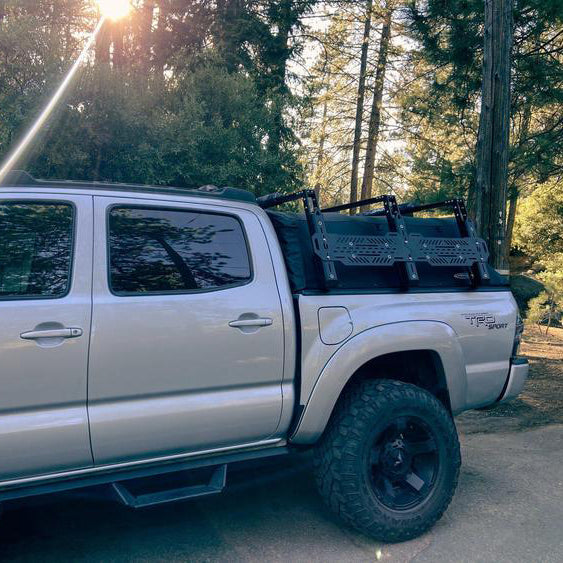

Fully built out of aluminum our bed rack is strong, lightweight, and fits perfectly on your Tacoma over your soft topper! This rack is durable enough to mount a rooftop tent without sacrificing removing your soft topper. It is offered with adjustable height legs and with a one size fits all design we cover both short and long bed owners!
All upTOP TRUSS systems come complete with load-bearing armor plates for both sides that are pre-drilled in the perfect locations for mounting all your adventure and recovery gear. You'll find provisions for Maxtrax, Rotopax, Quick Fists, and Waterports. There are enough slots to allow you to attach just about anything else you can drum up a reason to take into the great unknown!
THIS SYSTEM ALLOWS THE OPERATION OF SOFT TOPPER MOTION ON THE SHORT BED MODELS ONLY. LONG BED/FULL-SIZE FITMENTS WILL NOT ALLOW THE MOTION OF THE TOPPER DUE TO INTERFERENCE WITH THE REAR LOAD BAR.
NOT COMPATIBLE WITH EX CAP RACKS.
TRUSS HEIGHT = (MEASURED FROM BED RAIL TO TOP OF LOAD BAR). ADJUSTABLE FROM 21.25"-24.25".
NOTE: THE TRUSS SYSTEMS SIT ON YOUR EXISTING PLASTIC BEDSIDE RAIL CAPS UNDER THE THE SOFT TOP MOUNTING RAILS AND BOLTS INTO THE FACTORY CARGO SLIDES LOCATED INSIDE YOUR TACOMA BED. ALL HARDWARE, WASHERS, AND THREADED INSERTS ARE INCLUDED WITH THE KIT.THE
MIDDLE LOAD BAR MUST BE REMOVED TO OPERATE THE SOFT TOPPER. DESIGNED TO OPERATE WITH FRONT AND REAR LOAD BAR ONLY. DYNAMIC WEIGHT LOAD IS 300 POUNDS AND STATIC WILL EXCEED THE BED RAILS. PLEASE LOAD RESPONSIBLY.
INCLUDED
- (6) Adjustable Height Legs
- (4) Side Armor Plates
- (2) Maxtrax Mounts
- (3) Load Bars
- (6) Mounting Pressure Washers
- (1) All required fasteners, washers, lock nuts, and spacers are included in the kit.
NOT INCLUDED
- SOFT TOP COVER, UPTOP EX OVERLAND RACK, LIGHTING, TRUCK, TENT, TREES, AS WELL AS ANYTHING NOT LISTED ABOVE.
CURRENTLY, ALL LOAD-BEARING ARMOR PLATES AND ALL UNITS WILL SHIP STEALTH BLACK. FOR CUSTOM OFFERINGS ON FINISH CONTACT US VIA THE LINK ON OUR HOMEPAGE AND A SPECIALIST WILL WORK WITH YOU TO ACCOMMODATE COLOR REQUESTS.
