$ 130.00

Share this product on:

DETAILS:

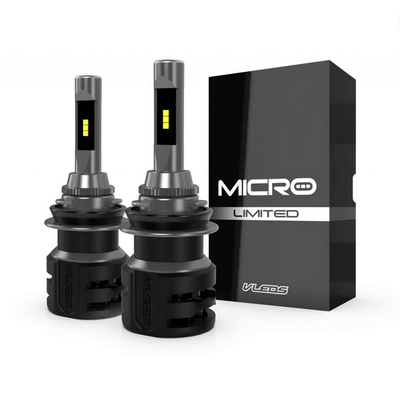

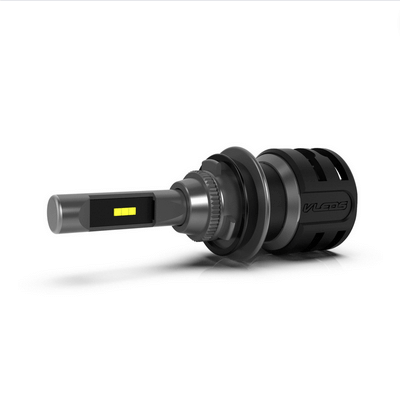

Even Smaller Micro Introducing the Micro Limited! Using our years of experience with the Micro Evolution we have developed something even smaller in size but still capable of producing as much output as a 25W HID system. Due to its even smaller size and efficient thermal management, it can even be used in tight-fitting sealed low beam headlights or fog lights!

Choices The market is flooded with sub-par products and it's hard to know what to buy. The looming question is, will it fit? Is it bright enough? Is the color going to be right? The Micro Limited answers YES to all of the above! It's really the perfect lower output choice for headlights, fog lights, open reflector, projector, and especially tight fitment sealed back housings. If you have to remove a cap or cover to get to your bulb the Micro Limited is guaranteed to fit!

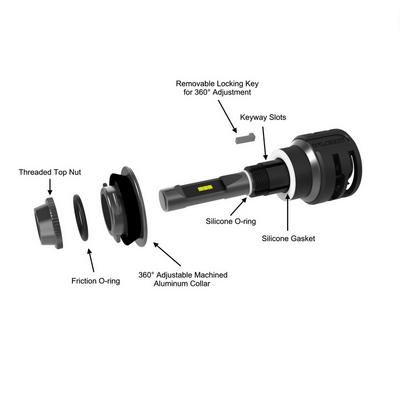

Fitment The Micro Limited is the smallest, highest output LED replacement of its kind ensuring both a perfect fit as well as superior performance. Installation is simple with its plug-and-play design, and super small in-line driver. The bulb can also be indexed a full 360 degrees for perfect fitment in offset housings.

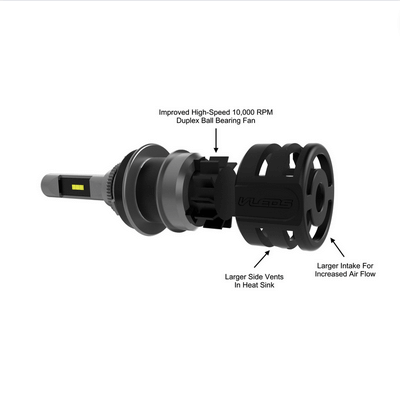

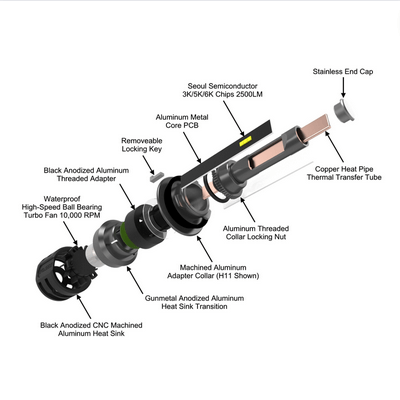

Efficient Perfect thermal management is achieved by utilizing both a copper heat pipe inside a 6063 aluminum shell. Heat dissipation is managed using an enclosed waterproof high-speed turbofan. Not for use in high/low beam DRL applications that operate at less than 8V.

KEY FEATURES:

  • Moderate Output 2500LM actual output (per bulb) on par with a 25W HID bulb

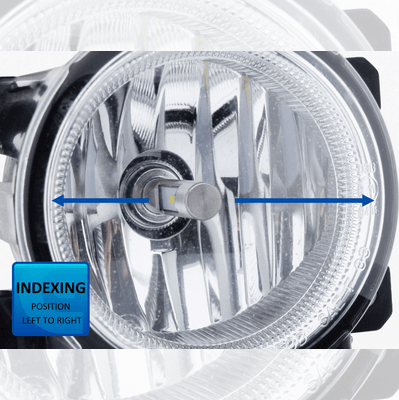

  • Indexing LED direction is infinitely adjustable for optimal output in a variety of housings
  • Color Temp Available in 3000K, 5000K, or 6000K color temperature
  • Housing Type OK for use in all types of housings

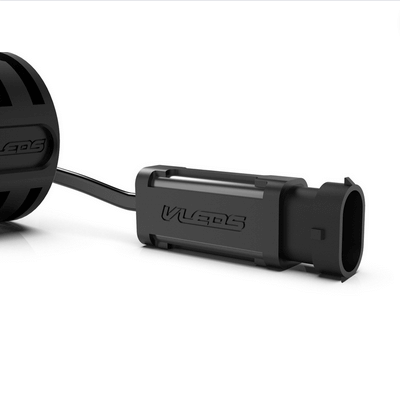

  • Molded Plug Fits perfectly into factory connectors
  • Driver 8-32V constant current driver
  • Voltage 8V minimum operating voltage
  • Waterproof driver and connectors level IP68
  • Lifespan: More than 30,000 hrs in 25°C ambient

SPECIFICATIONS:

  • BASE NUMBER H11
  • SERIES Micro Limited
  • OUTPUT 2500LM CURRENT DRAW @ 14.4V 1.4A
  • OPERATING VOLTAGE 8-18V
  • LIGHT SOURCE SS Y19 / ETI (3K)
  • CHIP QUANTITY 6

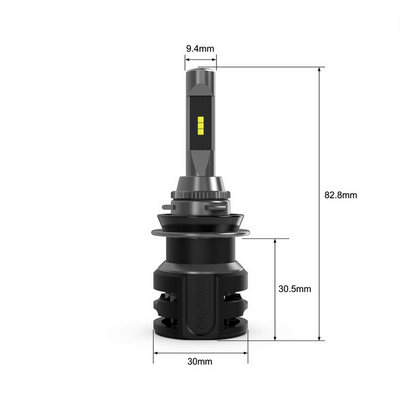

  • DIMENSIONS 30mm Diameter CONTACT MATERIAL Nickel Plated COMPATIBLE BASES H11, H11B, H11SU, H11ST, H11XV, H16, H8, H9, PGJ19-2, PGJ19-1, PGJ19-5

ACCESSORY INFO:

  • RUBBER CAPS Some housings with dust caps do not have enough clearance. These rubber housing caps allow the stock housings to stay waterproof while providing adequate airflow for the high-speed fan.
  • ANTI-FLICKER ERROR CANCELLERS These may be required for the headlight and fog light applications on vehicles with CANBUS, PWM, or bulb out warning systems to prevent flickering or error messages when LEDs are installed. Simply installs between the factory connector and the Micro LED bulb. Sold separately.

COLOR OPTIONS:

WHAT COLOR SHOULD I GET FOR MY HEADLIGHTS OR FOG LIGHTS?

5K and 6K color temperatures are most suitable for roadway use and provide ideal conditions for the human eye: Drivers enjoy greater contrast and tire less quickly. Along with their high level of efficiency, LED headlights also offer significant benefits in terms of safety and comfort. 6K light resembles daylight and hardly causes any eye fatigue – especially in the dark and in the case of adverse weather conditions. In addition, LED headlights offer a longer visual range than xenon headlights. 3K is best in fog and precipitation as they cause driverless glare.

Because both 5K and 6K perform extremely well it ultimately comes down to personal preference. 6K offers a more luxurious or high-end look whereas 5K a more OE factory look. As you can see from the color chart below we offer 3K, 5K, and 6K color options. Our 3K is referred to as Ion Yellow as it does not have an amber or orange tint to it. 5K is pure white (best match to factory LED parking and DRL lights), and 6K is white with a tint of blue.

CAN I GET A PERFECT MATCH TO MY HID OR EXISTING LED BULBS?

It's nearly impossible to get an EXACT match in color temperature because of variations in the manufacturing of all the different HID and LED products.

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
m
marin mork
Very impressed

I drive mainly dark roads at night when driving home from work at 3 o clock in the morning.

These lights are bright and clear without stock high beams needed.
